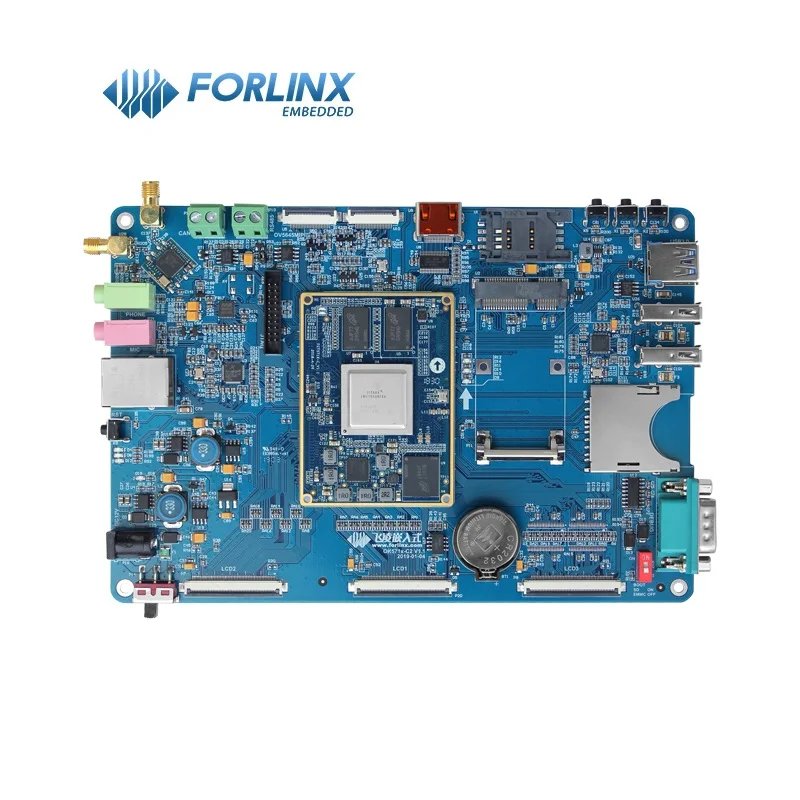

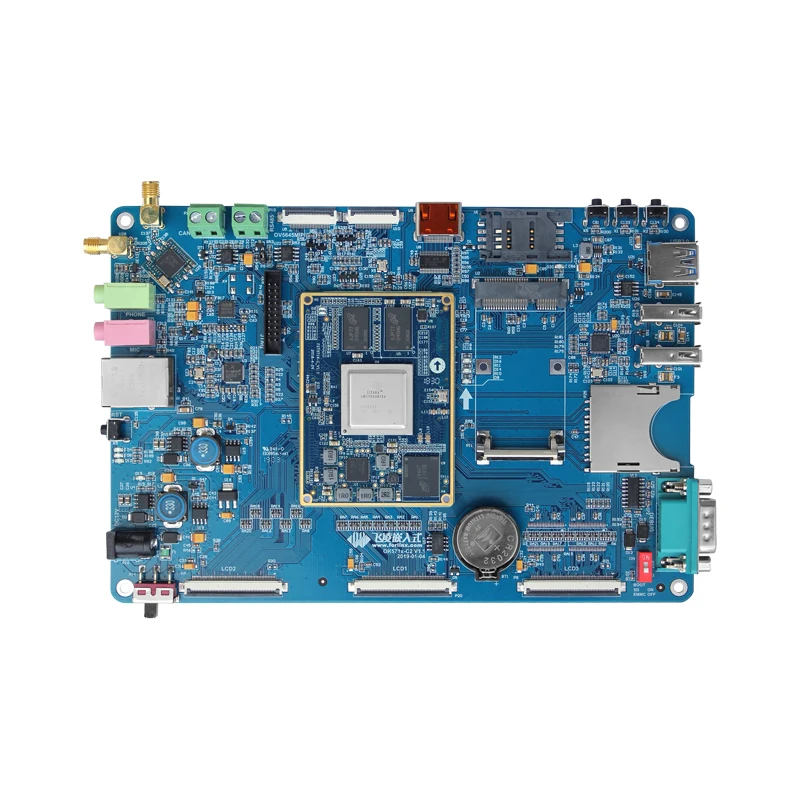

OK5718-C2 is a development board designed based on TI AM5718 processor, it consists of carrier board and SoM (system on module) and has below features

★ Cortex-A15, frequency up to 1.5GHz;

★ DSP C66x with frequency of 750MHz

★ 2x dul-core ARM Cortex-M4 with frequency of 213MHz;

★ 2x dual-core PRU with frequency of 200MHz;

★ High-speed transmission interfaces like USB 3.0, PCIe 3.0, HDMIv1.4, UART*10, QSPI*1, CAN*2, Gagibit Ethernet*2 are available and also

powerful multi-media performance, wide range of applications;

★ OS options: Linux 4.9.41 + QT5.6, TI-RTOS;

★ 12-layer EINT PCB designing;

★ the development board consists of carrier board and SoM, and the carrier board designed with 4-layer PCB and SoM with 12-layer PCB;

★ carrier board dimensions of 130*190mm, and connector hight between SoM and carrier board is just 2mm

★ SoM with 320 pins that all functions of CPU are available;

★ Industrial grade temp width: -40℃ to +85℃

Demos including command line and QT demos such as OpenCV, OpenCL, OpenGL demos, and also DSP and PRU environment build up and development demos

The development board is integrated with SGX544 3D and GC320 2D GPU which are applicable for senior graphic UI, meanwhile, Cortex-M4 GPU IPU2 is specially used in IVA image and video hardware codec
perfectly supports H.264, MPEG4 multiple encoding forms and video hardware decode playing, supports multiple video together with decoding playing, multiple decoding channels up to 1080P@60FPS, supports MJPEG iamge hardware codec, and also the VPE can well support hardware image, video zooming and color spacing converting.

Super-high speed full-duplex USB3.0, high-speed full-duplex USB2.0, and Gigabit Ethernet with separate MAC are all

available(can support USB3.0 industrial camera and Gigabit webcam, with superior collecting and display frame rate which can be widely used in 3C product manufacturing, auto industrial, food processing, medical and other related industries)

MIPI5640 and MIPI 5645 cameras are both supported and available for 1080P, 720P for photo taking, previewing and video recording

OPENCV3.1.0, OPENGL5.6.1, OPENMP1.5.3 and OPENCL1.1.14 are all supported with demos of edge computing, video processing, 3D and facial recognition.

The AM57X could be widely used in insutrial communication, HMI,factory automation, building automation, machine vision, medical image, measuring, auto multimedia, etc.

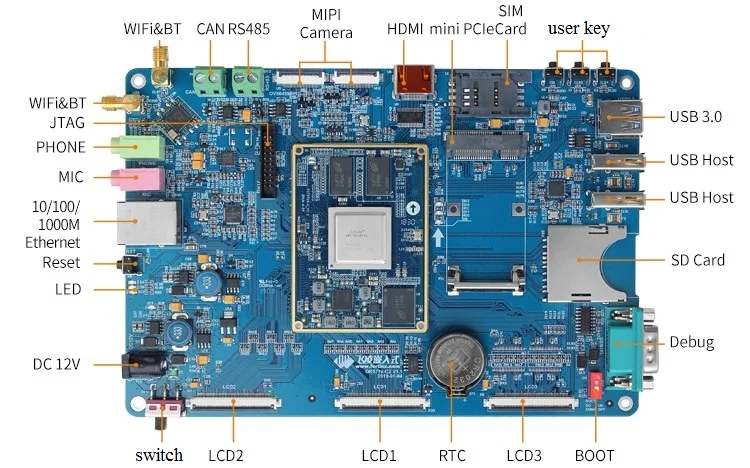

Hardware Features

generally, the goods could be packed by box or carton depends on different order volume.

goods could be dispatched by express or air logistics solution
