Заводская цена сертификат CE новый тип Кокосовая оболочка непрерывный вращающийся барабан деревянные стружки печь для карбонизации

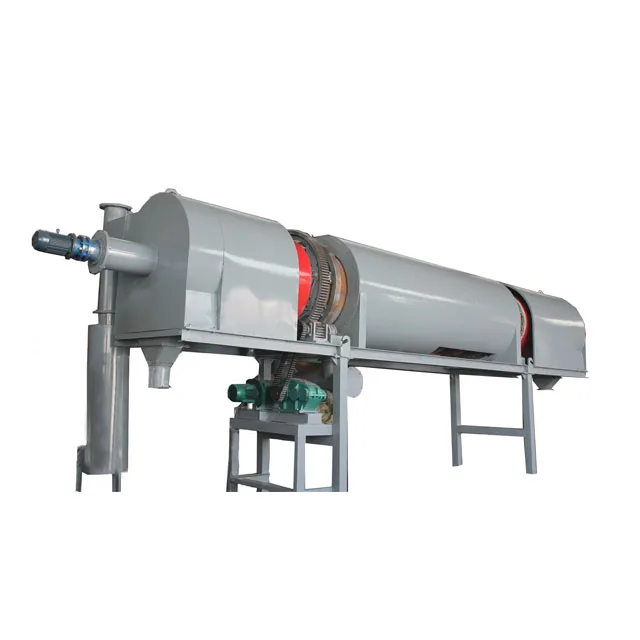

Wood chips coconut shell continuous carbonization furnace

The continuous carbonization furnace is mainly used for the carbonization of biomass materials. The equipment is still using the principle of gasification carbonization and adopts advanced smoke-free environmental carbonization process:The whole set of equipment consists of gasification system (liquefied gas gasification machine), purification system (spray tower, cyclone dust removal, water cooling, oil water separator, fine filter) and control system (control cabinet). The whole carbonization process is automated production, automated operation.

Different from the energy-saving and environmentally-friendly continuous carbonization machine, it has two significant advantages: First, the main machine has a large volume, high carbonization rate, and strong production capacity, and can be produce 0.3-0.8 tons of carbonized products per hour;

Second, the cost is low and the practicability is strong, which satisfies the objective requirements of the initial small entrepreneurs' investment and small benefits. The carbonization machine is a carbonized wood material such as wood chips, rice husks, peanut shells, plant straws, bamboo chips, coconut shells, palm shells, bark, etc. (volumes of less than 10 cm in size) are subjected to dry distillation under high temperature conditions in the furnace, Ideal equipment for oxygenation and high carbonization rates.

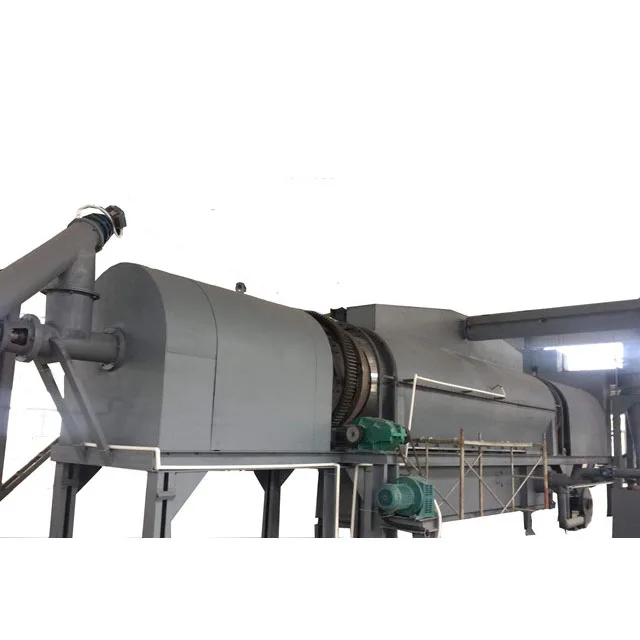

drying and carbonizing all-in-one machine
1.Water seal valve 2. Continuous purification device 3. Induced draft fan 4. Gas pipeline 5. Mainframe 6. Cooling discharge device 7. Power plant 8. Combustion device 9. Gasifier10.Water spraying 11. Feed conveying 12.Host water spraying

Specifications

1.Supply to USA,Europe,and Austrilia
2.Matrial:356T6/ADC12
3.Professional Perfomance Auto parts supplier
4.Ford Engines

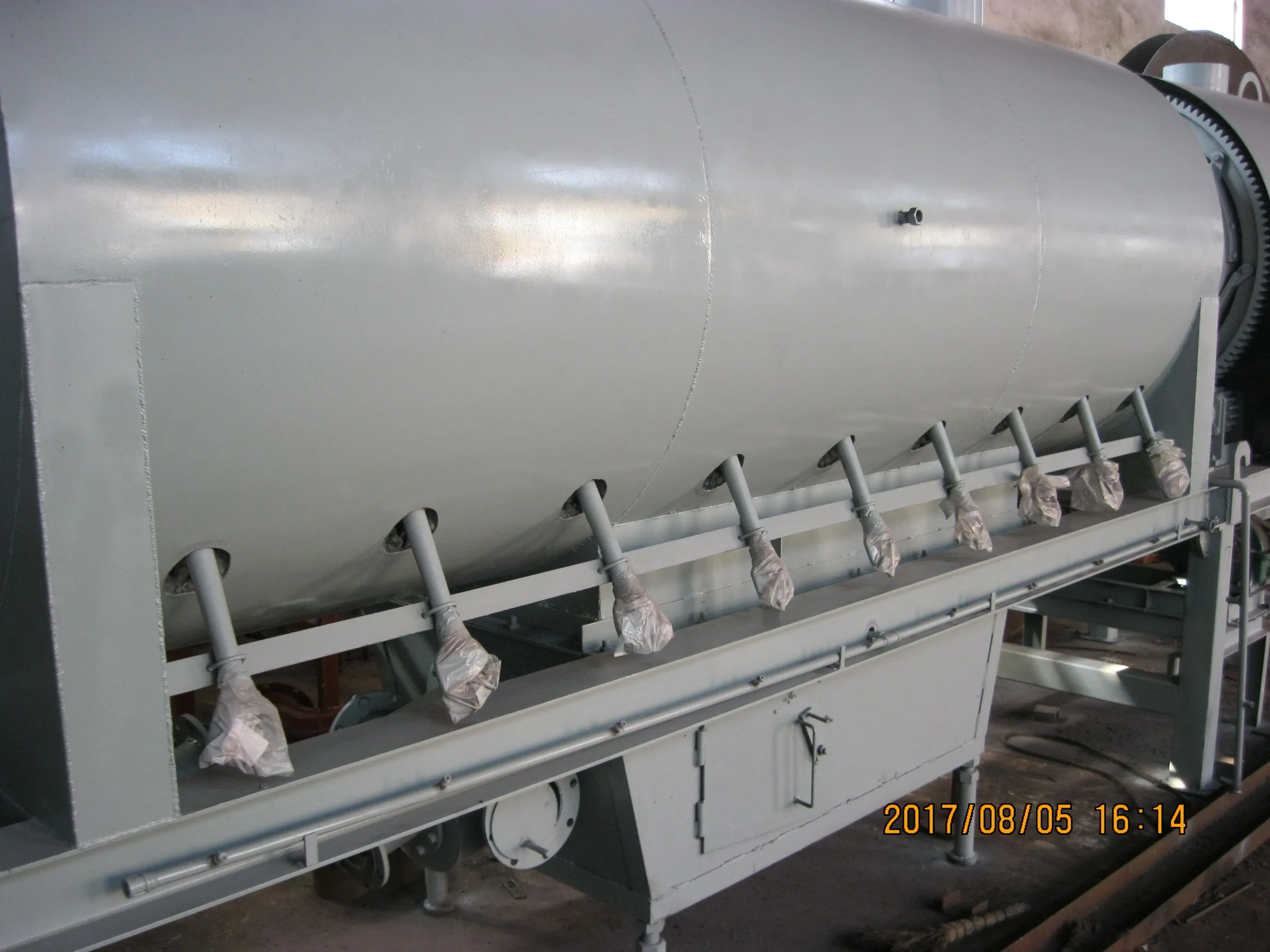

Ignition mouth

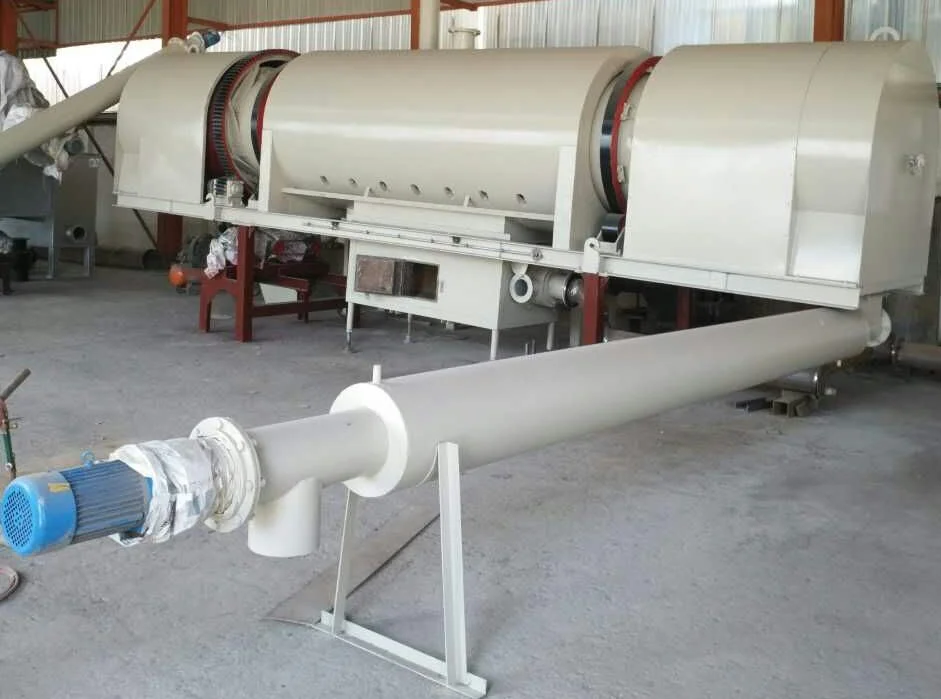

Frequency conversion motor and reduction motor

Heat the fire box (the wood tar burning pit)

Final product
