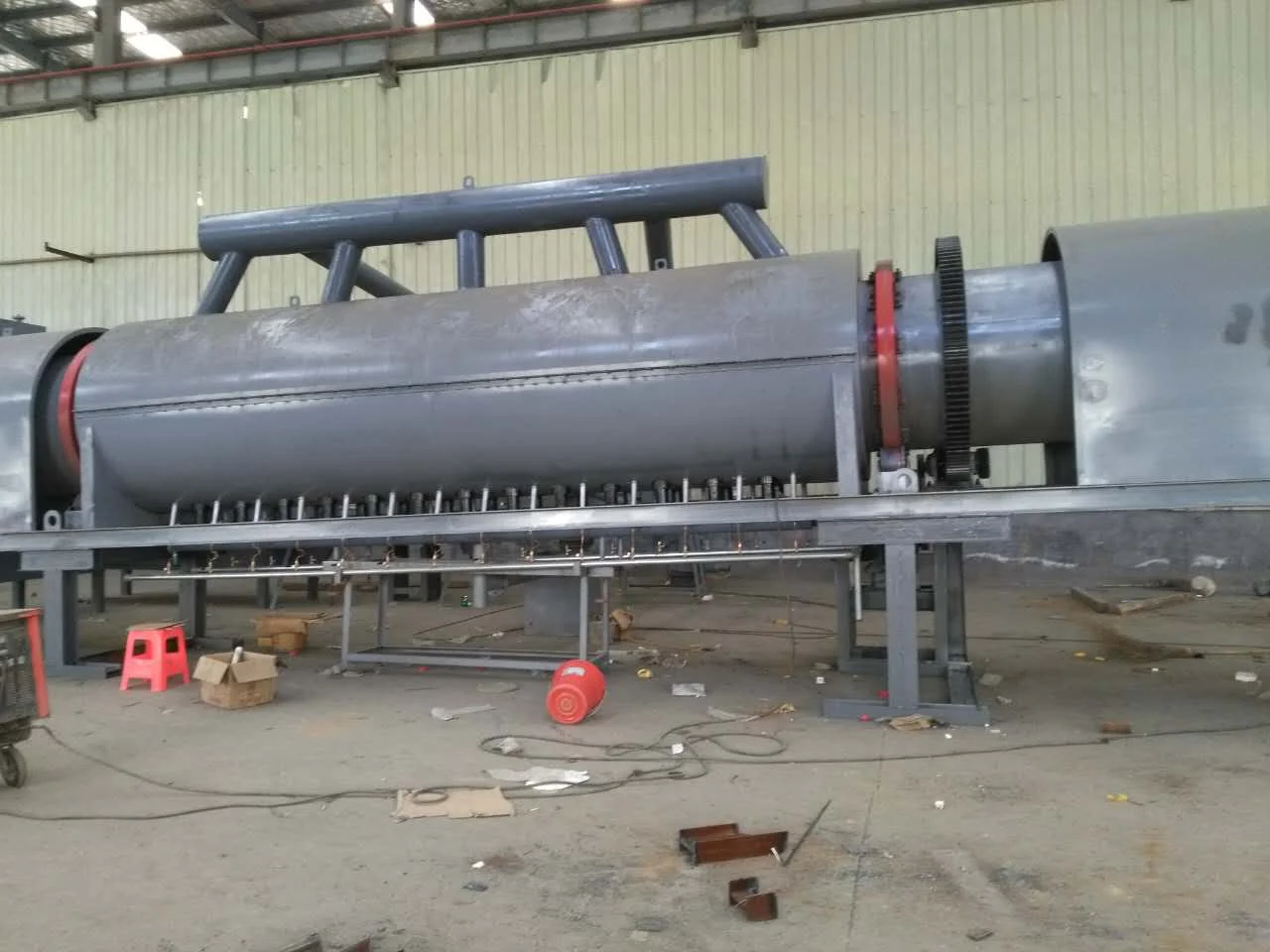

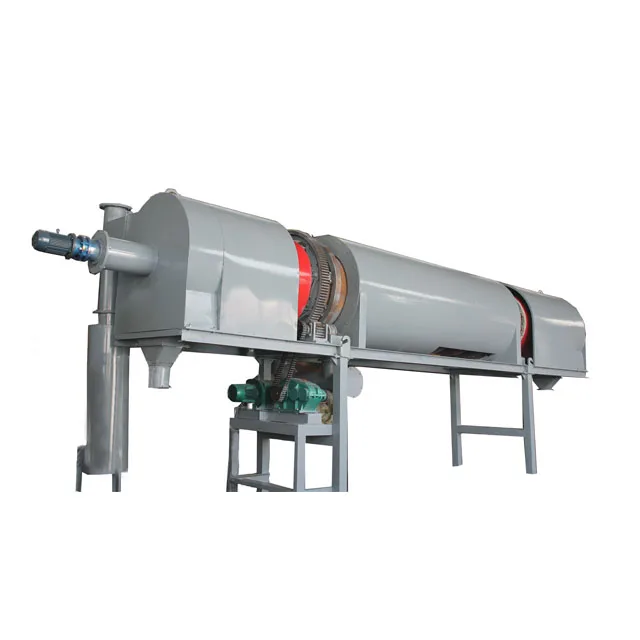

continuous carbonization machine
The continuous carbonization furnace is mainly used for the carbonization of biomass materials. The equipment is still using the principle of gasification carbonization and adopts advanced smoke-free environmental carbonization process:The whole set of equipment consists of gasification system (liquefied gas gasification machine), purification system (spray tower, cyclone dust removal, water cooling, oil water separator, fine filter) and control system (control cabinet). The whole carbonization process is automated production, automated operation.
Different from the energy-saving and environmentally-friendly continuous carbonization machine, it has two significant advantages: First, the main machine has a large volume, high carbonization rate, and strong production capacity, and can be produce 0.3-0.8 tons of carbonized products per hour;
Second, the cost is low and the practicability is strong, which satisfies the objective requirements of the initial small entrepreneurs' investment and small benefits. The carbonization machine is a carbonized wood material such as wood chips, rice husks, peanut shells, plant straws, bamboo chips, coconut shells, palm shells, bark, etc. (volumes of less than 10 cm in size) are subjected to dry distillation under high temperature conditions in the furnace, Ideal equipment for oxygenation and high carbonization rates.
Gasifier
The function of the gasifier: First, as an auxiliary product of energy-saving and environment-friendly continuous carbonization machine, its main function is to provide a gas source heating carbonization furnace host in the early stage of carbonized, that is, when the carbonization host does not produce flue gas or the generated flue gas is insufficient. The external circulation is realized; once the host generates enough flue gas, the host itself provides the flue gas to self-carbonize, thereby achieving the inner circulation.
Control System
Control cabinet, speed control table, temperature control display, frequency converter.
\t | \t | \t | \t | \t | \t | \t | \t | \t | \t |
\t | \t | \t | \t | \t | \t | \t | \t | \t | \t |
\t | \t | \t | \t | \t | \t | \t | |||
\t | \t | \t | \t | \t | \t | \t |

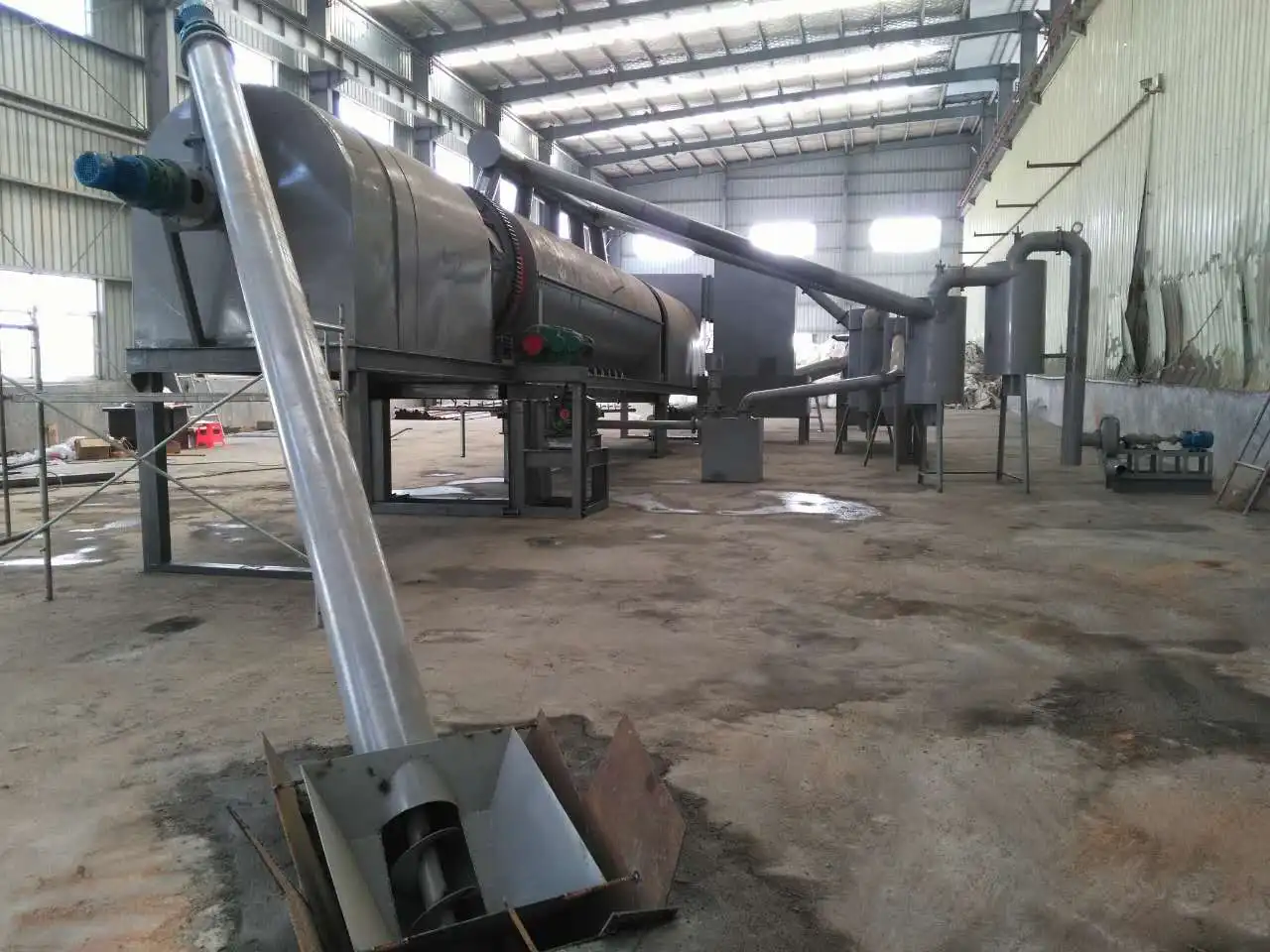

drying and carbonizing all-in-one machine
1.Water seal valve 2. Continuous purification device 3. Induced draft fan 4. Gas pipeline 5. Mainframe 6. Cooling discharge device 7. Power plant 8. Combustion device 9. Gasifier10.Water spraying 11. Feed conveying 12.Host water spraying
1.Supply to USA,Europe, Austrilia ,etc
2.Raw Matrial:wood logs/branches,coconut shell, bamboo,sawdust, nut shell, olive slag, coffee husk
3.Professional charcoal machine supplier
4.Energy -saving
Ignition mouth
Frequency conversion motor and reduction motor
Heat the fire box (the wood tar burning pit)
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
