С Cummins Stamford 30 кВА электрическая электростанция ква дизельный

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Cummins engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel

PICTURES FYI

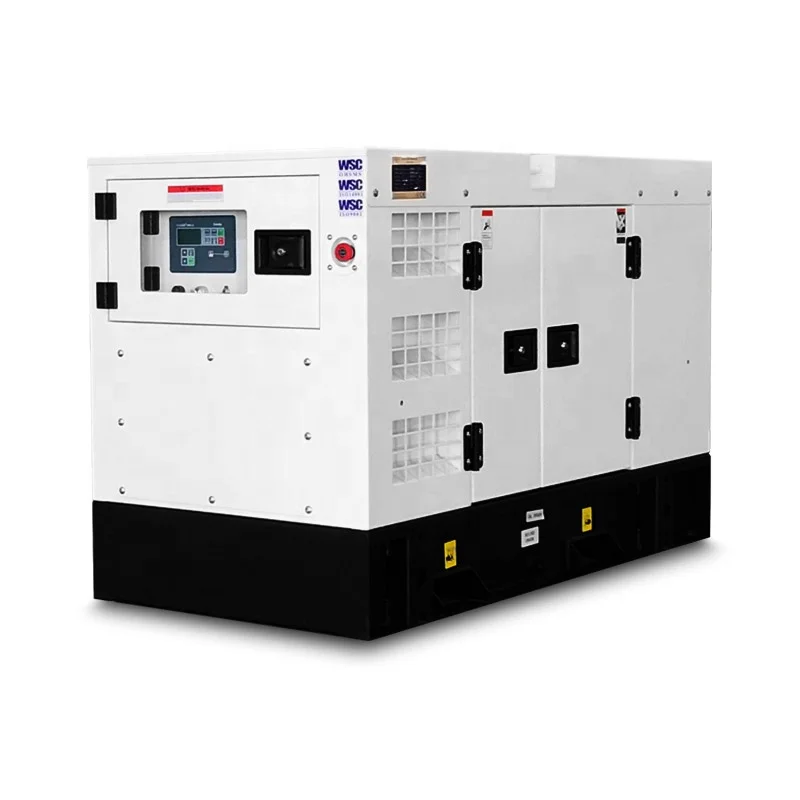

with Cummins Stamford 30 kva electric power plant 30kva diesel generator

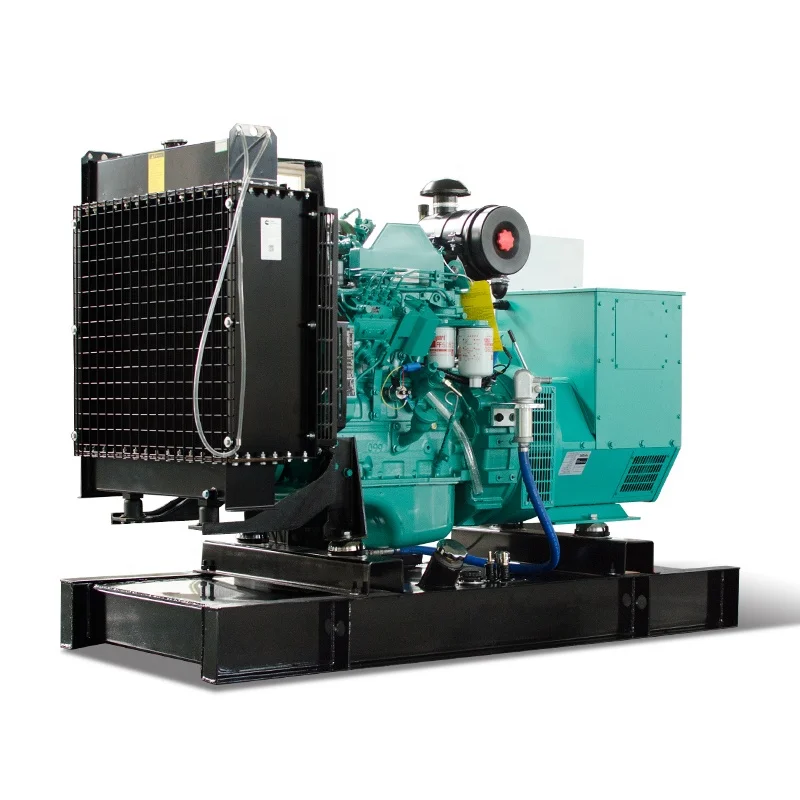

Denyo type 30kva generator with Cummins engine

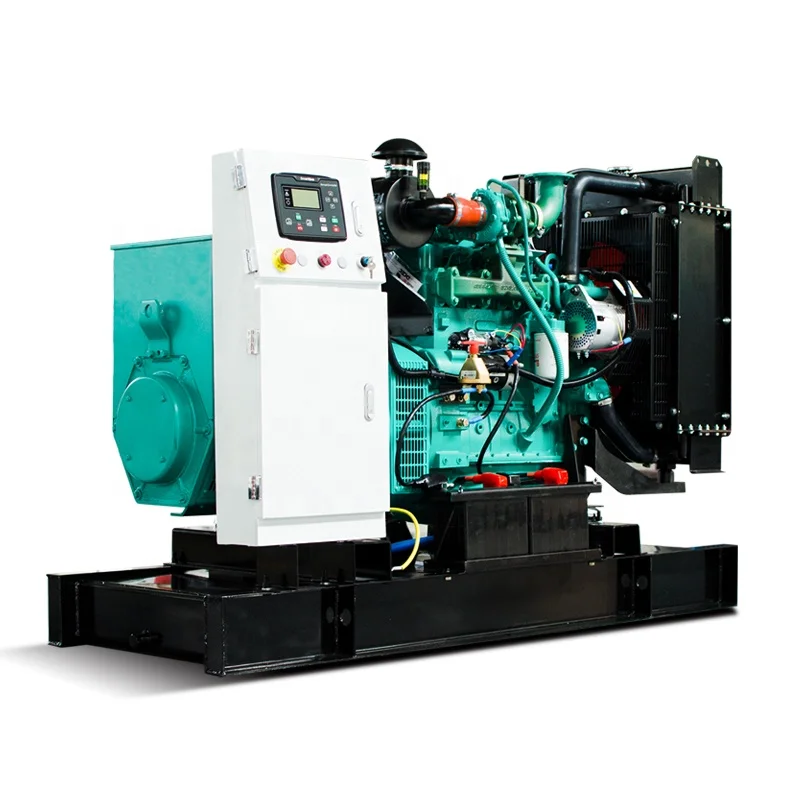

 powered by Cummins 30 kva generator open type

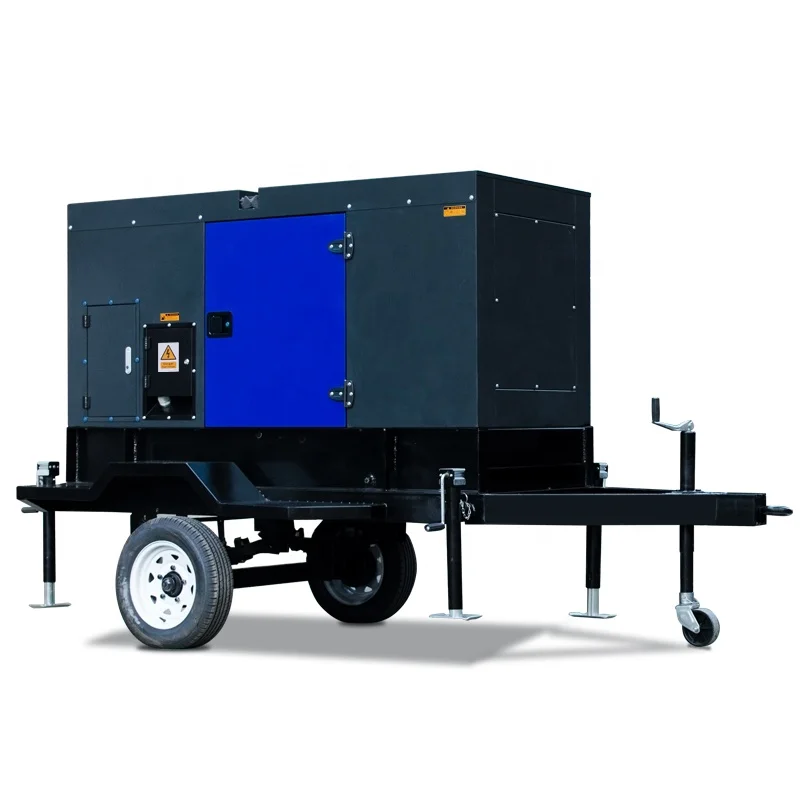

with Cummins engine and Stamford alternator 30kva diesel generator

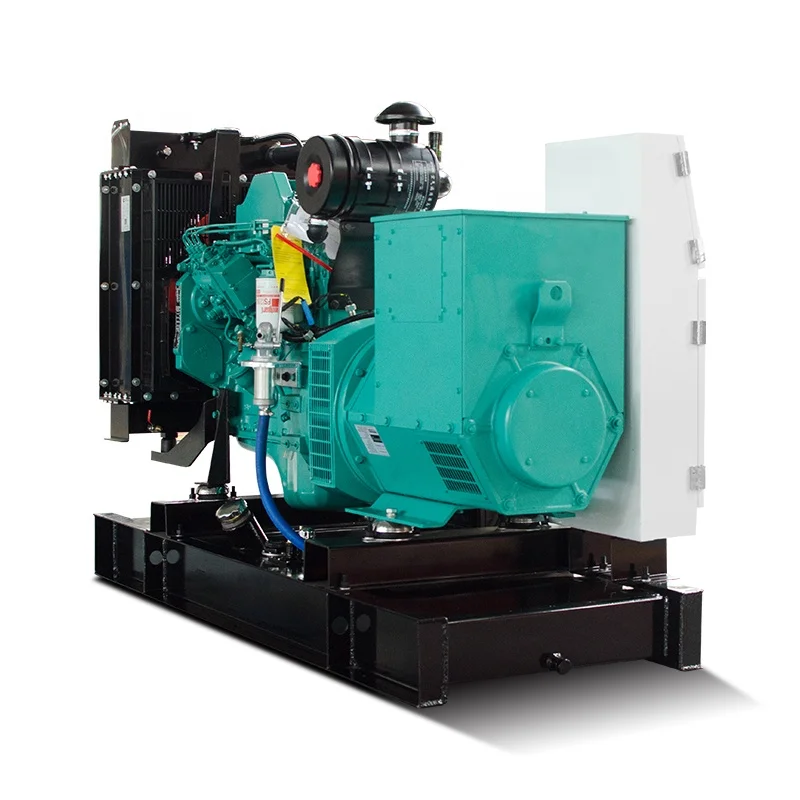

with Cummins Stamford 30 kva electric power plant 30kva diesel generator

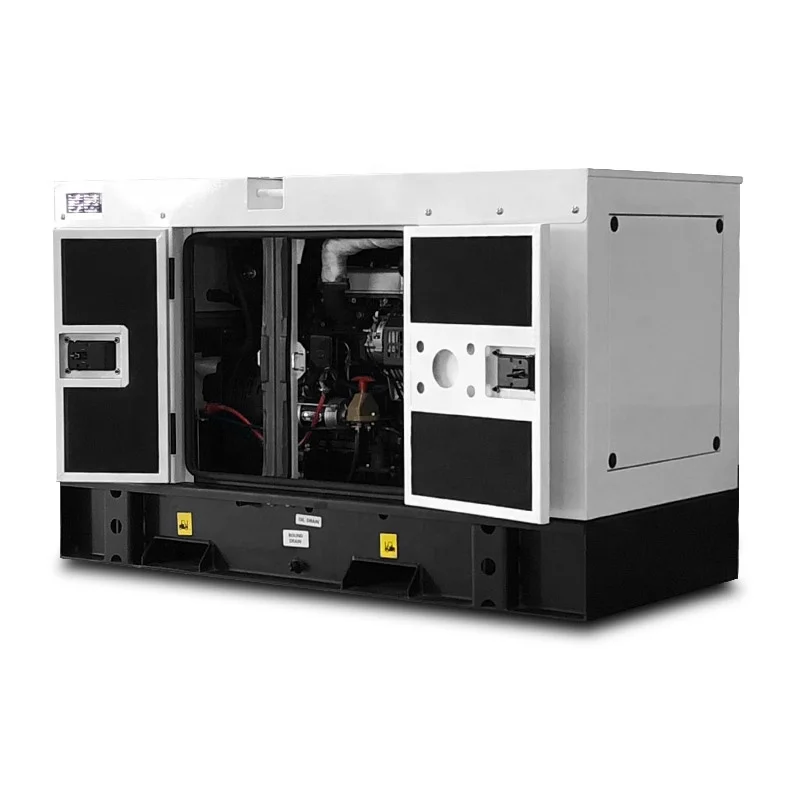

Powered by Cummins diesel engine 30kva generator

Engine Spec

with Cummins engine 30 kva electric power plant 30kva diesel generator

Engine Model	4B3.9-G2
Number of Cylinders	4cylinders, Vertical in line
Cycle	4 stroke
Aspiration	Natural
Bore×Stroke	102mm x120mm
Displacement	3.9L
Compression ratio	16.5:1
Prime Power/Speed	27KW / 1800rpm
Standby Power/Speed	30KW / 1800rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	11L
Coolant capacity (engine only)	7.2L
Fuel Consumption at 100% Load	229g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Coupled with Stamford alternator (enjoy 3 years' worldwide warranty) 30kva diesel generator

Alternator brand	Stamford
Alternator model	PI144D
Prime power	30KVA
Frequency/speed	60Hz/1800rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control Panel

  More control panel model for optional. (30 kva generator powered by Cummins engine)

Model

ComAp IL9, MRS10,  AMF20,AMF25 SmartGen HGM6110N, HGM6120N,HGM9510 DeepSea DSE6020, DSE7320, DSE8610 etc

The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts.

Standard Accessories

with Cummins engine 30 kva electric power plant 30kva diesel generator

Standard Accessories	Open type	Silent type
Sound-proof & Weather-proof Canopy	N/A	√
Daily base fuel tank. 8 hours capacity	N/A	√
Single-bearing generator again drops	√	√
Intelligent LED display control panel	√	√
Speed governor	√	√
Electric start and 24v charger	√	√
Standard air filter, oil filter, fuel filter	√	√
Cooling water tank	√	√
High-efficient silencer.	√	√
Exhaust elbow	√	√
Storage battery	√	√
Steel base-frame against vibration	√	√
Soft pipe for fuel and handle for lube going-out	√	√
Operation& Maintenance manual.	√	√

Related Info

Company Information

Jiangsu WellPower Generator, Ltd which is one of the largest diesel generator set manufacturers in China mainland.

Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.

According to your requests, they can be open type, silent type, mobile type and container type.

Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.

Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
