Заката до рассвета поворотный Фотодатчик

Описание и отзывы

Трекер стоимости

Характеристики

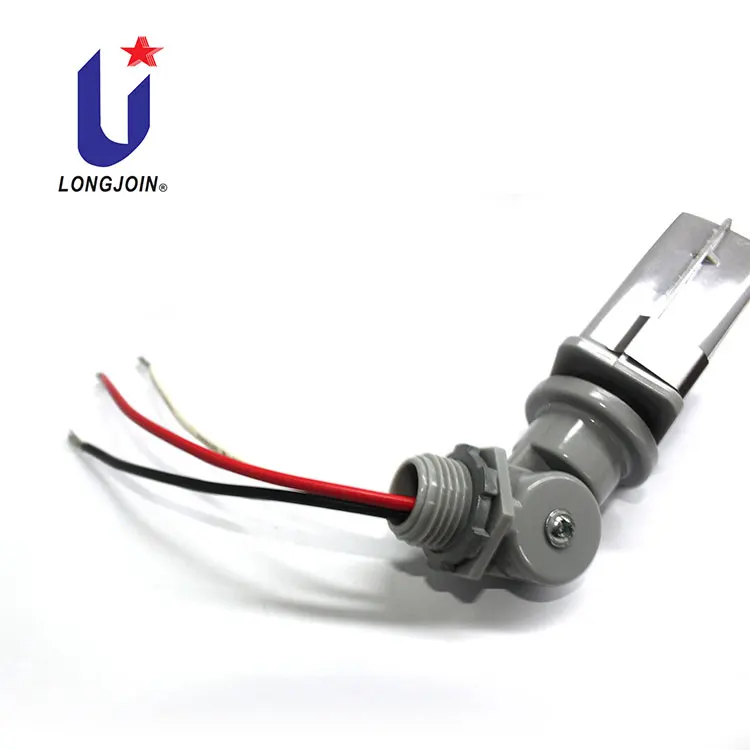

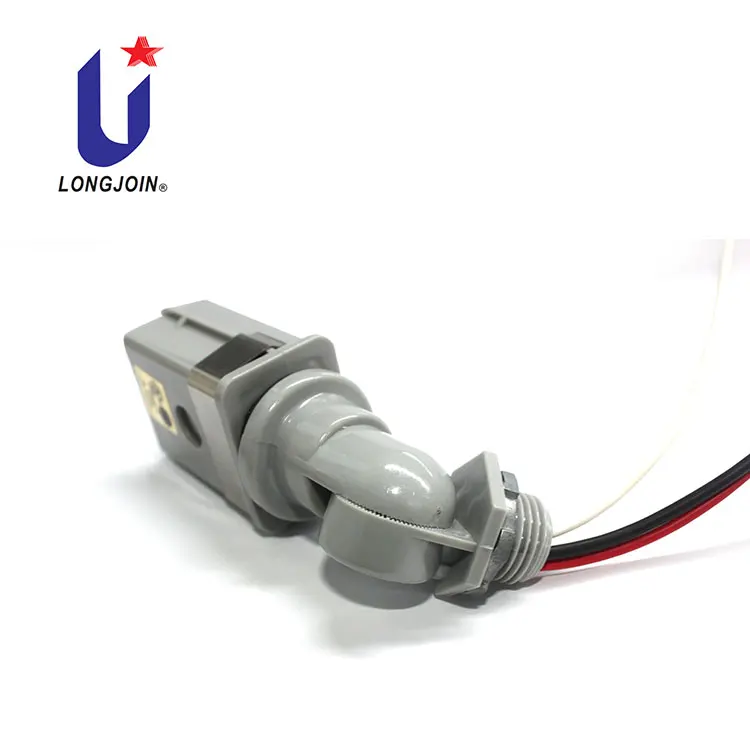

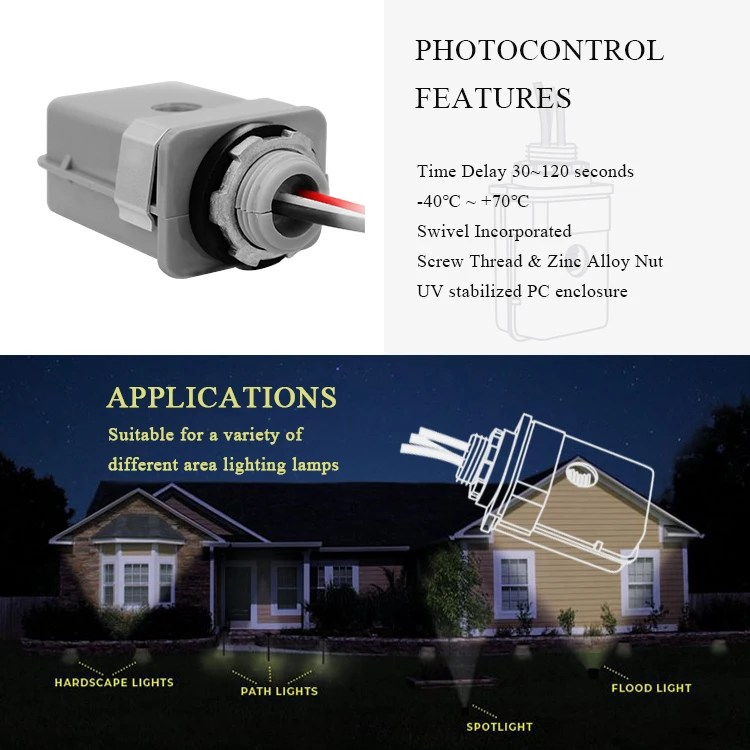

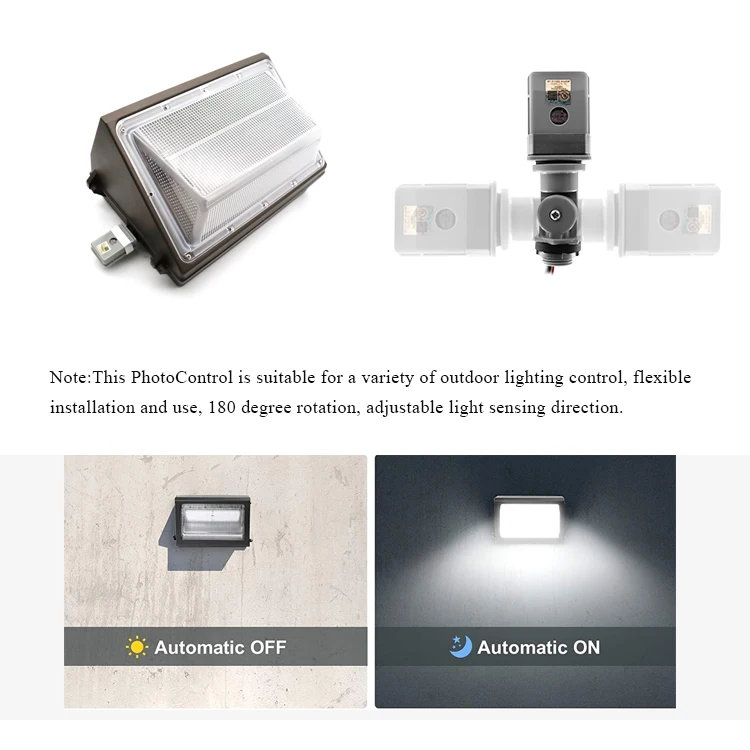

Note: This PhotoControl is suitable for a variety of outdoor lighting control, flexible installation and use, 180 degree rotation, adjustable light sensing direction.



Model No.	JL-118A(V)	JL-118B(V)	JL-118C(V)	JL-118D(V)
Rated Voltage	120 VAC	220-240 VAC	208-277 VAC	277 VAC
Rated Frequency	50/60Hz
Rated Loading	1800W Tungsten, 1100VA Ballast
Operated Levels	10-20Lx, Turn-on / 30-60Lx Turn-off
Ambient Temperature	-40℃~+70℃
Power consumption	1.5VA
Related Humidity	96%
Failure Mode	Fail-on
Leads Length	AWG#16,AWM1332,min 4"
Raintight Cap	N/A
Orientation	Optional
Certificate	UL, CE





Model No.	JL-428C	JL-428CZ
Rated Voltage	120-277 VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten,1200VA Ballast@ 120VAC 1000W Tungsten, 1800VA Ballast@ 208-277VAC 8A E-Ballast@120VAC, 5A E-Ballast@208-277VAC
Operated Levels	16Lx Turn-on / 24 Lx Turn-off
Ambient Temperature	-40℃~+70℃
Power consumption	0.4W max
Related Humidity	96%
Failure Mode	C4:Fail-on, C5:Fail-off
Leads Length	AWG#16,AWM1332,min 4"
Zero-Crossing Control	N/A	Optional
Surge protection	MOV15
Certificate	UL, CE





1. For more than 20 years, Shanghai Long-join Intelligent Technology Co., Ltd. focuses on processing and manufacturing and intelligent street lighting controller accessories.



2. Long-join brand reached a long-term cooperative relationship with a famous foreign brand technical lighting solution provider. Such as Home-depot, Amazon, Selc Ireland Limited, CORADIR S.A. LLC, etc.



3. Compare with TE, Amazon, home-depot, more low price, more best quality, higher waterproof, and provide professional sell-after service. 4. Get the global EU zhaga book 18 certifications in 2019, and actively joined the zhaga alliance association. referable look for the website: zhagastandard.org/products.



5. There is a number of other country market certification qualifications. such as UL,CE,RoHS,CB,FCC, and zhaga boo18, etc.



6. We can recommend different enclosure heights, and other colors of enclosures to meet the height of the smart wireless street light controller PCB board.



7. Provide 24-hour after-sales professional consulting services to help you solve related product use and installation problems. Such as JL-241J base and PCB board installation, whether the color of the cover will affect the light control effect, and so on.





You can customize the NEMA series light controller accessories, and also customize the controller PCB panel. further, you can customize the zhaga series light controller accessories. Because we are an integrated company of industry and trade, we are dealing with overseas customized processing orders on time.
