Экологический гидравлический кирпичный пресс WT5-10 блочного льда для бизнес-Лидер продаж продукт зарабатывания
- Категория: Установка по производству строительного материала >>>
- Поставщик: Linyi,Wante,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 14994.38 $* | 15744.56 $* |
| Aug-17-2025 | 14868.35 $* | 15611.72 $* |
| Jul-17-2025 | 12474.6 $* | 13098.38 $* |
| Jun-17-2025 | 14616.18 $* | 15347.8 $* |
| May-17-2025 | 12726.45 $* | 13362.95 $* |
| Apr-17-2025 | 14364.25 $* | 15082.67 $* |
| Mar-17-2025 | 14238.99 $* | 14950.93 $* |
| Feb-17-2025 | 14112.0 $* | 14818.4 $* |
| Jan-17-2025 | 13986.15 $* | 14685.59 $* |
Характеристики

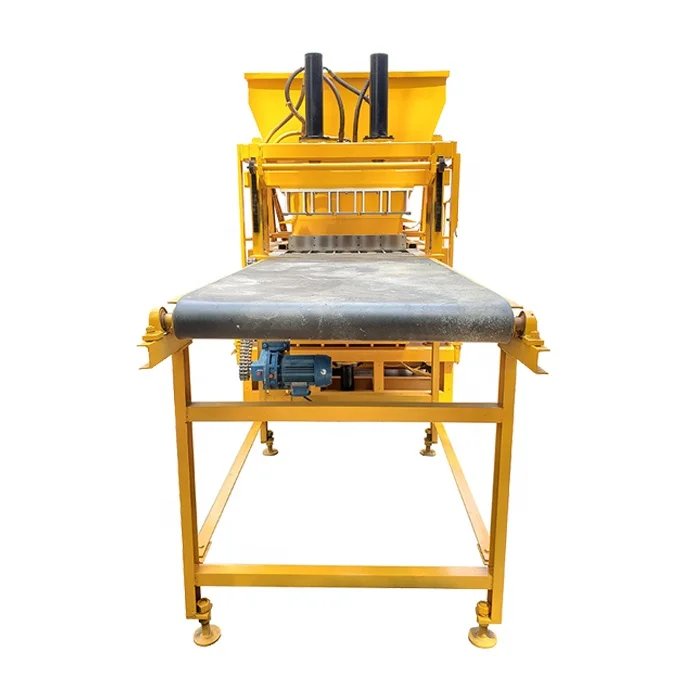

WT5-10 Ecological hydraulic brick press machine is a advanced clay block machine,upgraded from WT4-10.
The whole WT5-10 production line:
1.Host machine
2.6m conveyor belt
3.JD350 mixer
4.3m conveyor belt
5.Soil screen
6.Material hopper
7.Soil crusher
The main advantages are as followed:
1.Large capacity:The theoretical capacity can reach 14400pcs.

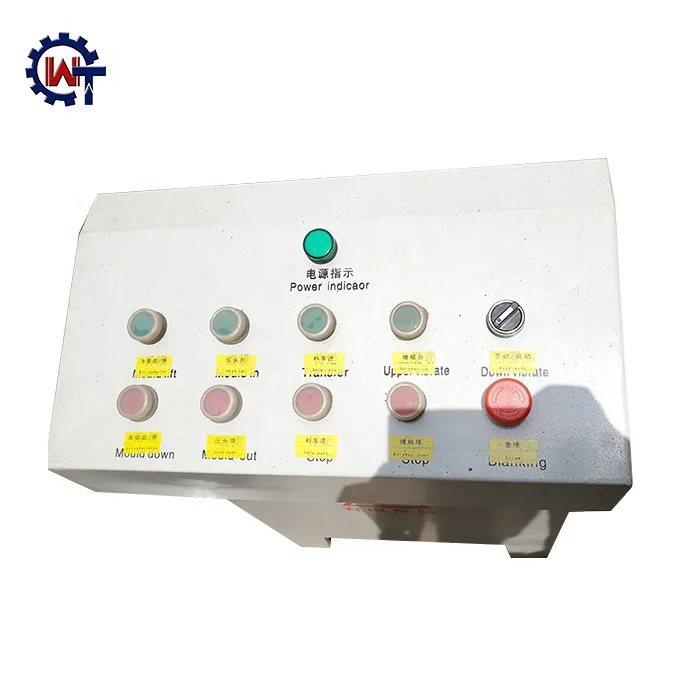

2.Full automatic operation:The whole operation can be automatic because of PLC system.
3.Hydraulic forming:The forming progress is completed by hydraulic system,and the pressure can reach 40T.
The main parameters are as followed:
| WT5-10 Interlocking Brick Making Machine | ||
Overall size | 2700(L)×1450(W)×2350(H)mm | ||
Shaping cycle | 10-12s | ||
Power | 11 KW | ||
Pressure | 30Mpa | ||
Total weight | 3500KGS | ||
Mold size | 830(L)×330(W)×230(H)mm | ||
Mold weight | 150KGS | ||

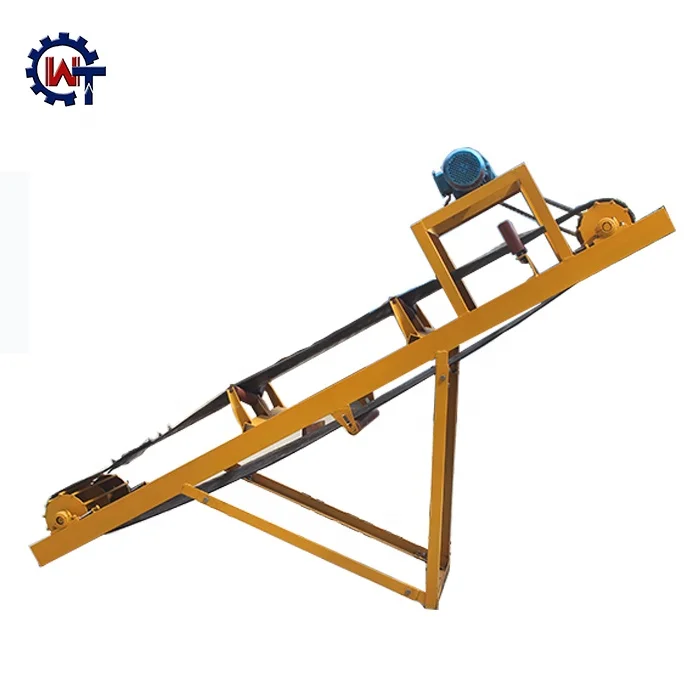

| 6m Conveyor Belt | ||
Belt width | 0.6m | ||
Belt length | 4.5m/0.75kw | ||
Speed | 2m/s | ||

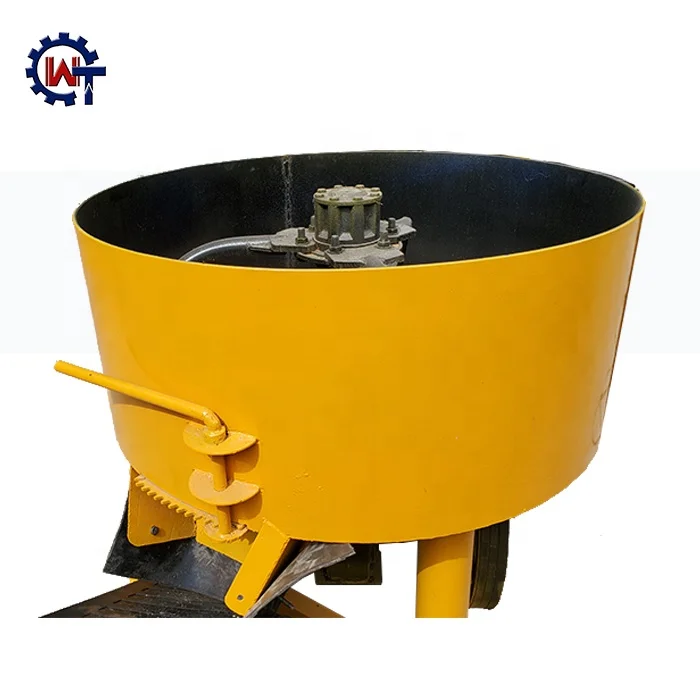

| JD350 Mixer | ||
Overall size | 1200(L)x1200(W)x1300(H)mm | ||
Shaping cycle | 5 mins | ||
Volume | 350L | ||
Weight | 330KG | ||
Electricity | 380V/220V/ (adjustable) | ||
Power | 11KW | ||
| 3m Conveyor Belt | ||
Belt width | 0.6m | ||
Belt length | 3m/0.75kw | ||
Belt speed | 2m/s | ||

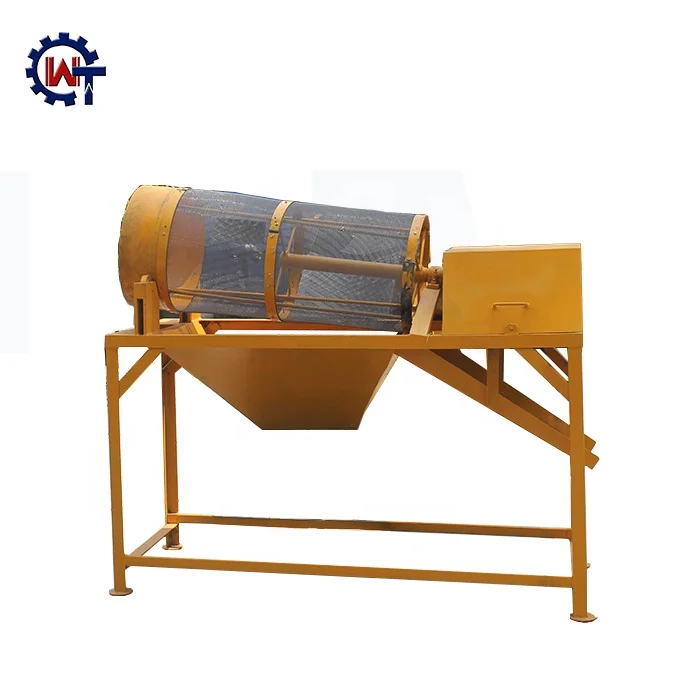

| Soil Screen | ||
Power | 1.1KW | ||
Capacity | 480KGS/h | ||
Voltage | 380V or 220V | ||
Size | Diameter:500mm | ||
Total weight | 300 KGS | ||

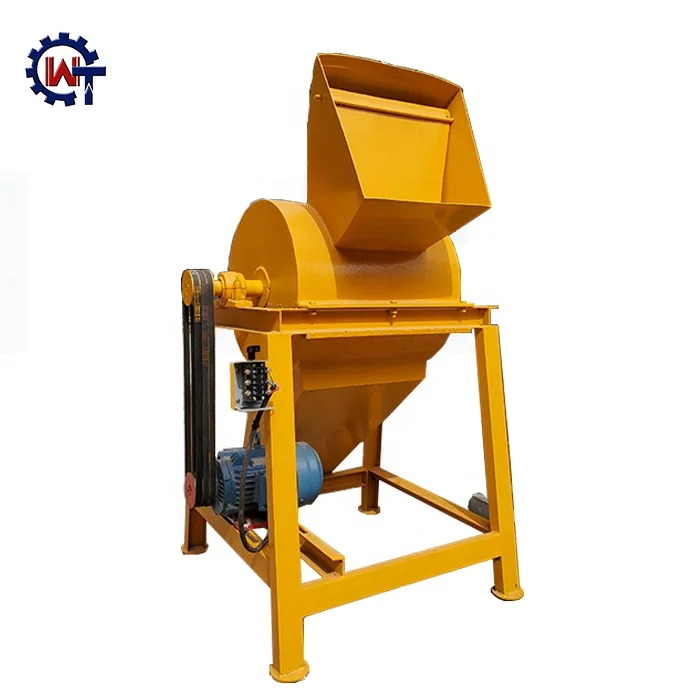

 | Soil Crusher | |
Overall size |
1900(L)×800(W)×1650(H)mm | |
Power | 1.1 KW | |
Capacity | 480KGS/H | |
Voltage | 380V/220V/ (adjustable) | |
Total weight | 300 KGS | |
 | Material Hopper | |
Overall size | 2000(L)×1200(W)×2200(H)mm | |
Total weight | 200KGS | |
Block samples and theoretical capacity
REMARK:We can provide different types of mould as your requirments.One set of free mould will be attached on a machine.
