JMC Плавная передача малошумная Точность Планетарный редуктор


Поделиться:


Цена:6 020,50 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 7164.73 $* 7522.43 $*
Aug-16-2025 7104.60 $* 7459.35 $*
Jul-16-2025 5960.89 $* 6258.30 $*
Jun-16-2025 6983.57 $* 7332.79 $*
May-16-2025 6080.50 $* 6384.38 $*
Apr-16-2025 6863.8 $* 7206.90 $*
Mar-16-2025 6803.20 $* 7143.20 $*
Feb-16-2025 6742.17 $* 7079.96 $*
Jan-16-2025 6682.68 $* 7016.47 $*

Характеристики

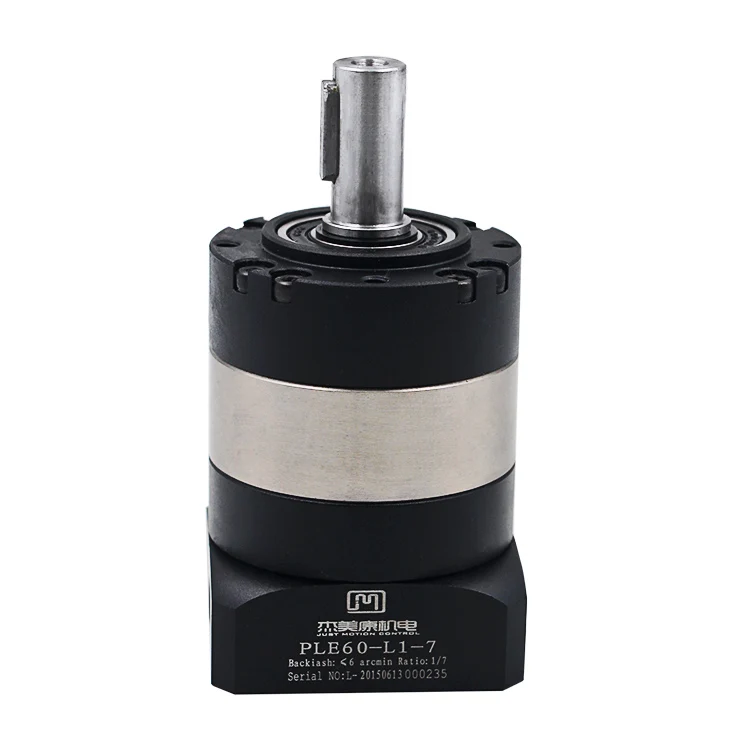

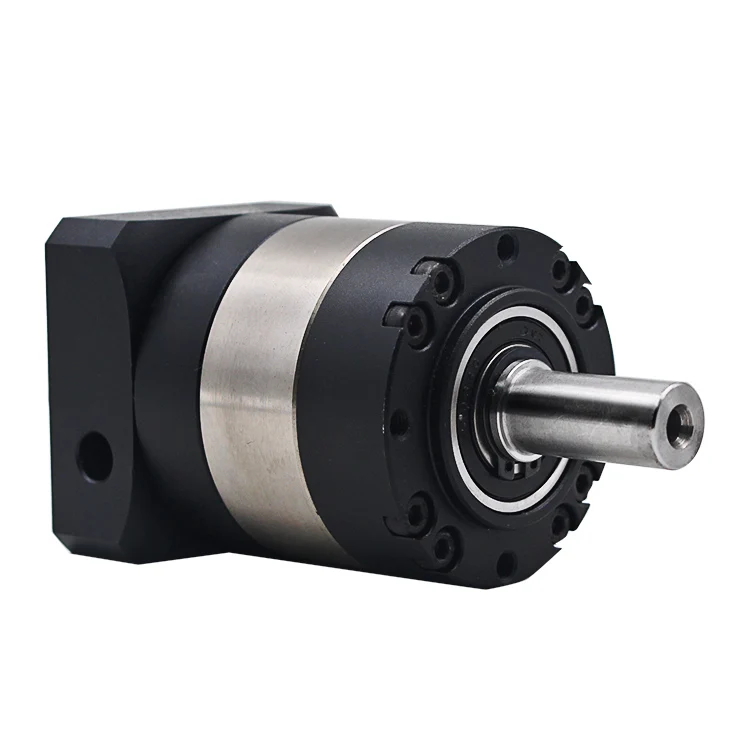

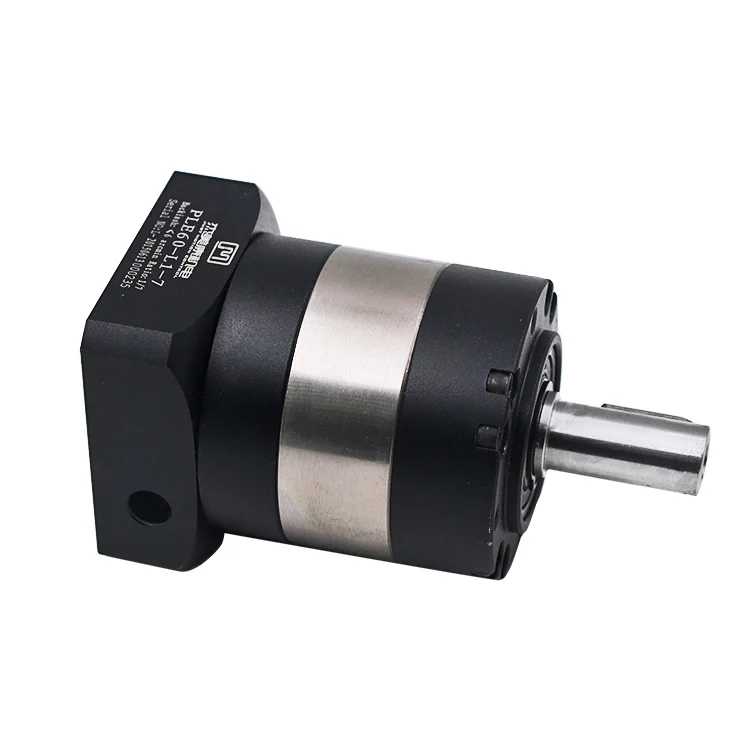

Smooth transmission Low noise precision planetary gearbox PLE60





Product Description

 Features

Holding torque:4.5NM

Current:2.0 A

Resistance:7ohm

no. of lead:8

Motor lenth:41mm

Shaft diameter:8mm

Gearbox:60*60mm





PLE60 Technical paramters 1



Maximum torque

1.5 times the rated torque

The maximum permissible radial force

240N

The maximum allowable axial force

220N

Torsional rigidity

1.8Nm/arcmin

Maximum input speed

8000RPM

Rated input speed

4000rpm

The noise

<58dB

Full of efficiency

L1 >= 96%   L2>=94%

Return clearance

P0

L1 <3 arcmin

L2< 5 arcmin

P1

L1 <6 arcmin

L2< 10 arcmin





The moment of inertia

L1

3,4,5

0.46 kg.cm²

7.10

0.41kg.cm²



L2

12,15,20,25,28,40

0.44kg.cm²

50,100

0.34kg.cm²



Parameters 2

Rated torque(N.m)

Series

Speed ration

PLE60

L1

3

27

4

40

5

40

7

34

10

16

L2

9

27

12

27

15

27

16

40

20

40

25

40

28

40

30

27

35

40

40

40

50

40

70

34

100

16



 2 (2).jpg5.jpg6 (2).jpg







Certificate




Our Exhibition

Every year, we will have booth in many international exhibitions to show our products and meet our customers.

Welcome to see you in next one !




About our company

 Shenzhen Just Motion Control Electromechanics Co.,Ltd established in 2007, we have 10 years experiences in the motion cotrol area.

Our main products are stepper motor drives, step motors, AC servo motor systems, integrated step servo motors, integated step AC servo motors,DC brushes and brushless motors and drive systems.we also provide complimentary mechaical products.suchas motor couplings, gearboxes, and linear motions.

Our products are widely used and applied in the following industries:semiconductor,textile, packaging,laser,woodworking, printing,advertising,clothing,marble and ceramic,robotics and military.

Our customers come froms all around the world:European, America, Canada, Middle East,Asia and so on!

Sincerely hope we can have channce to cooperate!

.jpg



Contact information




FAQ

Q1. What are your products can be use to ?

A: Our products can be use in CNC routers ,CNC milling machine ,engraving machine, packaging machine,filling machine, cutting machine, printing machine,laser machine, carving machine, labeling machine and so on.



Q2. What  kind of Payment methods do you accept ?

A: We can accept Paypal ,Western Union ,TT



Q3: What kind of shipping methods do you use ?

A:1)For samples or small batch , air shipping  is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.

2)For mass production or big batch, ocean shipping/sea shipment is recommended .



Q4: What is the lead time of my products?

A: Lead time : For standard samples , 2-5 days will be OK .

For mass production , the lead time depend on the quantities you need .

Note:

Sometimes your local customs may charge tax from you. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to wait and ask us to extend delivery dates for you.



Q5:What is your warranty time ?

A:Warranty time 12 months. And we provide life-long technical service and after-sale service.



Q6:Can i get a free sample?

A:Sorry, we dont provide the free sample.
