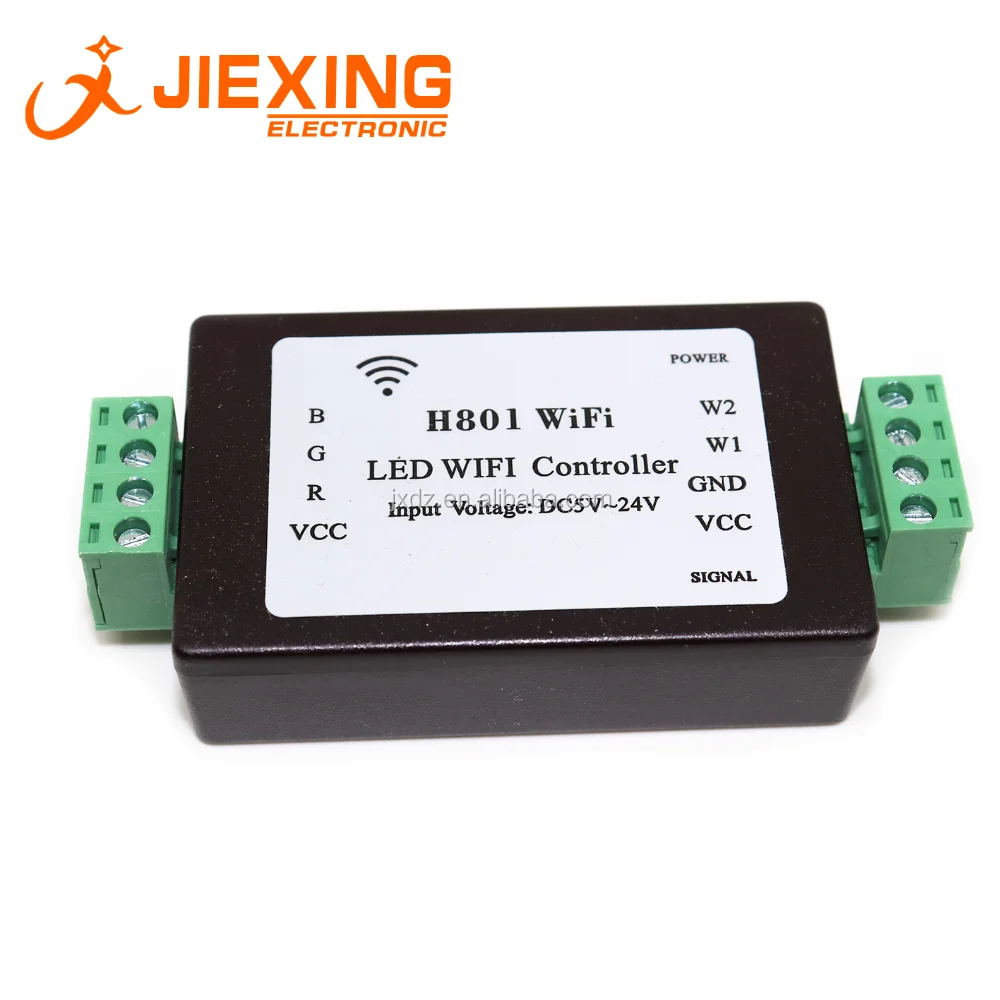

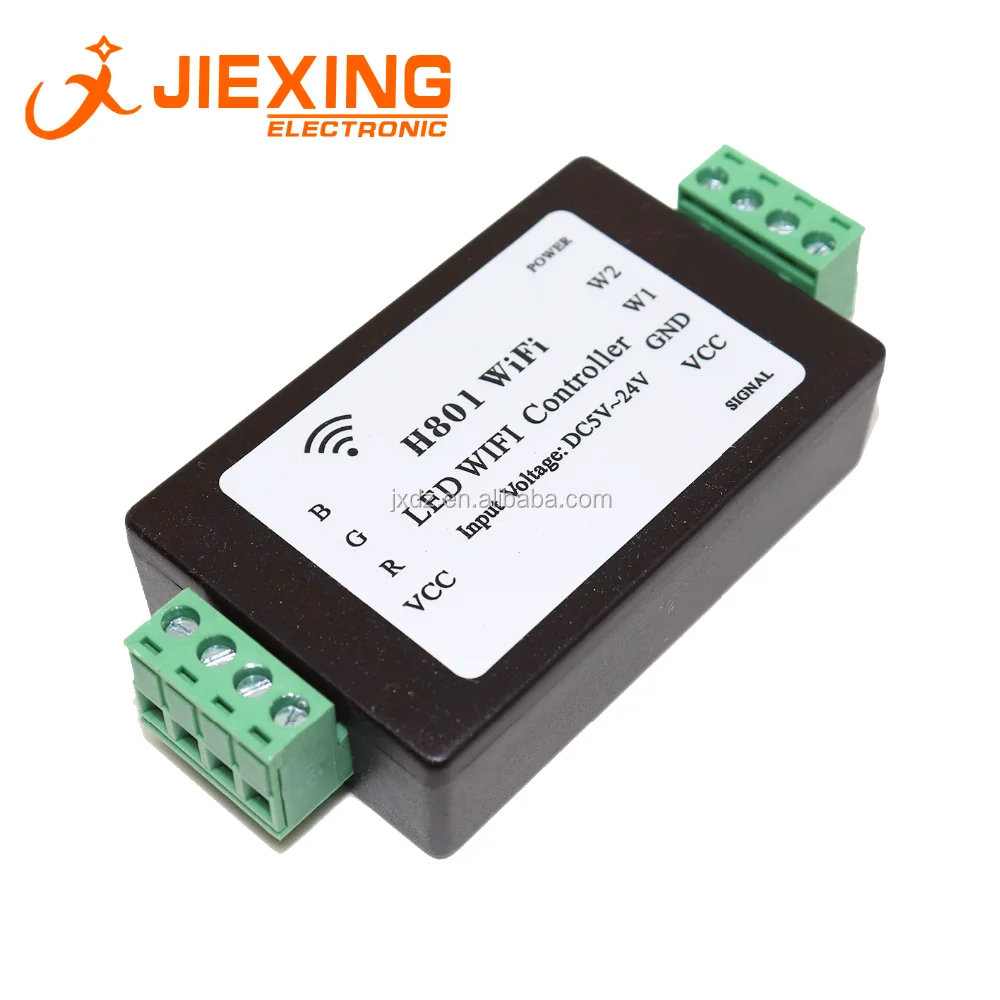

H801 светодиодный контроллер Wi-Fi с входным напряжением DC5V-24V цветных (RGB) светодиодных лент

H801 LED WiFi Controller Input Voltage DC5V-24V RGB LED Strip Dimmer Controller

H801WiFi communicates with Android mobile phones via WiFi network to realize mobile phone dimming. You can set your phone as a wireless network access point or use a router as an access point. Both the phone and the H801WiFi must be on the same wireless network.

The Android mobile phone software is "LED Dimmer", which can control up to 100 lamps, but please note that wireless access points and wireless routers have a limit on the number of wireless clients. If you want to connect a larger number of clients, you can use wireless. Following.

In addition to driving RGB luminaires, you can also control the following LED driver ICs: LPD6803, LPD1882, LPD1889, DMX512, APA102, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2811, INK1003, TM1812, TM1809, TM1804, up to 72 pixels. Point, and is overall controlled.

Second, the performance characteristics
1. Easily set up wireless network access points with LED Dimmer.
2. Output RGB three-way PWM signal.
3. Support IEEE 802.11 b/g.
4. Support networks that do not encrypt networks and WPA and WPA2 encryption methods.
5. The transmission speed is fast, the module transmission speed is 4Mbps, and the receiving speed is 2.9Mbps.
6, H801WiFi can be controlled several times, or can be controlled as a whole.
7, offline automatic connection function

Third, the instructions for use
1, view the selection of lamps
Start the mobile phone software "LED Dimmer", click on the menu on the phone to pop up the main menu.
