Комплект для преобразования электрического автомобиля 30 кВт
- Категория: >>>
- Поставщик: Foshan,Uni,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.67 $* |
| Aug-16-2025 | 0.22 $* | 0.14 $* |
| Jul-16-2025 | 0.51 $* | 0.1 $* |
| Jun-16-2025 | 0.25 $* | 0.3 $* |
| May-16-2025 | 0.34 $* | 0.8 $* |
| Apr-16-2025 | 0.14 $* | 0.96 $* |
| Mar-16-2025 | 0.31 $* | 0.44 $* |
| Feb-16-2025 | 0.59 $* | 0.90 $* |
| Jan-16-2025 | 0.3 $* | 0.44 $* |
Характеристики
Recommend Products
About Us
We have successful experience and products for converting gas car to electric.
Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.
Our products:
For car conversion:
1. Electric AC motor and controller (1-15kW 48-108V )
2. Permanent magnet synchronous motor (5kW, 15kW, 20kW, 30kW, 36kW, 50kW, 70kW)
3. DC-DC converter
4. Battery, charger and dashboard
5. Rear axle, gearbox and shaft
For motorcycle conversion:
1. Motor with gearbox & controller: 1kW; 2kW; 3kW
For bicycle conversion:
1. Motor: 250W, 350W, 500W
2. Battery
Product Description
Advantages of PMSM Motor:
1. PMSM motor & controller are cheaper comparing to AC motor.
2. No matter in terms of dimension or weight, PMSM motor outdoes AC motor. It is smaller in size and weight less, which will save more room for battery and transportation fee.
3. From the view of performance, according to one of our clients:" PMSM motor system gave me a better feeling of driving. It is more smooth and comfortable, without vibration whatever accelerate or stop." (He is from Thailand and used AC motor before). We have test data to support that.
4. More inportantly, the efficiency of PMSM motor is higher , up to 98%. It means it has more cruising range (20% farther). Suppose a car with AC motor drive 100km, it can drive 120km with PMSM motor (at the same motor power & battery capacity).
For reference only.
Specification | ||||||
AC Motor | Rated Power: 3kW-15kW | Rated Voltage: 48V-144V | Max. Torque: 65N.m-120N.m | |||

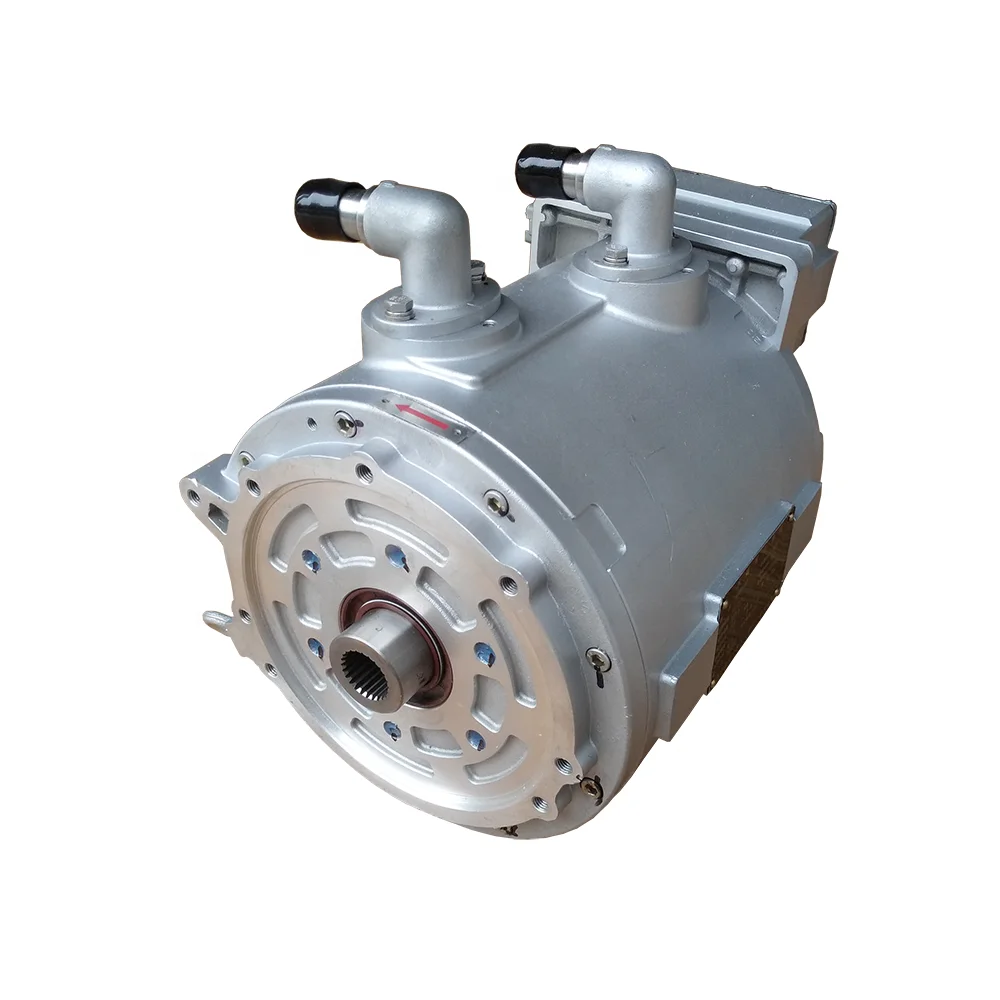

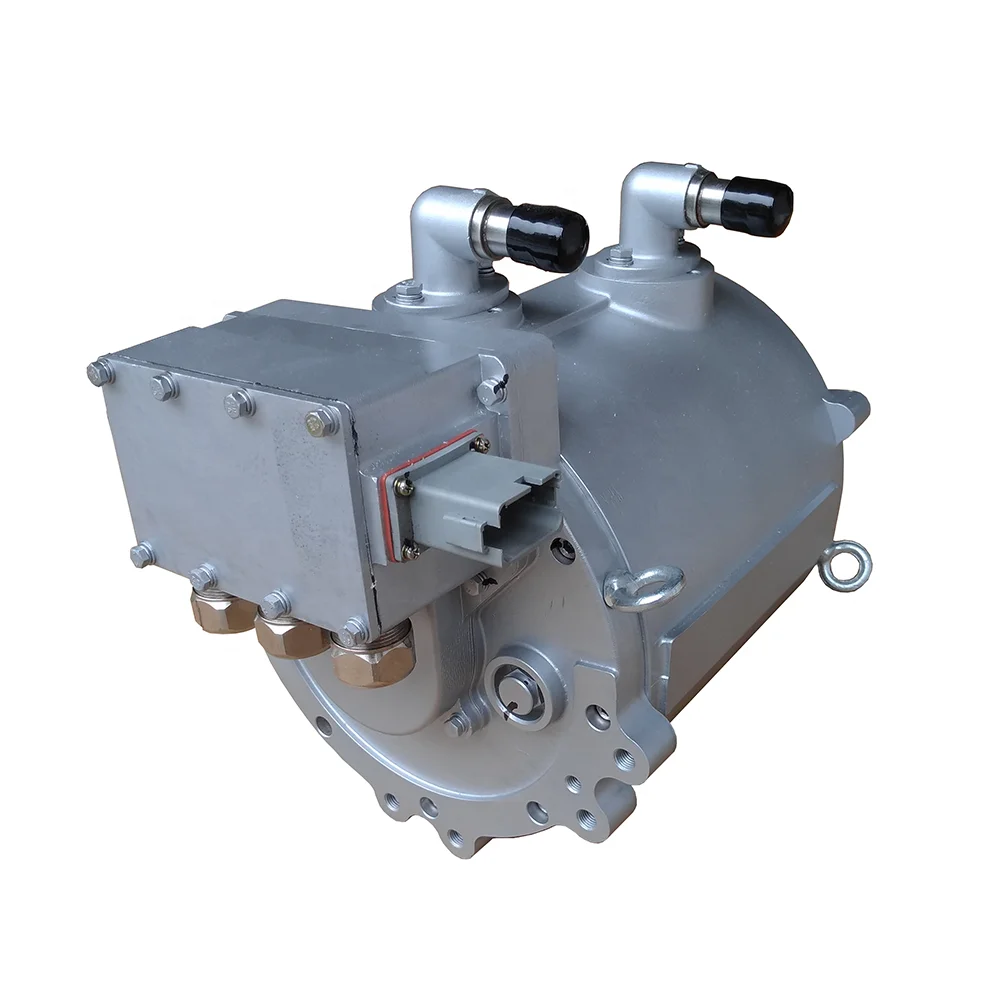

PMSM Motor | Rated Power: 5kW-100kW | Rated Voltage: 48V-400V | Max. Torque: 65N.m-420N.m | |||

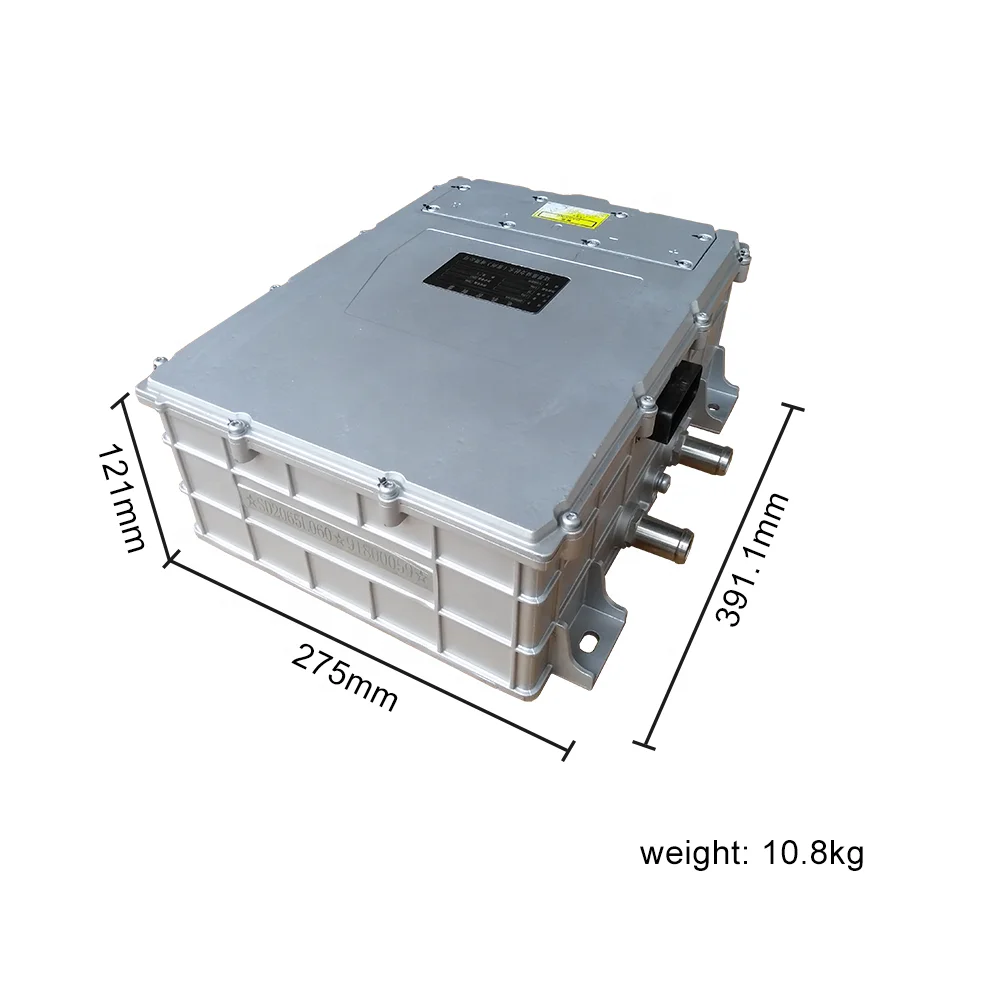

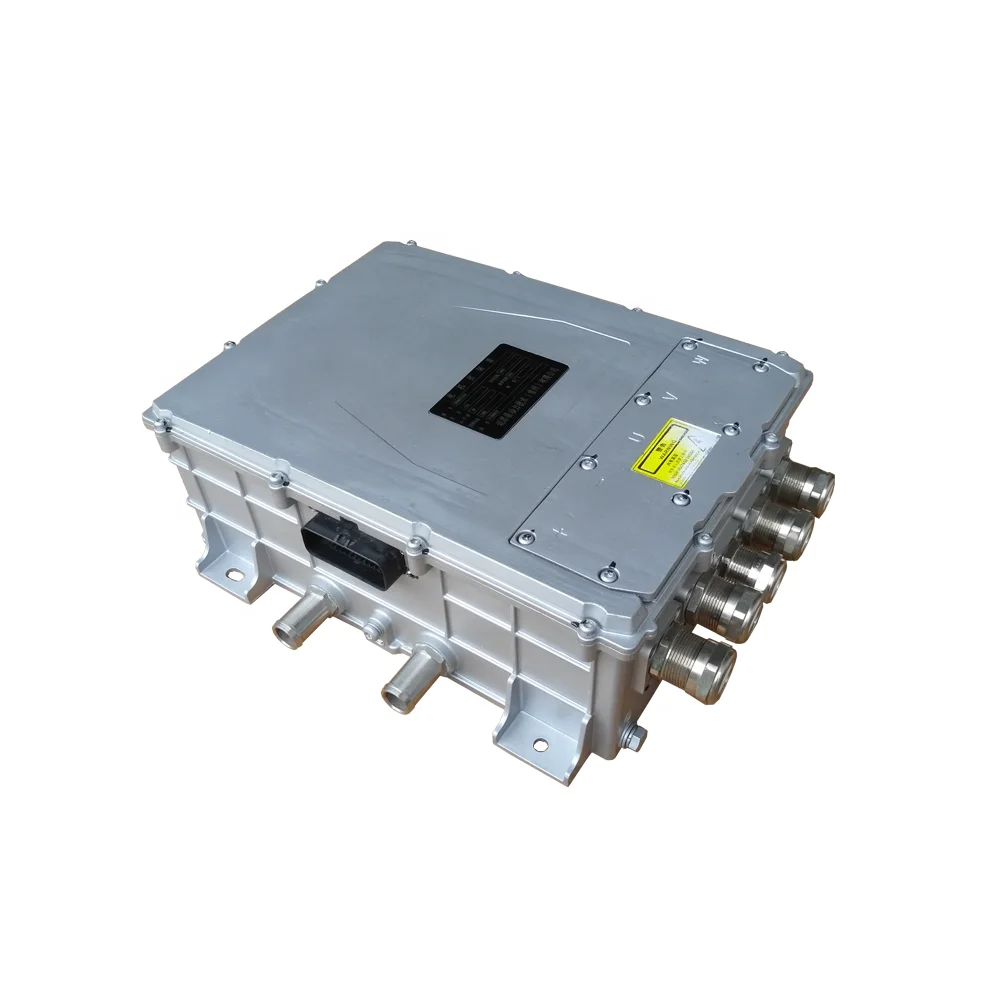

AC Motor Controller | Rated Power: 3kW-15kW | Rated Voltage: 48V-144V | Max. Current: 250-500a | |||
PMSM Motor Controller | Rated Power: 5kW-100kW | Rated Voltage: 48V-400V | Max. Current: 300-500a | |||
Gearbox | Ratio:6:1/8:1/10:1/12:1 | Torque Capacity:180N.m | Net Weight:15~30kg | |||
Rear Axle | Ratio:6.5/8.6/10.5/12.31/14.5/18.6/21/25 | Torque Capacity:300N.m~500N.m | Net Weight:15~90kg | |||
Electric Vehicle Power System Training Platform
Production & Service
R&D Department
We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.
Production Center
A full set of processing equipment can guarantee the accuracy;
Advanced automatic wire embedding system is to ensure the consistency;
Semi-automatic production line will improve the productivity.
Motor Production
Controller Production
Quality Management
Certifications
Cases
Convert Fuel Car to Electric Car (18T Scrubber)
After calculation, we use the following driving system.
Motor Power | 95/150 | Torque (N.m) | 900/1800 |
Speed (rpm) | 1000/3000 | Rated Voltage (V) | DC540 |
Max. Efficiency | 94% | Working Voltage (V) | DC350-750 |
Battery Voltage (V) | DC540 | Battery Capacity (kwh) | 225 |
Gears | 4 | Ratio | 4.406/2.446/1.481/1 |
Motor plus four-speed gearbox can drive the 18T sweeping car well.
Packing & Delivery
Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
