70 тонн задний самосвал квадратного типа

Цена:16 500,00 $*

Количество:

770tons rear dump square type tipper semi trailer

DIMENSIONS
Tare Weight	4500kg	70tons rear dump square type tipper semi trailer
Overall Length	13000mm
Overall Width	2480mm
Payload	3650kg

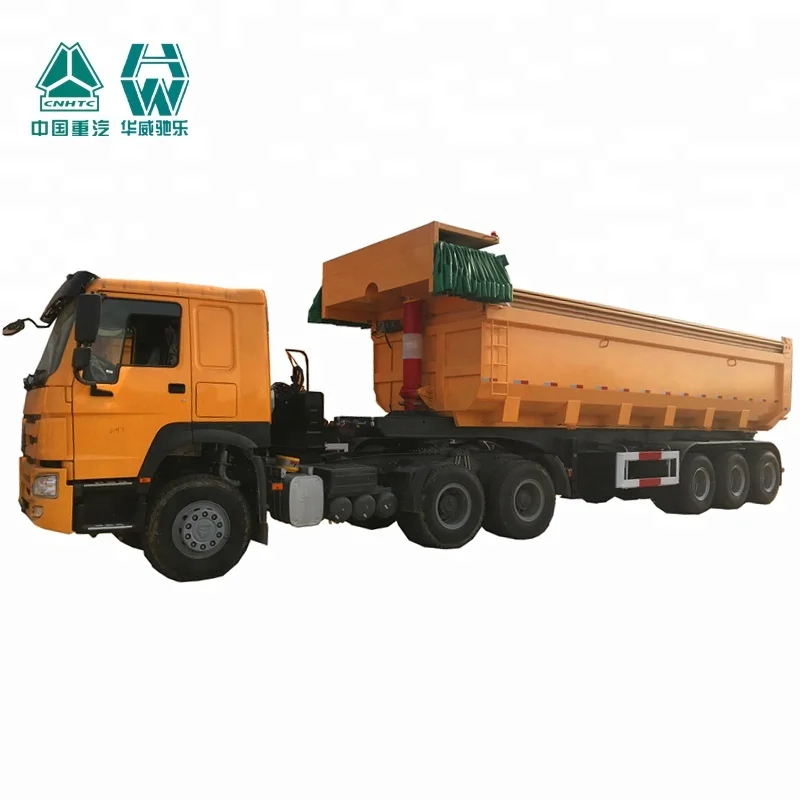

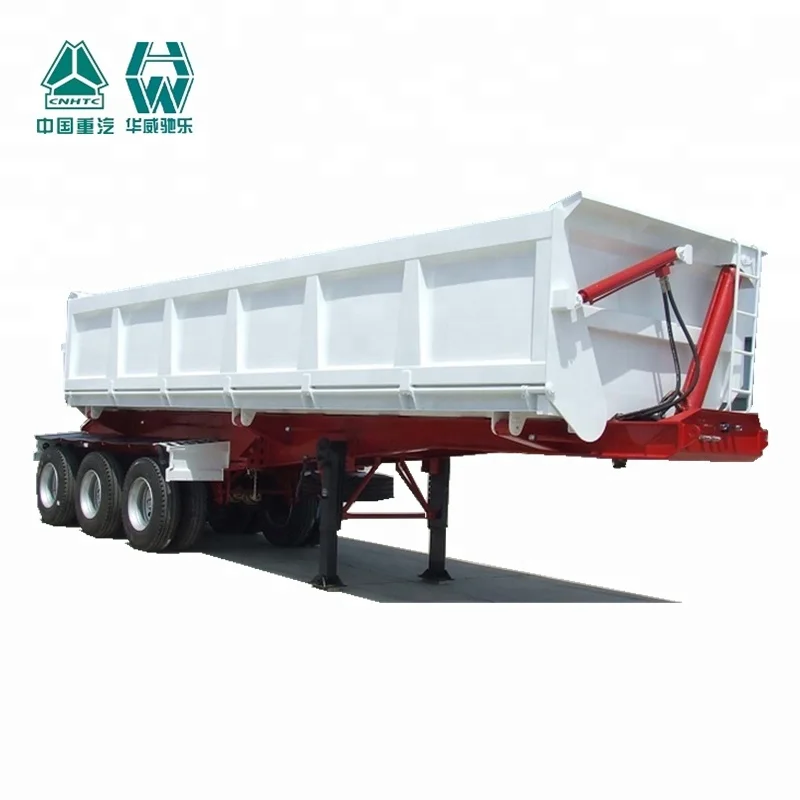

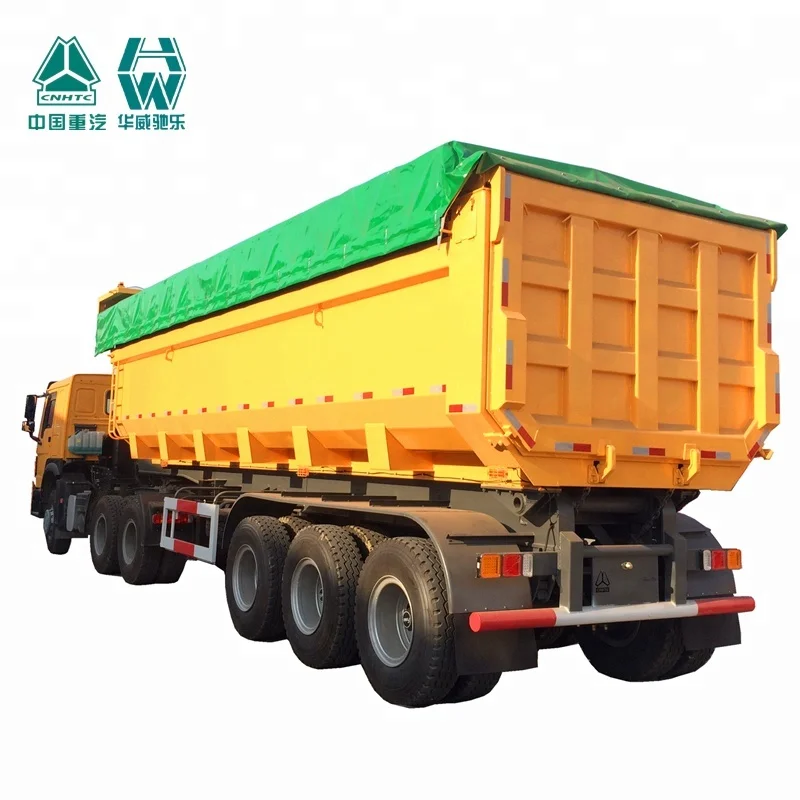

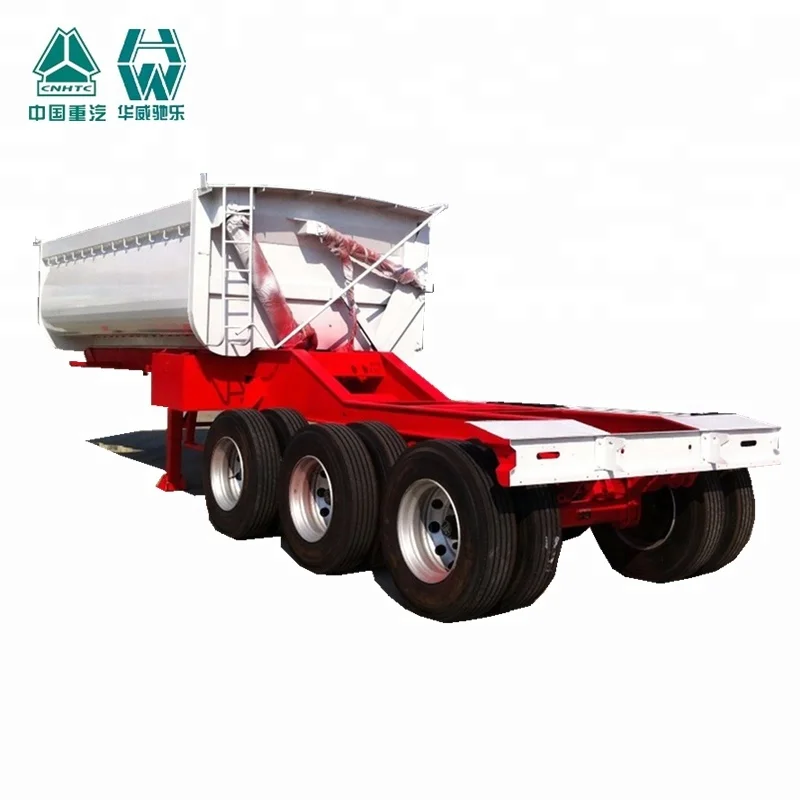

Photo for reference. Final products can be made according to exact requirements
SPECIFICATION
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm.
Axle	HJ Brand: 2X 13000KGS axles of Germany design
Suspension	Germany design heavy duty mechanical suspension
Leaf Spring	Leaf spring
King Pin	JOST 2.0” Bolt-in King Pin
Landing Gear	JOST Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.00-22.5 steel wheel rim, 8pcs
Tire	12R22.5 Tubeless Tire, 8pcs
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
