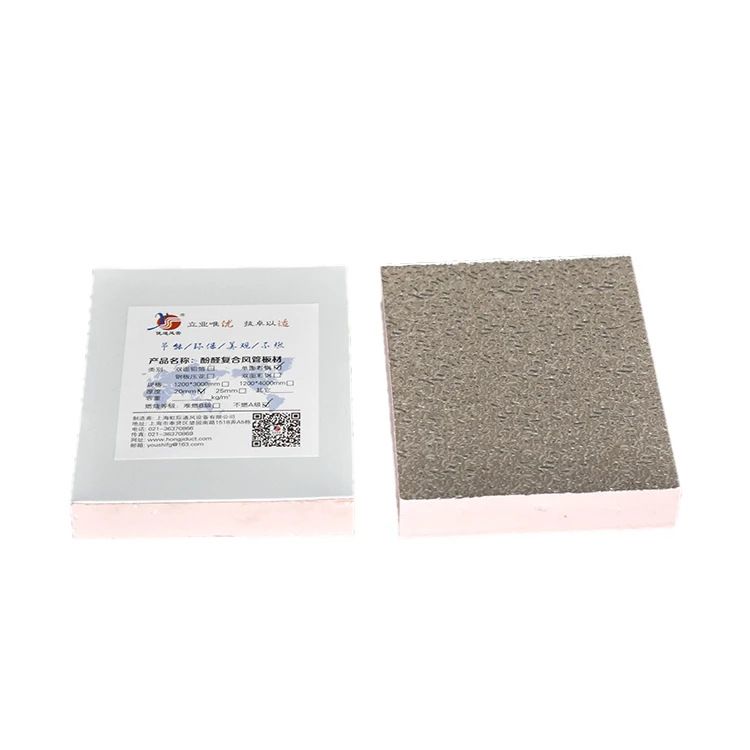

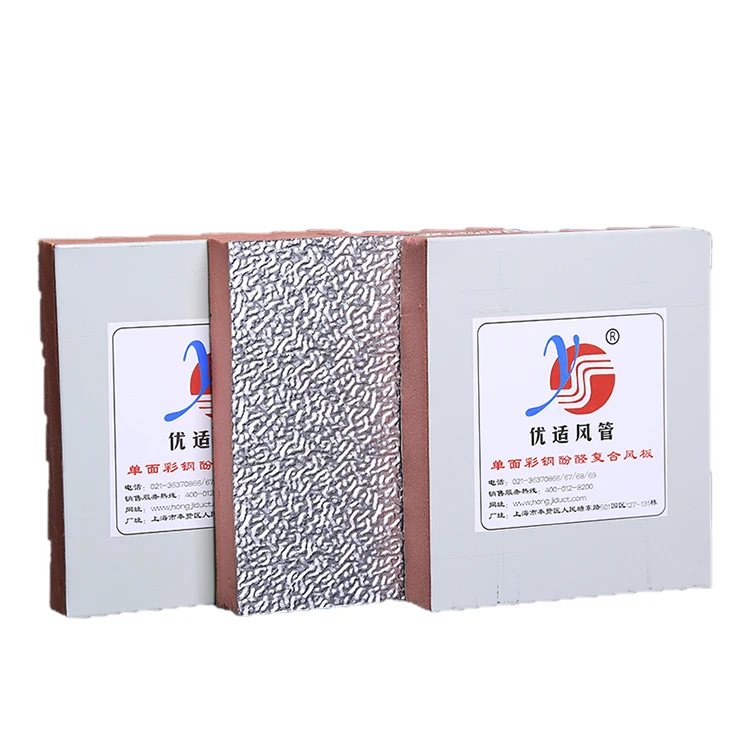

Phenolic sandwich Panel is an excellent alternative to traditional galvanized Iron (sheet metal) duct workand it is ideal for specifications where space or weight is restricted.
Be used to make the air conditioning heat preservation ventilating duct's material,it widely uses in market,hospital,supermarket, stadium, hotel, workshop, guesthouse, airport, pure project food store, and so on.

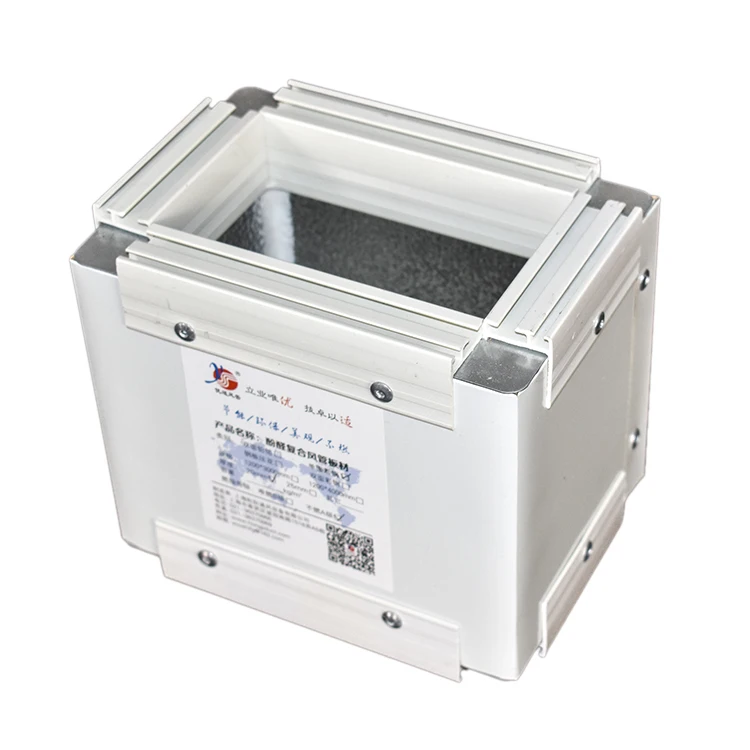

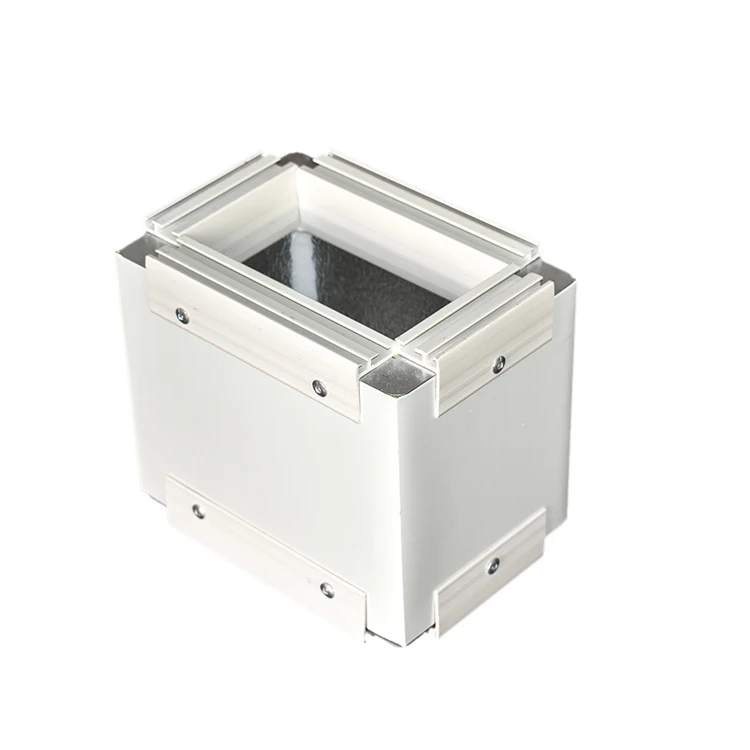

Phenolic foam duct panel offers a high performance, lightweight and robust ductwork system that requires only a single fix installation process.
Phenolic foam duct panel not only makes it a high speed operation for projects on which time is critical but also provides the advantage of a considerable saving in cost and space. Also Phenolic foam duct panel can make a saving of over 20% on operating cost over a 30 years life.
Product Data Sheet :
Formaldehyde re;ease
MG/L≤0.5,National standard≤1.5
Air leakage
1.2%
Density
140-160 kg/m3
Dimension stability
≤2%
Thermal conductivity
0.018-0.024 W/m.k
Fire Retardant Level
Non-combustible Level A
Water absorption
3.7%
Wind Press-resistant strength
3000pa
Smoke Density
≤9
Hongji duct system including :
• Hongji duct panels
• Accessories for duct installation( including PVC flange connection,glue,silicone gun and so on)
• Training and installation service for duct installation
•Installation Manual
• Undertake projects of duct installation
Characteristics :
• Light, safe, decrease the load of the building.
• Easy to install, shorten the construction period.
• Protect environment, sandwich structure with antioxidant surfaces.
• High performance in heat insulating, can be served in both high and low temperature environment.
• Fireproof, meet the National standard, makes building safe.
• Soundproof, makes a quieter environment.
• Long service life up to 20 years, very low cost in wastage and maintenance.
• Nice appearance.
• Improve air quality
Hongji duct panel satisfies the following standards:
• GB50243-2002
Acceptance standard for construction quality of HVAC works.
• GB50045-95
Criterion of fireproof design of civil tall buildings.
•GB8624-2006
Building materials and combustion performance grading
•GB/T8811-2008
Rigid foam dimensional stability test methods
•GB50404-2007
Polyurethane foam insulation and waterproof engineering specification
Environmental Protection : Inspected by the National Fire Protection Building Materials Quality Supervision and Inspection Center,
Hongji duct passed the formaldehyde volatilization test, could be applied indoor directly.
• Approved by the National Quality Test Center and China Construction Material Association,
Hongji duct is a stable qualify, safe and environment protective product.
• Inspected by Shanghai quality monitor inspection spot, if s innocuous and a safe product.
• There is no Freon in Hongji duct, and won’t do harm to aerosphere.
