Products Description




MIOLEX PMX-573

MIOLEX PMX-573 is a rigid heat insulation board made by laminating glass fiber sheets and hardening them with an inorganic binder.
It has high strength and can be used as a structural material.
Since it does not contain asbestos, it can be used as a replacement for asbestos cement board.

Size of Blank Material :
Thickness : 1～50mm
Length X Width : 1000X1000 mm

Applications :
Heat (Thermal) insulation board for plastic injection mould (mold)
Heat (Thermal) insulation board for rubber injection mould (mold)
Heat (Thermal) insulation board for plastic injection molding machine
Heat (Thermal) insulation board for rubber injection molding machine
Heat (Thermal) insulation board for textile machinery
Heat (Thermal) insulation board for pouches and bag making machinery
Heat (Thermal) insulation material for heater
Heat (Thermal) insulation material for furnace
Heat (Thermal) resistant material for food processing machinery
Heat (Thermal) resistant material for glass heat forming

Delivery Form of MIOLEX PMX-573 :
Please choose from among the following three types of the delivery form of MIOLEX PMX-573.

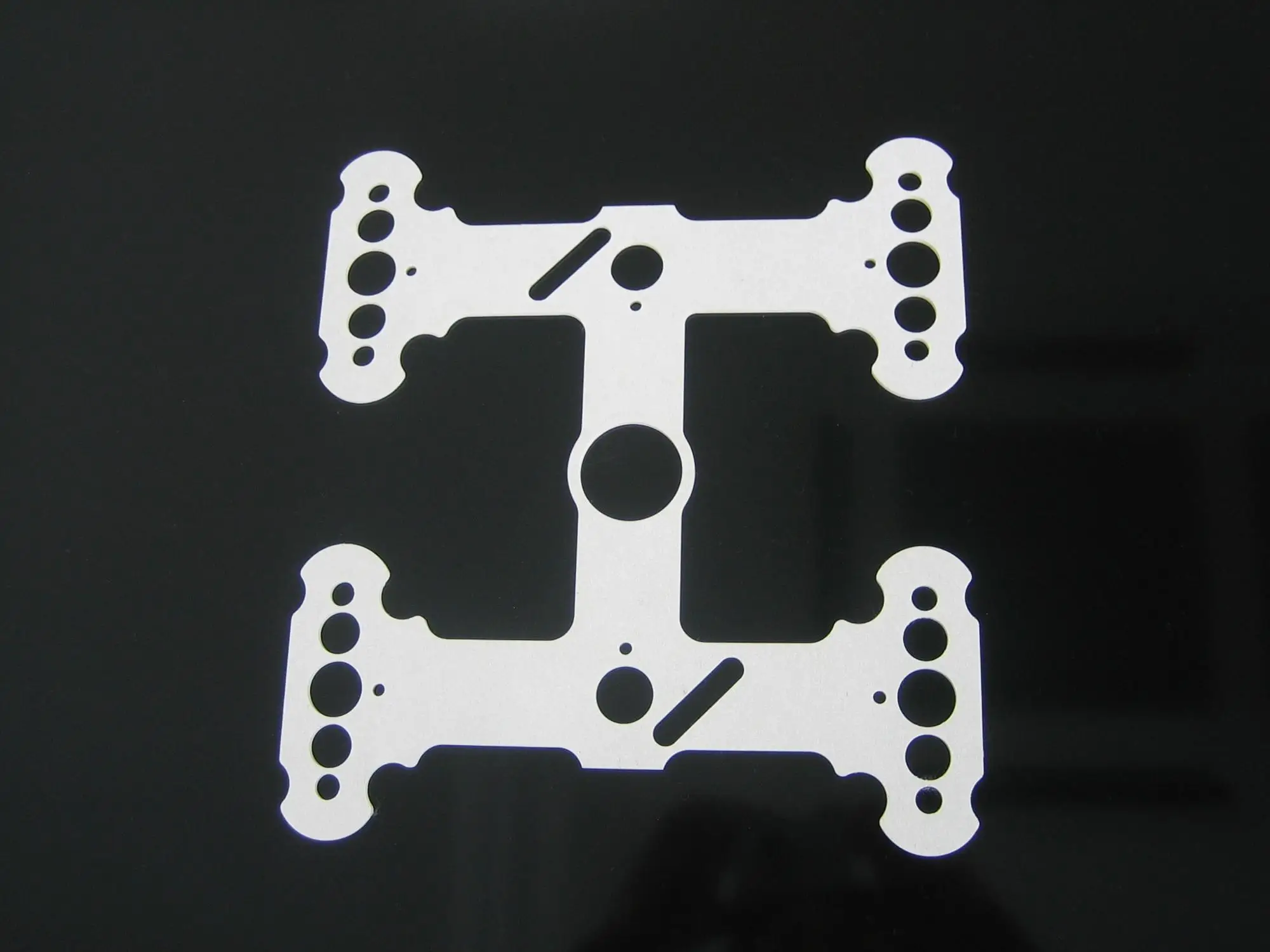

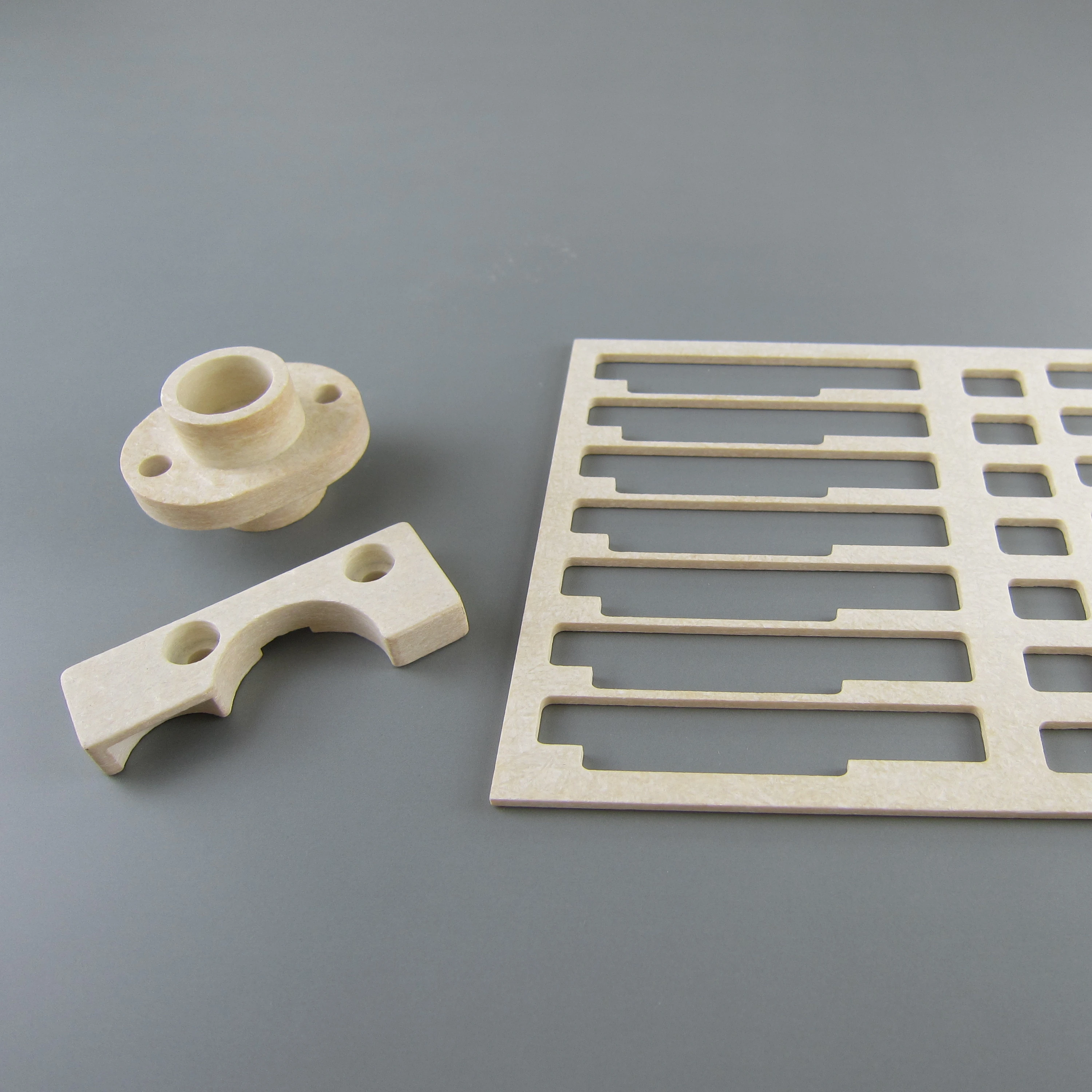

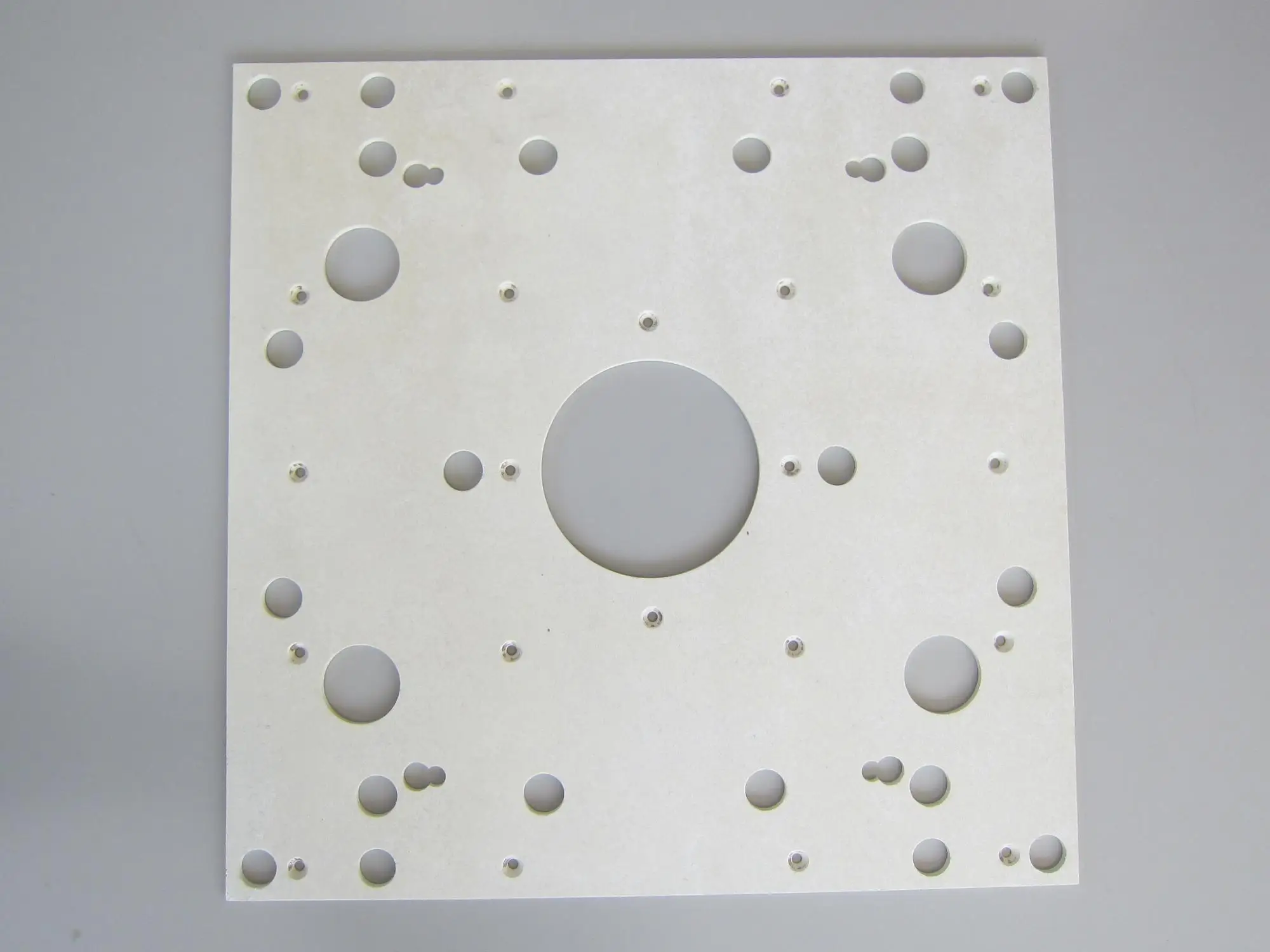

Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.

Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.

Blank Material
Blank material without any machining will be supplied.


Our Advantages


1.MACHINABLE
Can be machined by using Machining Centers and NC lathes

2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 250 degrees celsius

3.HIGH MECHANICAL STRENGTH
Compressive strength : 150～200MPa Bending strength : 100～150MPa




Product Paramenters



Units
MIOLEX PMX-573
Heat Resistant Temperature
degrees celsius
250
Coefficient of Thermal Conductivity
W/m・k
0.3
Thermal Expansion Rate
1/degrees celsius
6.6X10-6
Compressive Strength
Mpa
150～200
Bending Strength
Mpa
100～150
Specific Gravity

2.2
Water Absorption
％
2～5


Listed values ​​are measured, it is not a guaranteed value.
Heat resistant temperature is for reference only, and varies depending on the operating conditions.


Company Introduction


We are experts in manufacturing and supplying plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials products mainly for machinery parts.

We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.

Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)

2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).

3.Fine ceramics
