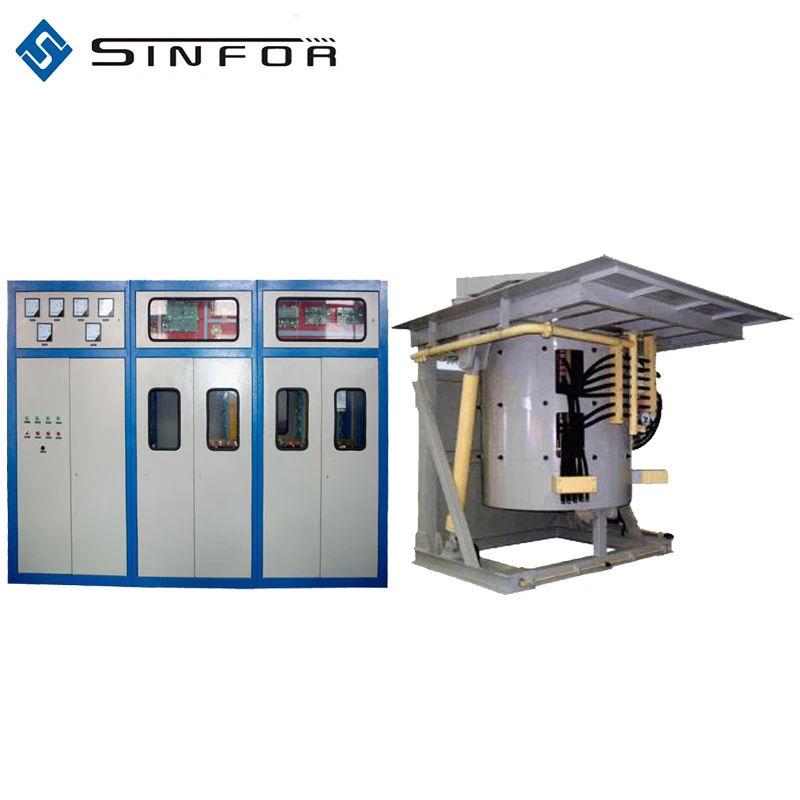

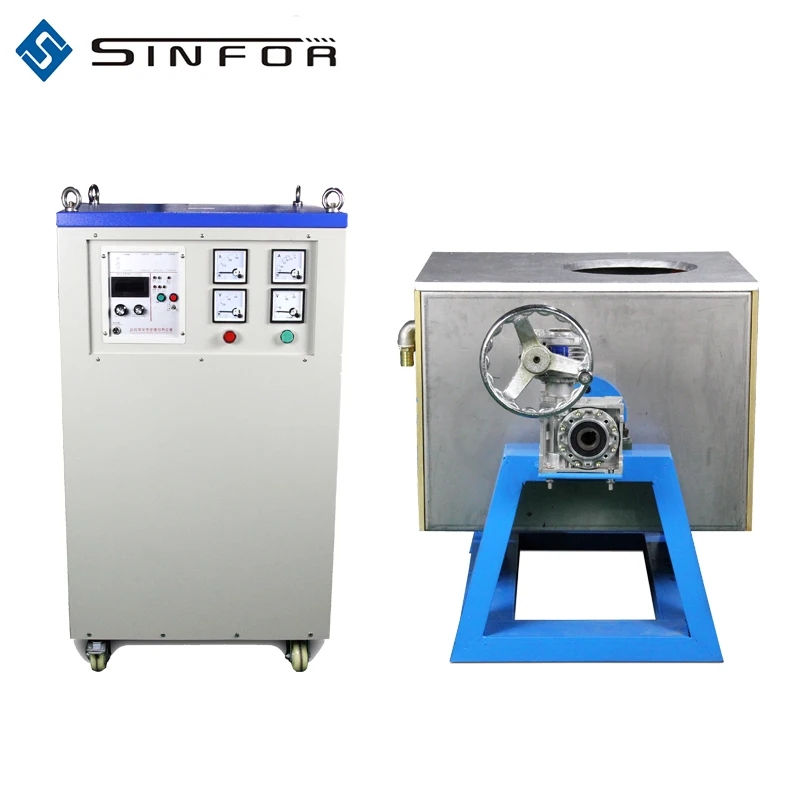

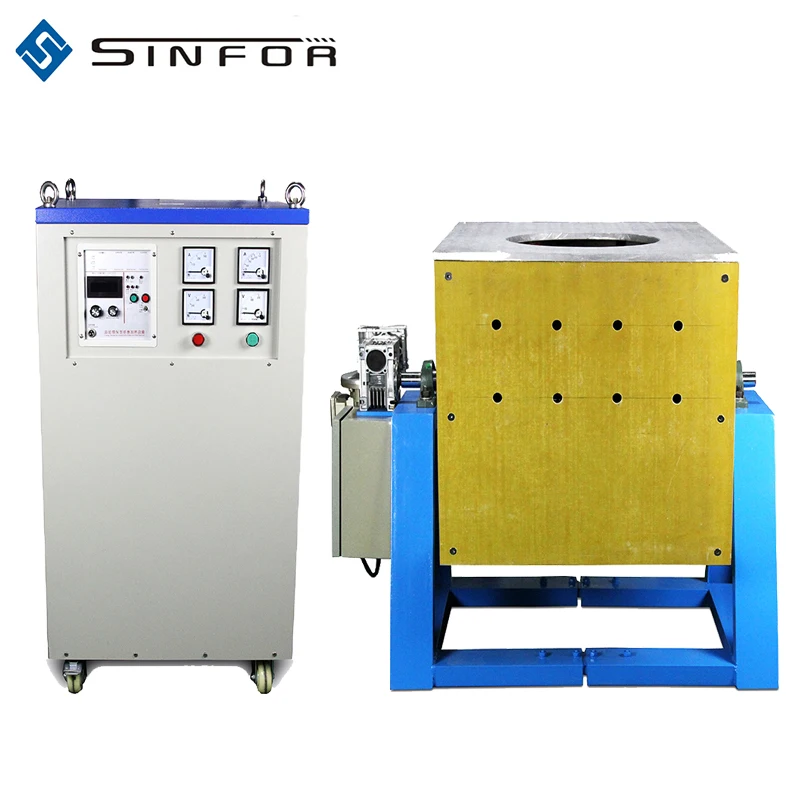

SCR Medium Frequency Induction Heating Machine (KGPS Induction Furnace)

1 Main Introduction
The equipment is the frequency conversion device that let the 3 phase power current change to simple phase Medium frequency current, make the metal occur the vortex lose by the electromagnetic field induction, reach the heating’s aim. Main used in the steel, iron, copper, brass, alum, stainless, zinc, tin, nickel, gold, silver, Pt and so on ferrous and non ferrous material and alloy material’s melting, heating, keep warm, forging, bending pipe. Some kinds of heating structure:

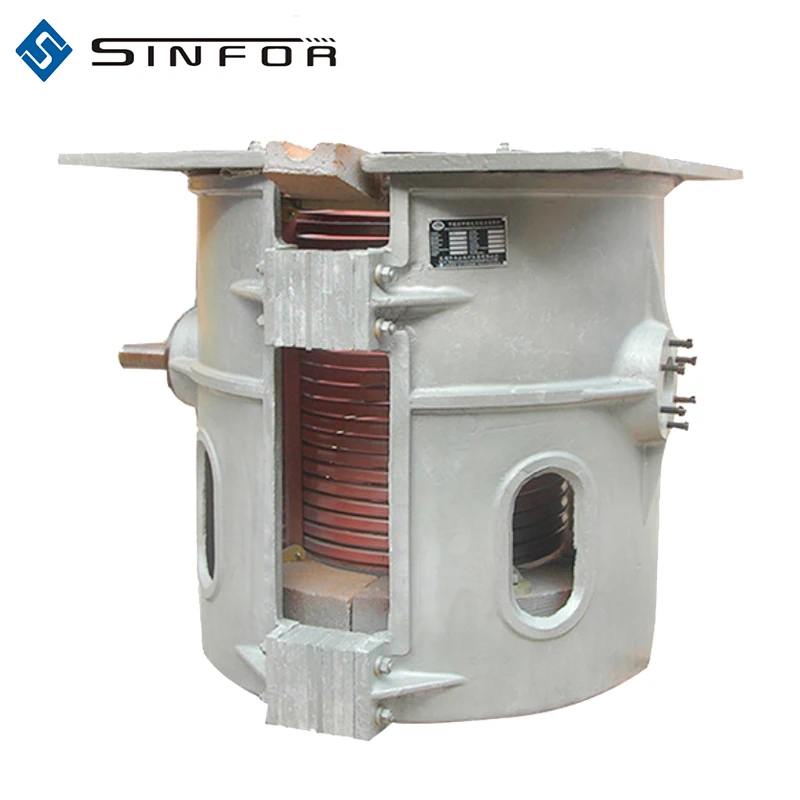

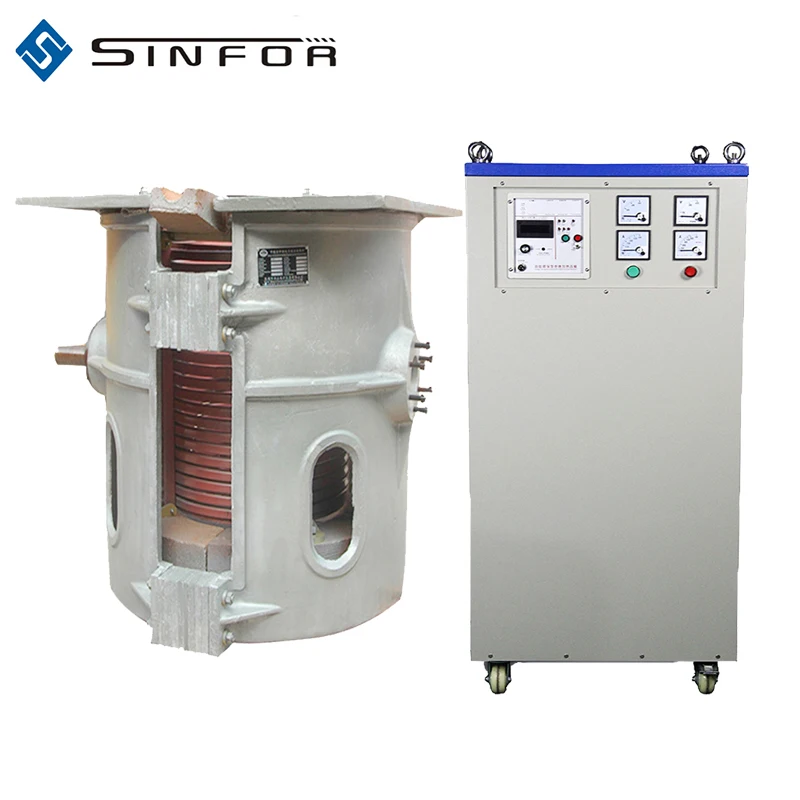

(1)Medium Frequency Induction Heating Power Supply+ Melting Furnace
(2)Medium Frequency Induction Heating Power Supply+ Heat Preservation Furnace
(3)Medium Frequency Induction Heating Power Supply+ Quenching Transformer+ Induction coil
(4)Medium Frequency Induction Heating Power Supply+ Forging Furnace

2 . Features:
1). High Efficient
KGPS Induction Heating Power Supply Device has high change efficient(90-95%), when output power is low, the power supply change efficient will not reduce, especially for the heat treatment field, some workpiece need to be heated in subsection, start and stop the machine frequently, no any lose at the "off" status. So, adopt the KGPS Medium Frequency Induction Heating can save the energy in the induction heating field.
2). Small Size and Light Weight
KGPS Medium Frequency Induction Heating made of SCR, no complete mechanical rotate, no shock, small voice, no any special request for the floor construction when install.
3). Easy to Operate
KGPS Medium Frequency Induction Heating has a large range power regulate, frequency conversion can change automatically follow to the loading parameter ( means frequency tracking). Loading circuit keep almost resonance status, means working in best status. And its has a series automatic protection device, make its has a stable and reliable working.
4). Flexible to Start
KGPS Medium Frequency Induction Heating adapt to the zero voltage start, with high start success ratio without attack, fast and stable. Based on these, accompany new and special integrated circuit development, its has high stability and impact structure popular with the customers.



Performance and features

1. Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;

2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;

3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;

4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low  oxidization loss, uniform metal content;

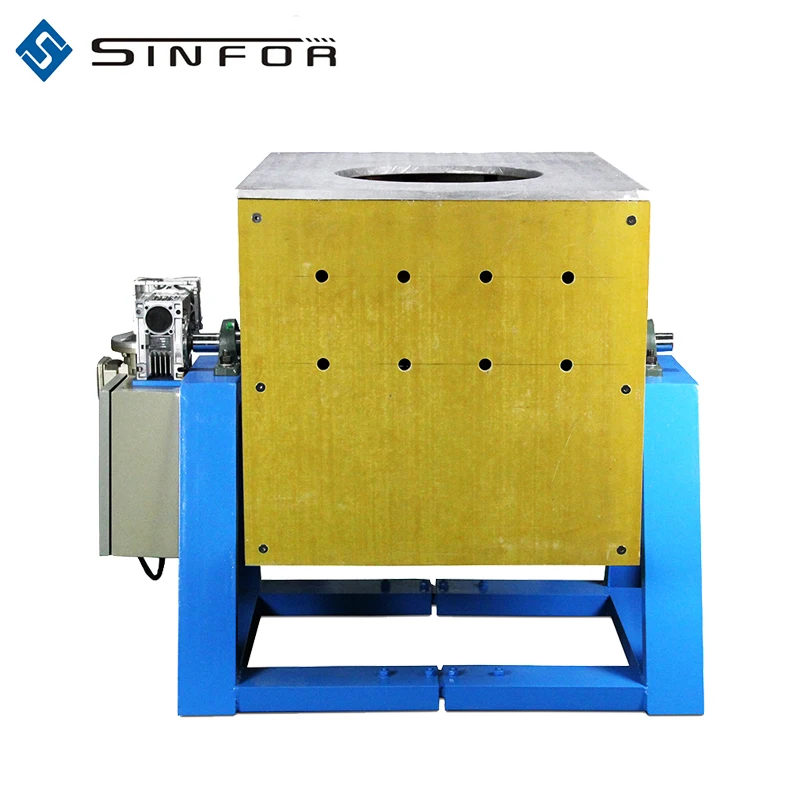

5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;

6. Contravariant automatic regulation circuit available for matching of load imendence automatically, maintaining good operation without regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.





Sinfor KGPS Induction Furnace Features:
1) Cooling system for SCR (all pipe are used the stainless steel)
2) TECHSEM SCR (best quality)
3) All screw in melting furnace is used stainless steel
4) Pipe for the power supply (Japan brand, good quality)
5) Breaker (electricity auto breaker, some factory use the manual type)
6) In our power supply have water relay to protect the power supply if the not enough water in the machine will stop the machine automatic.)
7) In the power supply have water temperature protect system, if the water temperature higher than you set the temperature for the power supply, the machine will stop to protect the machine.









   Main Technical Parameters:

Power Supply Type	Rated Power (KW)	Output Frequency (KHZ)	Input Voltage (V)	Input Current (A)	DC Voltage (V)	DC Current (A)	Rectifier Pulse	Transformer Capacity (KVA)	Cooling Water Consumption (T/H)
SF-200KW-KGPS	200	2.5-10	380	320	500	400	6	250	5
SF-250KW-KGPS	250	1-8	380	400	500	500	6/12	315	6
SF-300KW-KGPS	300	1-8	380	480	500	600	6/12	315	6
SF-500KW-KGPS	500	1-4	380/720	800/420	500/950	1000/526	6/12	500	7
SF-800KW-KGPS	800	1-2.5	380/720	1280/673	500/950	1600/842	6/12	800	10
SF-1000KW-KGPS	1000	1-2.5	380/720	1600/842	500/950	2000/1052	6/12	1250	10
