Product Description

Introduction:

Geocell is a kind of 3D network structure through ultrasonic welding with long plastic material, and it is three-dimensional network after being expanded. Sometimes it needs to be perforated according to customer's need.

It can be capable of expansion and contraction, and can be filled with earth and macadam when being stretched to network; The material is light, and it is resistant to wear, anti acid and alkali, anti-aging; It has higher literal limitation, anti-skidding, anti-deformation, and can reduce the thickness of roadbed.

Certifications

Detailed Images

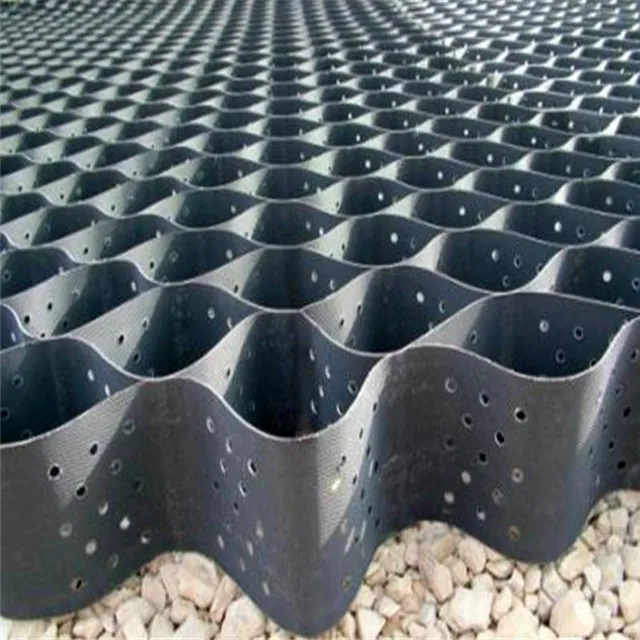

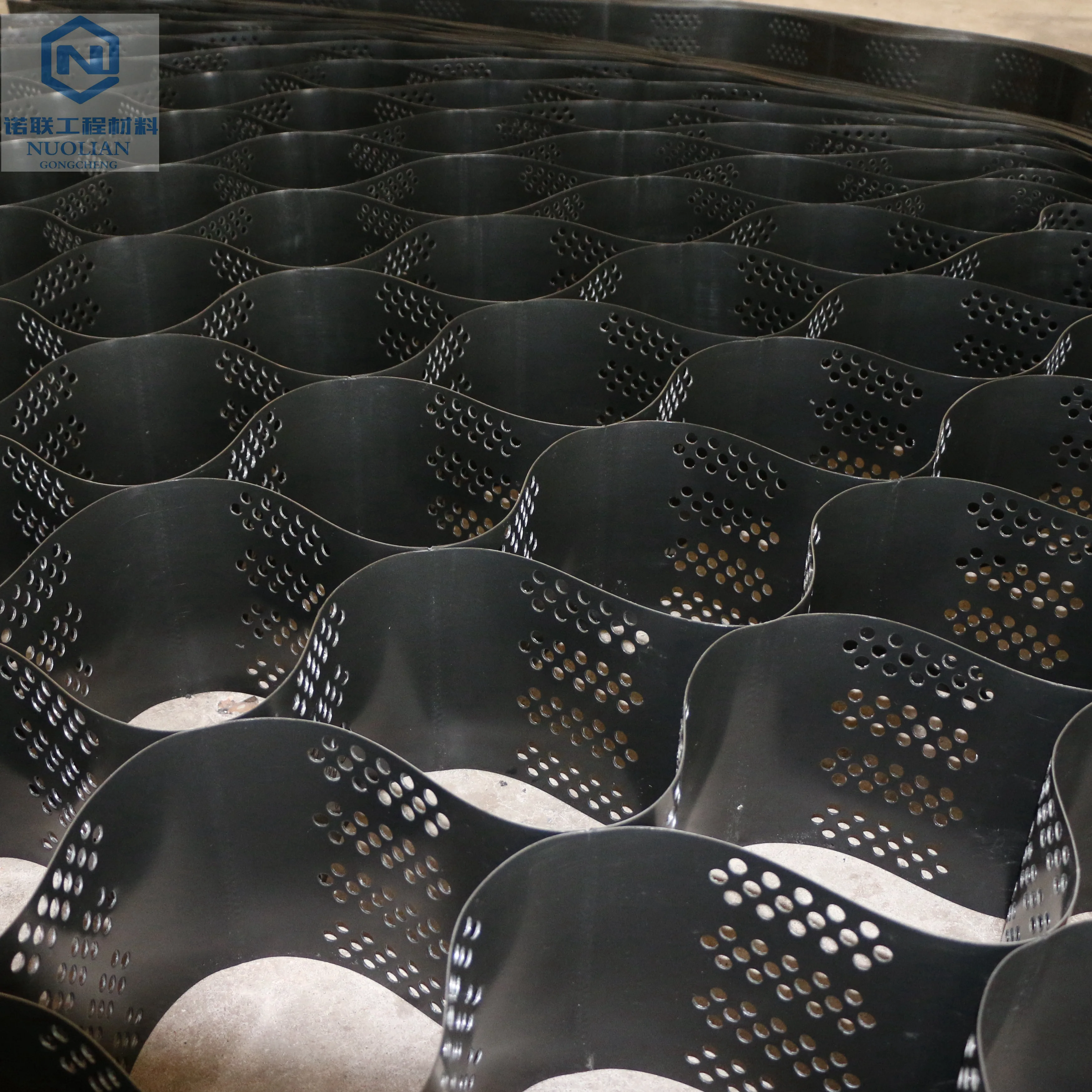

Structure of geocell

Geocell is honeycomb shaped structures, in material of HDPE, welded by highfrequency ultrasonic.

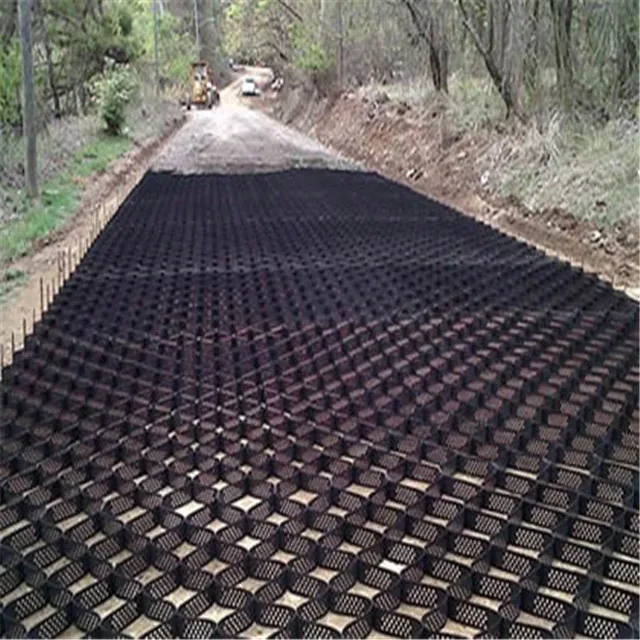

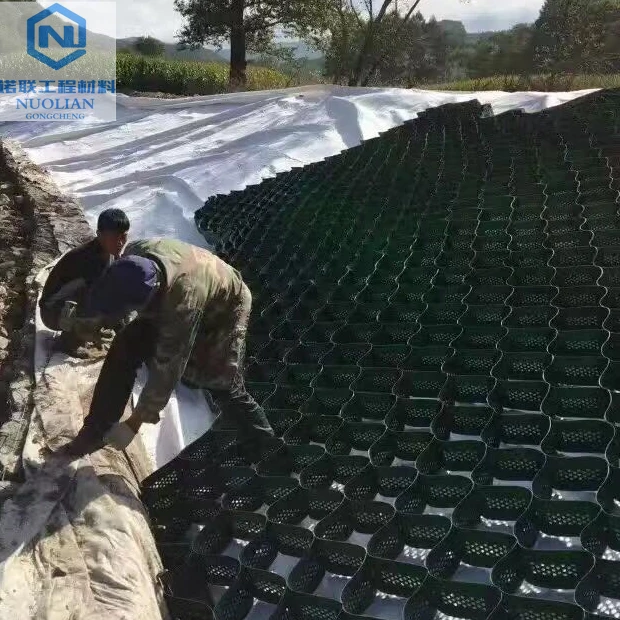

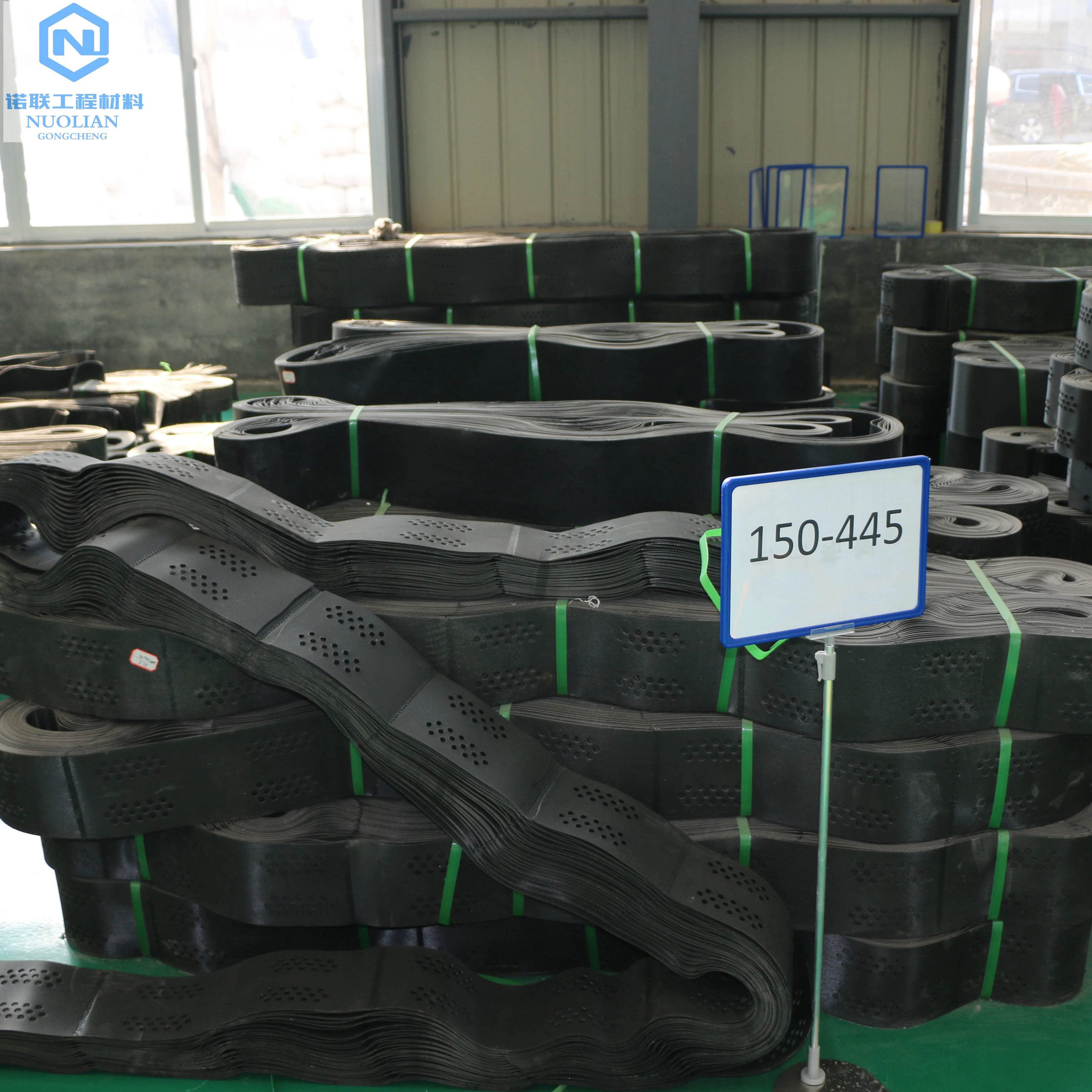

Being flexible, geocell can be folded in transit and outspreaded filling with sand, stone or concrete in roadbed construction.

Benefits of geocell
1.Produces a stiff base with high flexural strength; acts like a semi rigid slab by distributing loads laterally.
2.Minimizes impact of differential and overall settlement even on low-strength subgrades
3.Increases effective structural number, reducing fill depth requirement by 50%.

4.May allow use of poor-quality granular fills in place of more costly imported materials.

Function of geocell

1. To stable the roadbed of railway.
2. To stable the roadbed of highroad.

3. To bear the load of dike or retaining wall.
4. To the improvement of shallow riverway.

5. To support the pipeline and sewer.

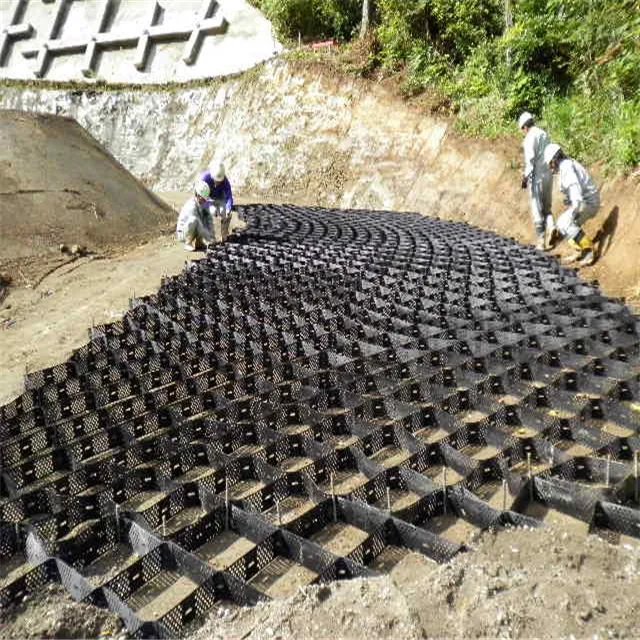

6. For the prevention of landslide by useing geocell as a heavy-duty hybrid force retaining wall.
7. To be used as independent wall, wharf and breakwater.

Features of geocell

Our Service

Befor-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the geocell, training how to use the geocell.

* Engineers available to service geocell overseas.

Geocell Parameter

Geocell implements Geosynthetic Material Geocell GB/T19274-2003
Basic Performance and Requirement of Plastic Geocell

\t NO.	\t Item	\t Unit	\t Polypropylene	\t Polyethylene
\t 1	\t Environmental stress cracking F50	\t h	\t -	\t ≥80
\t 2	\t Low temperature brittle temperature	\t ℃	\t ≤-23	\t ≤-50
\t 3	\t Vicat softening temperature	\t ℃	\t ≥142	\t ≥112
\t 4	\t Oxidation induction time	\t min	\t ≥20	\t ≥20

Dimensional deviation of plastic geocell

\t No.	\t Geocell Height H/mm		\t Plate thickness of geocell T/mm	\t Welding distance A/mm
\t 1	\t Nominal value	\t Deviation	\t Nominal value	\t Nominal value	\t Deviation
\t 2	\t H≤100	\t ±1	\t ≧1.1	\t 300≦A<800	\t ±15
\t 3	\t 100,<H≤200	\t ±2	\t ≧1.1	\t 300≦A<800	\t ±15

Technical requirement of plastic geocell

\t No.	\t Testing item		\t Unit	\t Geocell made of PP	\t Geocell made of PE
\t 1	\t Outlook		\t	\t The geocell plate should be flat, non-bubble, and non-groove mark
\t 2	\t Tensile strength of geocell plate		\t MPa	\t ≥23.0	\t ≥20.0
\t 3	\t Tensile strength in welding position		\t N/cm	\t ≥100	\t ≥100
\t 4	\t Connection place of geocell group	\t Edge of geocell plate	\t N/cm	\t ≥200	\t ≥200
\t 5	\t Connection place of geocell group	\t Middle of geocell plate	\t N/cm	\t ≥120	\t ≥120

3D Geomat

Non-woven drainage prefabricated 3D geomat system from China in good quality

Uniaxial plastic geogrid

China ultrasonic welded composite geogrid uniaxial plastic geogrid for road construction

Fiberglass Geogrid

High tensile strength woven warp knitted polyester geogrid

FAQ

Q1. Can I have a sample order for geocell?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for geocell?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for geocell?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on geocell product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5-25years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For

efective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
