Машины для этикеток
Автоматическая Этикетировочная машина для упаковки закусок и

Автоматическая Этикетировочная машина для упаковки закусок и

Категория: Машины для этикеток >>>
Поставщик: Shanghai,Skilt,Machinery,Equipment,Co.,Ltd.

Цена:12 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	14280.49 $*	14994.0 $*
Aug-16-2025	14160.84 $*	14868.60 $*
Jul-16-2025	11880.14 $*	12474.23 $*
Jun-16-2025	13920.79 $*	14616.16 $*
May-16-2025	12120.38 $*	12726.50 $*
Apr-16-2025	13680.78 $*	14364.97 $*
Mar-16-2025	13560.23 $*	14238.92 $*
Feb-16-2025	13440.93 $*	14112.45 $*
Jan-16-2025	13320.50 $*	13986.96 $*

Характеристики

SKILT Partner

Product Description

1.The scope of application

The model SLM-A Labeling machine suit for differnet kinds products that need labeling on one side,two sides, three sides,four sides or more side with one label.

2. Device Characteristic

1) Control system: Use American AB brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: 10 inch MCGS touch screen, directly visual interface easy operation, also rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.

4. If client with other kinds products need labeling as follow pictures, pls click on bottle pictures for more information:

Technical Parameter

\t Model	\t SLM-A
\t Capacity (pcs/min)	\t 20-160
\t Driving Mode	\t Servo control system
\t Labeling accuracy	\t ±1mm
\t Labeling Speed(m/min)	\t ≤35
\t Label Specification	\t adhesive sticker, transparent or opaque
\t Suit bottle size	\t Can customized
\t Suit label size	\t Height 20-200mm Length 25-300mm
\t The inner diameter or label roll	\t 76mm(min)
\t The outer diameter of label roll	\t 350mm(max)
\t Power	\t 800w
\t Voltage	\t can customized, 110V/220V/380V
\t Machine size	\t 2300x80x1500mm

\t No	\t Name	\t Model	\t Unit	\t Brand
\t 1	\t PLC control system	\t 1763-L16BBB	\t 1 Set	\t America AB
\t 2	\t Touch-screen	\t TPC7062KW	\t 1Piece	\t BGCS
\t 3	\t Inverter	\t 22F-A2P5N103	\t 1piece	\t Delta
\t 4	\t Photoelectric sensor (Check objects)	\t FS-V11/-FV-35FA	\t 1Set	\t Japan KEYENCE
\t 5	\t Photoelectricsensor (Check opaque label)	\t GS61	\t 1 Set	\t German Leuze
\t 6	\t Main transport motor	\t 370W1:30	\t 1 set	\t Switzerland ABB
\t 7	\t Servo motor	\t 2004-RZ08BAIAN3	\t 2 sets	\t America AB
\t 8	\t Drive	\t 2003-CSD3-08BX2	\t 2 sets	\t America AB
\t 9	\t Separate BottleMotor	\t 40W1:30	\t 2 sets	\t German JSCC

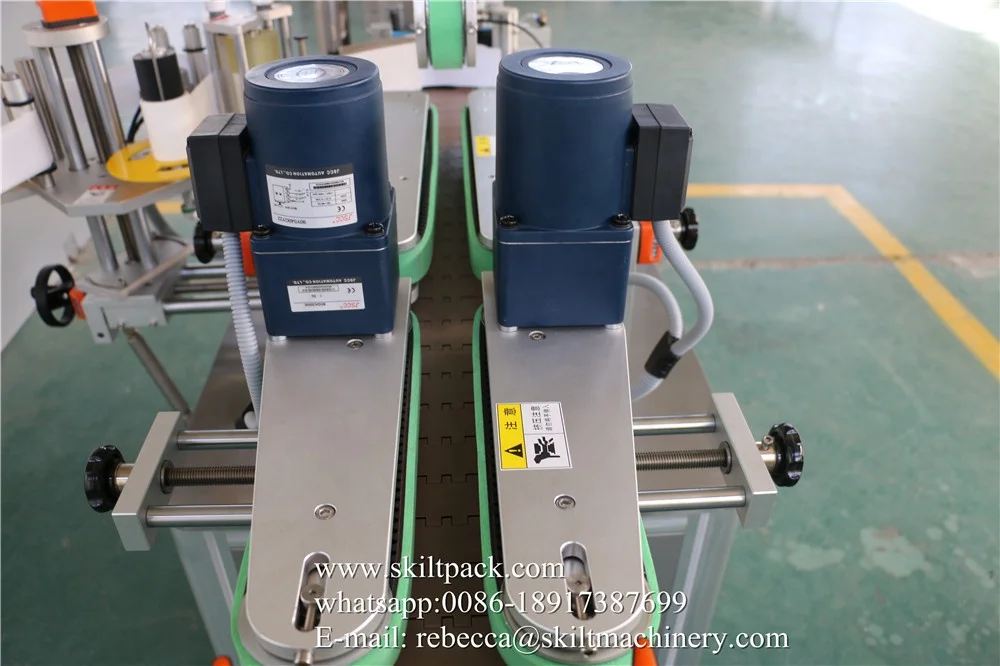

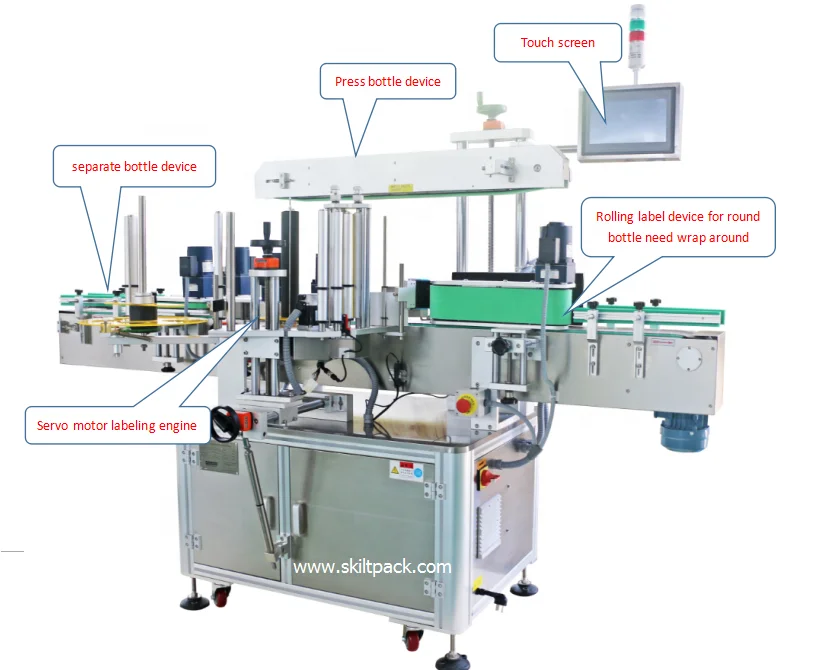

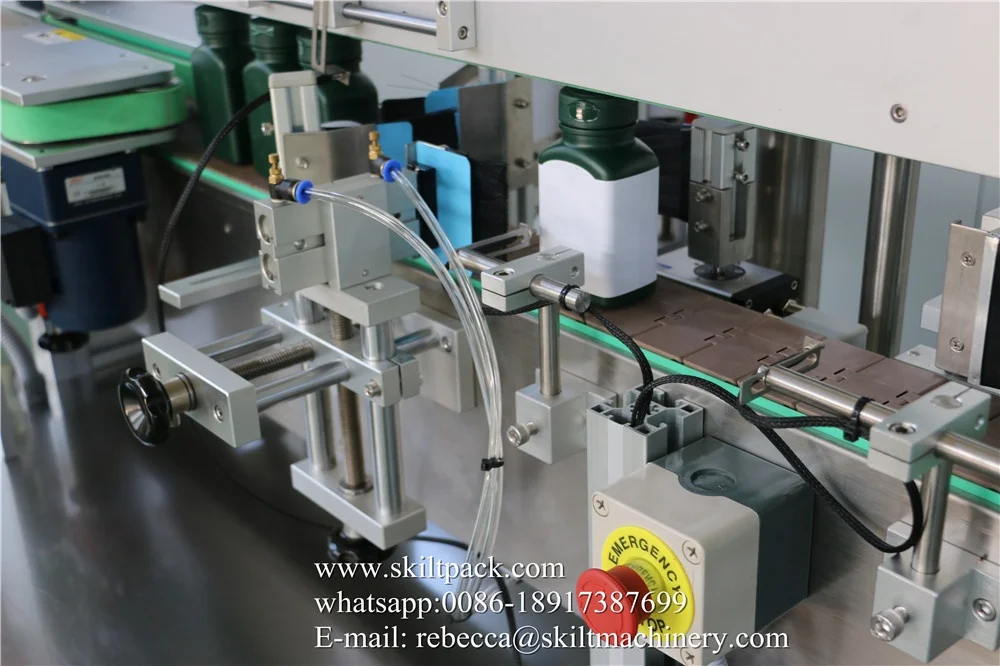

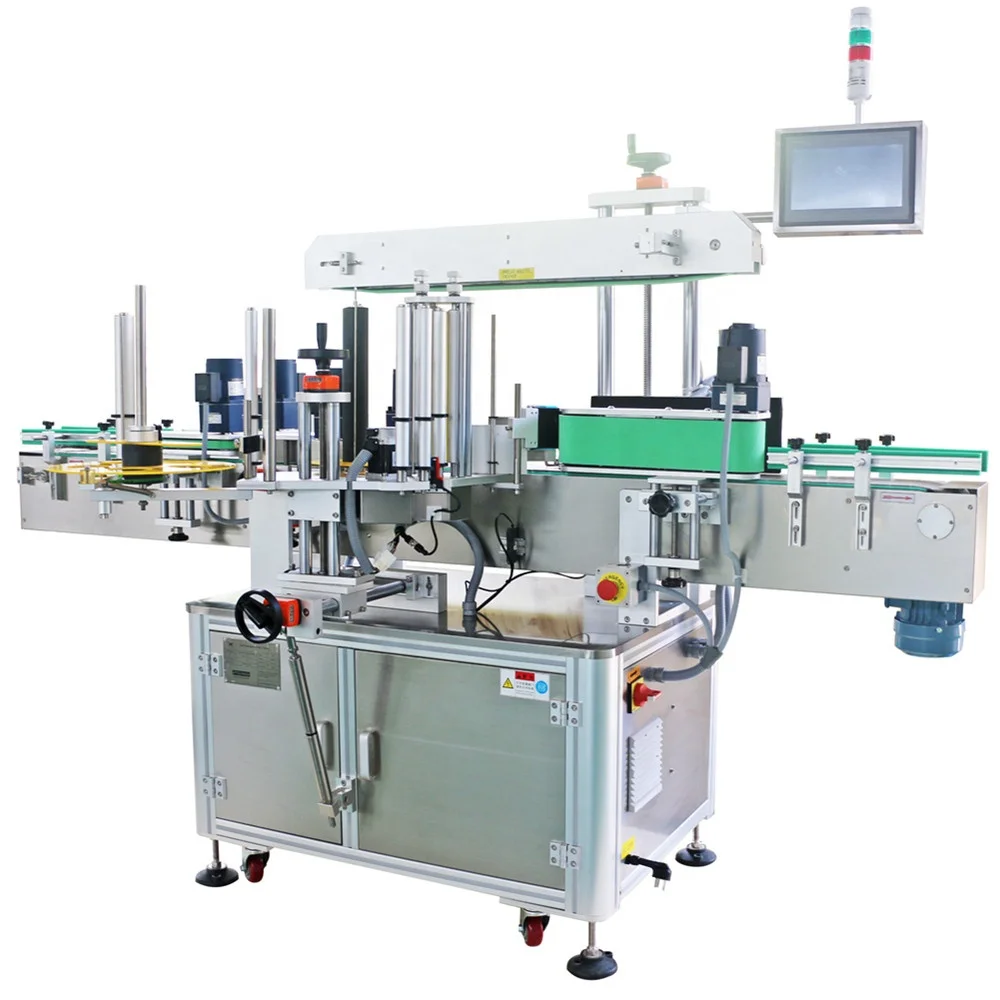

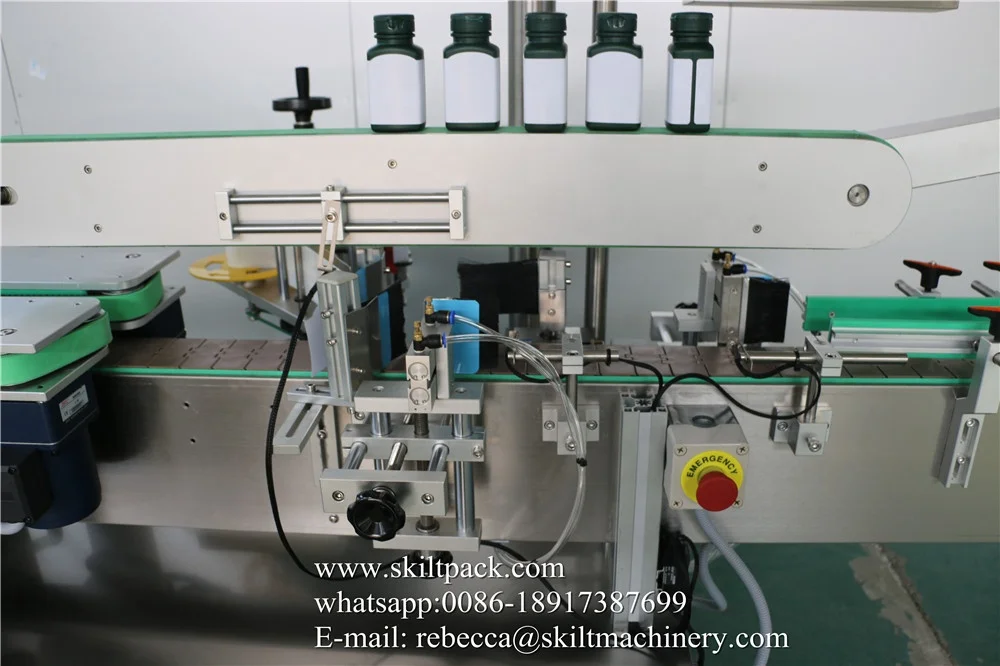

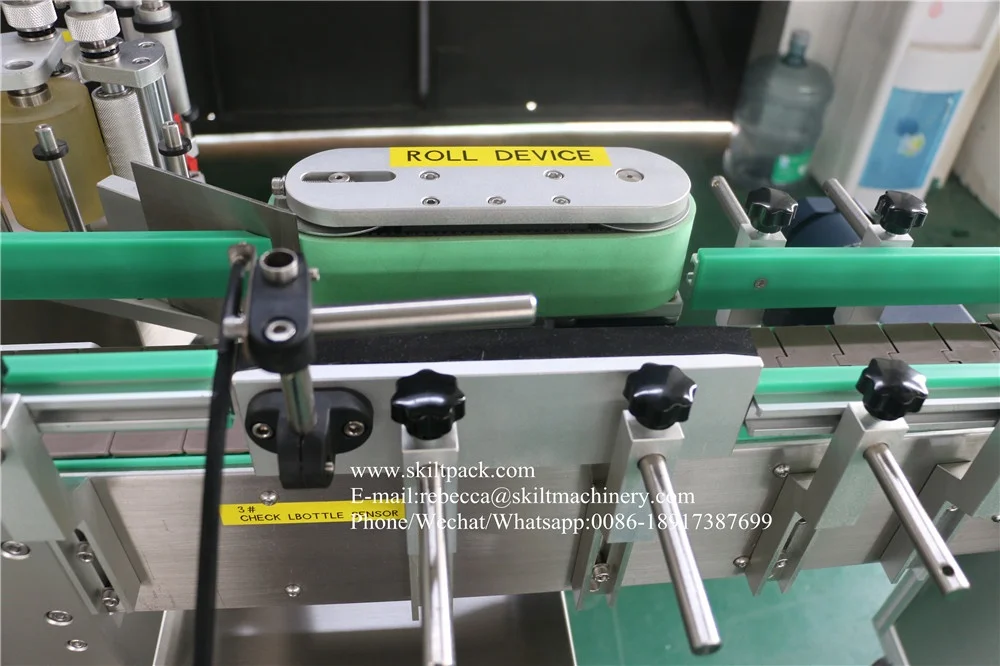

Detailed Images

Machine Processing

SKILT Team

FAQ

1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
