Новый дизайн автоматического включения резерва RP5S-100 4 полюса 100Amp перекидной

RP5S-100 series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

RP5S-100 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 100A. ATSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.

ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.

Technical Data

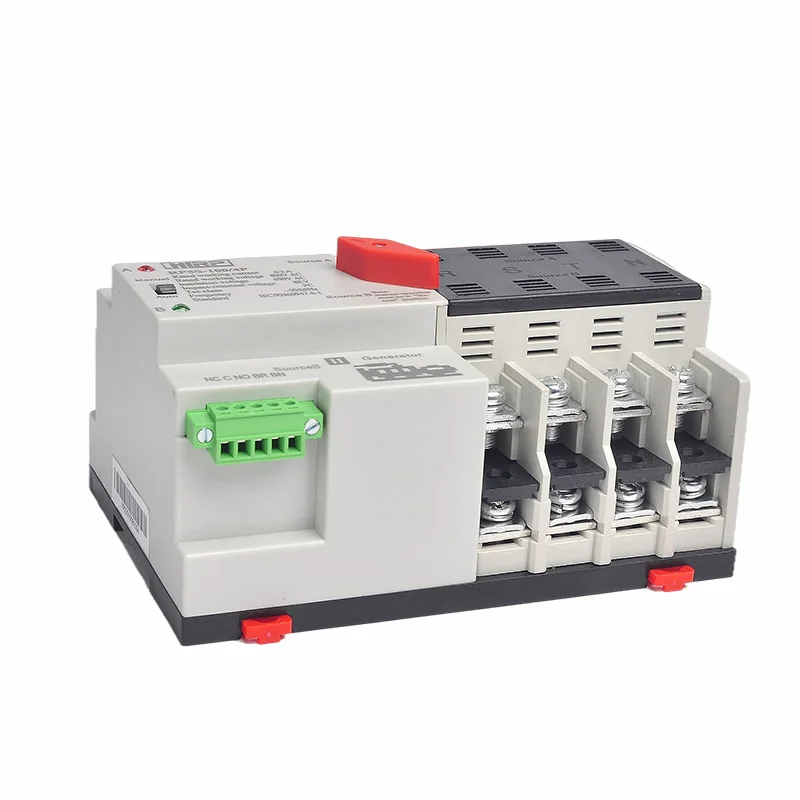

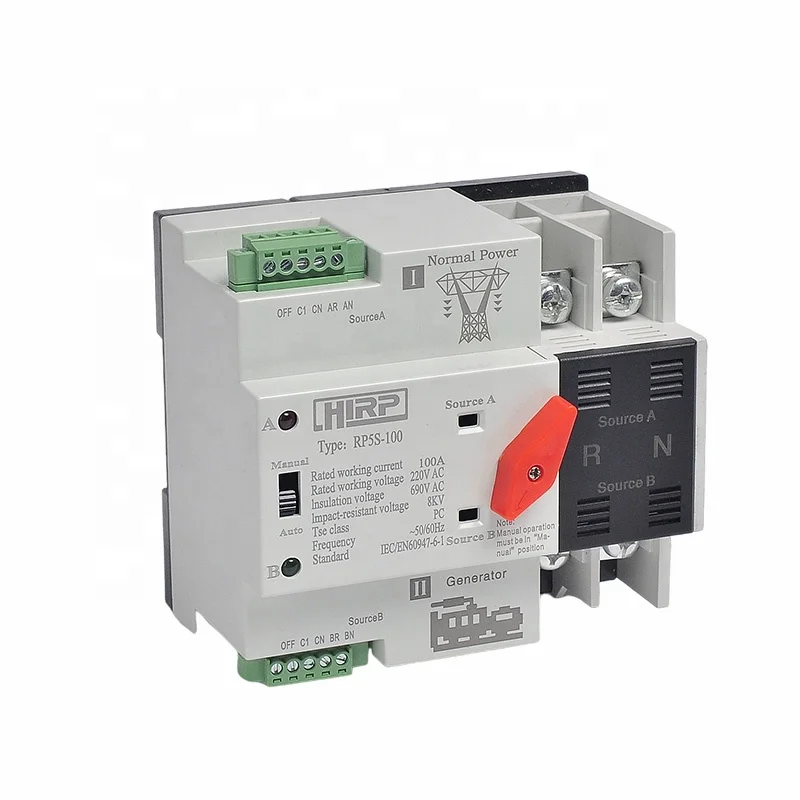

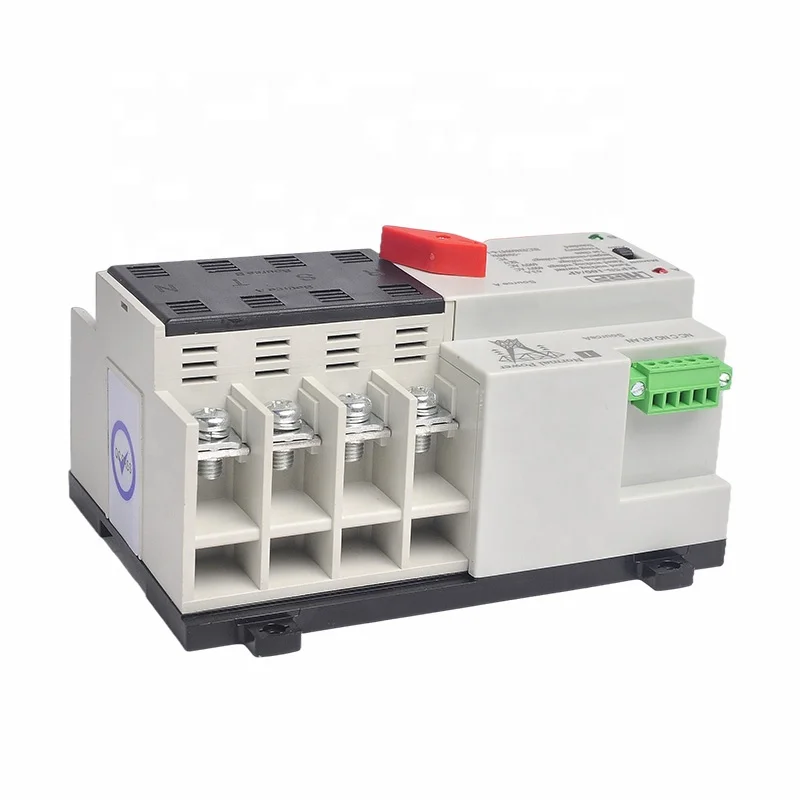

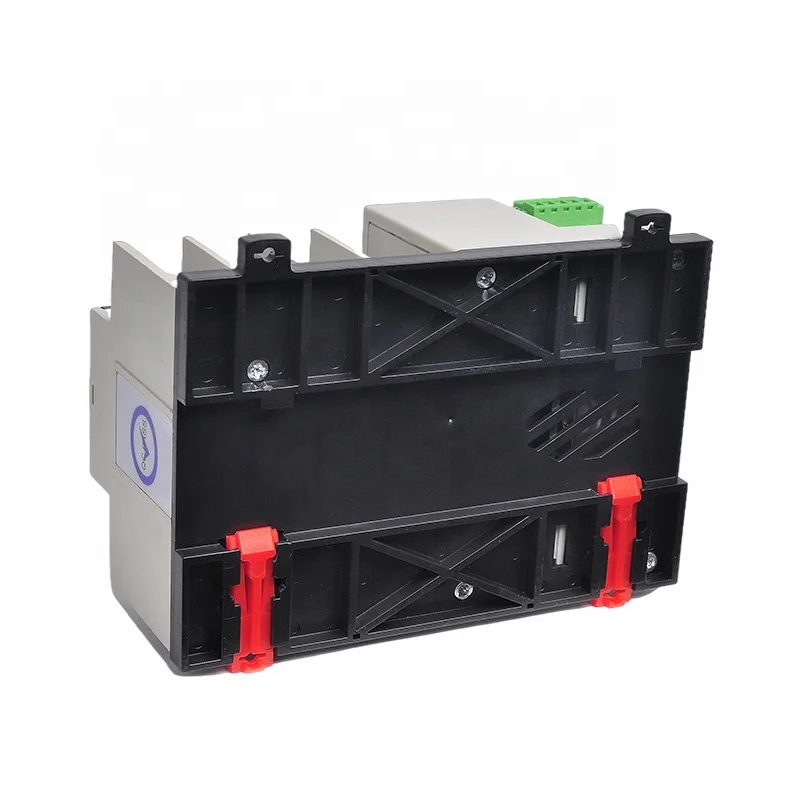

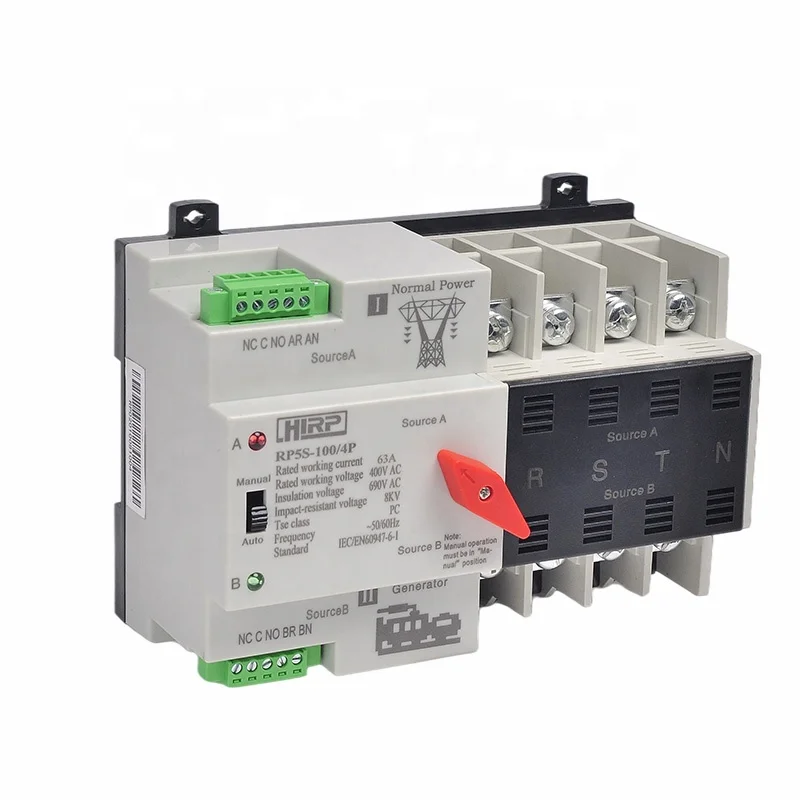

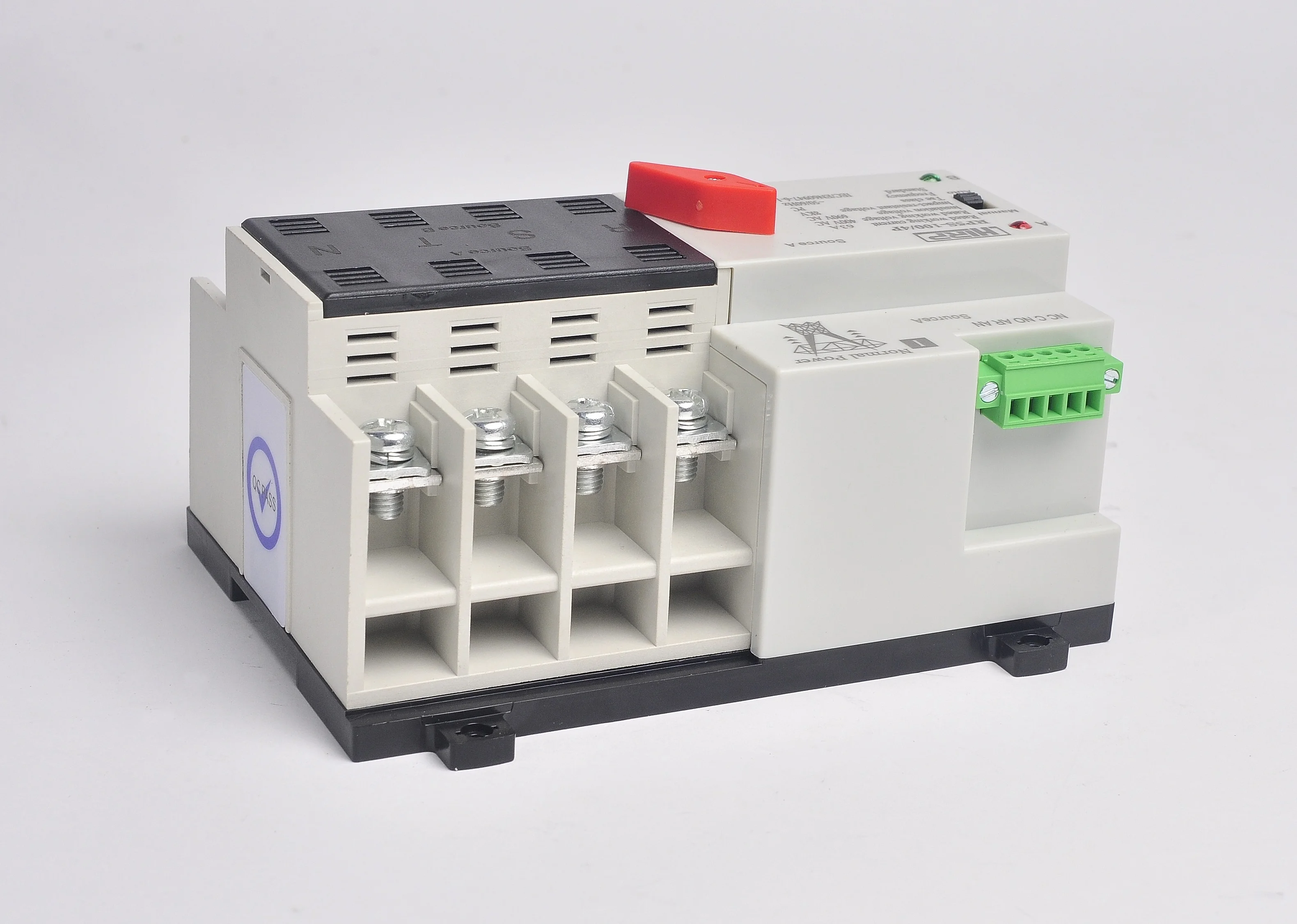

Detailed Pictures

1,Q:Why your quotation is higher than some other suppliers?
A:In domestic market, the high and low quality brands are mixed together. There are many low-cost dual power automatic transfer switch which is actually assembled with some cheaper and unstable parts, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable dual power automatic transfer switch!
..............................................................................................................................................................
2,Q:Your dual power automatic transfer switch control voltage is 220V or 110V ?
A:Our ATS control voltage is normally 220V(240V),50/60Hz,if your Control voltage is 110V(120V) 50/60Hz,then you must tell us about this,it is important for us to make correct dual power automatic transfer switch for you.

..............................................................................................................................................................
3,Q:Should I choose 2Poles,3Poles or 4Poles dual power automatic transfer switch?
A:If your two power supply are single phase(L-N),then you can choose 2Poles or 4Poles ATS.

  If your two power supply are three phases three wires(L-L-L),then you can choose 3Poles ATS.

  If your two power supply are three phases four wires(L-L-L-N),then you can choose 4Poles ATS.
..............................................................................................................................................................
4,Q:In our country,voltage is very unstable,Your dual power automatic transfer switch will be easy to be damaged?
A: As we said we use the best quality key parts for dual power automatic transfer switch,such as Relays in dual power automatic transfer switch,We use silver contact relays which is famous chinese brand.

For motor in the dual power automatic transfer switch,we use copper coil quality. So all of these will assure it quality better and stable than some other suppliers.
..............................................................................................................................................................
5,Q:How many years quality warranty you can offer?
A:We promise to give customer 2 years warranty since we ship the goods,our warranty time is longer than most of competitors.

6,Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.

7,Q: What’s the delivery time?
A: It usually takes about 2-5 working days for small sample order and 10-35 days for big order.
