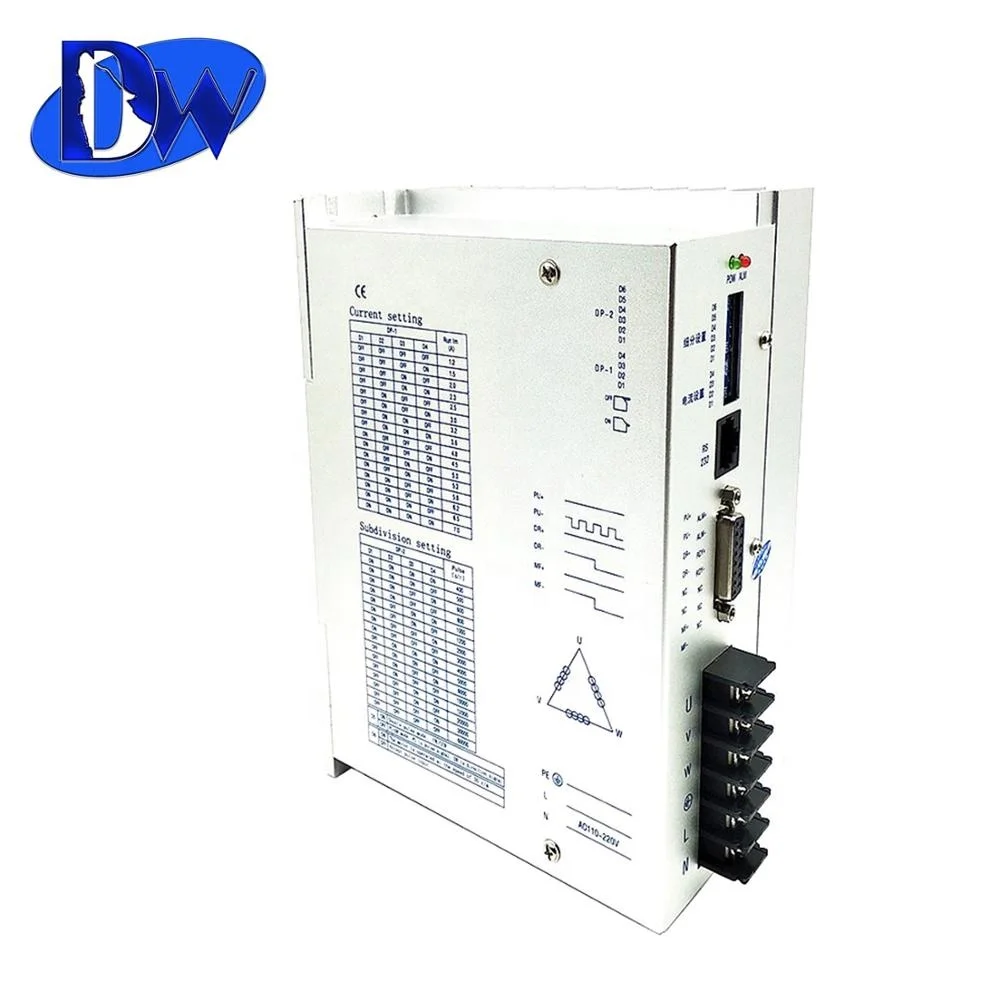

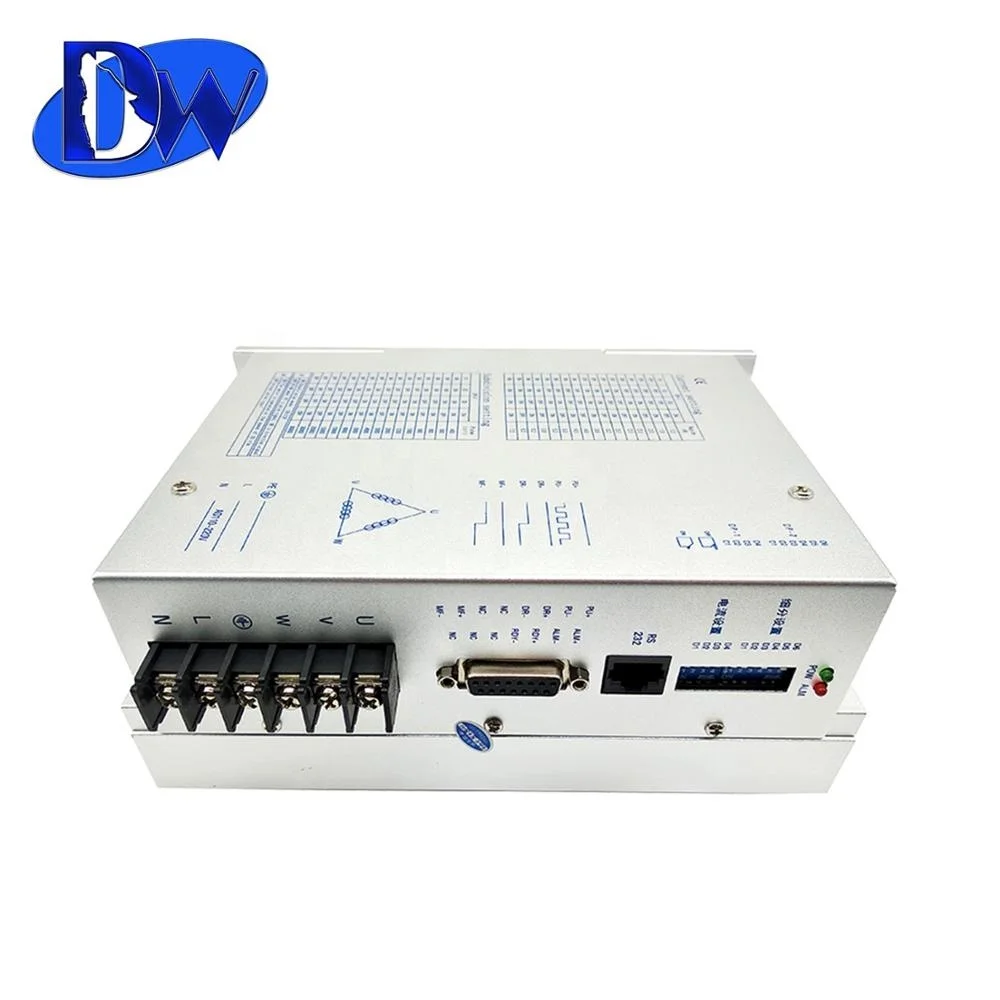

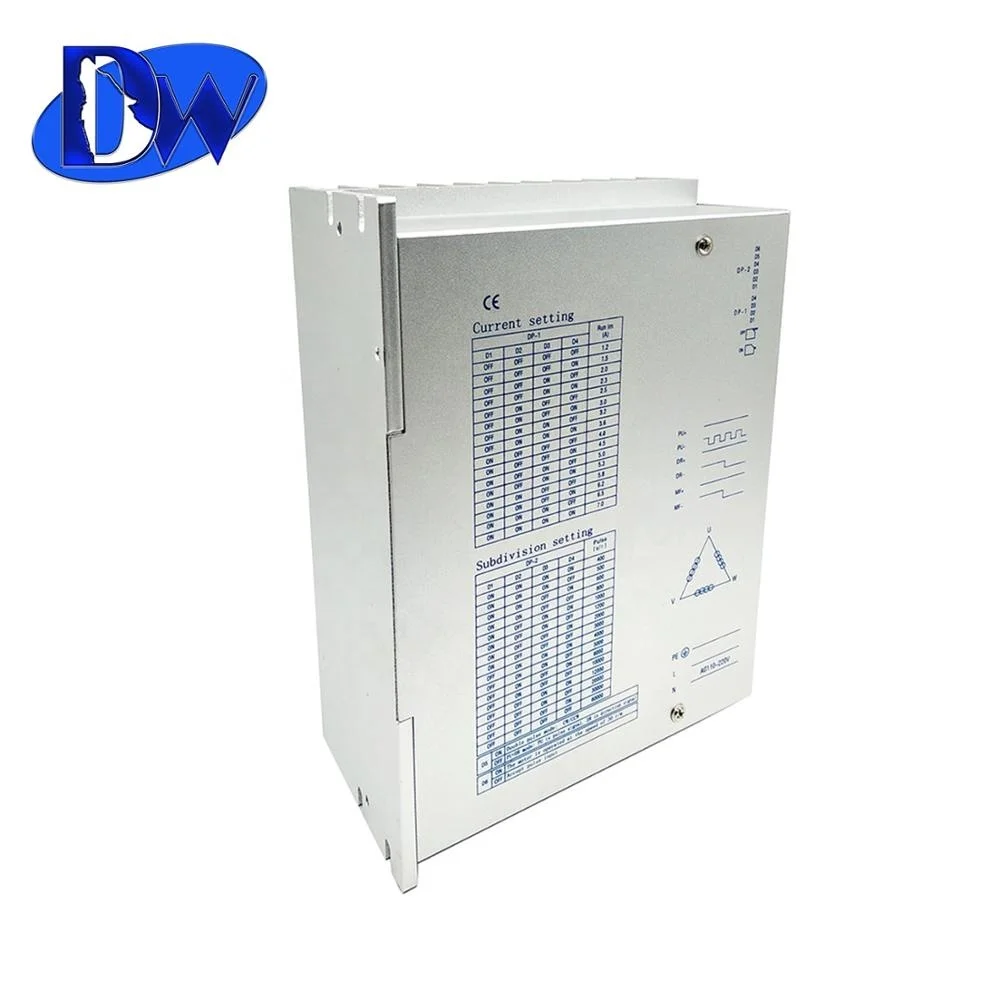

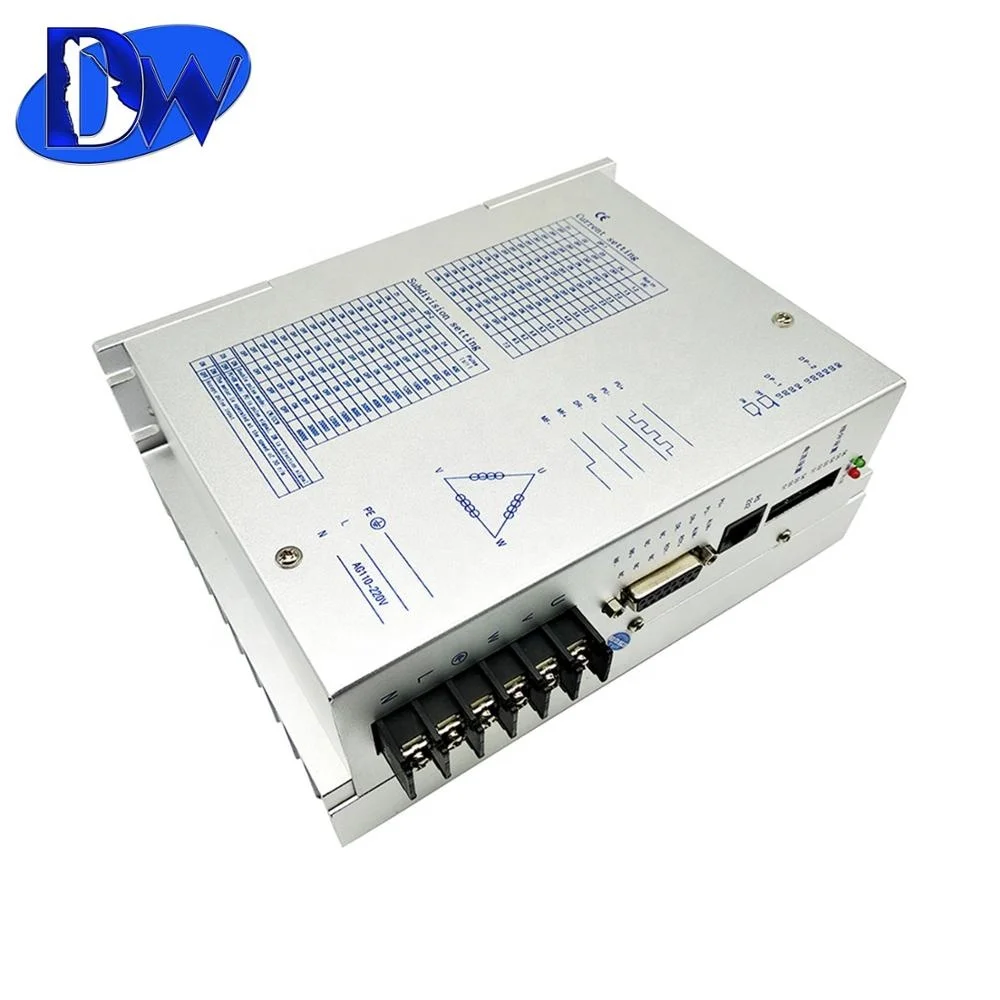

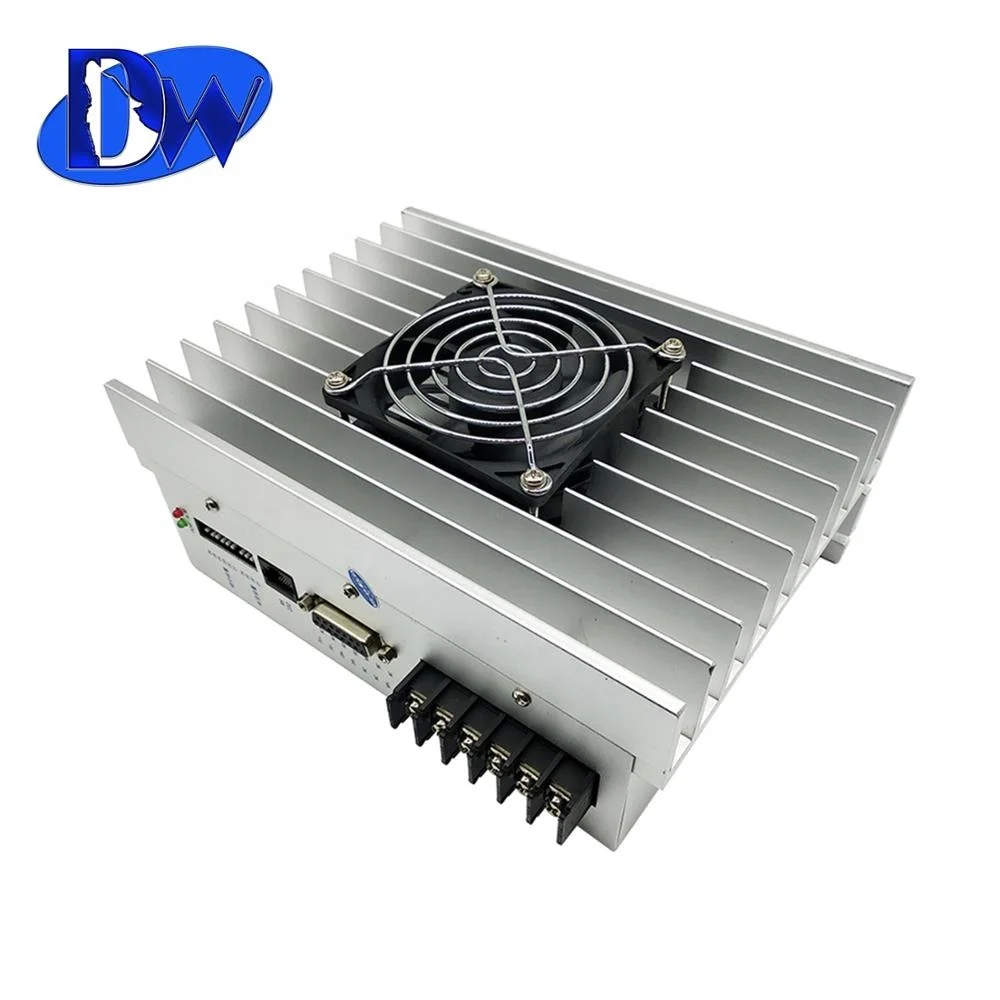

2019 hot selling 500 KHZ step motor driver for CNC machine

Product Features:

1.Using brand new imported chips,Adoption of bipolar constant-current technology.

2.Low-noise,Low-vibration and low temperature rising.

3.Voltage 110-220VAC.

4.With 8 stalls output current setting,peak current 7.0A.

5.With 16 stalls microstep subdivision setting.

6.Automatic half current,self-test,over voltage,under voltage.over current protection.Pulse/Rev

7.Internal optical isolation,highest frequency response 500KHZ.

8.Suitable for current range 1.2-7.0A 3 phase nema42,nema52 hybrid stepper motor.

Microstep Selection

Pulse/Rev	D5	D6	D7	D8
400	on	on	on	on
500	on	on	on	off
600	on	on	off	on
800	on	on	off	off
1000	on	off	on	on
1200	on	off	on	off
2000	on	off	off	on
3000	on	off	off	off
4000	off	on	on	on
5000	off	on	on	off
6000	off	on	off	on
10000	off	on	off	off
12000	off	off	on	on
20000	off	off	on	off
30000	off	off	off	on
60000	off	off	off	off

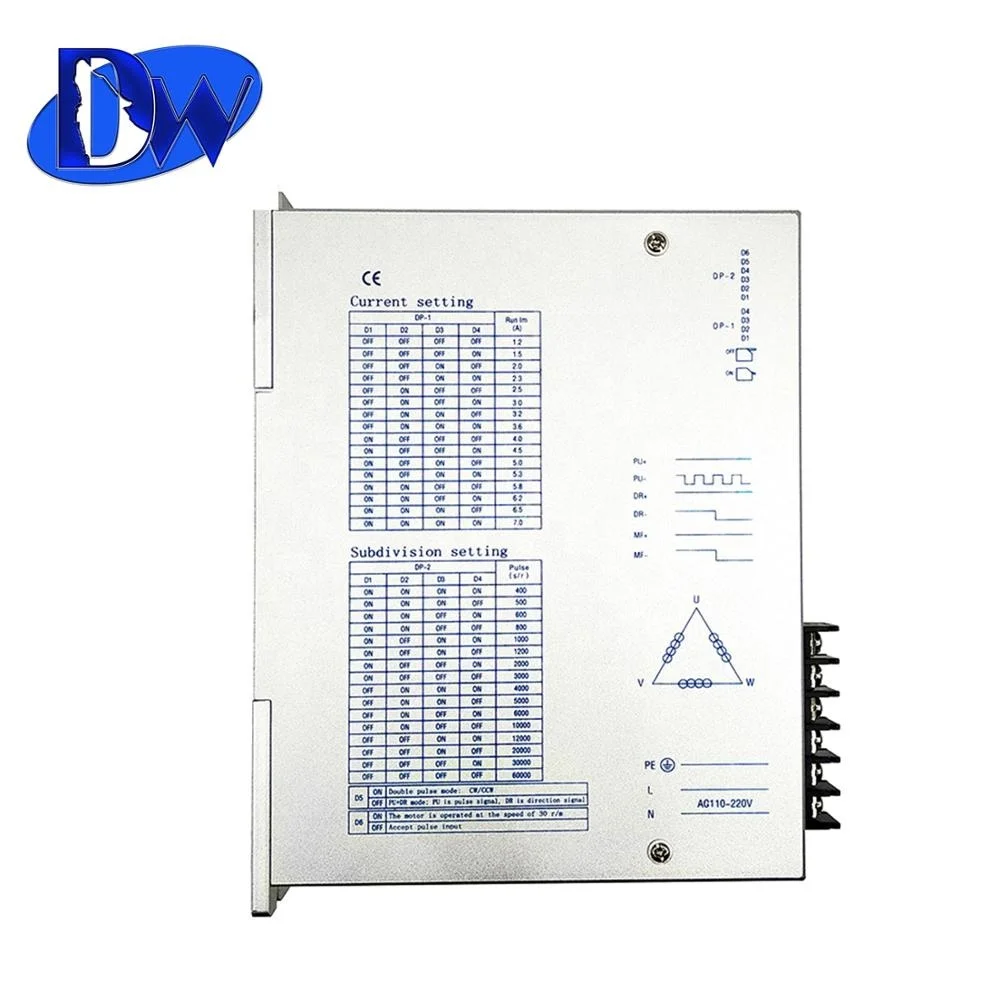

Current Selection

Current	D1	D2	D3	D4
1.2A	off	off	off	off
1.5A	off	off	off	on
2.0A	off	off	on	off
2.3A	off	off	on	on
2.5A	off	on	off	off
3.0A	off	on	off	on
3.2A	off	on	on	off
3.6A	off	on	on	on
4.0A	on	off	off	off
4.5A	on	off	off	on
5.0A	on	off	on	off
5.3A	on	off	on	on
5.8A	on	on	off	off
6.2A	on	on	off	on
6.5A	on	on	on	off
7.0A	on	on	on	on
