25KW  Induction Brazing Machine for Air Conditioner Refrigeration





Brief  Description



The new high-IF heating equipment is widely used in heat treatment, quenching, annealing, welding, smelting, heat matching, thermal compounding, cladding, mechanical thermal processing, etc.: covering auto parts, motorcycle parts, agricultural machinery parts, hardware tools, standard parts. , fasteners, mechanical parts, electric, hydraulic, pneumatic components, all kinds of drilling tools, cutting tools, tableware, agricultural tools, sanitary ware, rigging, steel, railway equipment, aerospace, weapons manufacturing, electrical manufacturing, motors, valves Brazing, sintering of tungsten-molybdenum and copper-tungsten alloys, and various metal processing industries such as smelting of gold, silver, copper, and aluminum.



Product Introduction

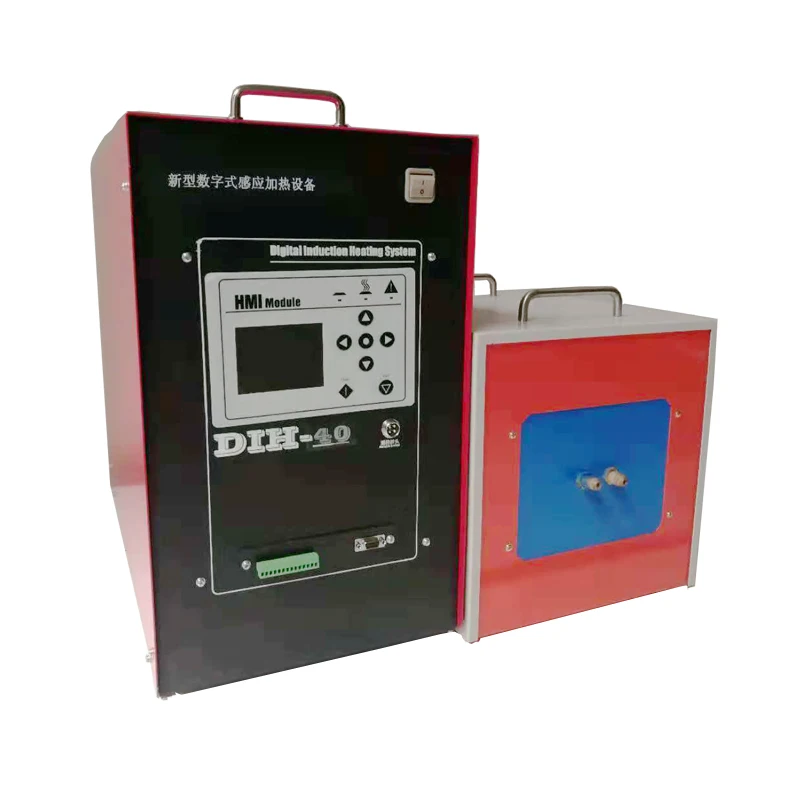

Model	DIH-25	DIH-40			DIH-60		DIH-80		DIH-120
Output Parameters
Power	15KW	25KW			35KW		50KW		75KW
Duty Cycle	0.5/10 min
Power Range	2–100 %
Frequency Domain	10–60 kHz
Efficiency	0.93
Length of Main Extension Cable	1.5m	2m			2m		2m		2m
Input Parameters
Voltage	380 V ±10%
Frequency	50/60 Hz
Rated Current	21.5A	31A			45A		68A		103A
Max Income Current	31A	45A			72A		103A		144A
Rated Power	15KVA	25KVA			35 KVA		50KVA		75KVA
Max Power	20KVA	27.5KVA			45 KVA		68KVA		90KVA
Power Factor	0.95
Minimum  Circuit Breaker	3P-63A	3P-63A			3P-80A		3P-120A		3P-160A
Contents Insurance	31A	45A			72A		103A		144A
Built-in Cable Length	2m	2m
Power Cable System	3L+PE
Recommed L Cable	3x6mm2	3x10mm2			3x16mm2		3x25mm2		3x35mm2
Cooling Parameters
Cooling Water Flow	12.5 l/min
Max Inlet Water Temperature	35 °C
Hydraulic Pressure Min/Max	4/6 bar
Cooling Water HP Value	7.0~9.1
Operating Ambient Temperature	+5℃~+50℃
Exterior Parameters
Mainframe Dimension	550x250x520		550x280x580	650x400x850
Mainframe Weight	27.9KG	37KG		----		----		----
Protection Level	IP 42
Color	Red
Package	Carton
Mainframe Package Dimension	710x370x660	720x380x690		750x500x950
Extension Set Dimension	365x230 x325		390x280x390	Customization
Extension Set Weight	18KG		29KG	Customization

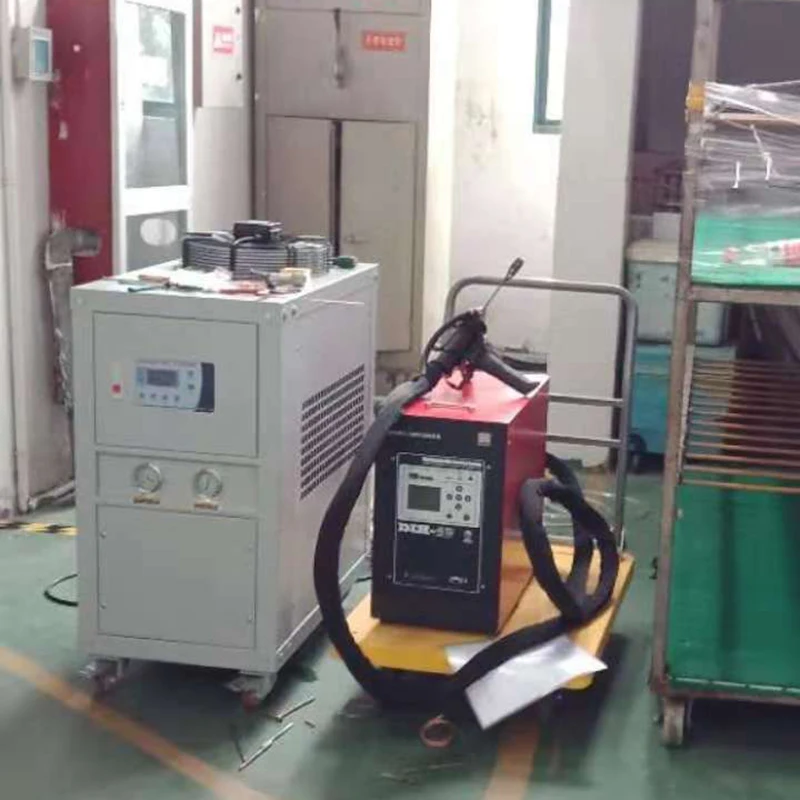

 Application
