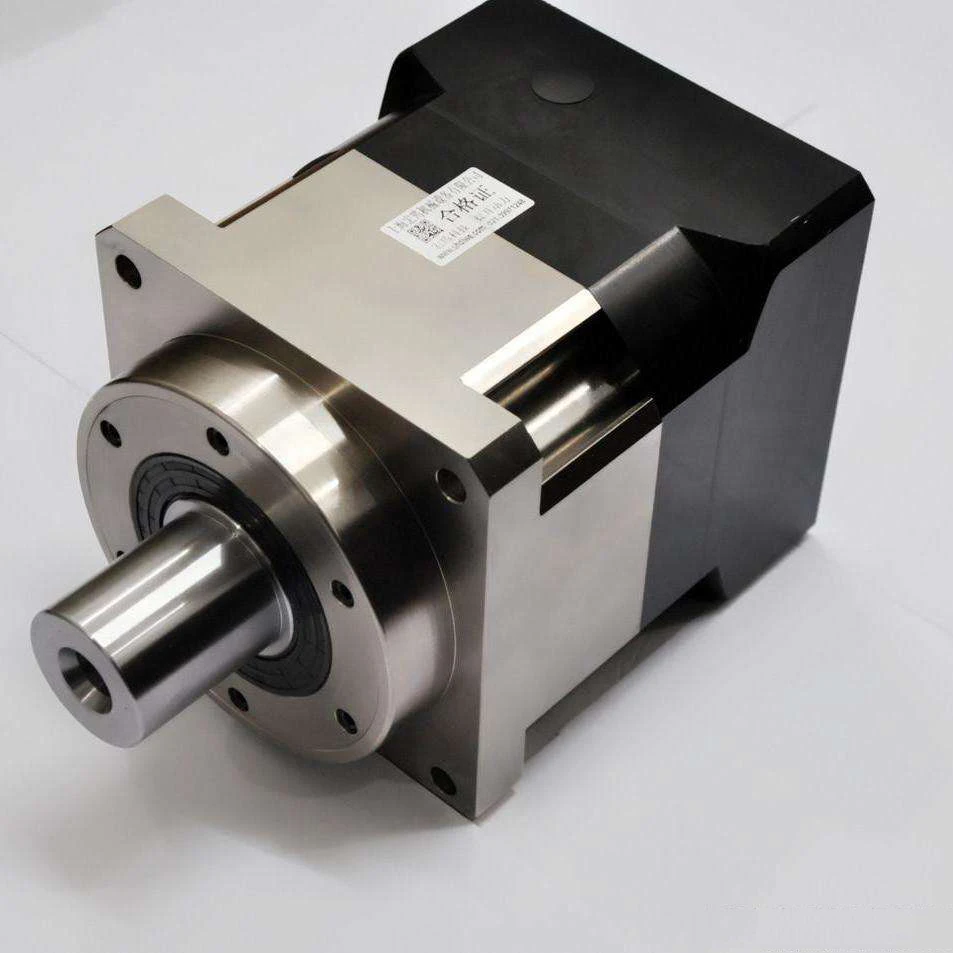

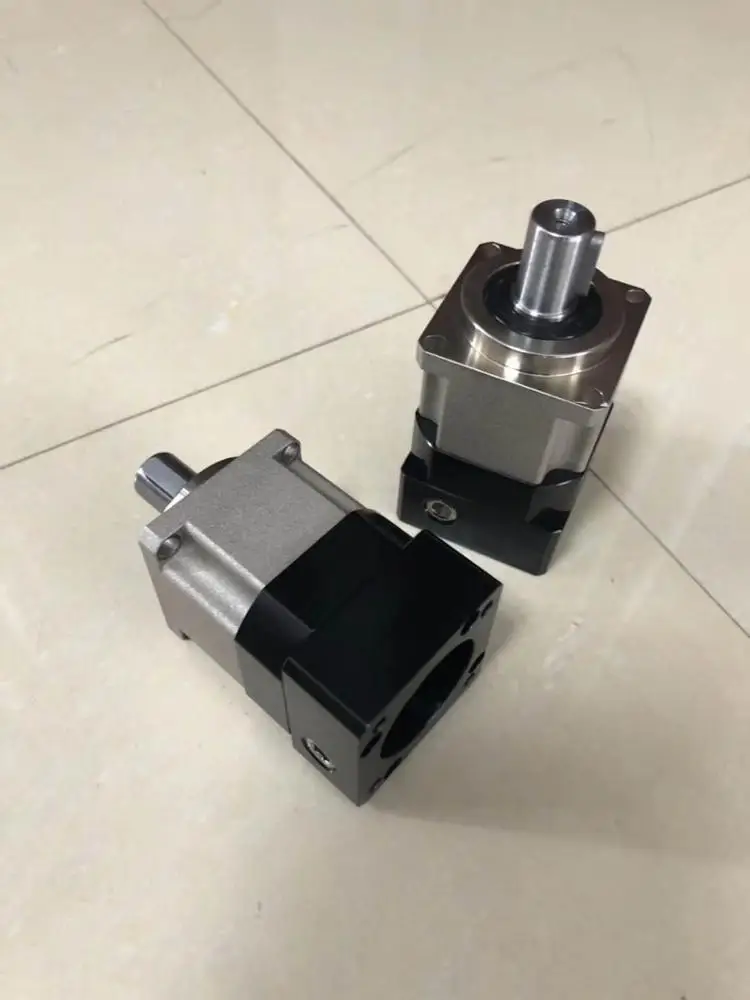

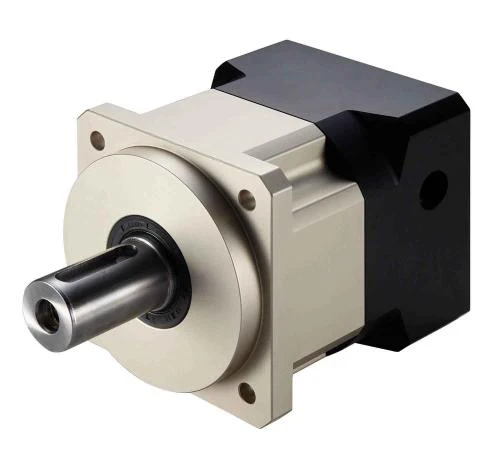

Прецизионный планетарный редуктор PHF115 винтовой нестандартный
- Категория: Gearboxes >>>
- Поставщик: Cheng,Shen,Precision,Machinery,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.3 $* | 0.25 $* |
| Aug-16-2025 | 0.81 $* | 0.51 $* |
| Jul-16-2025 | 0.9 $* | 0.45 $* |
| Jun-16-2025 | 0.2 $* | 0.82 $* |
| May-16-2025 | 0.72 $* | 0.59 $* |
| Apr-16-2025 | 0.9 $* | 0.15 $* |
| Mar-16-2025 | 0.80 $* | 0.67 $* |
| Feb-16-2025 | 0.75 $* | 0.31 $* |
| Jan-16-2025 | 0.3 $* | 0.74 $* |
Характеристики
PHF Series Gear Box Internal Structure Diagram
PHF120 series detailed parameters of planetary gearbox:
Reduction ratio:3-100
Rated output torque:220-300NM
Maximum Output Torque:1.5 times rated torque
Rated input speed:4000RPM
Maximum input speed:8000RPM
Backspace:≤ 1-7 Arcmin
Average service life:20000h
Full-load transmission efficiency:≥ 97%
Use temperature range:-10~+90℃(Customizable lower or higher temperatures)
Lubricating grease:Total synthetic grease
Noise value :≤63dB
Protection level :IP65
Weight :7.8-9.5KG
PHF115 Dimension Diagram
PHF115 1 STAGE(ratio:3-10)
PHF115 2 STAGE(ratio:15-100)
PHF Series Performance Table
