China famous induction gold copper aluminium metal melting furnace





Usage

Intermediate Frequency Electrical Melting Furnace, also called as Induction Smelting Furnace, which converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting.



It is applicable to melting, heating or insulting of steel, copper, iron, aluminum, zinc, tin, nickel silver and other ferrous, nonferrous metal. It can also be used for other heating treatment before forging, sintering and tube-bending forming in the casting and melting industries.





Working introduction

Power supply cabinet, compensation capacitor bank , aluminum shell furnace,water-cooled cables, reduction box, tilting furnace control box and other components.





Environment and condition demands

1.Temperature should be at 2℃ to 35℃.

2. The relative humidity no more than 90%

3.Installation height no more than 1000m

4.No conductive dust and corrosive gas in working place.

5.No explosion and violent vibration room around the place

6. The temperature of the the cooling water should no less than 10℃, not more than 30℃, hardness<8 degree, Ph<degrees, pressure>0.2Mpa.

7. Power supply must be AC 3-phase, 380V, 50Hz, voltage fluctuation 370-410 volts.



Commodity Name And Brief Description
Product name:  Steel melting induction furnace(Aluminum Frame)	Model: MF-2.0
Highest temperature:1650°C	Temperature accuracy:±2°C
Medium frequency power: 800KW	IF-FRE:500Hz
Power consumption:680KWh/ton	Melting rate:2000Kg/hour
power supply: 3-phase,380-660V;50/60Hz	Capacity: 1500Kg

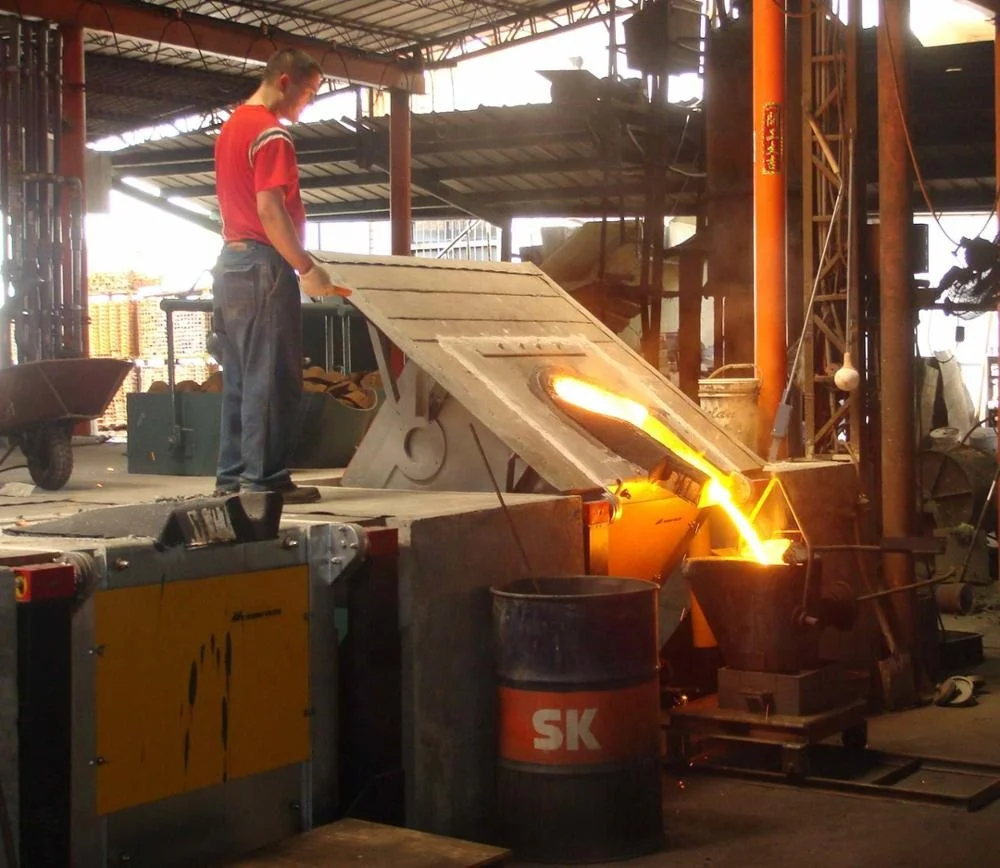

Furnaces in workshop

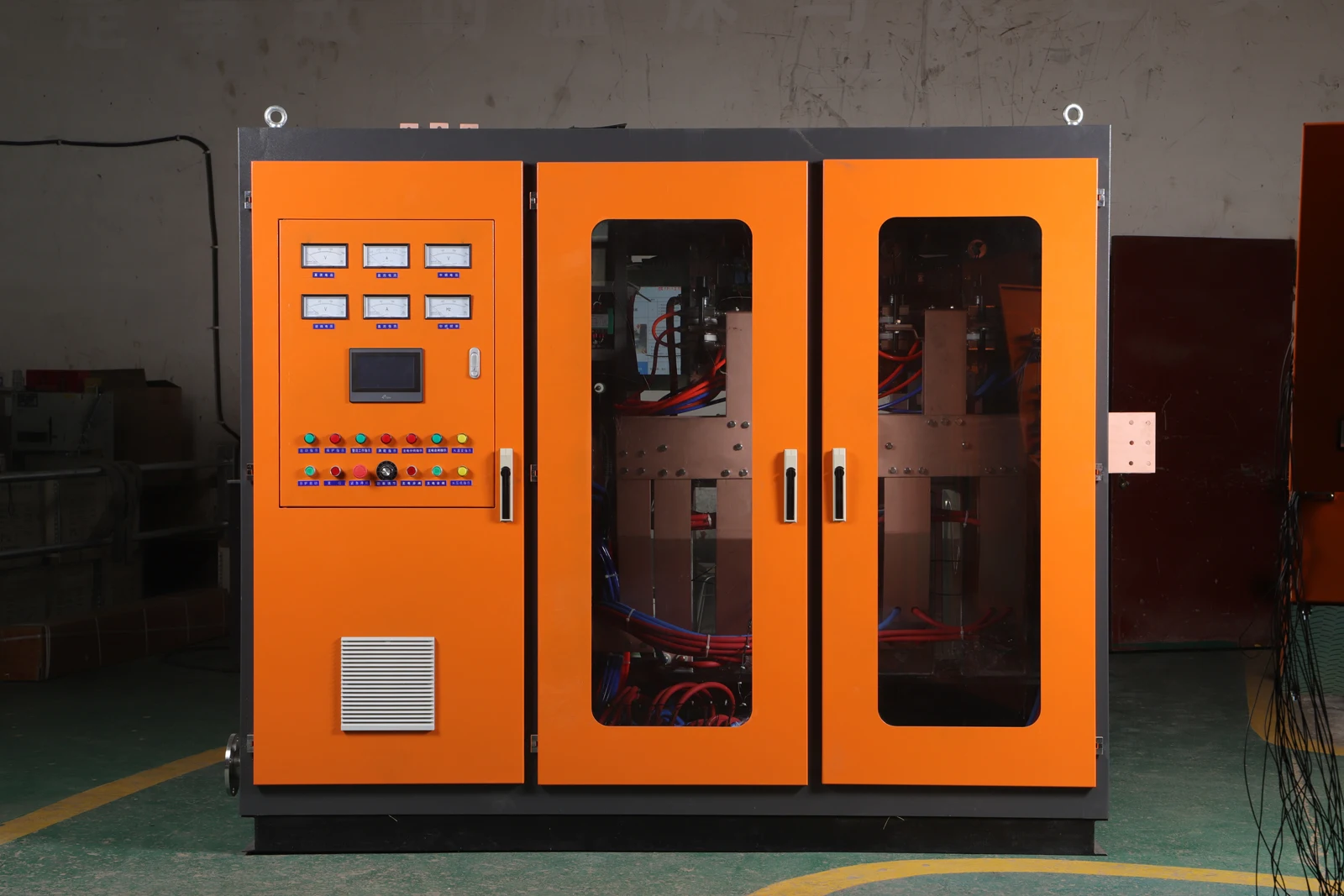

Intermediate power system
