Цилиндр высокого давления SS полуавтоматическая система регулятора
- Категория: Pressure Regulators >>>
- Поставщик: Shanghai,Yiwei,Flow,Control,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 655.52 $* | 688.72 $* |
| Aug-19-2025 | 649.48 $* | 681.1 $* |
| Jul-19-2025 | 545.95 $* | 572.82 $* |
| Jun-19-2025 | 638.19 $* | 670.1 $* |
| May-19-2025 | 556.41 $* | 584.15 $* |
| Apr-19-2025 | 627.20 $* | 658.96 $* |
| Mar-19-2025 | 622.58 $* | 653.89 $* |
| Feb-19-2025 | 616.5 $* | 647.34 $* |
| Jan-19-2025 | 611.39 $* | 642.59 $* |
Характеристики
Product Description
NAI-LOK PMF series changeover system is a continuous gas delivery system for high purity gas service, typically in the laboratory or process plant,that changes cylinders or bank priority from the primary source to a reserve supply without transmitting pressure fluctuations to the use line.
Features.
-Single stage.
-For purity,inert,reactive,flammable and oxidizing gas and gas mixtures.
-Hastelloy-internals for corrosive gases.
-Uninterrupted gas supply with semi-automatic switch over
-Upgradable to max. 2x4 cylinders.
Product Name | Semi-automatic changeover system |
Maximun Inlet Pressure | 300bar |
Outlet Pressure | 200psi(13.8bar) |
Diaphragem(regulator) | Hastelloy/316 stainless steel |
Operating Temperature | -40℉ to 165℉/-40℃ to 74℃ |
Dimension(W-H-D) | 400*154*153mm |
Inlet/Outlet | 1/4"F NPT |
Optional | Relief Valve,Hose, Tube fitting |

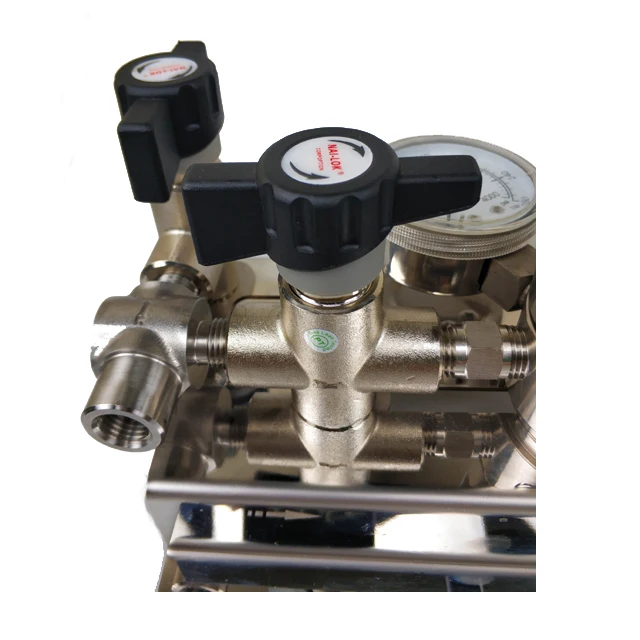

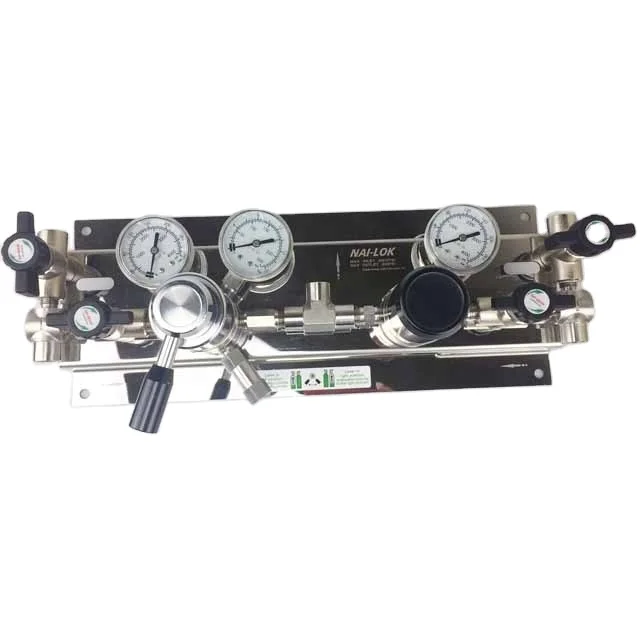

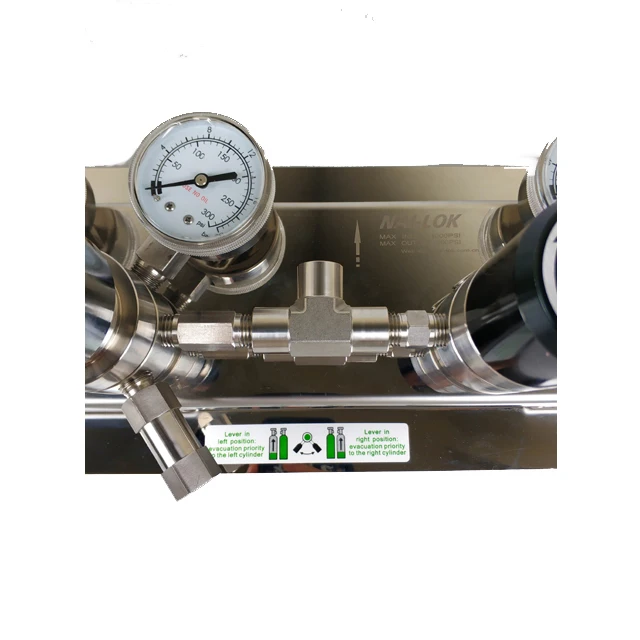

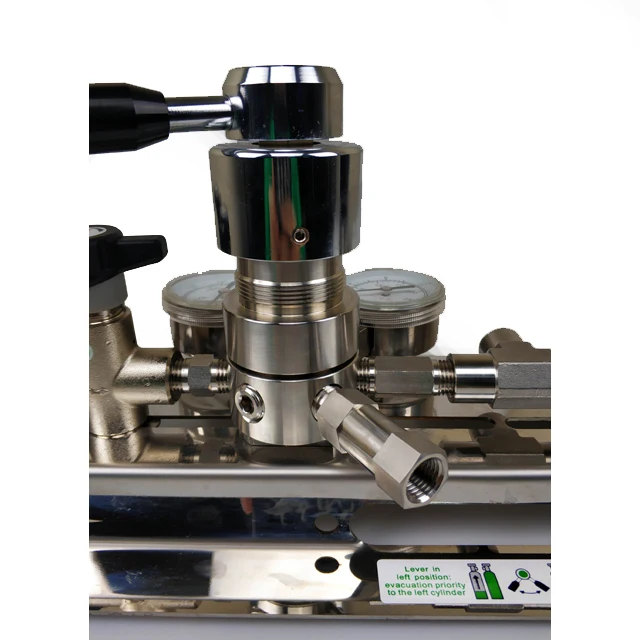

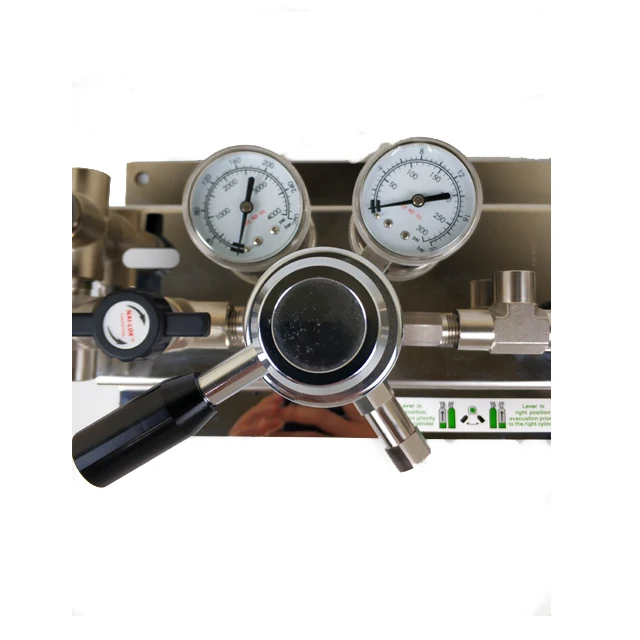

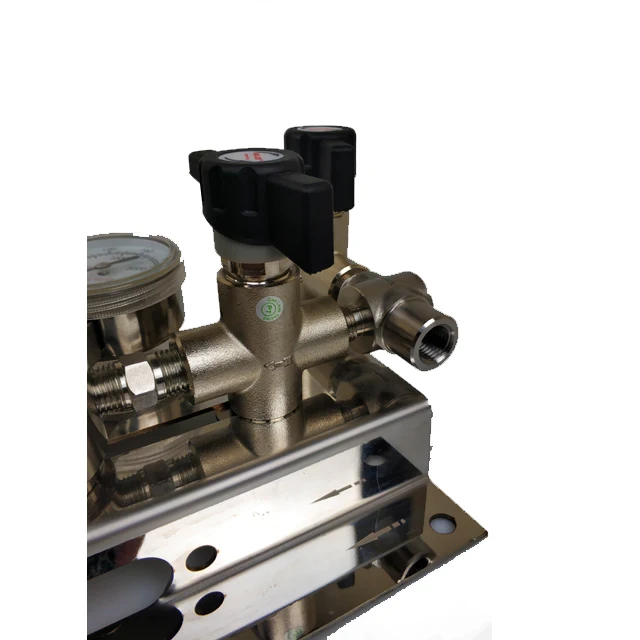

Products Show
It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides,through the automatic changeover to realize continuous gas supply, with the function of purging.
The maximum input pressure of 20.7Mpa (3000psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.
Related Products
Regulator types include single stage,two stage,back pressure,mass flow,face seal,etc.
Our Company
NAI-LOK offers a comprehensive range of regulators,valves and changeover systems that are ideal for analyzer and GC sample systems and other petro-chemical applications,we can offer a variety of gas pressure regulator valves for accurate readings and settings of lab gas pressures. All valves are suitable for use on high purity gas systems, including oxygen, air, argon, carbon dioxide, helium, nitrogen, and nitrous oxide. All fittings are cleaned, degreased and packed for pure gas service, as well as fully assembled and tested prior to shipment. Many models feature metal sealed diaphragms and minimal wetted soft goods and which means cleaner sample delivery to the analyzer.Our convoluted diaphragms provide excellent sensitivity,accuracy and stable pressure control.
Our Service
Strict test standards
Strictly according to International standards.
100% factory test
1. leakage test
2. pressure test
Customized products
We have a good research and development team with rich experience.
Packing & Delivery
Packing Details : Wooden Case, Carton Box
Delivery Details : 1-2 days after payment for small order
1. Special logistics packaging
2. Sea or Air
3. Global Express
