60 кВт 75 150 дизельный генератор

High performance diesel generator from 30KW to 250KW,  Professional manufacturer for more than 15 years.

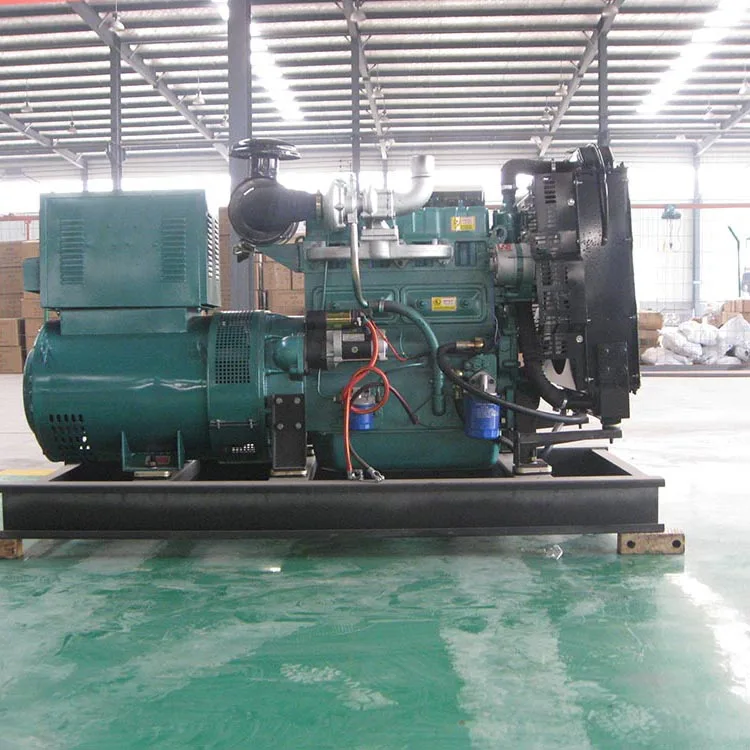

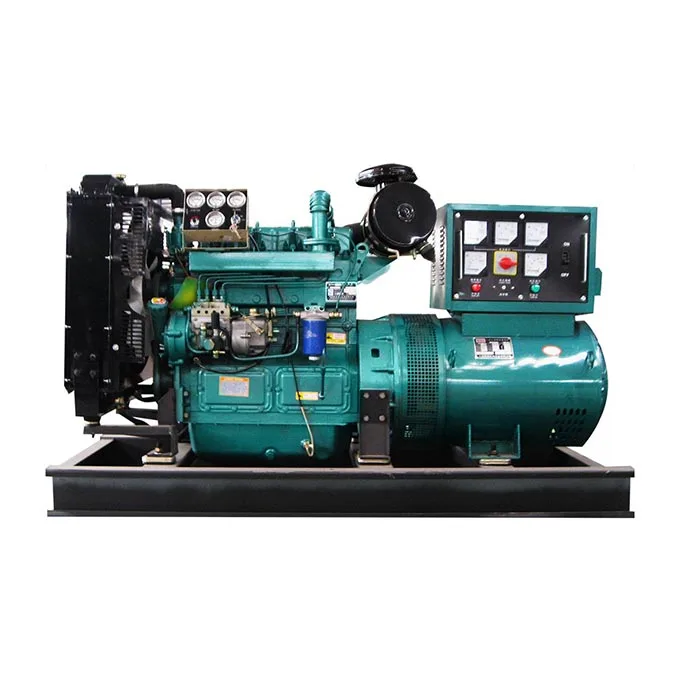

The diesel generator set is a power supply device that uses a diesel engine as the prime mover to drive a synchronous generator to generate electricity. It is a power generation device with quick start, convenient operation and maintenance, low investment, and strong adaptability to the environment.

SPECIFICATIONS FOR 100KW DIESEL GENERATOR
Model	HW-100DG	Starting model	Electric starting
Engine type	Four stroke water cooled in line vortex	Cylinder & size	4  105*130mm
Piston Total Displacement	6.8L	compression ratio	19/1
Ignition sequence	1-3-4-2	Air admission way	naturally aspirated
Rated power	100KW/1500rpm	Maximum control speed	1575r/min
Min. control speed	500r/min	mean effective pressure	650kPa
lubricating system	Pressure splash compound	Net weight	1100kg
Type of cooling	forced water cooling	exhaust gas temperature	470

Certifications

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
