Портативный карманный цифровой мультиметр PM18C 6000 отсчетов 1000 В переменного/постоянного тока 20
- Категория: >>>
- Поставщик: Guilin,Huayi,Peakmeter,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 17.59 $* | 17.72 $* |
| Jul-17-2025 | 13.16 $* | 13.37 $* |
| Jun-17-2025 | 16.3 $* | 16.87 $* |
| May-17-2025 | 16.99 $* | 16.63 $* |
| Apr-17-2025 | 13.37 $* | 13.12 $* |
| Mar-17-2025 | 16.80 $* | 16.15 $* |
| Feb-17-2025 | 16.87 $* | 16.55 $* |
| Jan-17-2025 | 16.97 $* | 16.19 $* |
Характеристики
Product Description

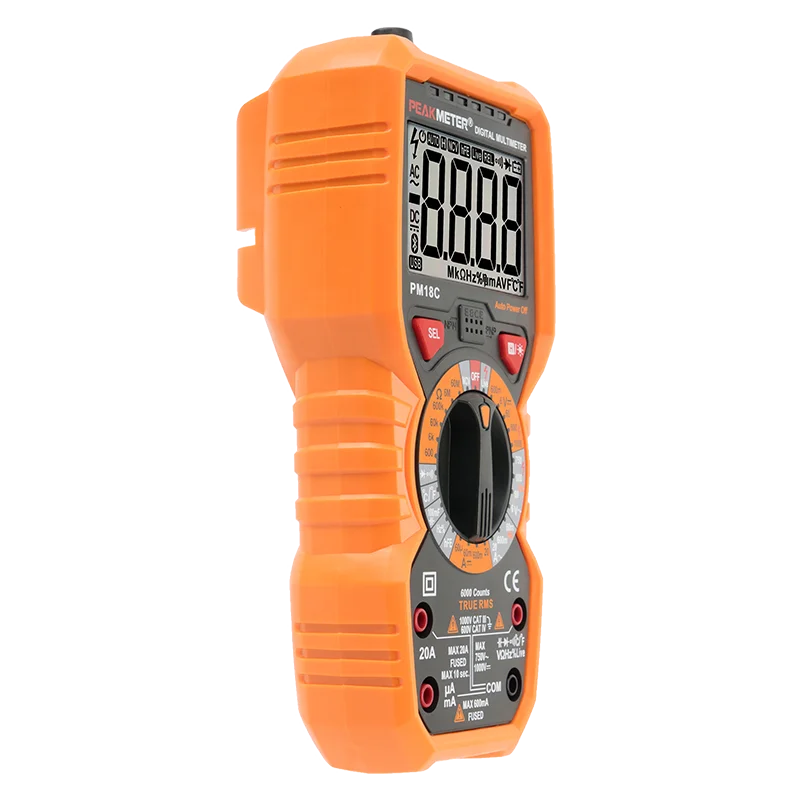

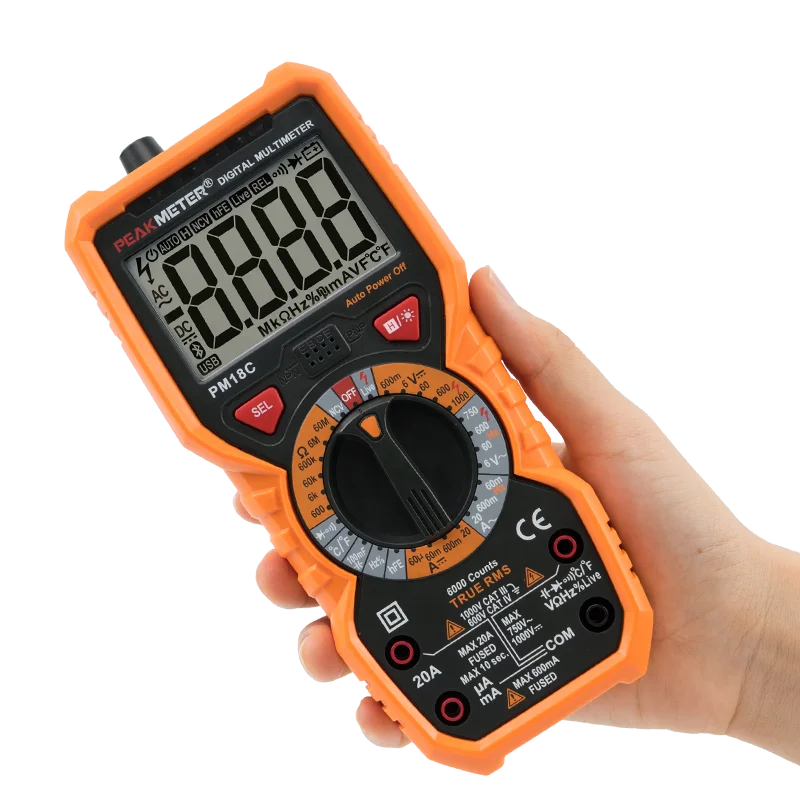

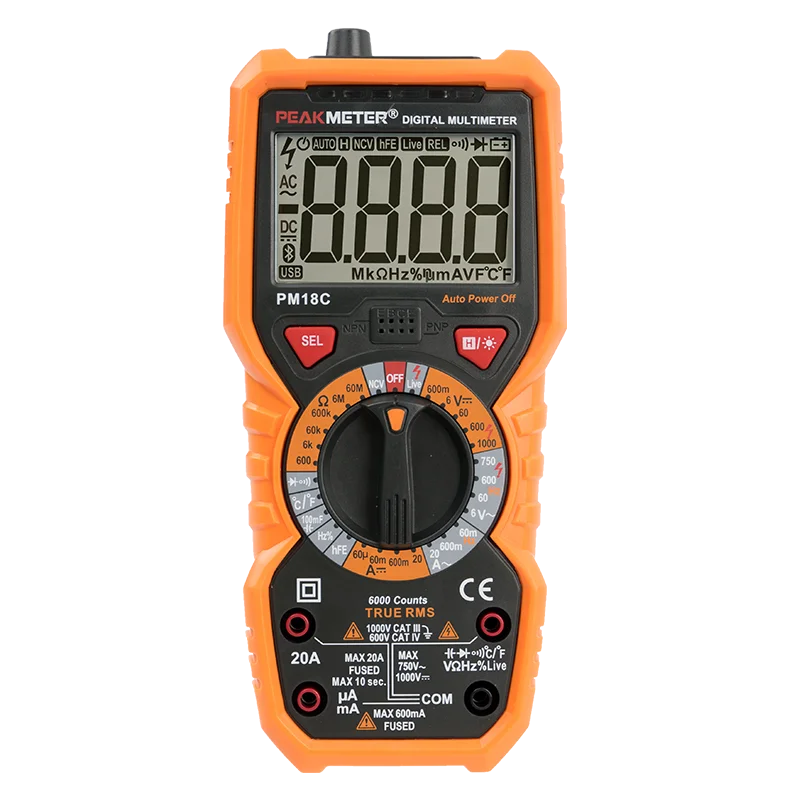

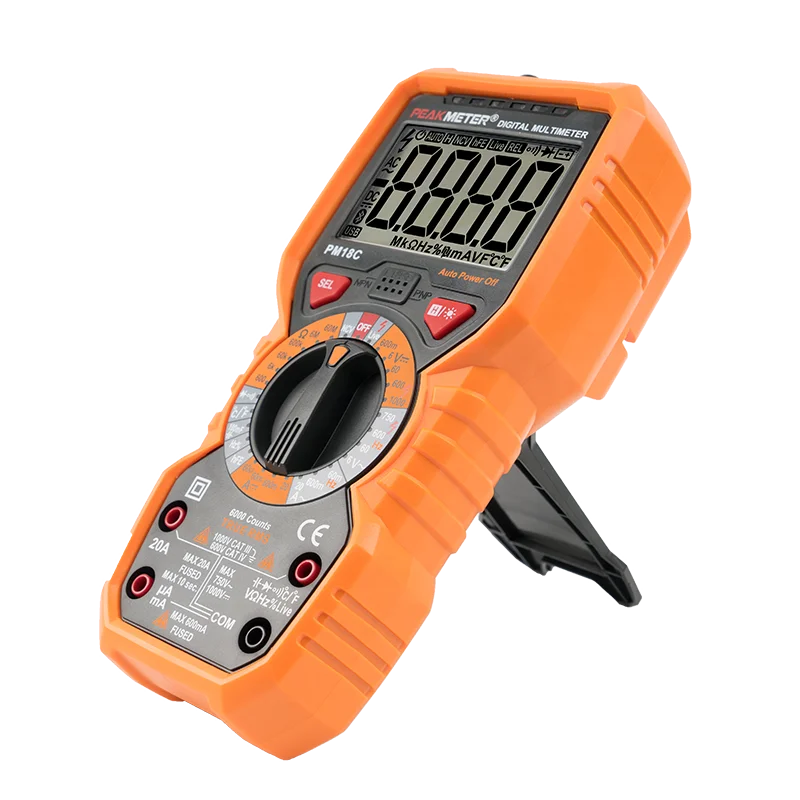

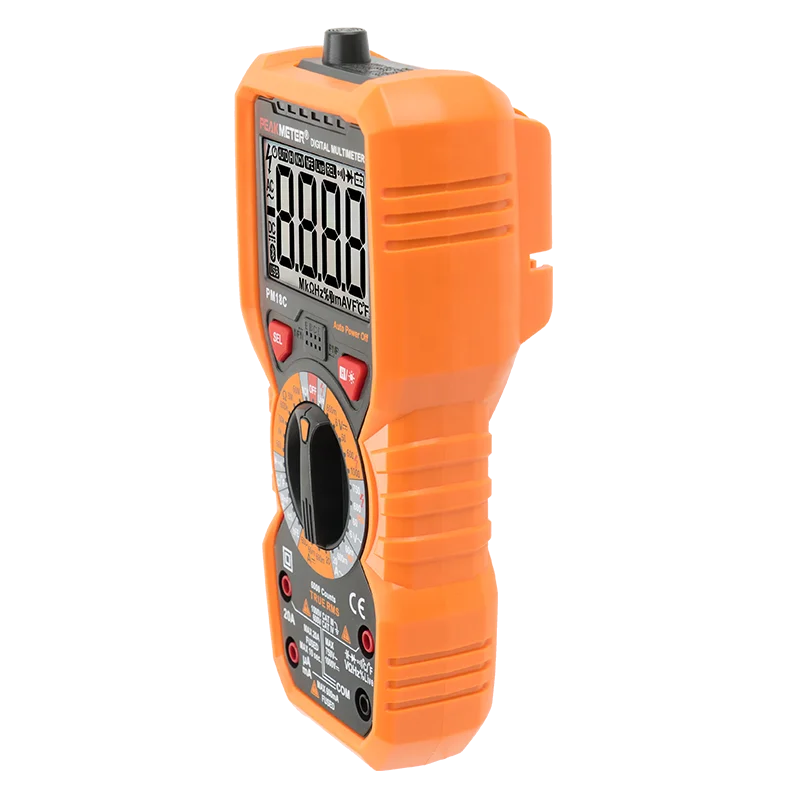

PM18C china top 10 digit industrial true rms digital electrical analog multimeters meter benchtop test probe multimeter
| SPECIFICATIONS | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 6V/60V | ±(0.8%+3) |
| 600V/750V | ±(1.0%+10) | |
| Resistance(Ω) | 600/6k/60k/600k/6M | ±(0.8%+3) |
| 60MΩ | ±(1.2%+30) | |
| Capacitance | 6nF | ±(4.0%+30) |
| 60nF/600nF/6uF/60uF/600uF/6mF | ±(4.0%+3) | |
| 100mF | ±(5.0%+3) | |
| Frequency | 9.999/99.99/999.9/9.999k/99.99k/999.9k/9.999MHz | ±(1.0%+3) |
| Duty | 5%~95% | ±(2.0%+3) |
| ℃/℉ | -20℃~1000℃/-4℉~1832℉ | ±(1.0+3) |
| AC Current | 60mA/600mA | ±(1.0%+3) |
| 20A | ±(1.5%+3) | |
| DC Current | 60uA/60mA/600mA | ±(0.8%+3) |
| 20A | ±(1.2%+3) | |
| HFE | 0-1000 | ±(1.0%+3) |
| FEATURE | ||
| Display | 6000 counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1kHz | |
| ℃/℉ | √ | |
| Hz | 10MHz | |
| Duty | 5%~95% | |
| Ω | 60MΩ | |
| Capacitance | 100mF | |
| Continuity | √(Sound and LED Alarmed) | |
| Diode Test | √ | |
| HFE | √ | |
| Live line test(high,medium and low)Sound and LED Alarm | √ | |
| Worklight | √ | |
| Low Battery Indication | √ | |
| NCV(high,medium and low)Sound and LED Alarm | √ | |
| Auto Power Off | √ | |
| GENERAL | ||

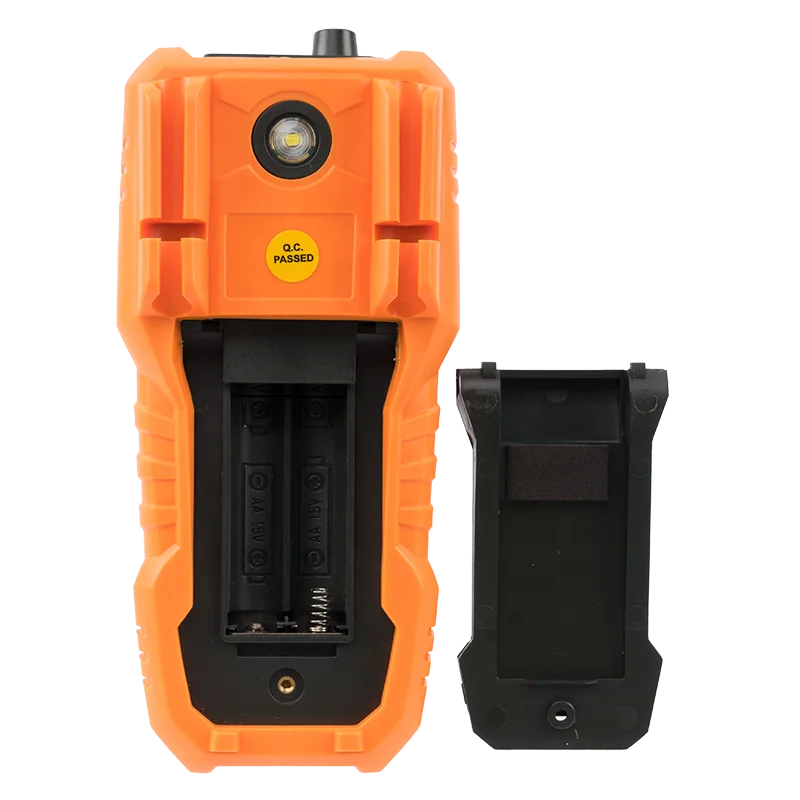

| Power Supply | 4×1.5V AAA | |
| Weight | 380g | |
| Size | 190mm×89mm×50mm | |
| Safety Rating | EN61010-1,EN61010-2-033 EN61326,CATⅢ 1000V/CAT IV 600V | |
Packaging & Shipping
Our Services
OUR SERVICES
We are developing, producing and marketing instruments and meters. Meanwhile, we provide OEM & ODM services
R&D TEAM
Our R&D Team has over 20 years of R&D experience in E&E instrument industry.
MISSION
Our mission is to get our work done well to become customers’ reliable business friend. S. E. Q (Service, Economic pricing, Quality) is our concern, we know what you need, and we know what we have.
Company Information
Guilin Huayi Peakmeter Co.,Ltd is one of the most famous Digital Measuring Instrument Manufacturers in China.It is a National recognized High-tech Company, authorized by Chinese&Guilin Government and also a prestige Brand of measuring Meter industry.
Technology,Innovation,Customer Satisfication is our culture and eternal pursuit, also is the drive of our sustainable development. Over 20 Years professional R&D Team to ensure our products with advanced technology.
We now have Digital Multimeter, Digital Clamp Meters, Earth Resistance Testers, Insulation Testers, Power Meters, Environmental Detectors and other special Measuring Instrument in Over a hundred product series. All products are designed to comply with IEC61010 International Electrotechnical Commission Safty Standard and Requried CE (EMC/LVD), UL, ROHs, REACH,WEEE and other related regulations. Strict ISO 9001 Quality management and complete after-services system to ensure providing constant high quality product to our global customers.
