SINOTRUK HOWO 4X2 28M 33M 47M 48M грузовик с

Категория: Other Trucks >>>
Поставщик: Jinan,Hainuoer,Trading,Co.,Ltd.

Цена:100 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	119000.95 $*	124950.57 $*
Aug-17-2025	118000.11 $*	123900.36 $*
Jul-17-2025	99000.22 $*	103950.35 $*
Jun-17-2025	116000.59 $*	121800.92 $*
May-17-2025	101000.18 $*	106050.69 $*
Apr-17-2025	114000.97 $*	119700.22 $*
Mar-17-2025	113000.30 $*	118650.29 $*
Feb-17-2025	112000.86 $*	117600.98 $*
Jan-17-2025	111000.99 $*	116550.83 $*

Характеристики

Product Description

Details of SINOTRUK HOWO 4X2 28m 33-34m Concrete Mixer Truck

Model
Pumping system	Max. Theor. output(high/low pressure)	m³/h	66/111
	Max. Theor. concrete output Pressure(high/low pressure)	MPa	10/6
	Rated working pressure	MPa	32
	Pumping frequency(high/low pressure)	min^-1	16/27
	Hopper capacity	L	600
	Filling height	mm	1400
	Hydraulic system type		Open loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ125×1650/1400
	Concrete cylinder dia.×stroke	mm	φ230×1650/1400
	Hydraulic oil cooling		Air cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Placing boom	Structure type		33-4M
	Placing depth	m	33
	Horizontal distance	m	29
	Placing depth	m	20.4
	Slewing angle		540°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	8000
	Outriggers span (front×rear×side)	mm	6140×7098×6706
	Wheelbase	mm	5600
	Engine type		D10.34-40
	Engine power	kW	249kw
	Oil tank cubage	L	400
	Overall dimensions	mm	10840x2496x3780
	Oil tank volume	L	500
	Control mode		Manual+remote control
	Maximum water pressure	MPa	0.8
	Water tank volume	L	400
	Pipe cleaning mode		Water cleaning/dry cleaning

Pictures

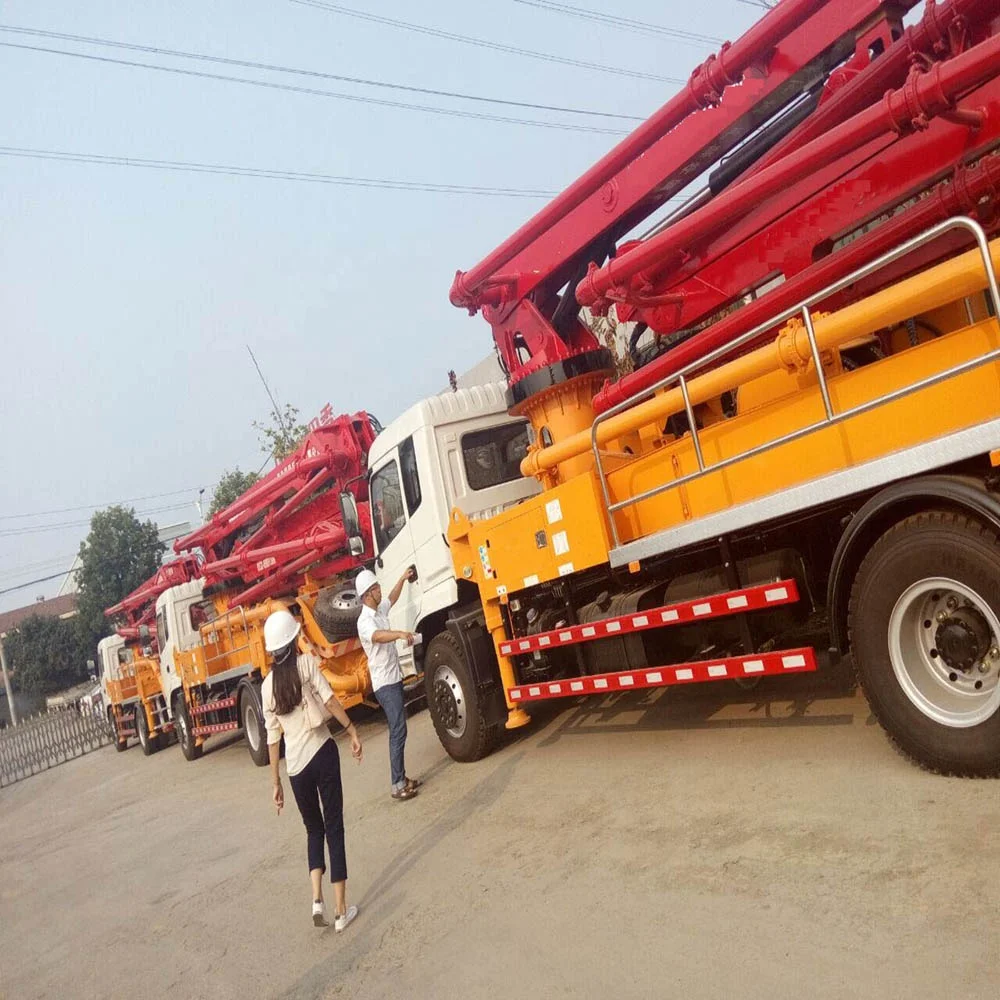

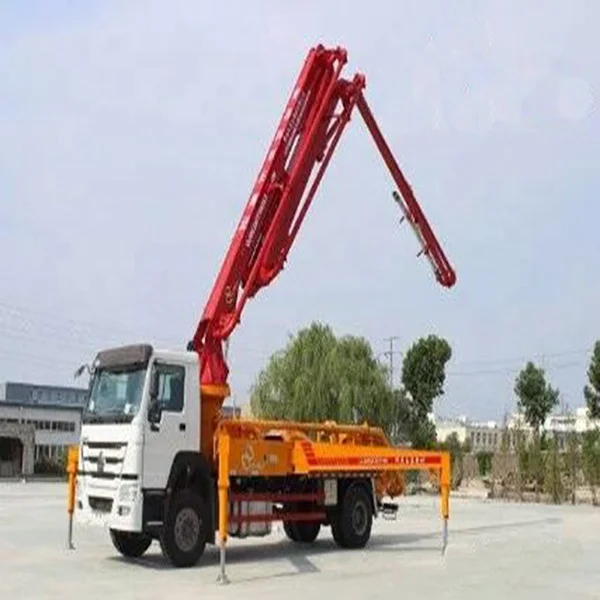

1. pump truck.JPG 3. pump truck.jpg 4. pump truck.jpg

Production Line

Production Line.JPG

Advantages

Advantages:

1. Pumping hydraulic system

Overall hydraulic commutation system, the alternative commutation actions between pumping and S tube distribution doesn’t involve electric signals. Little impact and noise occurs during the commutation, so the service lives of hydraulic pump and valves are evidently lengthened.

2. Intelligent control system

Adopt concentration plate to make the man hydraulic system valve more concentration, reduce the pipeline road cross, save every drop of oil pump. Intelligent control system make the driving oil flow, directly input the driving oil cylinder.

3. Automatic control

Unique arm frame buffer technology can reduce the high pressure value of system, even in the case of high output to make the boom steady.

4. Energy saving control system

Independent design, research and concrete piston back technology to make the piston maintenance more convenient. The realization technology make the pumping high and low voltage switch more convenient.

5. Efficient pumping

Large diameter cylinder, big pump flow.

6. Convenient maintenance system

Manual hydraulic synchronous lubricator can timely lubricate concrete piston and hopper,and convenient of lubricating oil way. Return oil filter and oil suction valve to let the hydraulic circuit maintenance can easily close the hydraulic oil in the tank. Make maintenance more convenient and quick.

Packaging & Shipping

1. Shipping.JPG 2. Shipping.JPG 3. Shipping.JPG
