Многофункциональный Трехфазный зажим UNIT UT243 True RMS для анализа качества мощности и
- Категория: Токоизмерительные клещи >>>
- Поставщик: Huazheng,Electric,Manufacturing,(Baoding),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.13 $* | 0.7 $* |
| Aug-17-2025 | 0.95 $* | 0.75 $* |
| Jul-17-2025 | 0.20 $* | 0.30 $* |
| Jun-17-2025 | 0.27 $* | 0.87 $* |
| May-17-2025 | 0.85 $* | 0.87 $* |
| Apr-17-2025 | 0.8 $* | 0.19 $* |
| Mar-17-2025 | 0.10 $* | 0.92 $* |
| Feb-17-2025 | 0.48 $* | 0.4 $* |
| Jan-17-2025 | 0.16 $* | 0.51 $* |
Характеристики

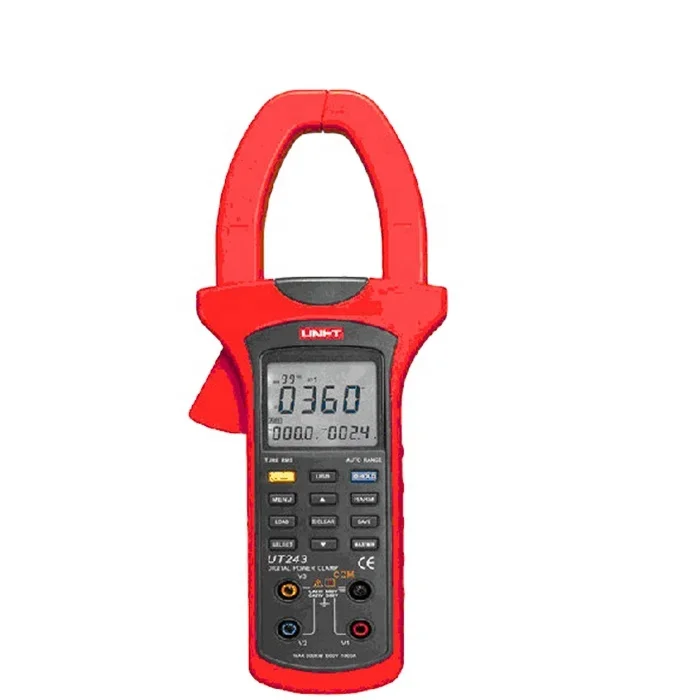

UNIT UT243 multifunction Three Phase True RMS Power Quality and Harmonics Analysis Clamp Meter
Product Description
UT240 series of digital three-phase forcipiform power/harmonic meter is a portable intelligent power/harmonic measuring instrument. It has integrated functions such as ampere meter, voltmeter, power measurement instrument and harmonic analysis meter, etc. With powerful measurement and data treatment software, instrument consists of voltage, current, power and harmonic channels and micro single-chip machine system. It can be used for measurement, calculation & display of parameters such as voltage, current, active power, apparent power, inactive power, power factor, phase location angle, electric energy statistics, frequency, phase sequence, total harmonic distortion rate and harmonic components, etc with stable performance and convenient operation. It is especially suitable to measurement & repair of site power equipment and power supply wires as well as evaluation of electric energy quality of power grid. With portable forcipiform structure, the instrument has little volume and light weight. User can carry with it to facilitate measurement. Such series of digital forcipiform three-phase power/harmonic meters are also your ideal choice for three-phase power measurement and quality analysis of electric energy
| Specifications | Range | Best Accuracy |
| Model | UT243 | |
| AC Current (A) | 50A/250A/1000A | ±(2%+5) |
| AC Voltage (V) | 150V/300V/600V | ±(1.2%+5) |
| Frequency (Hz) | 50Hz~60Hz | √ |
| Active Power (W) | 0.01KW~600KW | ±(3%+5) |
| Apparent Power (VA) | 0.01KVAr~600KVAr | ±(4%+5) |
| Reactive Power (VAr) | 0.01KVA~600KVA | ±(3%+5) |
| Power Factor | 0.3~1 | ±(1%+2) |
| Phase Angle (°) | 0° ~ 360° | ±1° |
| Active Energy (Wh) | 1~9999KWh | ±(3%+5) |
| Features | ||
| Display Count | 10000 | |
| Auto Range | √ | |
| Jaw Capacity | 50mm | |
| True RMS | √ | |
| Auto Power Off | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| MAX/MIN | √ | |
| Data Logging | 999 | |
| USB Interface | √ | |
| LCD Backlight | √ | |
| Full Icon Display | √ | |
| Single-Phrase 2-Wires | √ | |
| 3-Phrase 3-Wires | √ | |
| 3-Phrase 4-Wires | √ | |
| Phase Sequence Test | √ | |
| Harmonic Analysis | 1~20 | |
| Setup | √ | |
| Input Protection | √ | |
| Input Impedance for DCV | Around 5MΩ | √ |
| General Characteristic | ||
| Power | 1.5V Batteries(LR6)×4 | |
| LCD Size | 46mm X 42mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 601g | |
| Product Size | 303mm X 112mm X 39mm | |
| Standard Accessories | Test Lead, Batteries, Alligator Clips, USB Interface Cable, Tool Box, PC Software CD | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 5 PCs | |
| Standard Carton Measurement | 480mm X 372mm X 315mm (0.056CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 12Kg | |
Accessories:
Test Lead,
Batteries,
Alligator Clips,
USB Interface Cable,
Tool Box,
PC Software CD
Certifications
Quality Control
Our Services
Company Information
Huazheng Electric Manufacturing (Baoding) Co.,Ltd Established in March 2008. We are located in Baoding near Beijing and have convenient transportation access.
Huazheng Electric is a professional manufacturer engaged in the research, development, production, sale and service of electric power systems. our products are extensively used in power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment. In addition, we have attained CE ISO9001 certificates.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.
Trade Shows
Contact Us
We are Alibaba Trade Assurance Supplier, that means quality and lead time will be not a problem.
So do not heisitate to contact me:
