Полностью Автоматическая Этикетировочная машина для Жестяного молока и
- Категория: Машины для этикеток >>>
- Поставщик: Shanghai,Skilt,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 8330.36 $* | 8747.57 $* |
| Aug-16-2025 | 8260.83 $* | 8673.87 $* |
| Jul-16-2025 | 6930.8 $* | 7277.95 $* |
| Jun-16-2025 | 8120.12 $* | 8526.67 $* |
| May-16-2025 | 7070.56 $* | 7424.42 $* |
| Apr-16-2025 | 7980.88 $* | 8379.84 $* |
| Mar-16-2025 | 7910.27 $* | 8306.73 $* |
| Feb-16-2025 | 7840.25 $* | 8232.37 $* |
| Jan-16-2025 | 7770.63 $* | 8159.57 $* |
Характеристики
SKILT Partner
Product Description
1. The Scope of Application
The model PLM-A Labeling machine suit for differnet size round shape products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries.
Suitable products pictures as follow for ref :

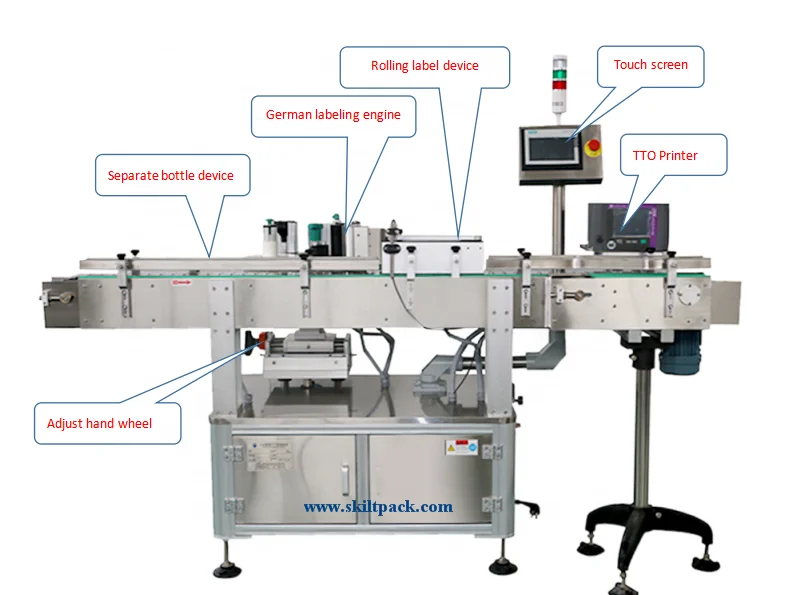

2. Equipment composition
Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ;
3. Equipment function characteristics
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Labeling way : Use the servo send label system to send label on product surface.
8) Low voltage circuit all use the German Schneider brand.
4. Follow with some other kinds labeling machine for u ref :
Front & Back surface labeling
If your products need labeling on front and back two surface, pls Click on right picture, with machine detail information for ref;
Top surface labeling
If your products need labeling on front and back two surface, pls Click on right picture, with machine detail information for ref
Horizontal way labeling
Suit for smaller diameter products, such as ampoule ,tube ,vial ,pen, Lipstick, Injection and so on, pls Click on right picture, with machine detail information for ref
Technical Paramter
Model | PLM-A |
Capacity (pcs/min) | 20-230 |
Driving Mode | German Avery Labeling engine |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 550w |
Voltage | can customized, 110V/220V/380V |
Machine size | 1800x80x1500mm |
No. | Name | Model | Unit | Brand |
1 | PLC control system | 288-1ST20-OAAO | 1 set | SEMIENS |
2 | Touch screen | 648-OCC11-3AXO | 1 set | SEMIENS |
3 | photoelectric sensor (check bottle) | FS-N18N | 1 set | Japan KEYENCE |
4 | Photoelectric sensor (Check opaque label) | GS61/6.2 | 1Set | German Lueze |
Photoelectric sensor (Check transparent label) | GSU 14B/66.3-S12 | 1Set | German Leuze | |
5 | Labeling engine | ALS104/204/206 | 1 set | German Avery |
6 | Drive | ALS104/204/206 | 1 set | German Avery |
7 | Main transport motor | 90YS90DV22 | 1 set | German JSCC |
8 | Rolling label motor | 40W1:30 | 1 set | German JSCC |
9 | Separate bottle motor | 40W1:30 | 1 set | German JSCC |
10 | Speed Controller | 25-90W | 1 set | German JSCC |

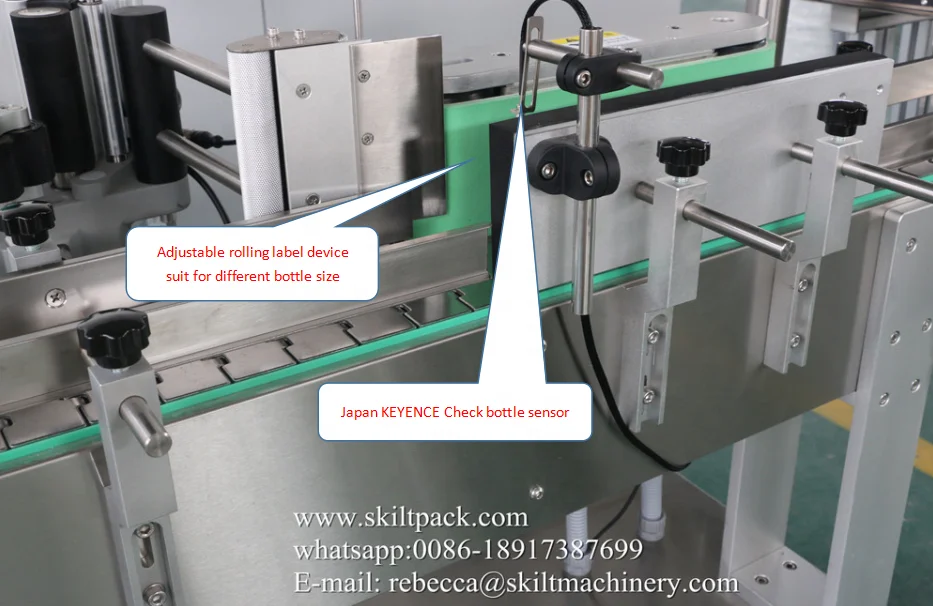

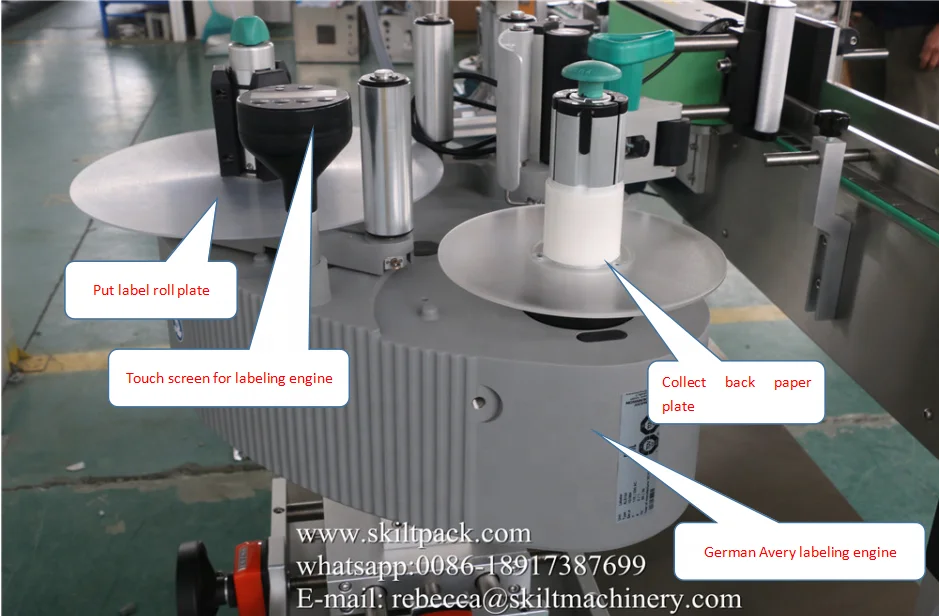

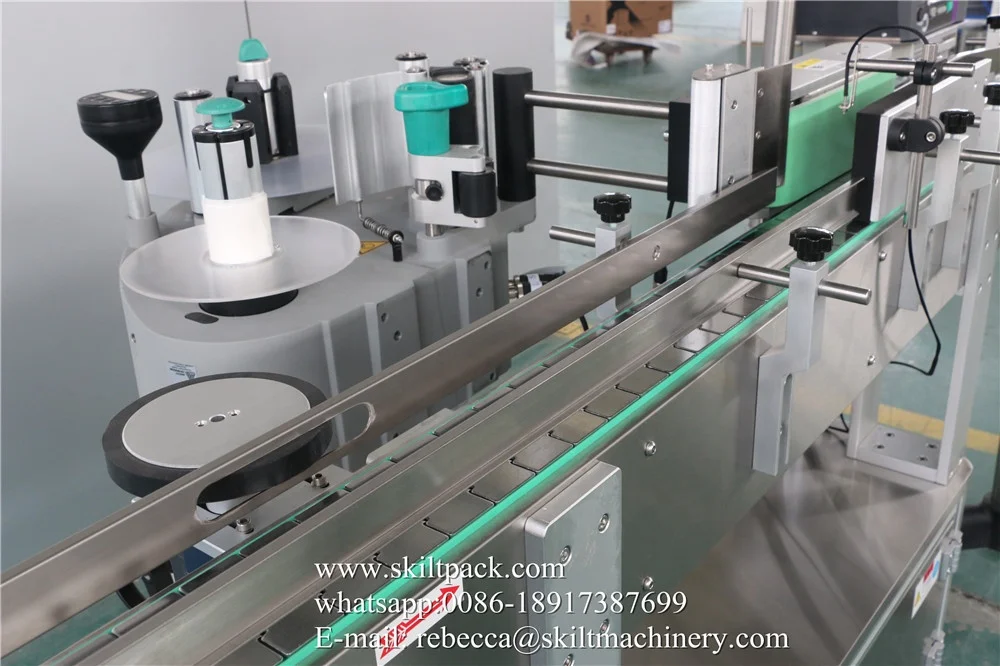

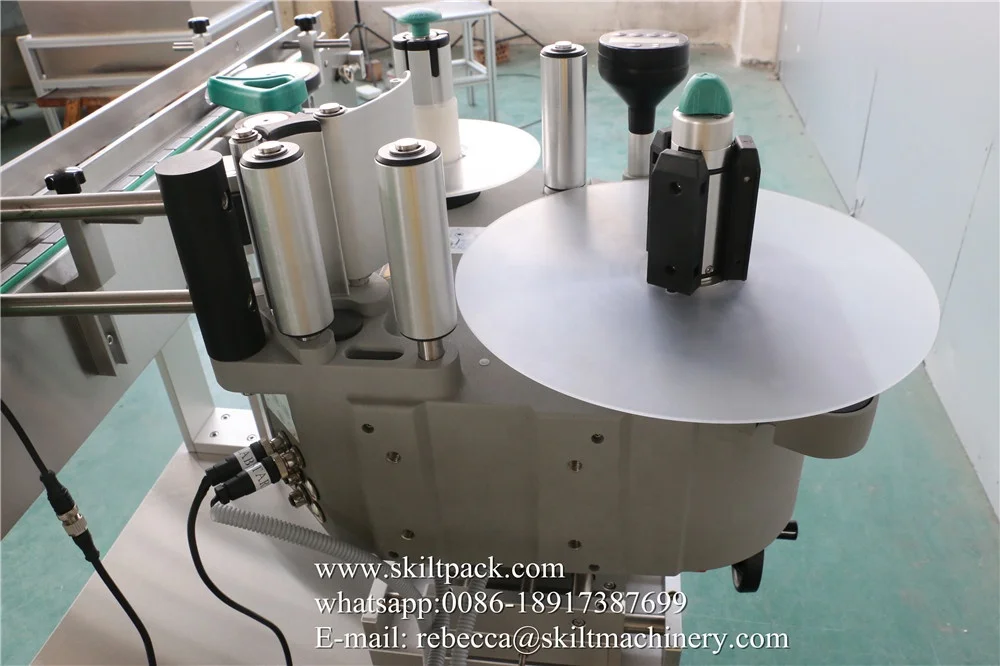

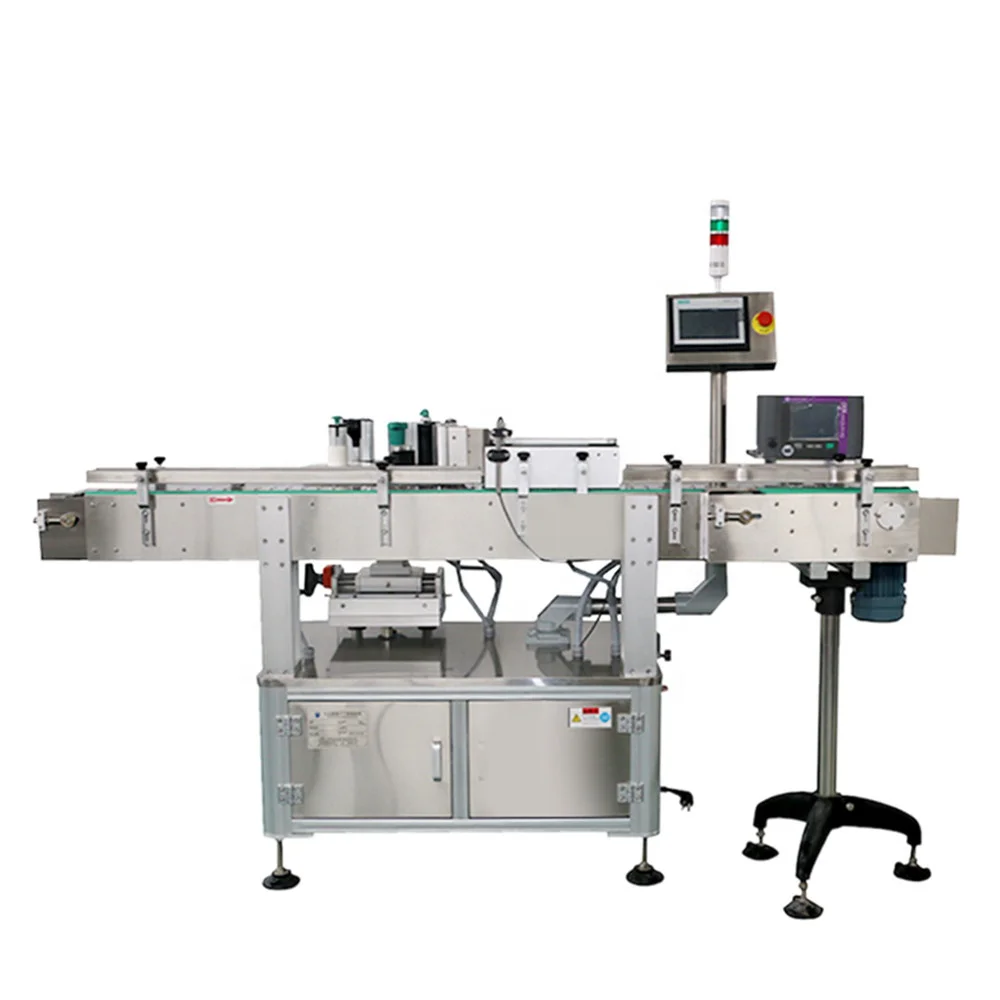

Detailed Images
Machine processing
SKILT Team
FAQ
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
