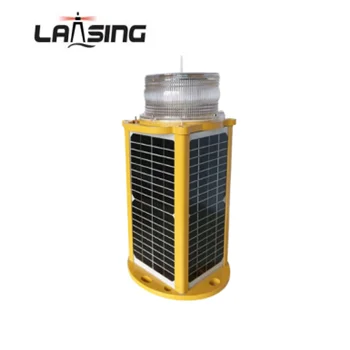

JCL80F Portable Solar Airfield Light with Remote Controller





Description:

The solar powered JCL80F is a field proven runway light that offers enormous benefits over traditional battery and hard-wired runway lights including low maintenance and no underground wiring.

These completely self-contained LED lights are designed to suit a range of aviation and general applications including emergency airstrip, caution, taxiway, and threshold lighting. The unit has two high-performance solar modules mounted within the lens, which maximize solar collection and provide reliable operation in a range of environmental conditions. The focal plane of the light is designed to provide a vertical divergence of between 0 and +7 degrees, and the user-replaceable battery ensures a service life of up to 5 years.



The JCL80F is made from tough, durable UV stabilized LEXAN polycarbonate, and incorporates an internal photodiode for automatic night activation once the ambient light threshold drops sufficiently.

Completely self-contained and able to be installed in minutes, the JCL80F is the preferred choice of remote airfields throughout China-where the units mark indigenous and regional council’s airstrips, and mining strips around the country.



Features& Benefits:

• Integrated solar battery system

• Dual Internal high-performance solar modules angled to maximize solar collection

• Fast & easy to deploy-no programming

• IP67 waterproof rating

• User-replaceable battery

•Ultra-high intensity LEDs(no changing globes ever)





Typical Applications:

• Solar Barricade Light

• Solar Caution Light

• Solar Taxiway Light

• Solar Threshold Light

• Solar Obstruction Light





Specifications:

LIGHT OUT-PUT
SPECIFICATIONS
Intensity	Flashing: yellow: 1600cd   red: 1600cd   green:  1600cd          White:1600cd
LED Color Available	Red,white,green,blue,yellow(optional)
Vertical Divergence	10 Degree
Horizontal Out-put	360 Degree
Illumination	Ultra-bright LEDs
LED Lifespan	100,000 Hours
OPERATION
Autonomy	25 days (flashing), 8 days(steady on)
On & Off Level	70/100 Lux
Flash Pattern	20-90FPM (Preprogrammed default 40FPM)
POWER SUPPLY
Power Source	Solar module, mono-crystalline silicon
Solar Efficiency	14%
Max. Power Out-put	18V/4*6W
Battery Type	High-efficiency Lithium rechargeable battery
Battery Capacity	12V14Ah
Battery Replacement	Yes, replaceable
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
Water-proof	IP67
Net weight	9.8KG
Gross weight	12KG
Temperature Range	-40C ~ +55C
Dimensions	514.5mm H, 234mm Diameter
Warranty	5 years for light 2 years for Lithium battery
