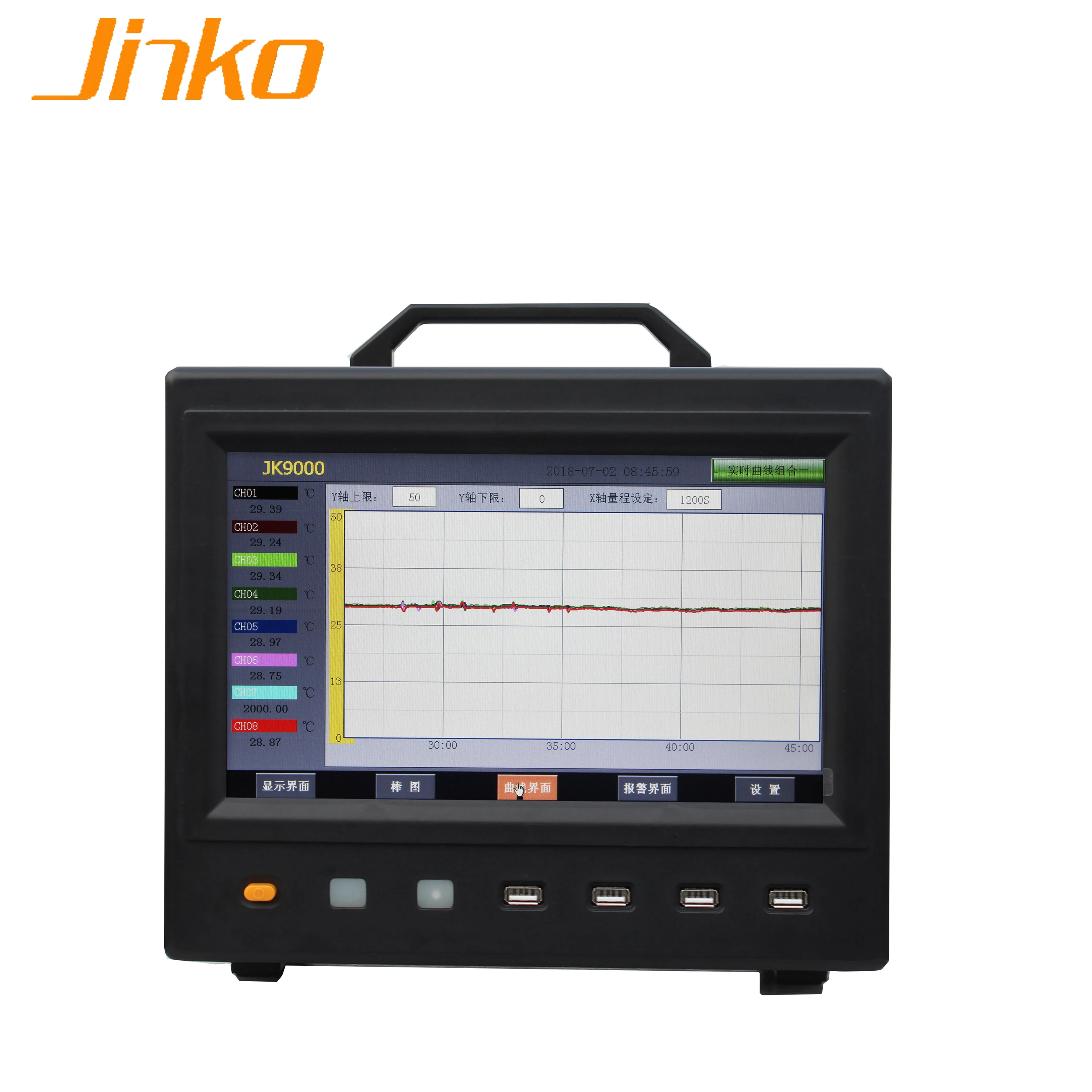

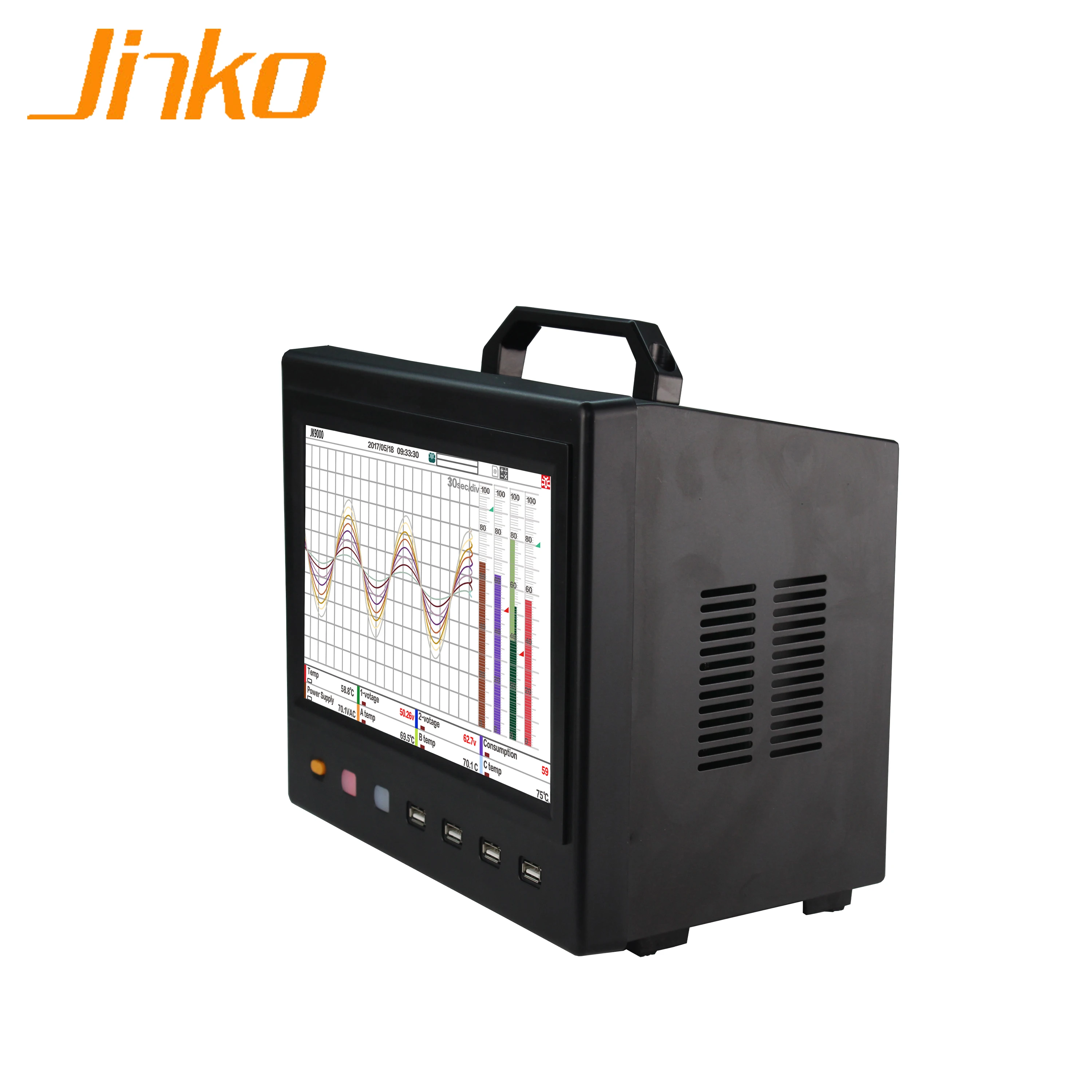

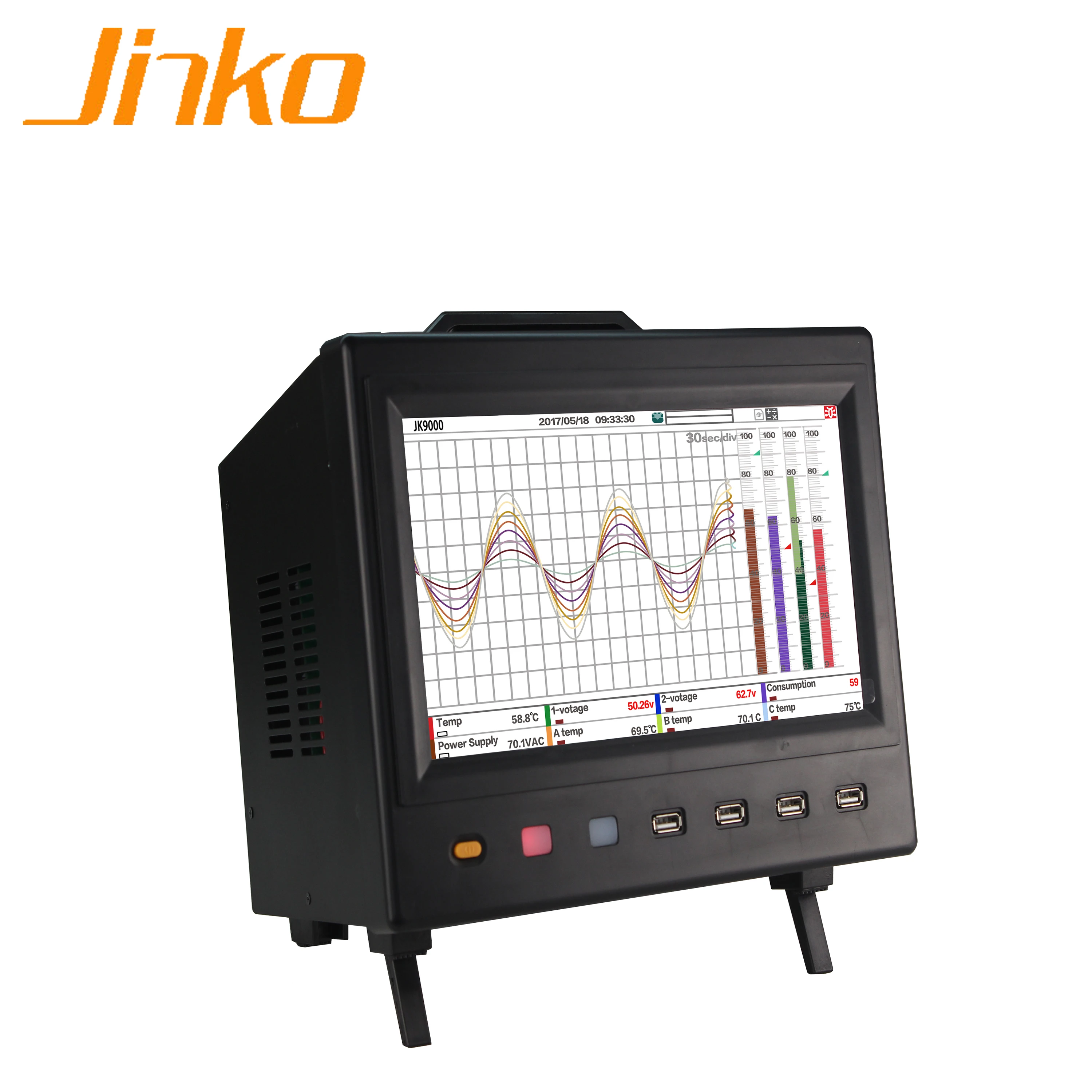

JK9000 безбумажный рекордер данных Многоканальный регистратор 16 каналов температуры и влажности давления потока
- Категория: Другие инструменты для испытаний >>>
- Поставщик: Changzhou,Jinailian,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1285.67 $* | 1349.51 $* |
| Aug-18-2025 | 1274.71 $* | 1338.74 $* |
| Jul-18-2025 | 1069.32 $* | 1122.5 $* |
| Jun-18-2025 | 1253.65 $* | 1316.17 $* |
| May-18-2025 | 1091.51 $* | 1146.12 $* |
| Apr-18-2025 | 1231.57 $* | 1293.27 $* |
| Mar-18-2025 | 1220.89 $* | 1281.74 $* |
| Feb-18-2025 | 1210.7 $* | 1271.38 $* |
| Jan-18-2025 | 1199.82 $* | 1259.78 $* |
Характеристики
Product Description
*Single - up to 80 channel data acquisition test
*- multiple test unit synchronous measurement (up to 8 units)
*In each test unit can freely swap
*- universal input: current, voltage, thermal resistance, thermocouple, pressure
*- basic accuracy: 0.2% F - S
*- with 10.1 inch color LCD touch screen, display resolution is 1024*600
*- keyboard, mouse, plug and play
*- the function of temperature compensation (TC)
*In the trend of the seamless display of historical data
*- screen information is stored in the U disk
*Real time data storage function preservation - convenient measurement results
*- automatic instrument operation through USB HOST software upgrade
*In English - optional operation interface
*File operating system - flexible and convenient
*In the WiFi interface for the realization of on-line operation
*- RS232 USB HOST, USB, Device, LAN, and PC can be convenient for data communication and remote control of instruments
Display features:
* use high brightness color 10.1 inch TFT LCD screen, CCFL backlight, clear picture;
* rich display, powerful data search function, status indicator function
* intuitive touch screen operations
* with flashing alarm display, at the same time indicate the lower and lower limit, upper limit and upper limit alarm of all channels;

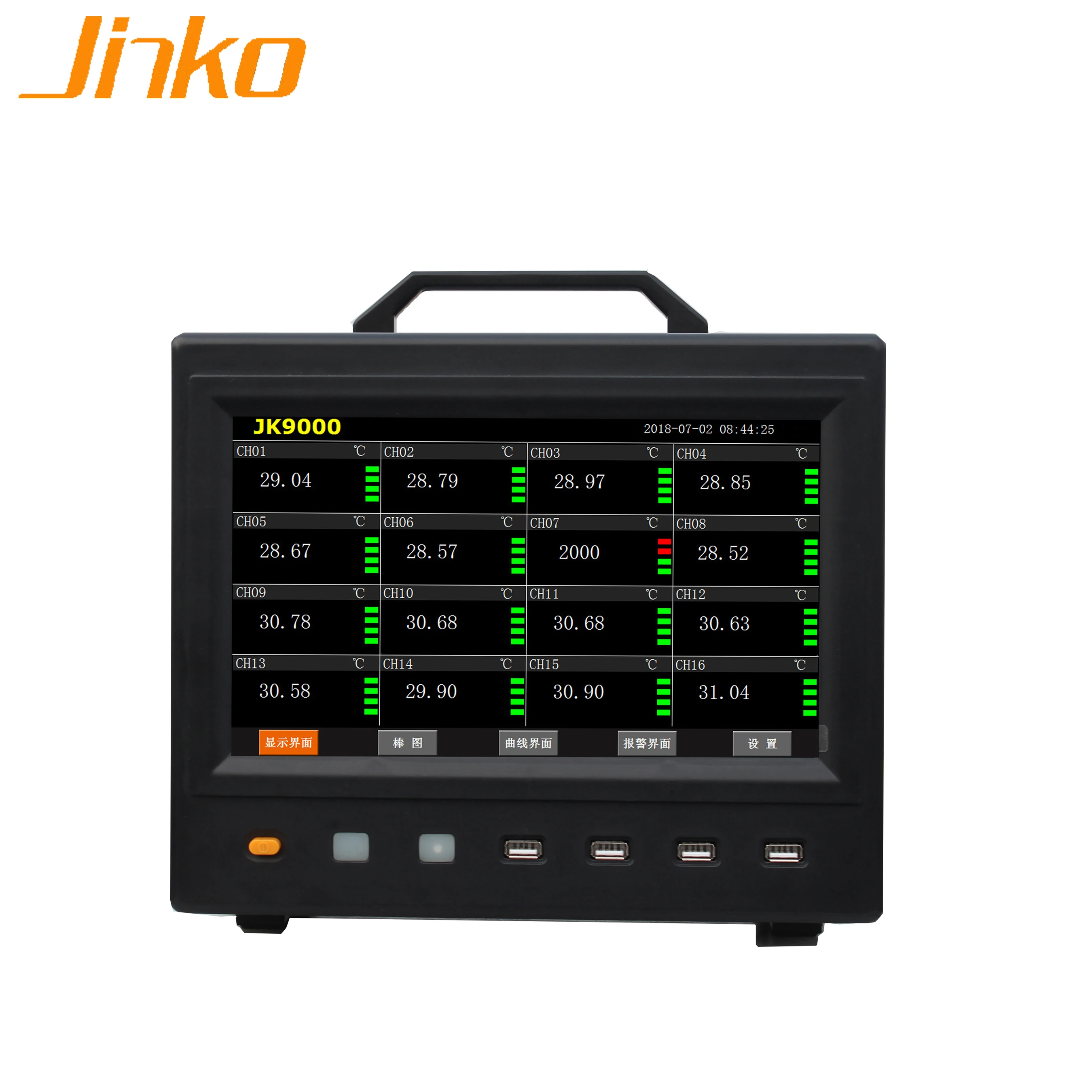

There are four basic pictures: digital display, bar picture display, real-time curve picture, recall curve and picture
* real time curve recording interval of 1 second ~9999 seconds, step setting, corresponding to the whole screen curve time 30 seconds ~300 minutes
* recall curve intervals are set from 1 second to 9999 seconds
* recall the curve reading cursor function.
Flexible construction:
Flexible construction:
When more channels are needed, the i/o module can be added
Relay alarm output;
Configurable 8 point change output, photoelectric isolation, the error is less than + 0.2% F • S;
Power supply:
With high-quality brand-name switching power supply, can work in AC power AC 85V~265V wide voltage range;
* provide transmitter, DC, 24V, isolation, distribution;
* through EMCIII level, ensure the instrument work well in bad environment
Basic function
* using ARM microprocessor, at the same time to achieve the most 64 signal acquisition, recording, display and alarm
The display accuracy is high, and the basic error is + 0.2% F = S;;
* built in GB2312 Chinese characters library, use Quanpin input method;
* equipped with standard three USB interfaces, with the U disk to transfer the historical data fast and convenient; also access to the keyboard and mouse;
Input signal
* DC current, DC voltage, thermal resistance, thermocouple, pressure class, select by key input, isolated universal input,
* temperature and pressure compensation supports signal input, constant selection, and provides a variety of compensation models, such as superheated steam, saturated steam, pressure compensation, and other common compensation models;
* DC current: (4~20) mA, (0~10) mA, (0.01~20.00) mA
* DC voltage: 0.01mV-100 V
* thermal resistance: Pt100 (three wire system)
* thermocouples: K, S, R, B, N, E, J, T
* temperature & humidity: 2305 temperature and humidity probes are available, which can be tested directly (-20 to 110 ℃) (humidity 20% - 98%)
AM2001 humidity module optional (3%, condition: at 25 ℃, 60%RH, other conditions accuracy 5%),
* other input signals or graduation numbers should be indicated when ordering.
Communication and print interface (optional function)
* opto isolation
*RS232 and RS485 standards
* communication rate 9600 19200 57600 115200, by setting selection
* supporting test software, providing configuration software and application software technical support
* optional Modbus RTU protocol to communicate with the host computer
* support standard ModBus RTU protocol (optional function), in addition to supporting the company's data management software, but also support the MCGS, king view, and other popular configuration software;
Output:
Relay alarm output; configuration 12 point alarm function.
* configurable 8 point change output, photoelectric isolation, error is less than + 0.2% F = S
Current output (4~20), mA, (0~10) mA, (0~20) mA are optional.
Voltage output (0~5) V, (1~5) V optional.
The factory defaults to (4~20) mA, indicating other types of orders.
Storage: large internal memory 700MB
Support for long, multi-channel recording of large capacity FLASH, you can quickly transfer data from the FLASH to the computer through the U disk. The built-in FLASH has a capacity of 64M bytes and 8 channels if it is recorded once in 20 seconds. It can record 65 days and record the data of all channels as fast as 1 second.
Packaging & Shipping
Company Information
Changzhou Jinailian Electronic Technology Co., Ltd. , established in 2000, is a private hi-tech enterprise integrating R&D, manufacturing and marketing. After 20 years of development, Jinko has developed 30 varieties, including: LCR Digital Bridge series; capacitance and inductance measurement (sorting) series; leakage current tester series; DC low resistance tester, MOS tube tester, transistor tester, multiplex temperature tester, paperless recorder, electrical parameter measuring instrument, and other high-precision measuring instruments and testers. Other active products such as: DC stabilized voltage supply and high power switching power supply.
