Nema 23 комплект 2 фаза гибридный 57 шаговый двигатель и подобранный драйвер с кабелем
- Категория: >>>
- Поставщик: Shenzhen,Xfoyo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 29.23 $* | 30.70 $* |
| Aug-16-2025 | 28.35 $* | 29.79 $* |
| Jul-16-2025 | 24.65 $* | 25.72 $* |
| Jun-16-2025 | 28.68 $* | 29.90 $* |
| May-16-2025 | 24.91 $* | 25.22 $* |
| Apr-16-2025 | 27.73 $* | 28.48 $* |
| Mar-16-2025 | 27.71 $* | 28.64 $* |
| Feb-16-2025 | 27.66 $* | 28.47 $* |
| Jan-16-2025 | 27.95 $* | 28.66 $* |
Характеристики

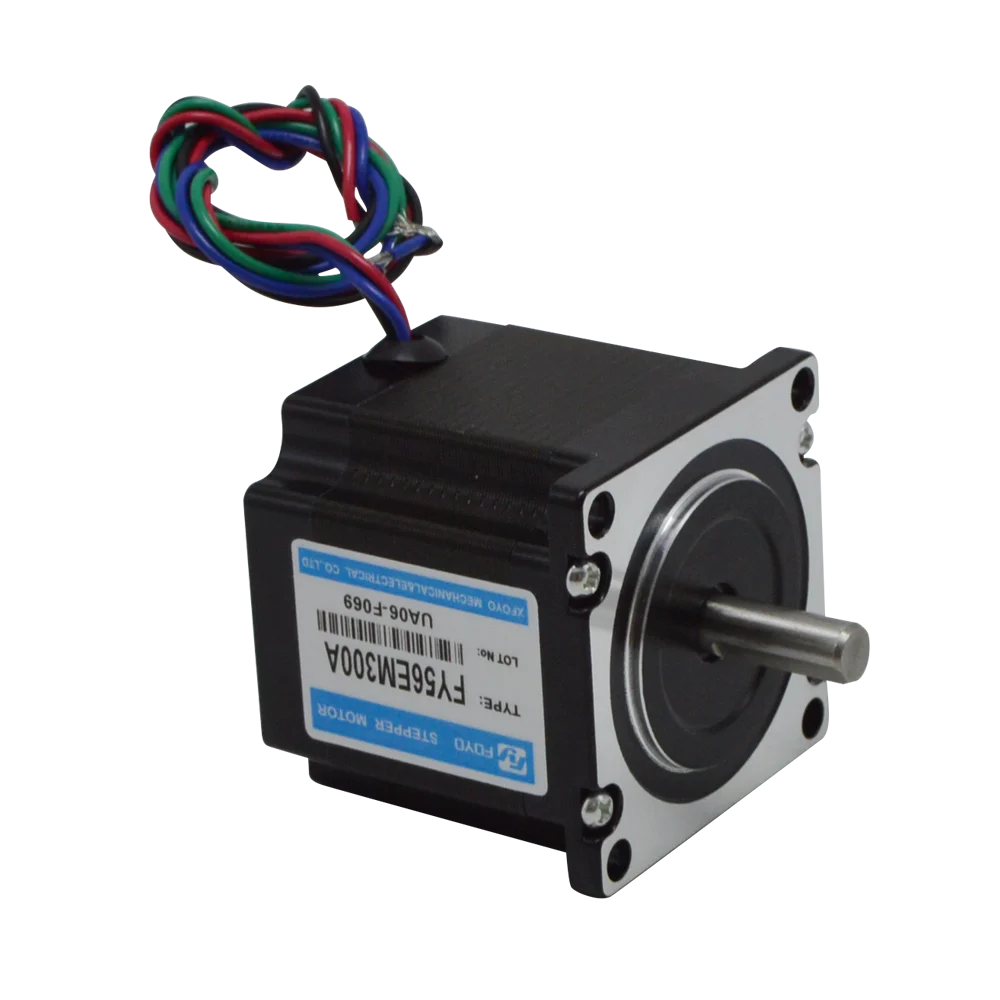

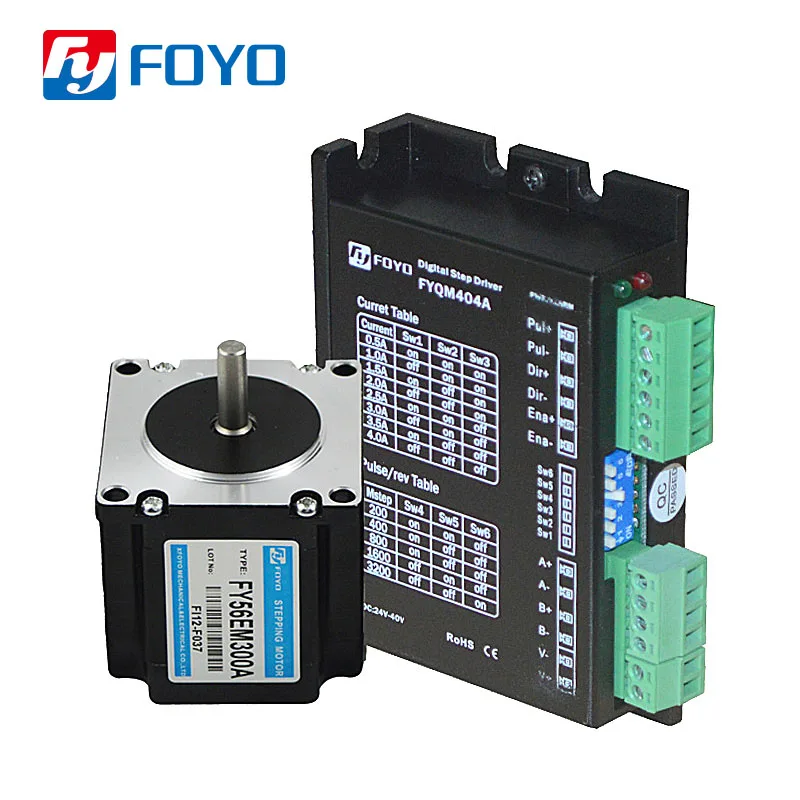

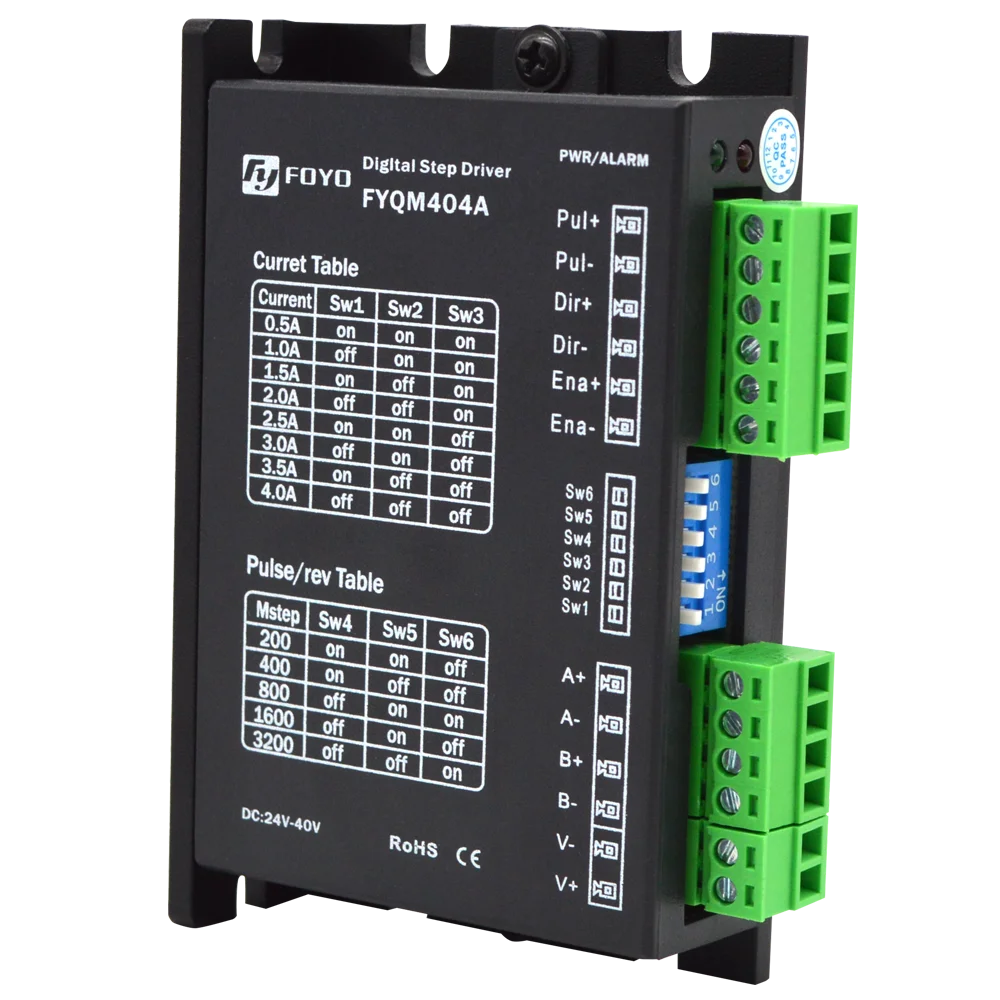

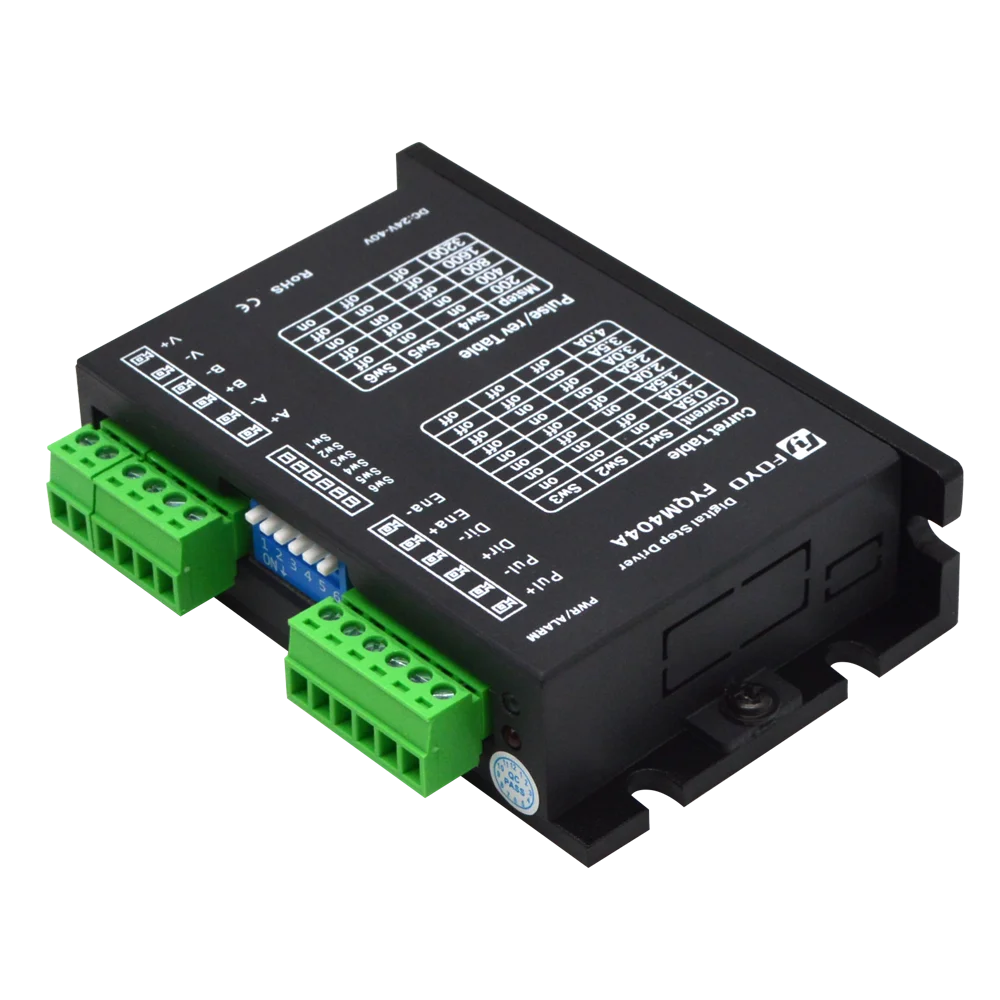

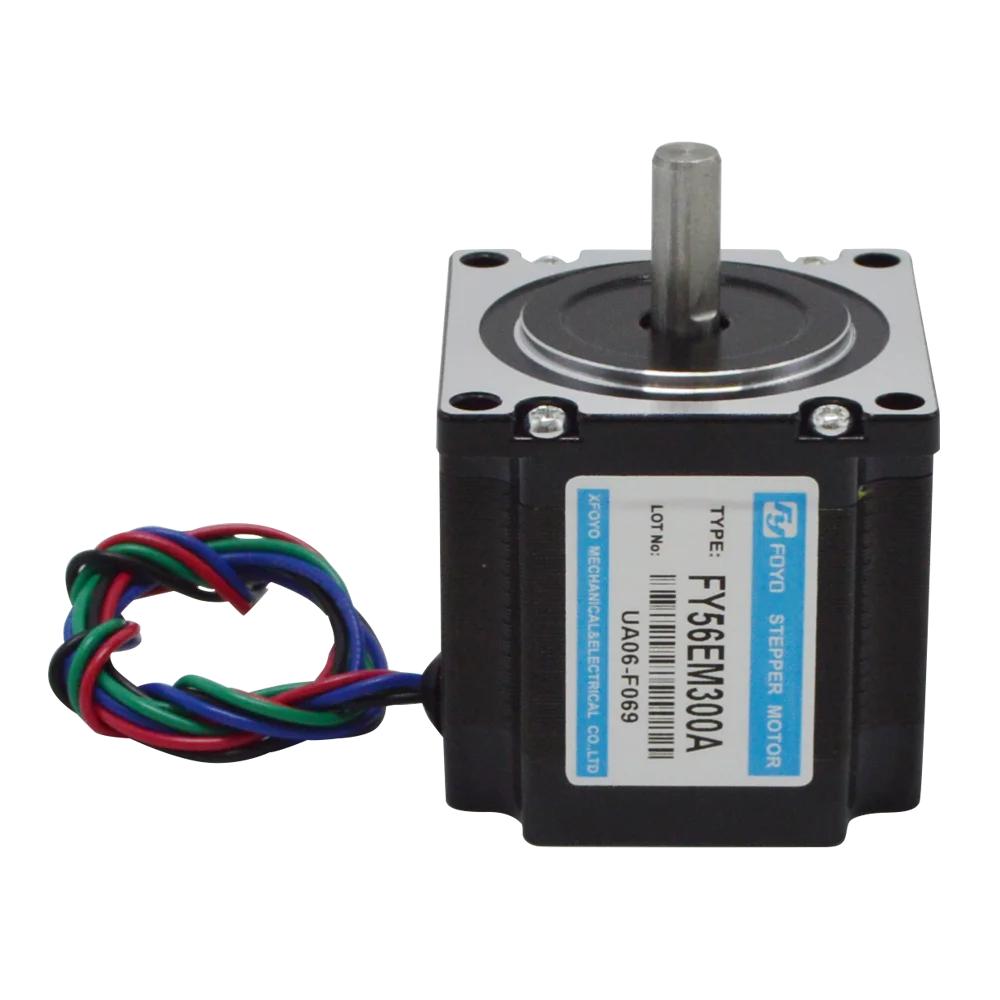

Nema 23 Kit 2 Phase 1Nm DC Hybrid 57 stepper Motor and Matched Driver with Cable Cnc Kit
Product Description
Detail:
| Model Name | FY56EM300A |
| Step Angle | 1.8deg |
| Step Angle Accuracy | ±5%(Full step,no load) |
| Resistance Accuracy | ±10%(20°C) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80°C Max(Rated current,2 phase on ) |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Radial Maximum Load | 75N |
| Axial Maximum Load | 15N |
Length | 54mm |
Holding Torque | 1.0Nm or 143oz/in |
Current / Phase | 3.0A |
Resistance / Phase | 0.9ohms |
| Inductance / Phase | 5.2mH |
| Rotor Inertia | 260g⋅cm² |
| Weight | 0.7Kg |
| Wires | 4 |
Features of stepping motor:
1. Quick start and stop, frequent forward and reverse;
2. Accurate control and motor position is determined by the number of pulses;
3. Convenient speed regulation, and the pulse frequency determines the motor speed;
4. High torque, high speed response and light weight;
5. Subdivision drive, high precision and low price;
6. Long service life and low maintenance cost.
Nema 23 Series Conventional Stepper Motor:
Picture show
Dimension:
Performance Curves & Wiring Diagram:
Application:
