4 оси 220 В 800 Вт воздушное/водное охлаждение 6040Z станок с ЧПУ 6040 кВт печатная плата воздушным охлаждением Фрезерный деревообрабатывающий фрезерный «сделай
- Категория: Woodworking Machinery >>>
- Поставщик: Shenzhen,Syoon,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2416.86 $* | 2537.50 $* |
| Aug-20-2025 | 2395.83 $* | 2515.20 $* |
| Jul-20-2025 | 2010.16 $* | 2111.23 $* |
| Jun-20-2025 | 2355.60 $* | 2473.49 $* |
| May-20-2025 | 2050.91 $* | 2153.23 $* |
| Apr-20-2025 | 2314.87 $* | 2430.6 $* |
| Mar-20-2025 | 2294.61 $* | 2409.95 $* |
| Feb-20-2025 | 2274.90 $* | 2388.4 $* |
| Jan-20-2025 | 2253.40 $* | 2366.5 $* |
Характеристики
220V 800W Air Cooling 1.5KW HY VFD Control XYZA 4 Axises 6040Z CNC
Machine Pcb Milling Machine Wood Route
Feature:
4 Axises: X, Y, Z, A
Max. Feeding height: 100mm
Outside dimension: 750×570×390mm
Table size: 570X390mm
Lathe structure: 6061-T5 Aluminium allo
Stepping motor: JK57HS76-4204B-01AF
Drive unit: Ball screw 1605 (diameter 16mm, thread pitch 5mm)
Sliding unit: Chromeplate shaft, linear bearings
Engraving speed: 2000mm/min
Repeat positioning Accuracy: 0.05mm
Spindle motor: 800W DC spindle motor
Spindle speed: 0-24000rpm/min
Cutting tool-holder: ER11
Interface: parallel port
Software Compatability: Mach3/Emc2,(Type3,Wentai, ArtCAM)
Command code: G code/.nc/.ncc/.tab/.txt
System Requirements: WIN-XP, WIN-7
USB socket requirements: USB2.0
HY Inverter: support RS-485 Communication Function
Application:
Mainly used in PVC, acrylic, plexiglass, color plates, engineering plastics, bakelite, wood and soft metal material carving milling, and also suitable for engraving the PCB, and wood model mold, crafts, can not exceed the limit size plastic boxes, aluminum chassis, the panel cutout hole and milling, but also at a low feed rate for aluminum, copper and other metal materials for three-dimensional carving and drilling and milling.
Using Note:
1. Pls contact us for the e-copy of the English manual.
2. Assembling and locating the CNC machine on steady desk well.
3. Make sure that your computer has a on-board parallel port output.
4. Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.
5. Connecting the control box with the CNC machine and you computer.
6. Flowing our manual or guideline to set up the software.
7. Pls don't upgrade the software, thanks!

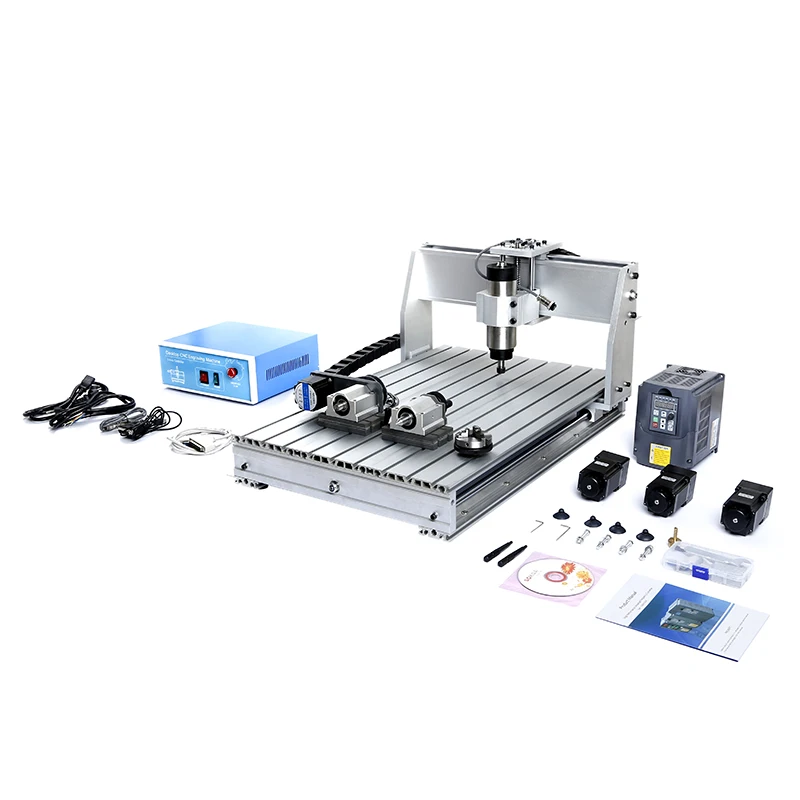

Package Included:
4 × Axis motors
1 x 800W 65mm ER11 air-cooled spindle
1 × Parallel cable
1 × Tool box and tools
1 × Engraving machine
1 x 220V 1.5KW HY Inverter
1 × 220V Blue Control box (only in EU plug, if you need US, UK or AU adapter , please let us know )
1 x CD of CNC USB User Manual and software MACH3
