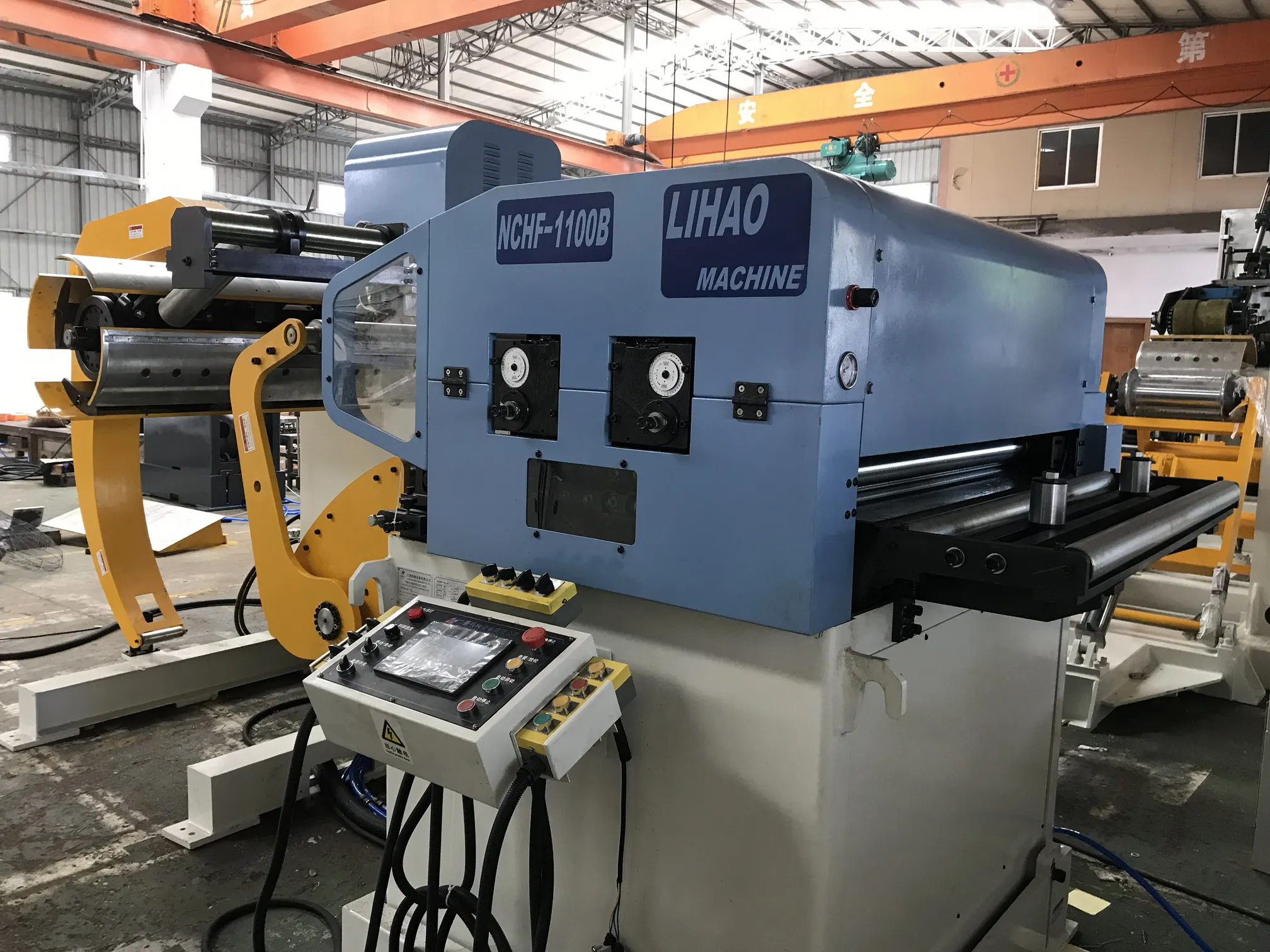

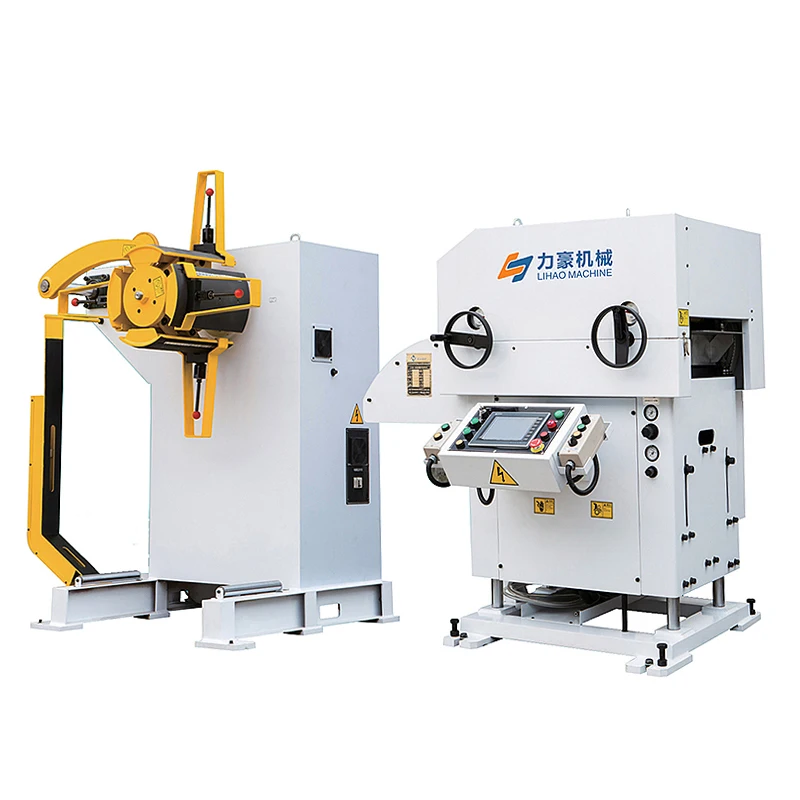

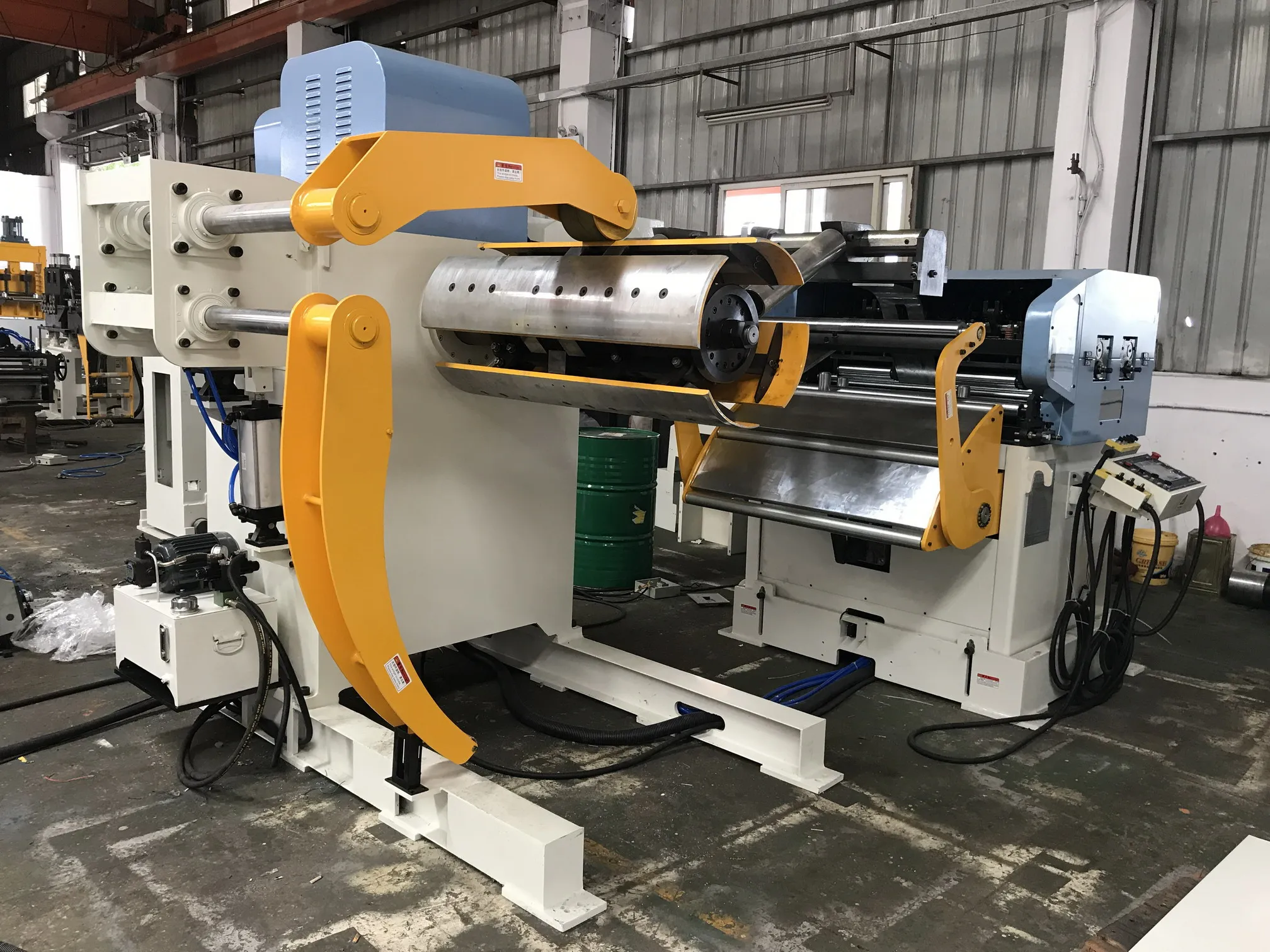

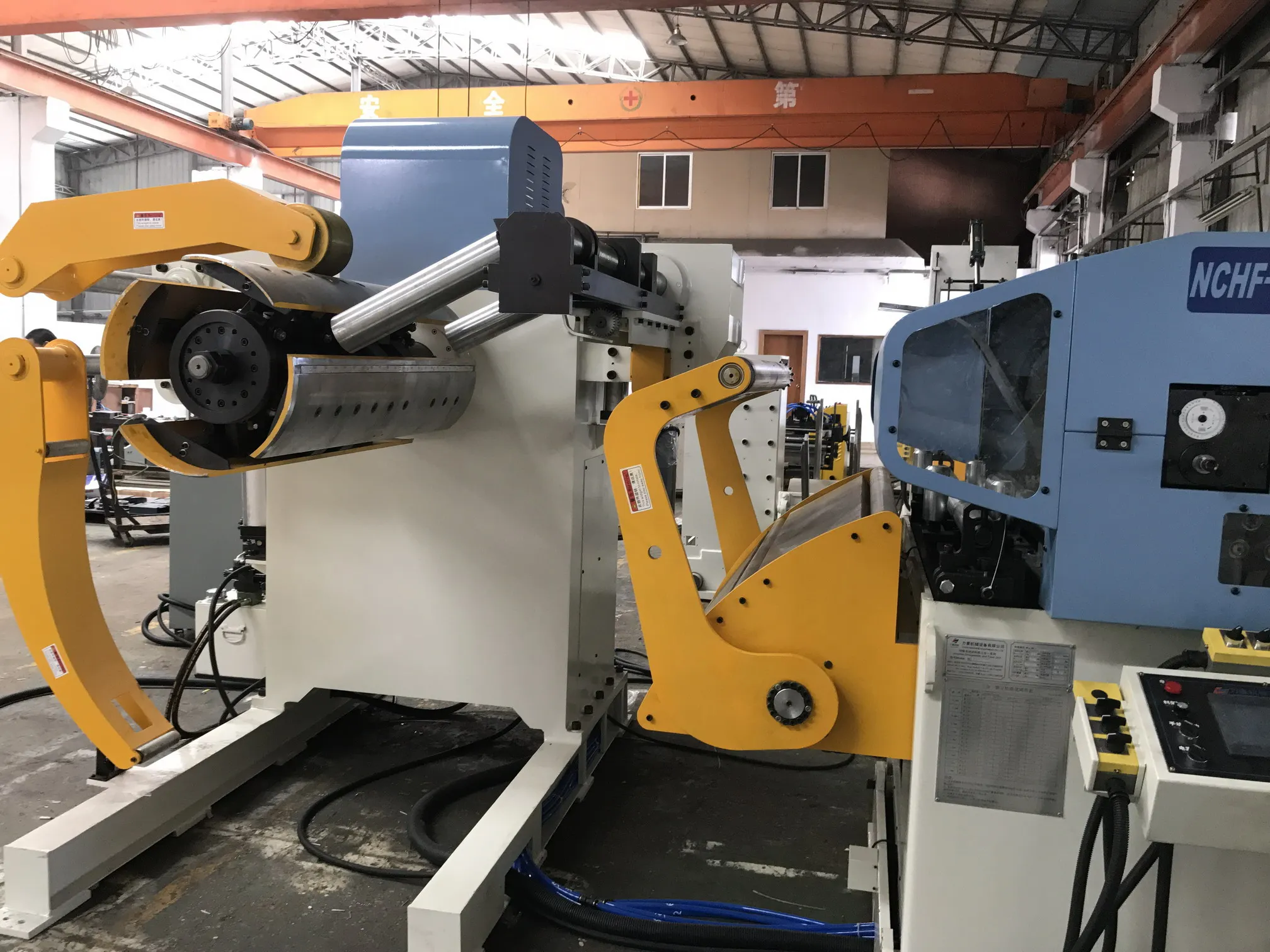

Uncoiler flatten machine and servo roll feeder 3 in 1 machine



Save Looping Space, Increase Safety Coiled material is from uncoiler through both left and right free guide rollers with advance photo sensors keeps looping. Through the opener device and bending roller system feeding the coiled material from up to down, passing opener device, coil tip flatness device, pinch rollers, work rollers, feed rollers to make the coiled material passing in an excellent smooth feeding

STANDARD ACCESSORY

1.    Electric eye loop control system

2.    Feed and straightener rolls hard chrome plated

3.    Outgoing catenary to assist and support the material

4.    Hold down arm device

5.    Feeding line easily adjusted by advance worm gear screw jacks device

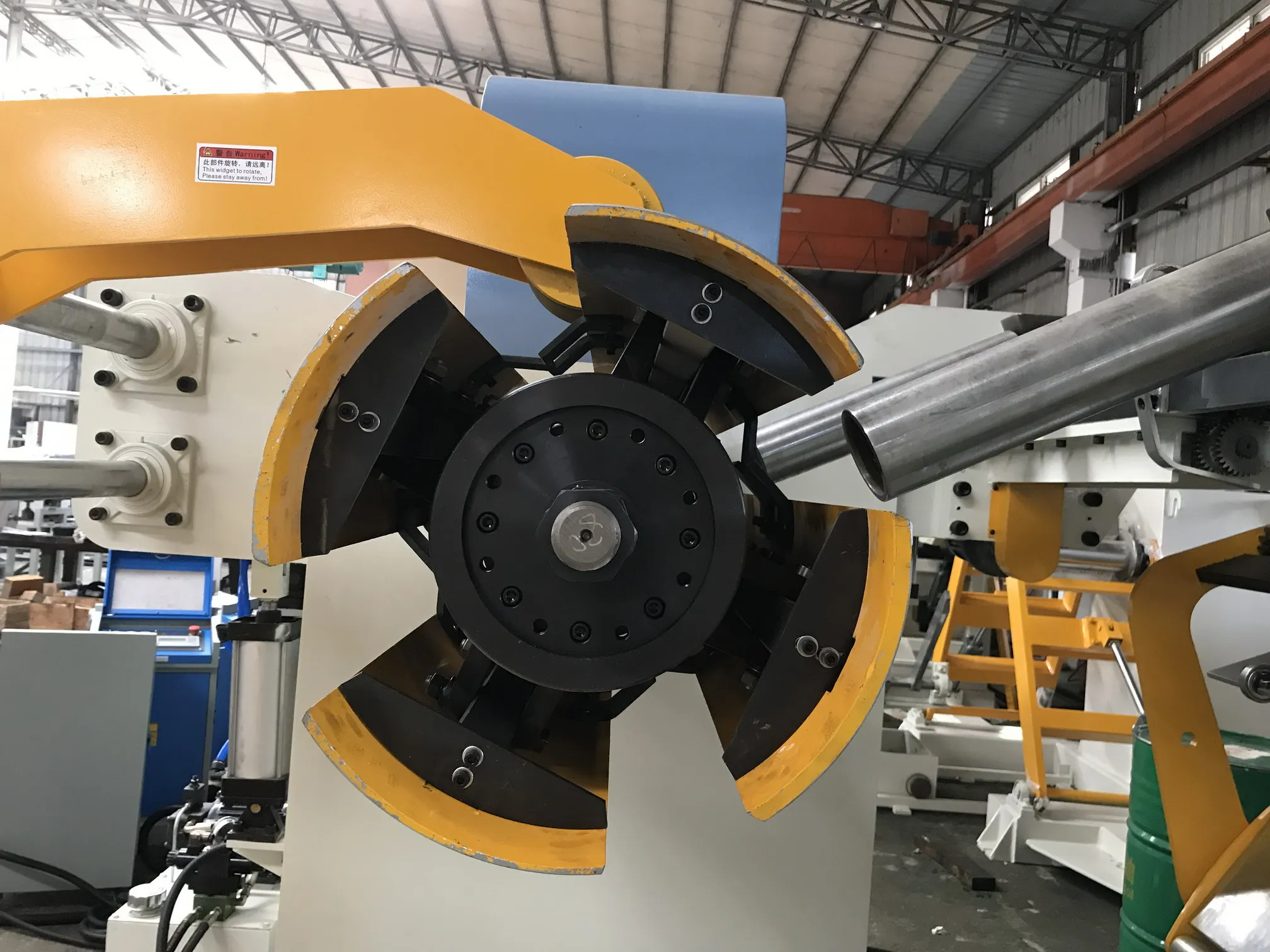

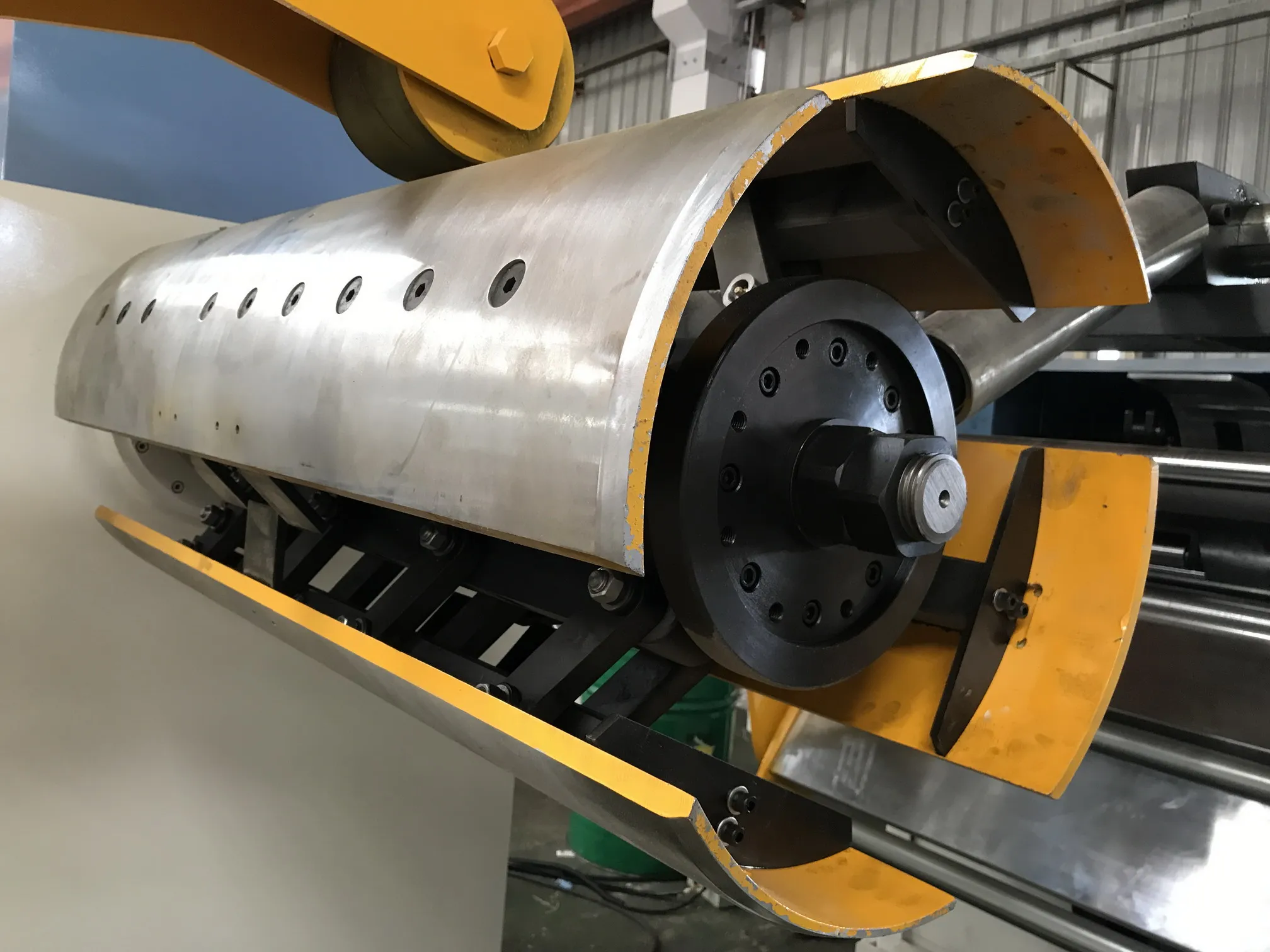

6.    Uncoiler with inverter control

7.    Reference indicator adjuster

8.    Eccentric Roller (Upper)-easy to set up the up curve or down curve feeding exit direction

9.    Hand-set coil width guide at outlet side

10.  Hand-wheel-adjusted coil width guides at straightener inlet side

11.  Threading table device

12.  Coil tip de-bender

13.  Uncoiler with air disc brake

14.  A-frame type coil keeper



OPTION

1.    Coil car

2.    Shearing device





Basic parameters
Name	Uncoiler, straightener, NC servo roll feeder, 3 in 1
Model	NCHF-400B
Width of the material	50mm~400mm
Thickness of the material	0.4mm~2.0mm
Straightening capacity (σs≤250MPa)	400×1.2mm     190×2.0mm     300×1.4mm          250×1.6mm
Inside coil diameter	Φ460mm~Φ530mm
Max.coil outside diameter	Φ1200mm
Max.coil weight	3T
Straightening roll diameter	Φ48mm×11(upper*6/lower*5)
Material of straightening roll	GCr15(HRC58-62)
Feeding roll diameter	Φ66mm
Uncoiler power	1.5Kw
Straightening power	2.9Kw
Feeding speed	0~20m/min
Feed pitch Accurary	<±0.2mm
Other configuration
Straightening adjustment type	Eccentric shaft adjust by worm and gear
Load material type	coil car
Feeding line adjust	Electric
Hold down arm device	By pneumatic
Auto threading table device	By hydraulic
Coil keeper adjust width	Manual
Front coil keeper adjust open	Pneumatic
Coil width guide at the straightener	Two hand-wheel adjusted
Coil tip de-bender device	Hydraulic
Operation control mode	Main control cabinet + action unit remote control switch
Coil end detect sensor	With
Purchased parts brand
Main bearing	HRB,ZWZ
Servo motor	Japan YASKAWA(SGMGH)
Man-machine interface	Taiwan WEINVIEW(Colored)
Common motor	Taiwan Wanxin
Frequency changer	Taiwan DELTA
Pneumatic unit	Taiwan Airtac
PLC	Japan Mitsubishi
Relay	Japan Omron
Hydraulic fittings	Beijing HUADE
Other technical data
Pneumatic pressure	0.5Mpa
Hydraulic pressure	7Mpa
Voltage	3phase 380V
Feed Leveler from floor	1000mm-1150mm
Input material type	From down to up
Standard direction	From left to right
Equipment length(Not included outlet shelf)	≈4.5m
