Product Description

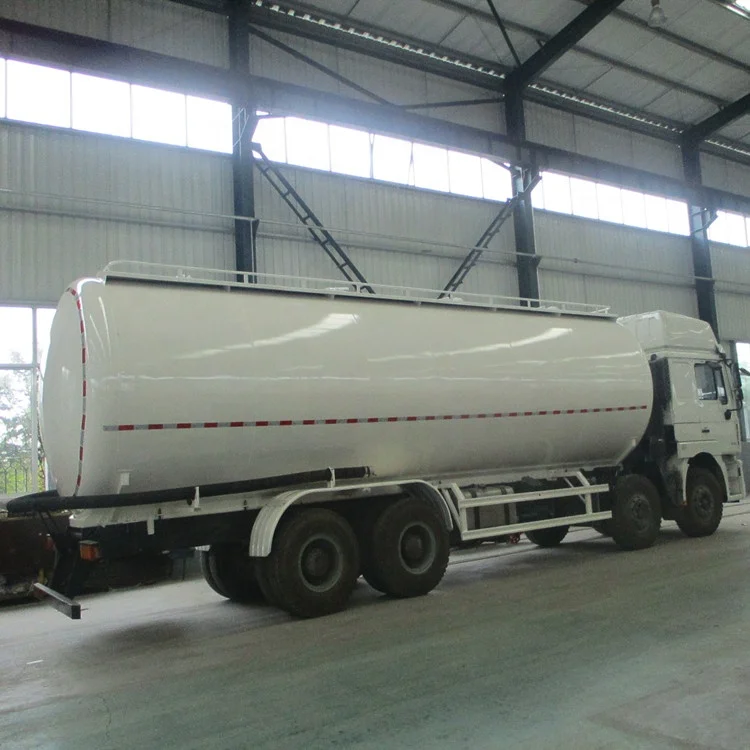

Bulk Cement Tanker Series
acid tanker semi trailer
water tank truck
Fuel Tanker Trailer Series
skeleton semi trailer
Cargo Trailer Series
Flatbed container
Low bed semi trailer
Road sweeper
Utility Petrol tanker semi truck trailer
Four-axle Fuel Tank Semi Trailer
acid tanker semi trailer
Apply for transporting Fuel, JET A-1, Water, Liquid chemical, Crude oil, Food oil etc. is widely used in oil depot, petrol station，oil field, chamical factory, food oil factory, bitumen factory etc.
Tank section style：Perfect circle；oval ;Rectangular circle
Tank body style: Straight style; Gooseneck style;full trailer style; V-type without stringer style etc.
Aluminium alloy Fuel Tank Semi Trailer

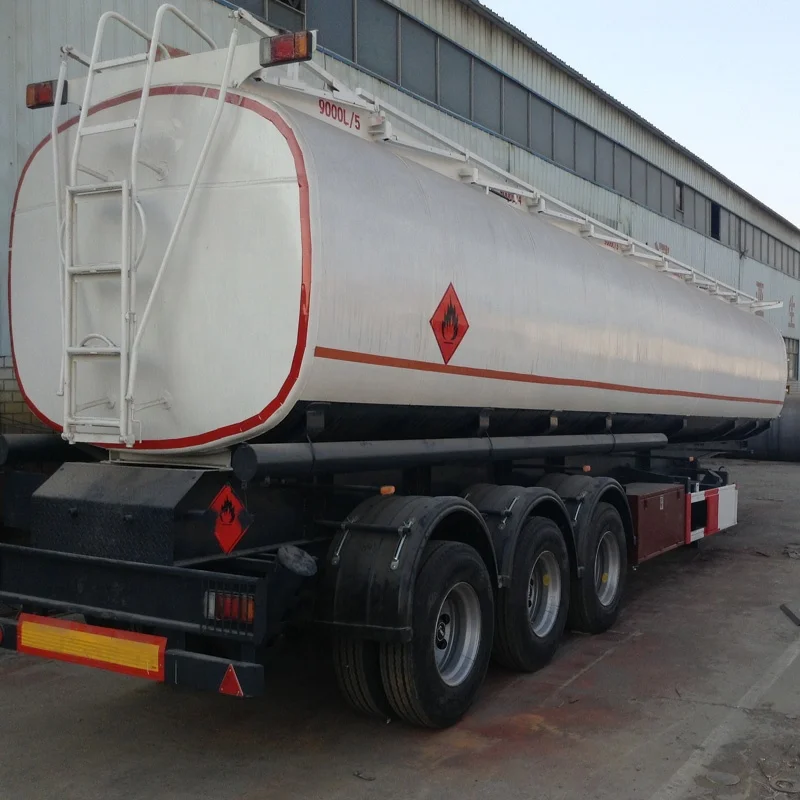

Three-axle Fuel Tank Semi Trailer
Material: Carbon steel, aluminum and stainless steel
Volume: 20m3-70m3
Compartments: 1 – 9
The automatic production line for tank manufacturing has developed advanced manufacturing processes for tank manufacturing from steel plate blanking, sheet milling, plate docking, reeling, reshaping, assembly, welding, forming and other processing steps and automated manufacturing equipment for each process
The tanker accessories include Euro standard manhole cover ,API adaptor valve, Gravity drop coupler,dust cap;bottom valve,Vapor vent valve;vapor adaptor valve;vapor recovery joint;optic sensor,optic socket,optic sensor tester;fuel predictor.
Using industrial automation technology, the manufacturing equipment in the tank manufacturing process, such as CNC cutting machine, CNC milling machine, transporting and turning machine, large jigsaw, CNC rolling machine, large expansion machine, template-less hemming machine, profile Tank ring seam plasma arc welding machine and other equipment, as well as roller transmission system, welding power source, workpiece displacement machine, conveying machine all realize digital control.

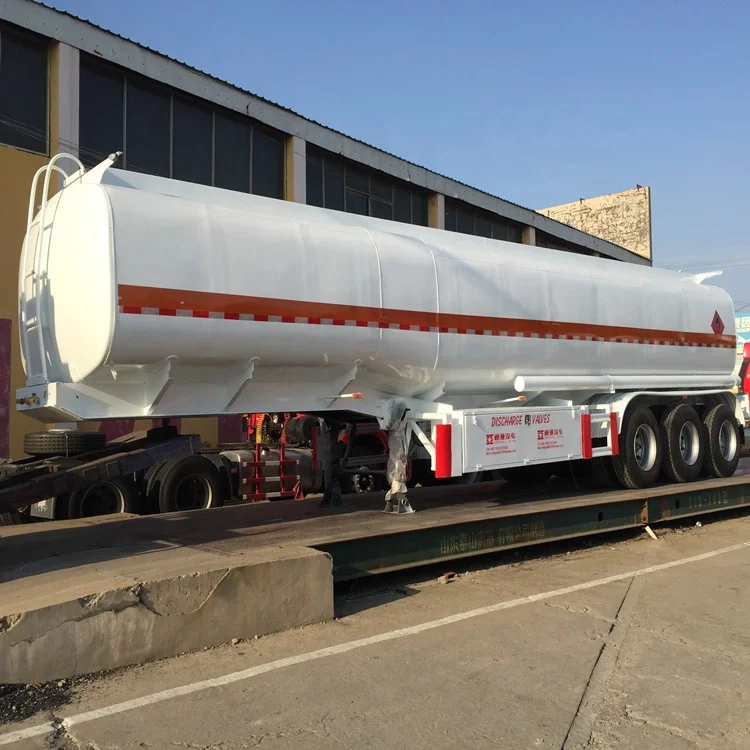

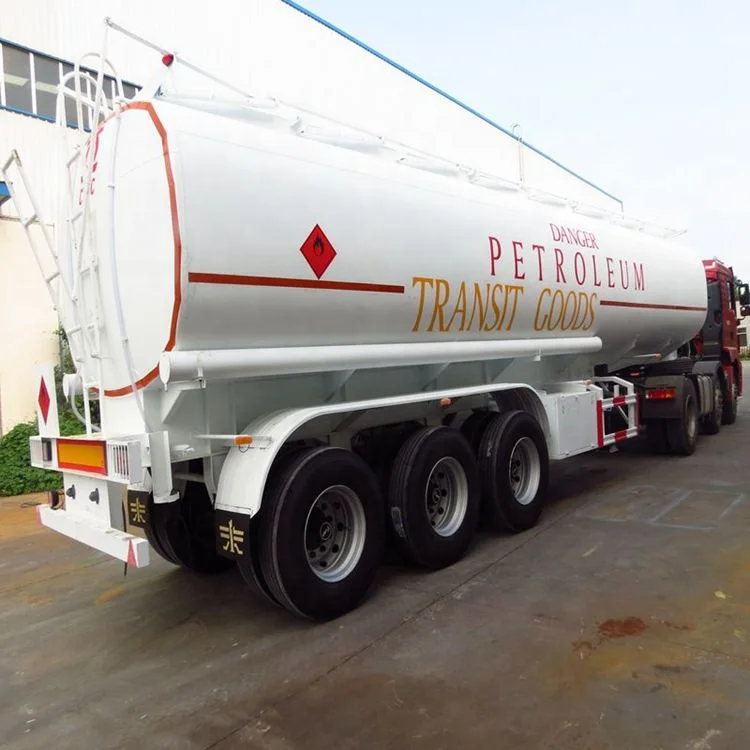

50m3 oil tanker semi trailer with 3 axles
Tank Body | Tank Body | |||||||
Shape | Optional ( Round or Suare) | |||||||
Dimension | 13500mm*2490mm*3800mm ( Exact size depends on the final design) | |||||||
Tare weight | About 12000KGS | |||||||
Total Volume（m3） | 50m³ | |||||||
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel | |||||||
End Plate | 5mm or 6mm /Q235 carbon steel | |||||||
Manhole Cover | Cabon steel or API manhole cover, ∮500mm | |||||||
Bottom Valve | Aluminum API Pneumatic Bottom Valve | |||||||
Discharging Valve | Diameter is 3 or 4 inch | |||||||
Compartments | 5 | |||||||
Discharging Pipe | 4”rubber hose, 2 pcs, 6m/each | |||||||
Cat Walk | With (Common model or special design) | |||||||
Chassis | Chassis | |||||||
Main Beams | Weldding design , connected by bolts and nuts Q345 carbon steel material | |||||||
Axle | 3 axles,FUWA brand | |||||||
Landing Gear | CHINA BRAND 28T | |||||||
King Pin | JOST 3.5 inch bolt-in king pin | |||||||
Suspension | Mechanical suspension/Germany or America type /air suspension | |||||||
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without | |||||||
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. | |||||||
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand | |||||||
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional | |||||||
ABS | Optional | |||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||||||
Accessories | One standard tool box | |||||||
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers | |||||||
FOB PRICE | 17500USD---20500USD | |||||||
42m3 Aluminum alloy oil tanker semi trailer
Tank Body | ||||||||
Shape | Optional ( Round or Suare) | |||||||
Dimension | 11000mm*2490mm*3990mm ( Exact size depends on the final design) | |||||||
Tare weight | About 8000KGS | |||||||
Total Volume（m3） | 42 m³ | |||||||
Tanker Body Material | 6mm aluminum | |||||||
End Plate | 7mm aluminum | |||||||
Manhole Cover | Aluminum alloy API manhole cover, ∮500mm | |||||||
Bottom Valve | Aluminum API Pneumatic Bottom Valve | |||||||
Discharging Valve | Diameter is 3 or 4 inch | |||||||
Compartments | Optional | |||||||
Discharging Pipe | 4”rubber hose, 2 pcs, 6m/each | |||||||
Cat Walk | With (Common model or special design) | |||||||
Chassis | ||||||||
Main Beams | Weldding design or Special design I beam, connected by bolts and nuts | |||||||
Axle | 3 axles, FUWA brand | |||||||
Landing Gear | CHINA BRAND 28T | |||||||
King Pin | JOST 3.5 inch bolt-in king pin | |||||||
Suspension | America typesuspension | |||||||
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer | |||||||
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. | |||||||
Rim | 8.00-20China Brand | |||||||
Tire | 11.00R20 Brand can be Optional | |||||||
ABS | Optional | |||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||||||
Accessories | One standard tool box | |||||||
Shipping Terms | By Bulk Cargo ,RORO | |||||||
FOB PRICE | 32000USD--38000USD | |||||||
Please contact us for other specifications
