Пневматическое роторное соединение 4 канала с низким крутящим моментом для передачи

Описание и отзывы

Трекер стоимости

Характеристики

Description



       The low torque rotary union is a kind of rotary joint as it can be reconfigured according to the actual needs. Adopting clearance seal rotary joint with low rotating torque, the rotary union contains two precise bearings. They share a smooth and lasting high-speed running with firmness and flexibility. With excellent sealing performance, JINPAT low torque rotary union can solve the problems of many industries.



Specification



Channels	4
Pipe Diameter	4 mm
Working Pressure	-0.15Kpa~1MPa
Working Speed	0~100 rpm
Starting Torque	≤1.5N.m
Inner Diameter	6mm
Outer Diameter	40mm
Length	63mm





Pneumatic rotary joint Slip Ring Specification Main Application

• Electric devices


• Medical facility


• Industrial machinery


• Chemical equipment


• Process control equipment



Outline Drawing

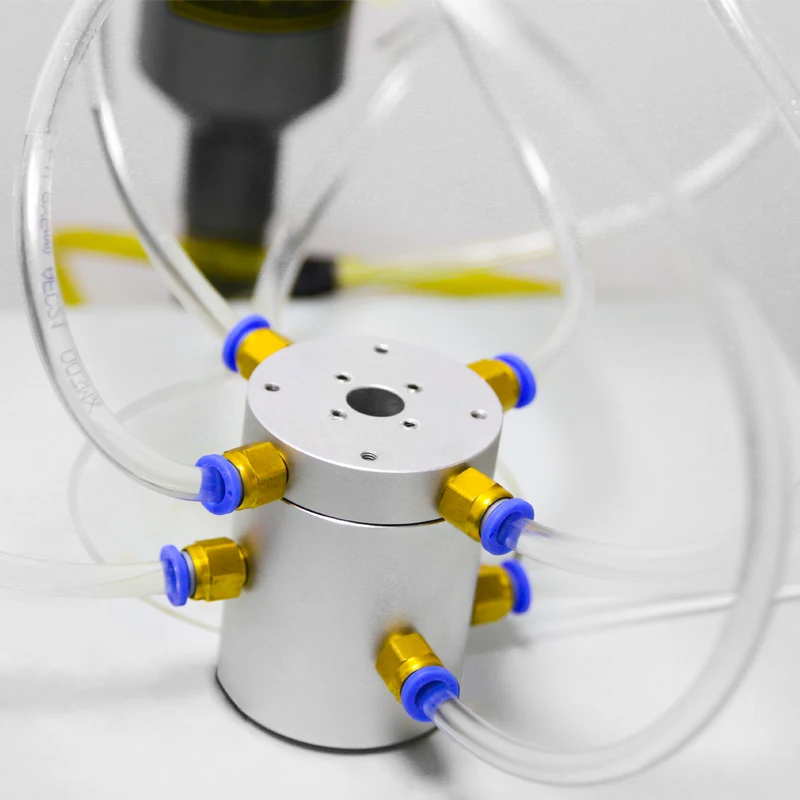

Pneumatic rotary joint Slip Ring  Product Display







Company Introduction



          JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.
