Новая дизайнерская лазерная маркировочная машина с вращением для круглых
- Категория: Laser Marking Machines >>>
- Поставщик: Wuhan,Optical,Valley,Laser,Equipments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.66 $* | 0.8 $* |
| Aug-15-2025 | 0.93 $* | 0.47 $* |
| Jul-15-2025 | 0.42 $* | 0.72 $* |
| Jun-15-2025 | 0.59 $* | 0.36 $* |
| May-15-2025 | 0.89 $* | 0.57 $* |
| Apr-15-2025 | 0.27 $* | 0.42 $* |
| Mar-15-2025 | 0.51 $* | 0.83 $* |
| Feb-15-2025 | 0.68 $* | 0.81 $* |
| Jan-15-2025 | 0.97 $* | 0.32 $* |
Характеристики
Laser marking machine for Jewelry marking and cutting
Product Description
Laser marking machine for jewellery Application Materials
| Materials | |
| Metal | Stainless Steel, Mild Steel, Brass, Aluminium, Iron, Gold, Silver, etc. |
| Non-metal | ABS, Nylon, PES, PVC, Makrolon, etc |
Laser marking machine for jewellery Applicable Industries
| Application | |
| Electronic Components | Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc. |
| Mechanical Parts | Bearings, Gears, Standard Parts, Motor, etc. |
| Instrument | Panel Board, Nameplates, Precision equipment, etc. |
| Hardware Tools | Knives, Tools, Measuring Tools, Cutting Tools, etc. |
| Automobile Parts | Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc. |
Laser marking machine for jewellery Technical Data

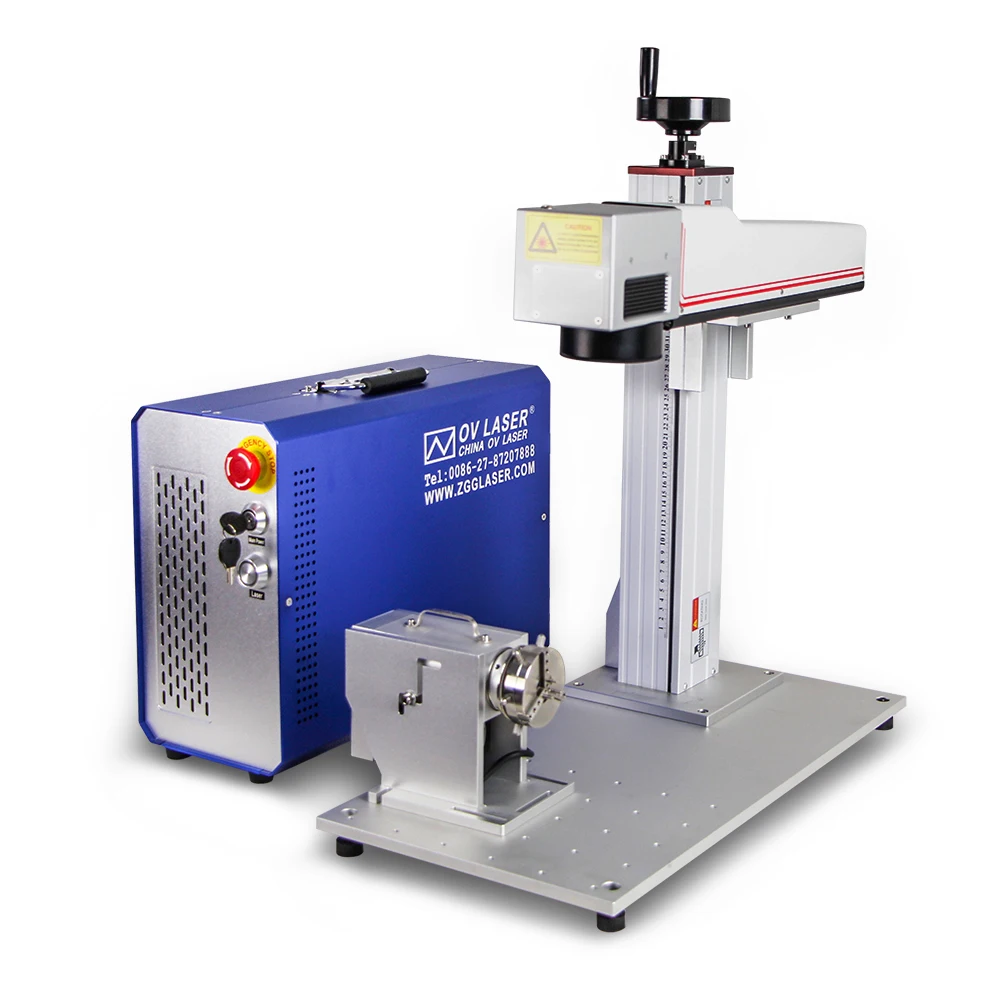

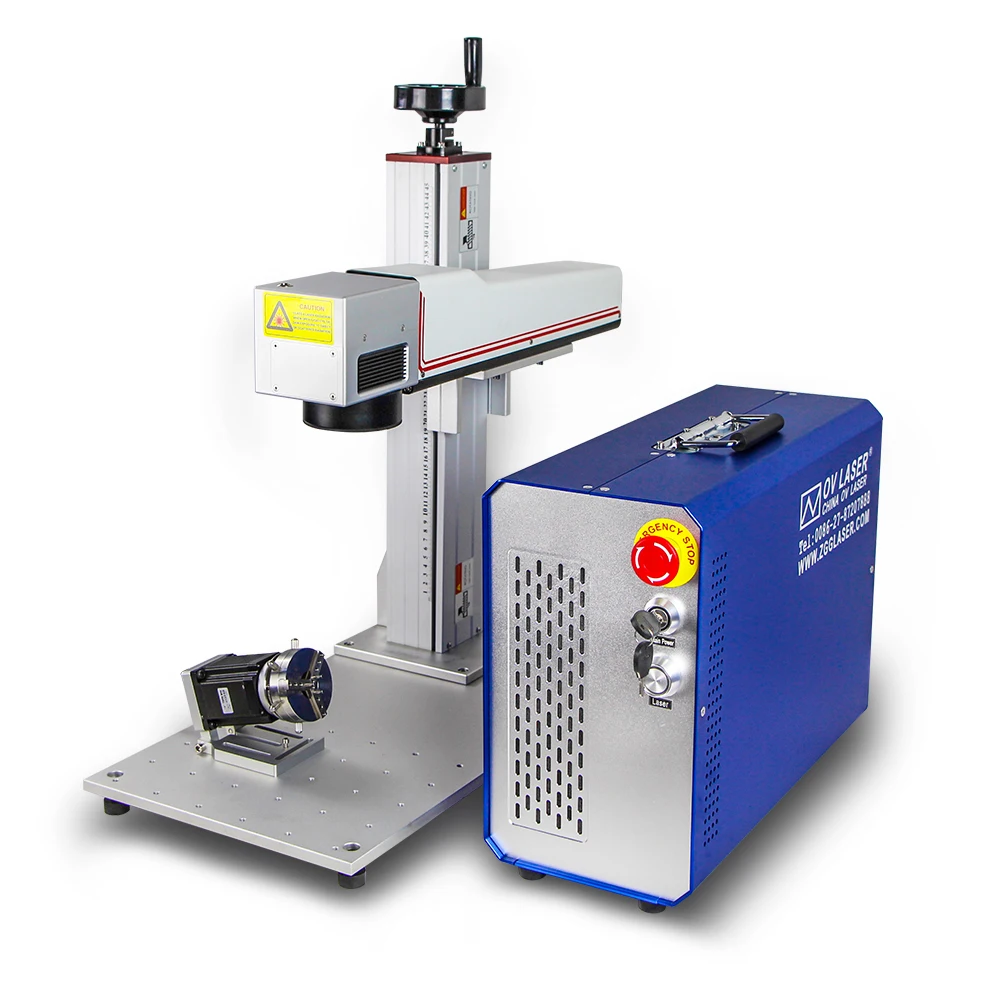

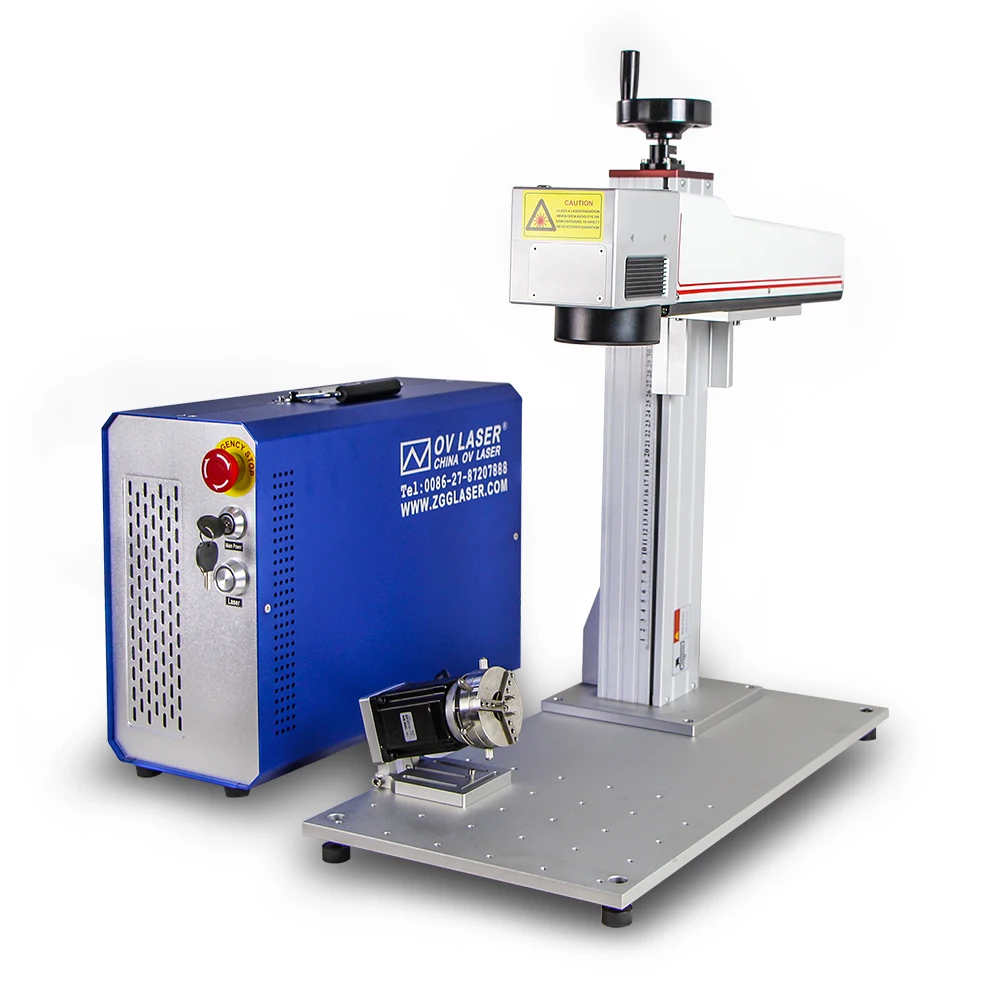

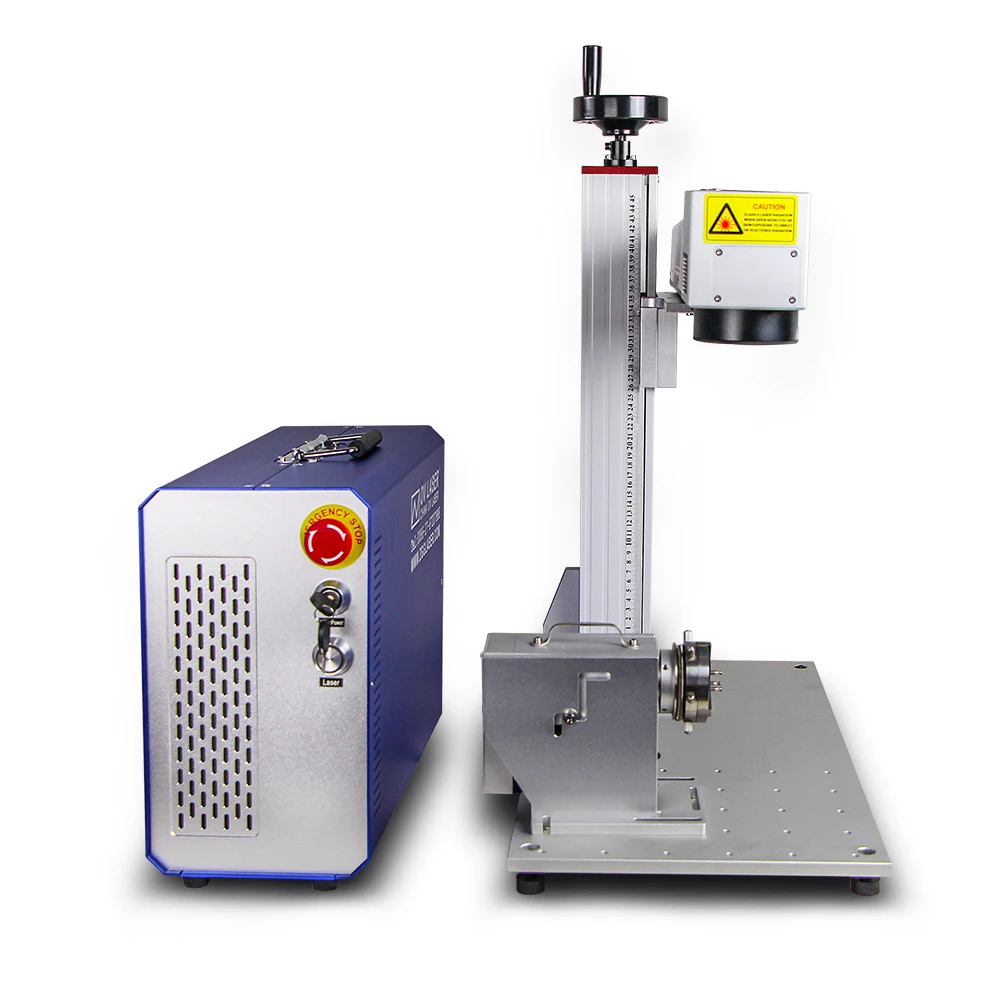

Product | OV LM-30 Table Laser Marking Machine |
Power | 20W / 30W/ 50W |
Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
Marking Depth | ≤1mm |
Marking Speed | 7000mm/s |
Controller | JCZ (Software--EzCad) |
Life-span | 100,000-200,000 hours |
Cooling Mode | Air cooling--Built-in |
Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
Computer Requested | One set of PC included |
Dimension (L*W*H) | 750mm*600mm*600mm |
Package Size | 850mm*700mm*750mm |
Net Weight | 70KG |

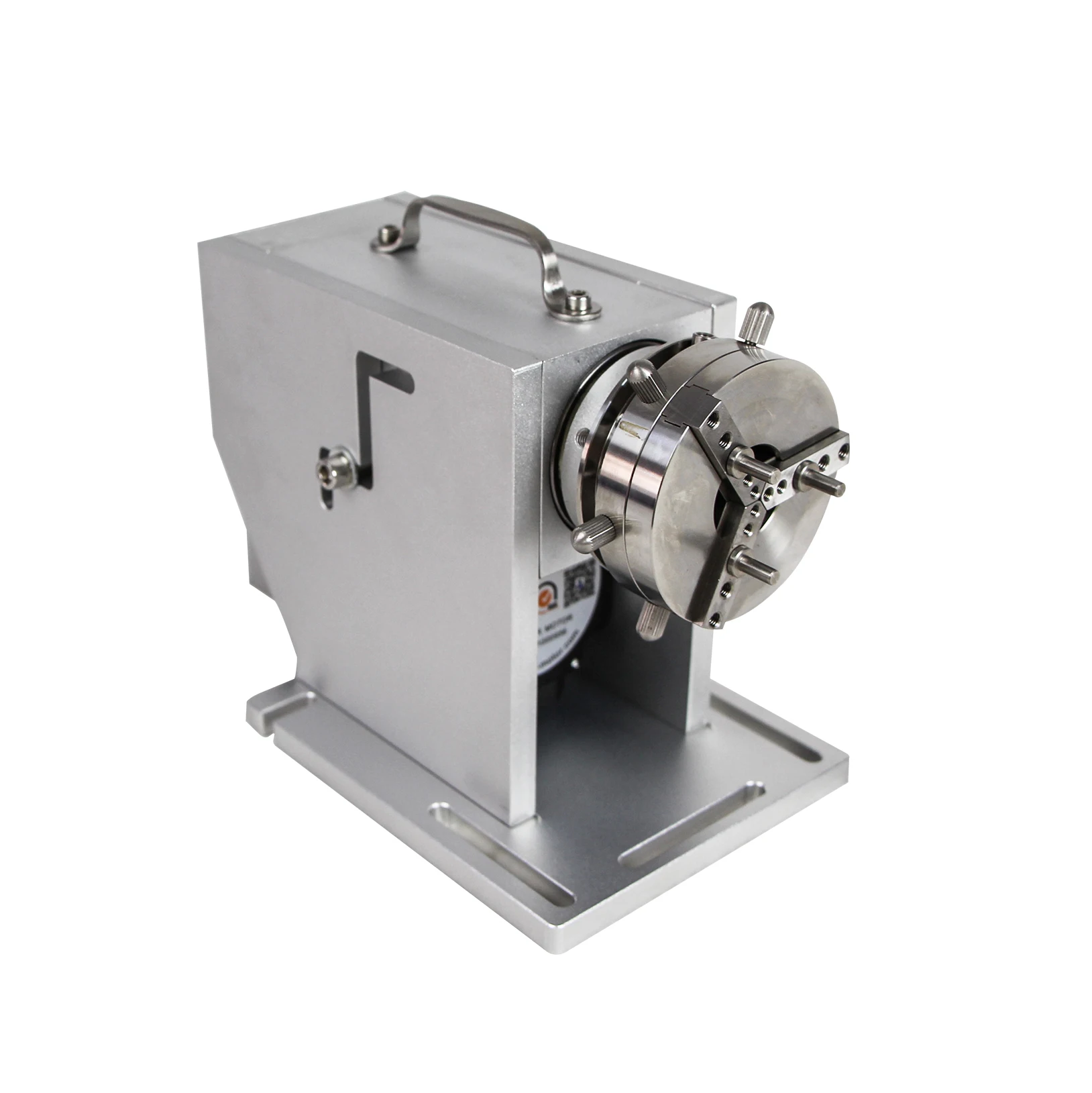

Optional | Rotary Device, Moving Table, customized Automatic Matching System |
The Gold Foil Holder for Cutting
Advantages of Laser Marking Machine
Longer Lifespan
China best Raycus laser source lifespan is more than 100,000 hours. That says, if the machine works 10 hours per day, 360 days a year, the laser source can work more than 27 years.
Light pumping YAG: Hundreds hours; Semi-conductor: 10,000 hours.
Lower Use Cost
Air cooling system is built-in, save space;
The fiber laser source works with no need for consumables at least 10 years;
Higher photoelectric conversion efficiency, save electric cost;
Two years warranty, save maintenance cost
More satisfied after sale service
Training videos are copied in USB drive, packed to send customer;
24 hours technician online, prompt reply;
Remote online support;
Free marking/engraving samples.
Sample Show

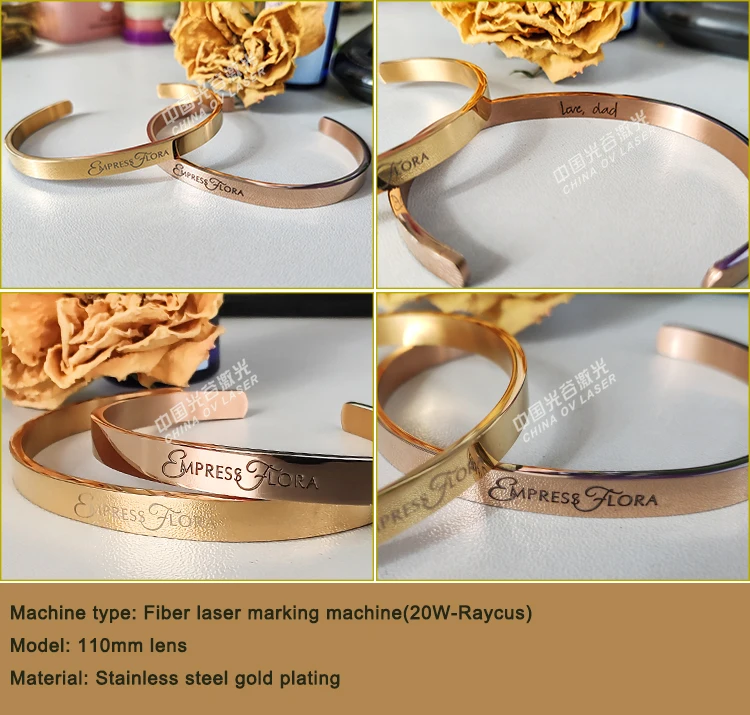

Metal Jewelry Marking Sample
Packaging & Shipping
1. 5-7 working days after receiving the payment.
2. There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.
Our Services
Contact
