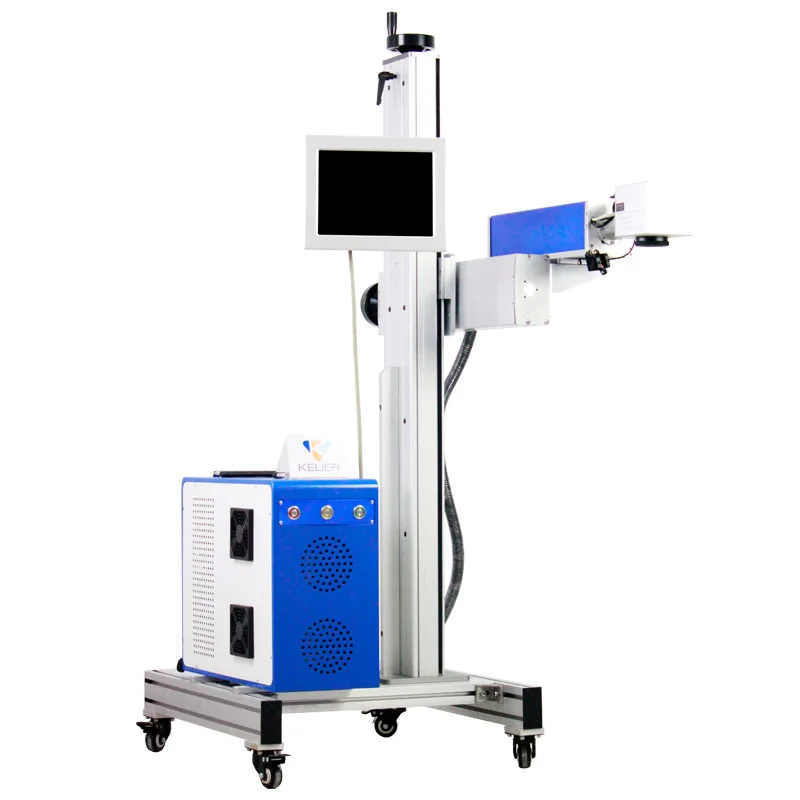

Fly online лазерная маркировочная машина для пластика AC110V-240V/50-60 Гц

Product advantages:

1. This equipment is specially designed for laser marking of flight in assembly line, such as PE pipe production line, PE material and metal parts, wire and cable production line.

2. Switch indicator button, direct and clear, unique standby laser independent switch, so that the laser life is longer.

3. Intelligent touch-control operation, real-time online editing marking information, can provide customized secondary development platform for customers, convenient to connect with customer anti-counterfeiting system.

4. Support multi-language operation and multi-language marking.

5. All-air-cooled, consumable-free, maintenance-free, low cost, low power consumption, no water-cooled system, flexible optical fiber output, more convenient use, energy saving. Integrated modular design, easy maintenance, compact size. Save your precious workshop space, mark environmental protection, non-fading, in line with international standards.

online Fiber Laser Printing Machine with Fiber Laser Source Detailed Parts Introduction:

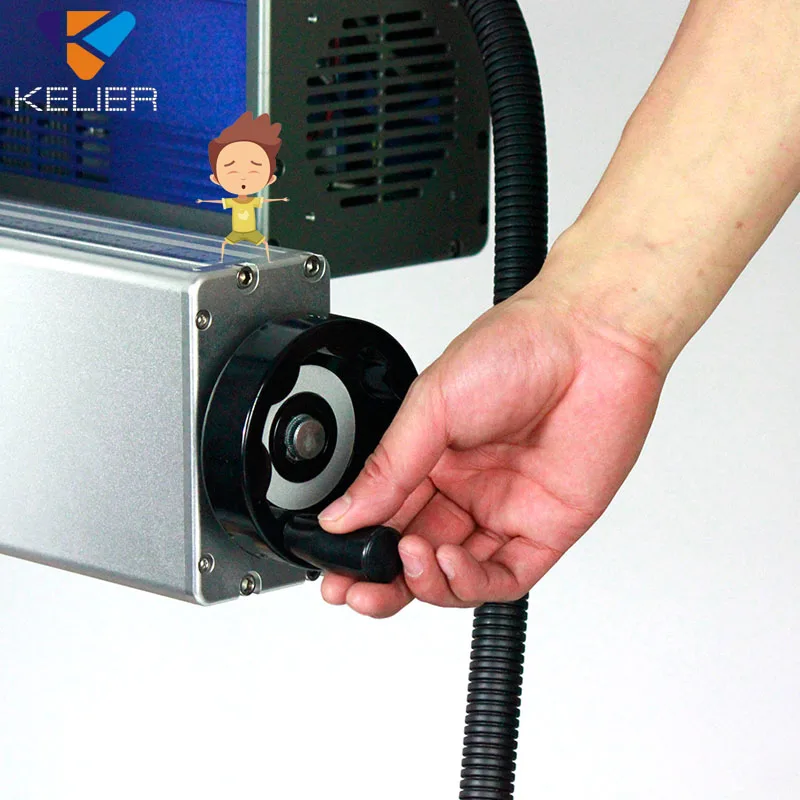

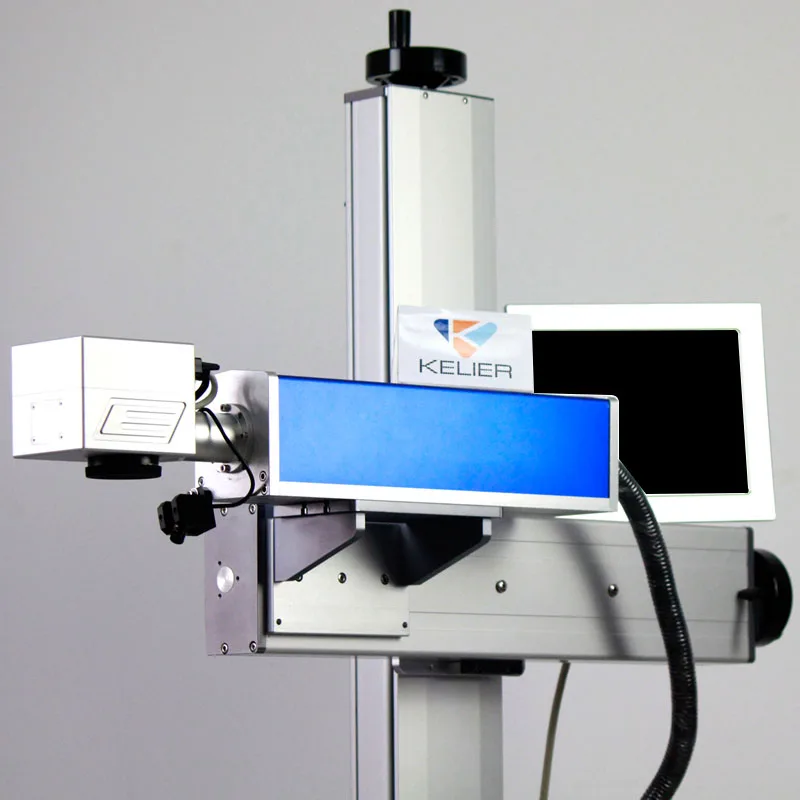

1,Modular design, the separate laser generator, and lifter, more flexible, can mark on the bigger area and complicated surface.

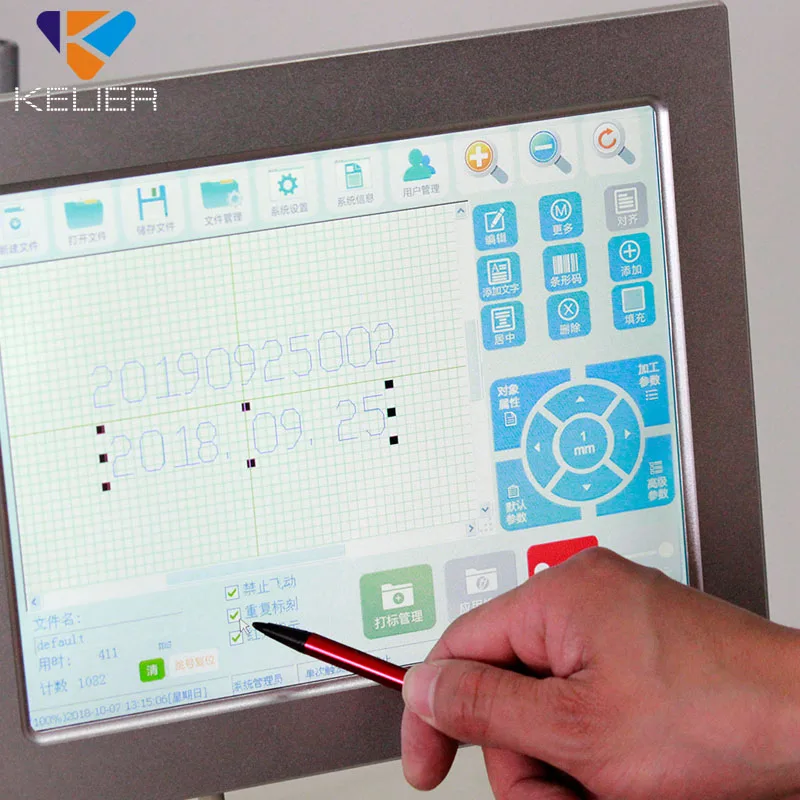

2,Adopt the embedded laser operating software system, which the performance is leading domestic peers, good touch interface, and powerful control system, can meet the demand of most industrial laser printing application process in the market.

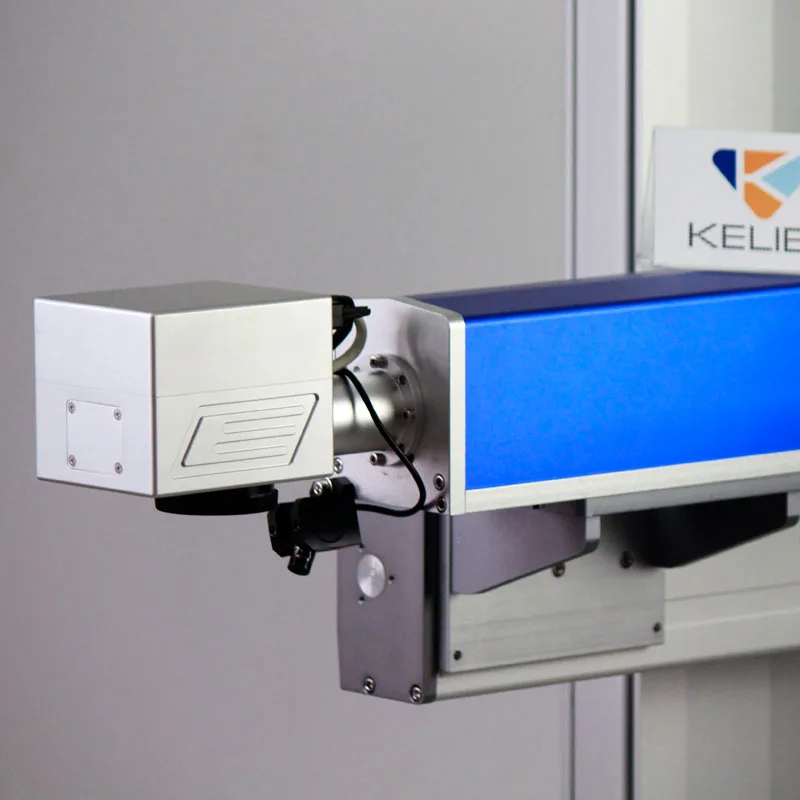

3,Adopts advanced digital high-speed scanning galvanometer, small volume, quick speed, good stability, performance, reach the international advanced level.

The fiber laser generator is highly integrated, has a superior laser beam and uniform power density, Out Laser power is stable.

This design highly increases the laser printing machine’s anti-reflection ability, be able to print & mark on aluminum, copper, gold, and silver without the shadow and virtual open phenomenon. Adopt special flying/online printing marking control system, with good performance and easy operation.

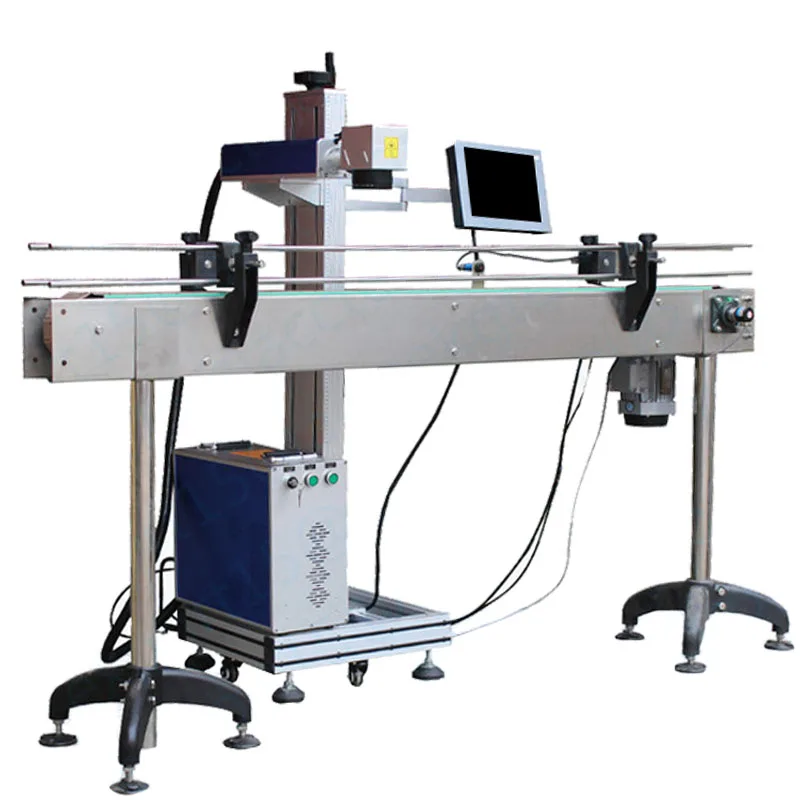

With the continuous fabrication processes, you need to be able to mark parts without stopping the conveyor belt. With our On-The-Fly laser marking process, you have the ability to mark your products on the fly.

The "Marking on the Fly" option synchronizes the movement of the parts with the movement of the laser beam, so that the laser marking produces an undistorted mark. The speed in the transport direction is continually measured with an encoder signal - so even with a change in conveyor speed or starts and stops, you can obtain consistent marking results.

Application industry: It is widely used in piping, wire and cable, metal fittings and other pipeline production operations.

Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .

Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?

Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.

Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.

Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
