Встроенное зарядное устройство 2 в 1 ev 5 кВт 25A + DC-DC

Встроенное зарядное устройство 2 в 1 ev 5 кВт 25A + DC-DC

Категория: On Board Chargers >>>
Поставщик: Shijiazhuang,Dilong,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.71 $*	0.92 $*
Aug-19-2025	0.39 $*	0.75 $*
Jul-19-2025	0.94 $*	0.51 $*
Jun-19-2025	0.16 $*	0.63 $*
May-19-2025	0.11 $*	0.22 $*
Apr-19-2025	0.70 $*	0.15 $*
Mar-19-2025	0.59 $*	0.36 $*
Feb-19-2025	0.54 $*	0.16 $*
Jan-19-2025	0.50 $*	0.50 $*

Характеристики

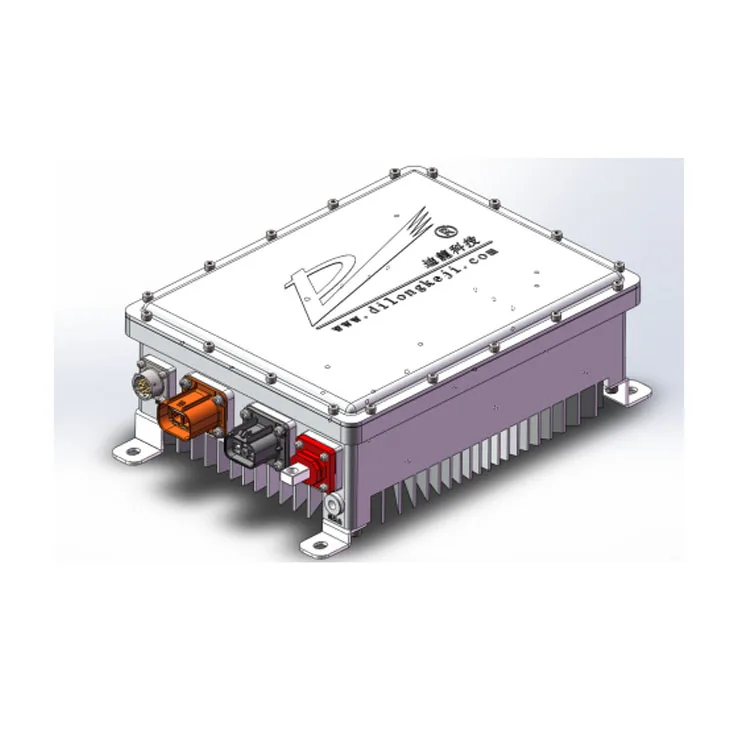

2 in 1 on board charger ev 5KW 25A Integration Charger+DC-DC converter

more products

Product Description

^{DA5KM23-90C-14RC is a forced water cooling, specially designed for pure electric vehicles, and a digital converter for the conversion and integration of OBC(On-board Charger) and DCDC(DC/DC Converter). Reduced the number of the vehicle wiring harness connector and the trouble fission power installation is one of the world's highest power density products, various performance indicators have reached or exceed the international peer level, trouble-free operation for longer.}

Installation Guide

M23(C+D) OBC(On-board charger) Specification
Rated Voltage	Vac	220
Voltage Range	Vac	85~264(85~175 the power dropped to 1200W)
FREQ RANGE	HZ	47~63
Efficiency(MAX)	%	≥95
Power Factor		≥0.99@220Vac,rated power
Current	A	≤16A@220Vac
Rated output voltage	Vdc	96
Constant voltage output range	Vdc	70~132 (According to customer battery decision)
Maximum current	A	25 (Constant power output characteristics)
Maximum power	W	3300
Output voltage accuracy	V	≤±1%Vo input 176Vac-264Vac,output 10%-100% load
Line regulation	%	≤±0.2%Vo input 176Vac-264Vac,output 100% load
Load regulation	%	≤±0.5%Vo input 220Vac,output 10%-100% load
Ripple and noise	mV	≤±3%Vo 20M oscilloscope,Twisted-pair cable test.

M37(C+D) DC/DC(DC/DC Converter) Specification
Project	Specifications	Note
Rated input voltage/current	DC:96V/9.2A
Input voltage range	DC:70V~132V
Output rating	DC:14V	(The shell is DC14V output negative)
Output current	57A(rated), 68A(max/6mins)
Output power	800W(rated), 960W(max/6mins)
Output voltage accuracy	≤±1%
Line regulation	<±0.2%	Input, output full range
Load regulation	<±0.5%	Input, output full range
Output Over-current protection	68-70A
Input over-voltage protection	Normal	Hardware limits≥145V shutdown
Input under-voltage protection	Normal	Hardware limits≤60V shutdown
Output Over-voltage protection	yes	Hardware 15V-18V
Control Method	CAN or Enable control	CAN has precedence over enablers Enable control: high level is effective
