The Weatherproof Switch range comprises a robust polycarbonate enclosure incorporating a 1 or 2 gang Grid Switch Module arrangement. It provides a convenient & safe wall-mounted control for outdoor equipment such as lighting, garden pond pumps, etc up to 20A current rating.

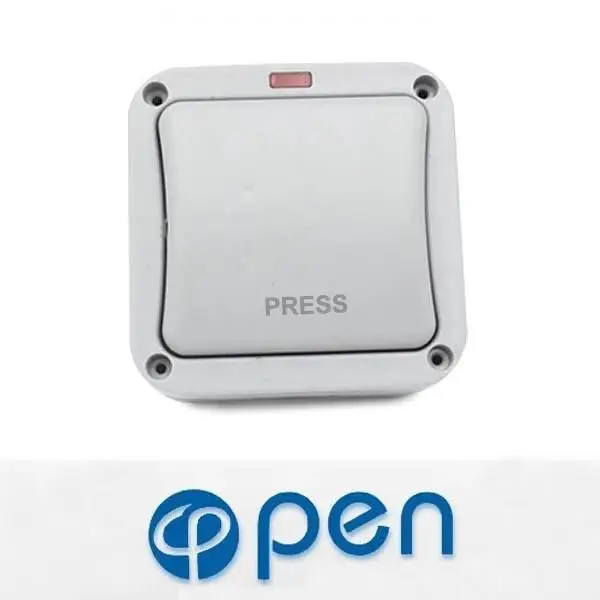

Modules can be changed for others from the Grid range such as a 20A Double Pole or retractive 'PRESS' switch.
The enclosure is IP66 rated in use, which means that the sealed construction provides a very high level of protection against the ingress of both water & dust.
The Neon indicator can be used to illuminate the switch in a number of ways depending on wiring, presence of supply Neutral.

Features
1.Clearly marked terminals with backed out captive screws for easy installation
2. 20 Amp, 20AX inductive rated
3. Covers to seal the fixing screws
4. Earth terminal in mounting box

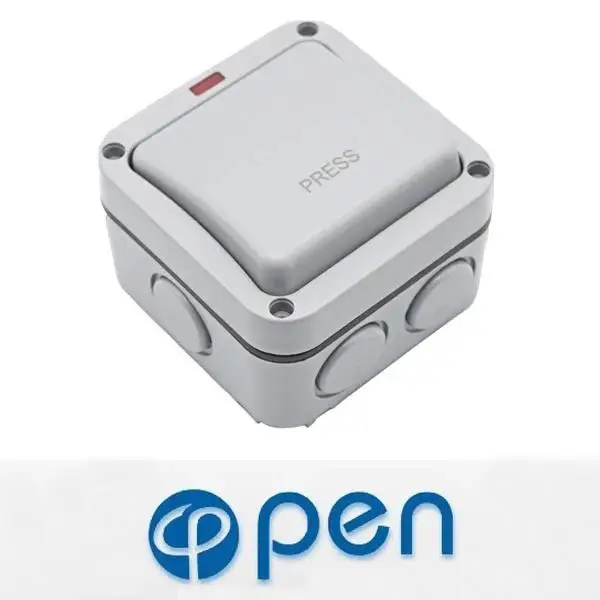

5. All cable entries in the 4 sides have removable blanking caps
6. Neon indicator that can be wired to illuminate when off or on depending on wiring

Technical Data
20 Amp 20AX Switches

IP66 Rated
Switches manufactured to BS EN 60669-1
Customer configurable -switch modules can be interchanged with others from the Grid Range
