Product Details

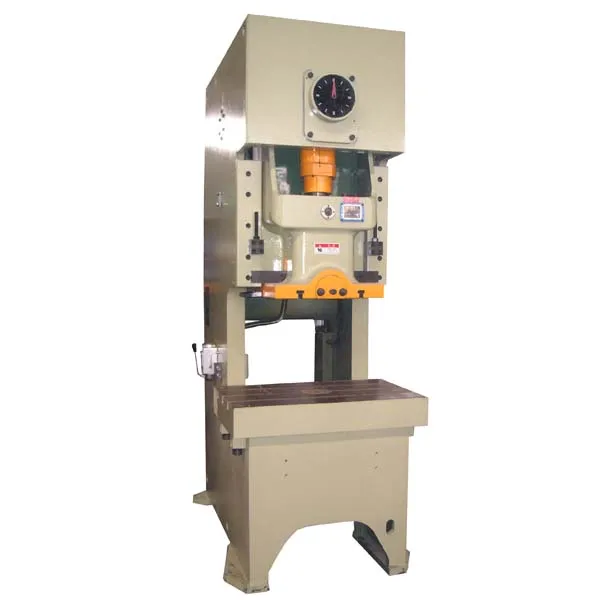

80 ton stainless steel stamping machine for sale
1. Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2. Vertical located crankshaft, compact structure;
3. The crankshaft undergoes grinding treatment after high frequency quenching;
4. Lengthened rectangular guide-way with a surface of bronze plate;
5. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6. PLC control and imported safety dual valve;
7. Wet clutch and hydraulic overload protector

manufacturing license plate stamping machine manufacturing license plate stamping machine d die
Product Introduction

The main body is welded with high quality steel plate. Then it will be heat treated and ball blasting treated to release the stress and improve the rigidity. The best boring and milling machine ensures the high precision of the body manufacturing license plate stamping machin

manufacturing license plate stamping machine  manufacturing license plate stamping machine
Product Parameters
\t
ITEM
\t
UNIT
\t
JH21-80
\t
Nominal Capacity
\t
KN
\t
800
\t
Slide Stroke Length
\t
mm
\t
160
\t
Slide Strokes
\t
Fixed  SPM
\t
60
\t
\t
Variable(optional) SPM
\t
40-75
\t
Max. Die Shut Height
\t
mm
\t
320
\t
Die Shut Height Adjustment
\t
mm
\t
80
\t
Throat Depth
\t
mm
\t
310
\t
Distance Between Uprights
\t
mm
\t
610
\t
Slide Bottom Size
\t
mm
\t
460
\t
\t
mm
\t
540
\t
Shank Hole Size
\t
Diameter
\t
50
\t
\t
Depth
\t
70
\t
Table Size
\t
FB
\t
600
\t
\t
LR
\t
950
\t
\t
Thickness
\t
140
\t
Table Hole Diameter
\t
mm
\t
180
\t
Overall Dimensions
\t
FB
\t
1765
\t
\t
LR
\t
1200
\t
\t
Height
\t
2725
\t
Motor Power
\t
KW
\t
7.5
\t
Weight(approximate)
\t
kg
\t
6450

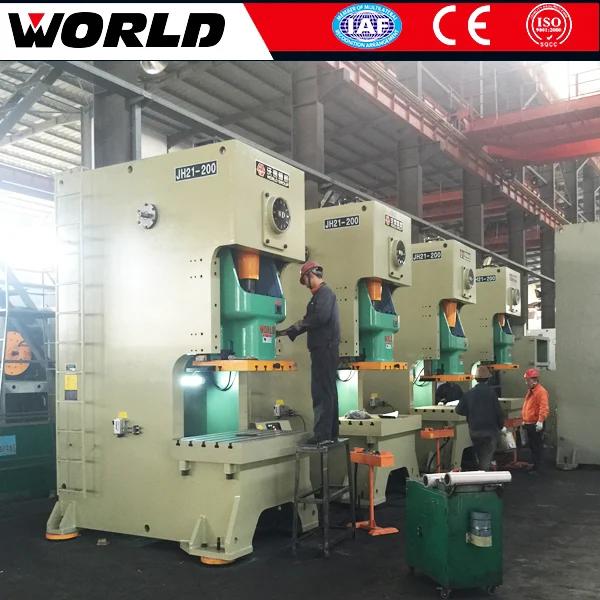

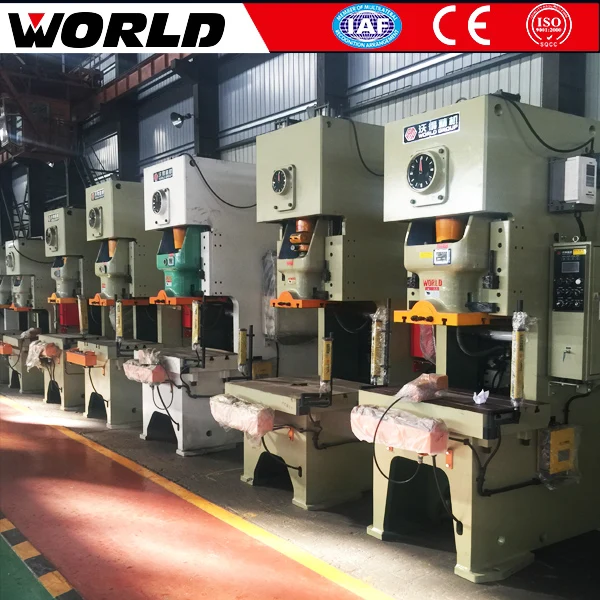

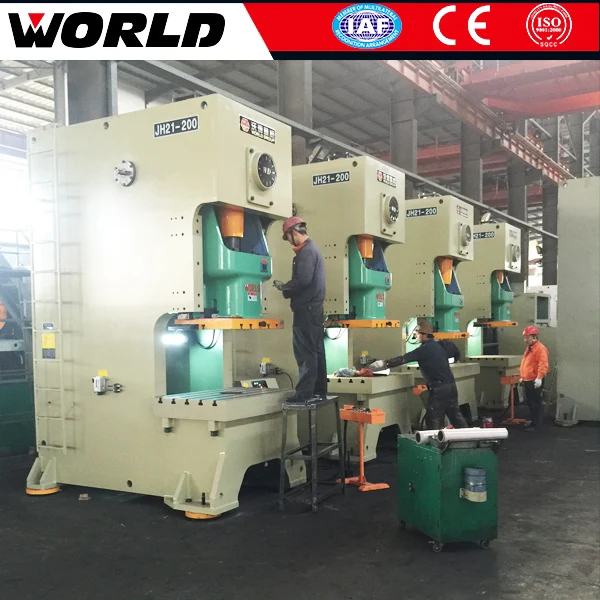

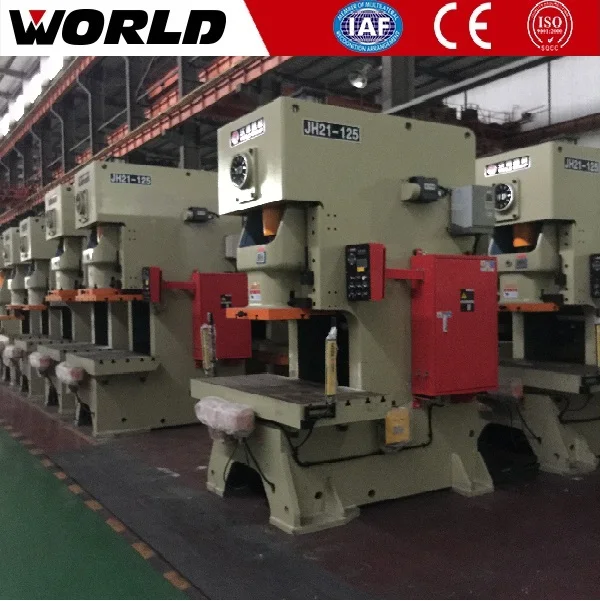

Production Workshop

PAMA CNC machine center

Large diameter gear hobbing machine

Japanese vertical lathe

CNC boring and milling machine

Japanese Five dimensional processing center

PAMA CNC machine center

Why Choose Us

Why Choose Us
More than 30 years experiences, professional R&D team and production team.
3 years warranty for the self-produced wet type pneumatic clutch.
Quick delivery: 10 days for standard machines and 30 days for customized order.
About 80% parts are self-produced. Buyer can get the right parts in farther future.
Bigger manufacturer can provide more assurance for quality and future service.
