Характеристики
Automatic new energy vehicles wheel motor stator coil winding equipment machine
(1) Application
This wheel motor coil winding machine is used for the wheel hub motor stator coil winding ,and the brushless stator and the outer rotor coil winding. The stator winding machine is suitable for electric vehicles, battery cars, electric motorcycles, twisting cars, balance cars, new energy vehicles, etc.
(2) Features and features
The automatic stator coil winding machine is designed for the wheel motor coil winding. It equips with the servo control system.
It could diagnose the fault, count the output, etc.
The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed.
The motor winding machine adopts double stations winding design.
It is easy to operate and maintain .
It has high production efficiency and reduced labor costs.
The stator coil winding machine has remote diagnostics function.
(3) Technical parameter:
| Product name: | Automatic wheel motor stator coil winding machine |
| Wire dia : | 0.2~1.3mm |
| Stator ID : | 10~100mm |
| Stator O.D : | 80-310mm |
| Stator stack lenght : | 10-50mm |
| Max. winding speed : | 500RPM |
| Winding station: | 2 |
| Parallel winding wire number : | 1~8 |
| Voltage : | three pahse 380V 50HZ , single pahse 220V 50HZ |
| Air pressure : | 0.4-0.7 MPA |
| Total power : | <7KW |
| Weight : | about 750KG |
| Dimension : | 1100x1000x1700mm |
(4) Picture show:

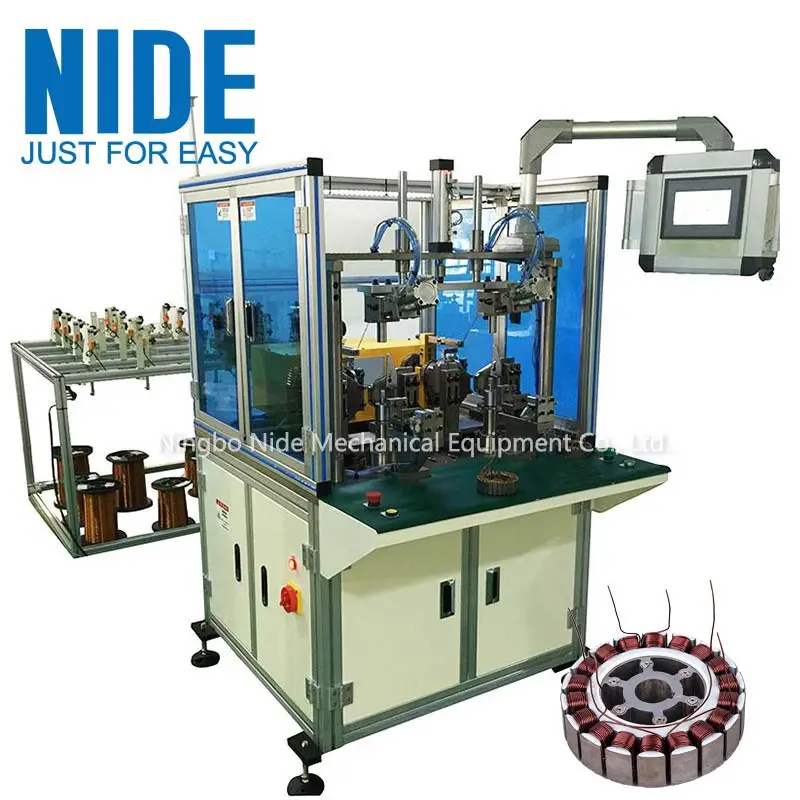

The wheel motor stator winding machine with double winding stations

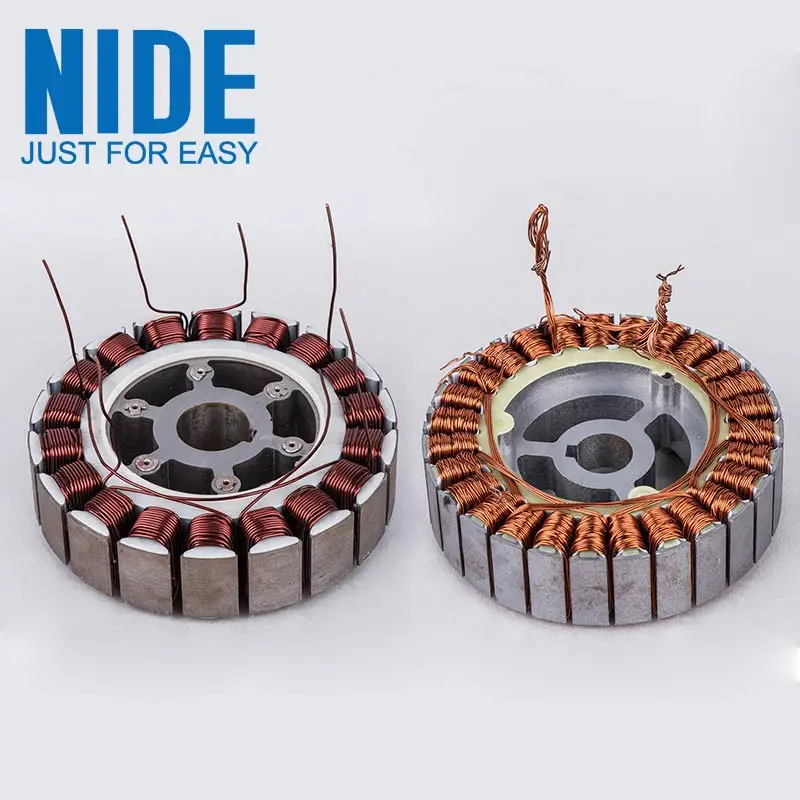

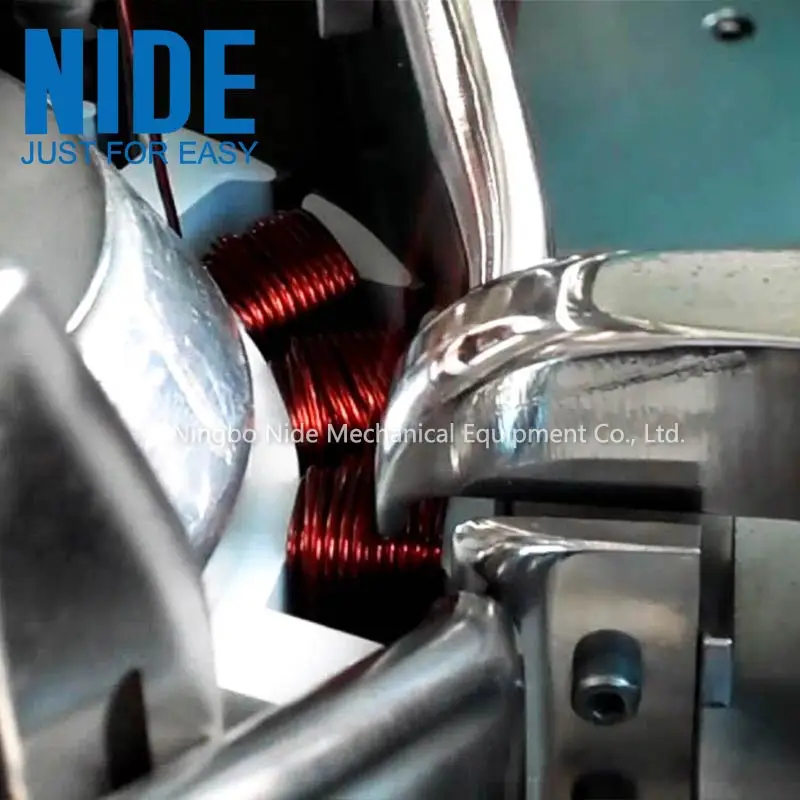

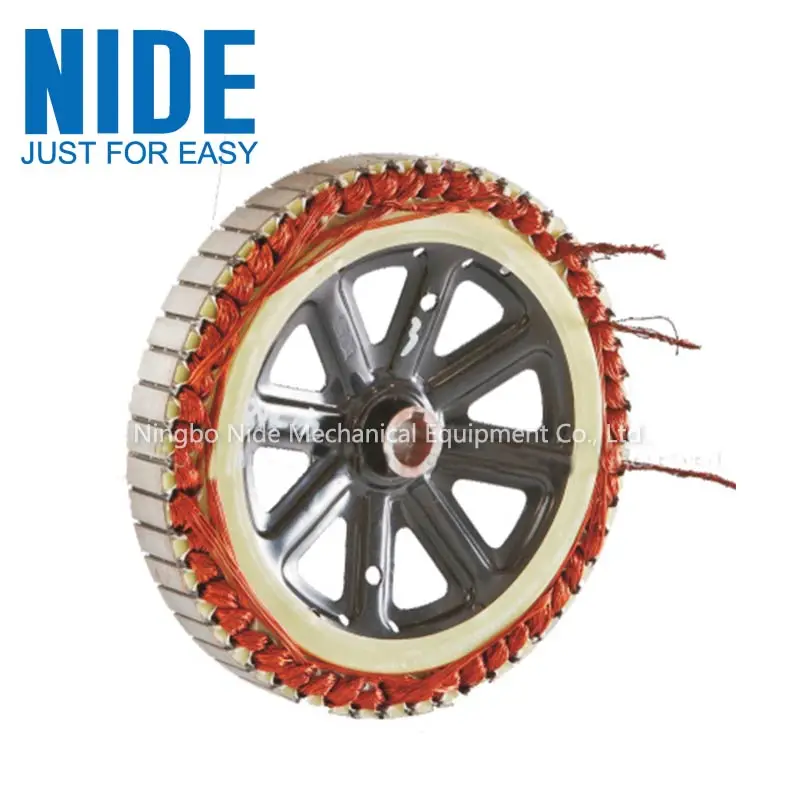

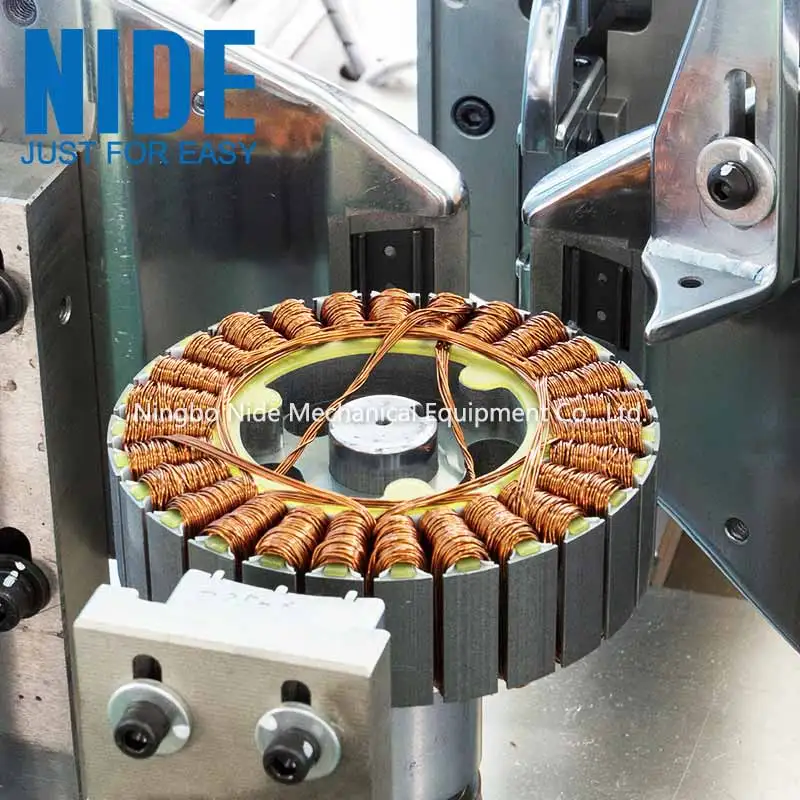

The wheel motor stator winding station and stator after coil winding
More Information
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
