Заводская поставка прозрачная крышка промышленные наружные пластиковые корпуса полимерная распределительная
- Категория: Electronic & Instrument Enclosures >>>
- Поставщик: Yueqing,Mingguan,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.88 $* | 0.0 $* |
| Aug-15-2025 | 0.9 $* | 0.86 $* |
| Jul-15-2025 | 0.92 $* | 0.30 $* |
| Jun-15-2025 | 0.70 $* | 0.51 $* |
| May-15-2025 | 0.2 $* | 0.38 $* |
| Apr-15-2025 | 0.25 $* | 0.76 $* |
| Mar-15-2025 | 0.25 $* | 0.68 $* |
| Feb-15-2025 | 0.59 $* | 0.17 $* |
| Jan-15-2025 | 0.37 $* | 0.45 $* |
Характеристики

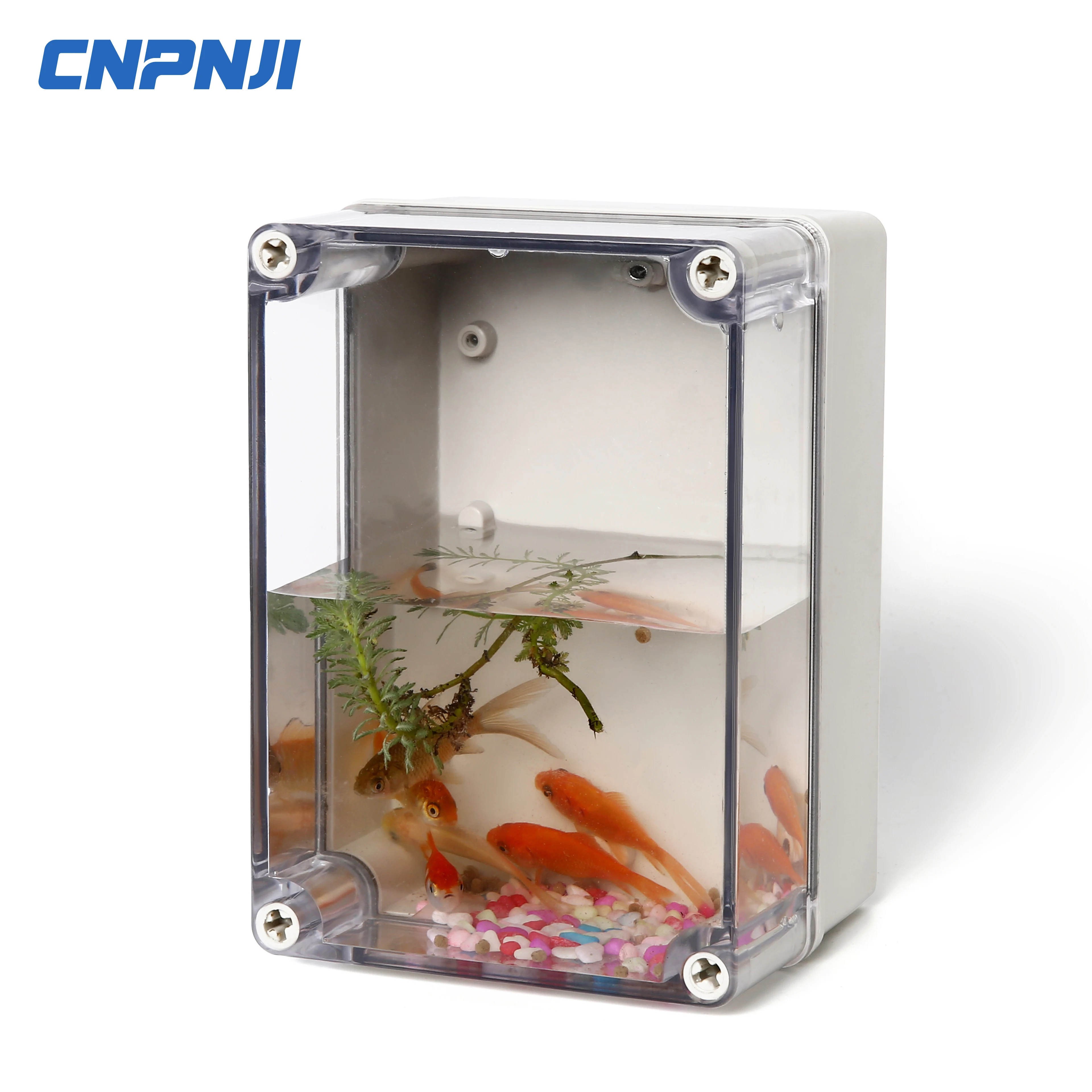

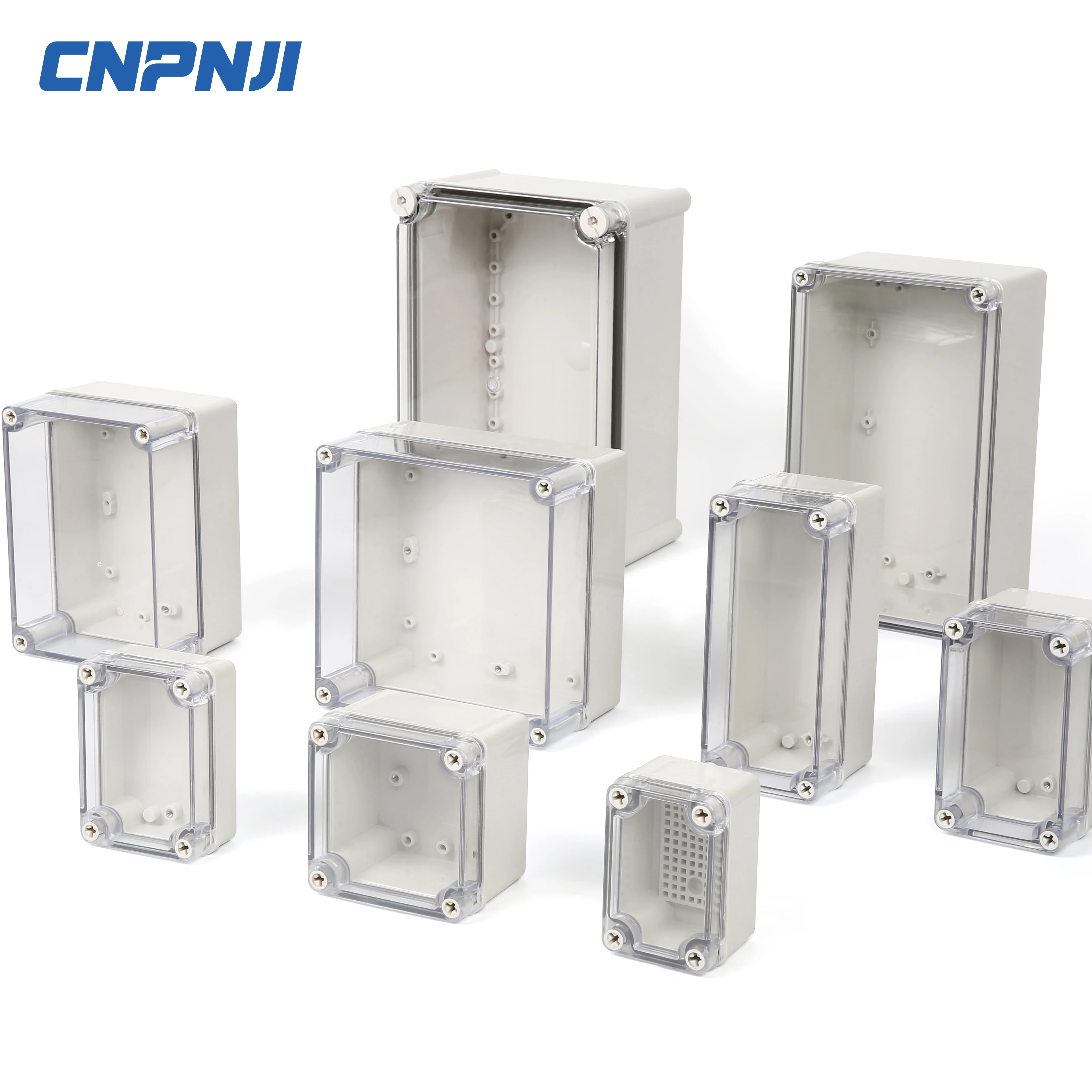

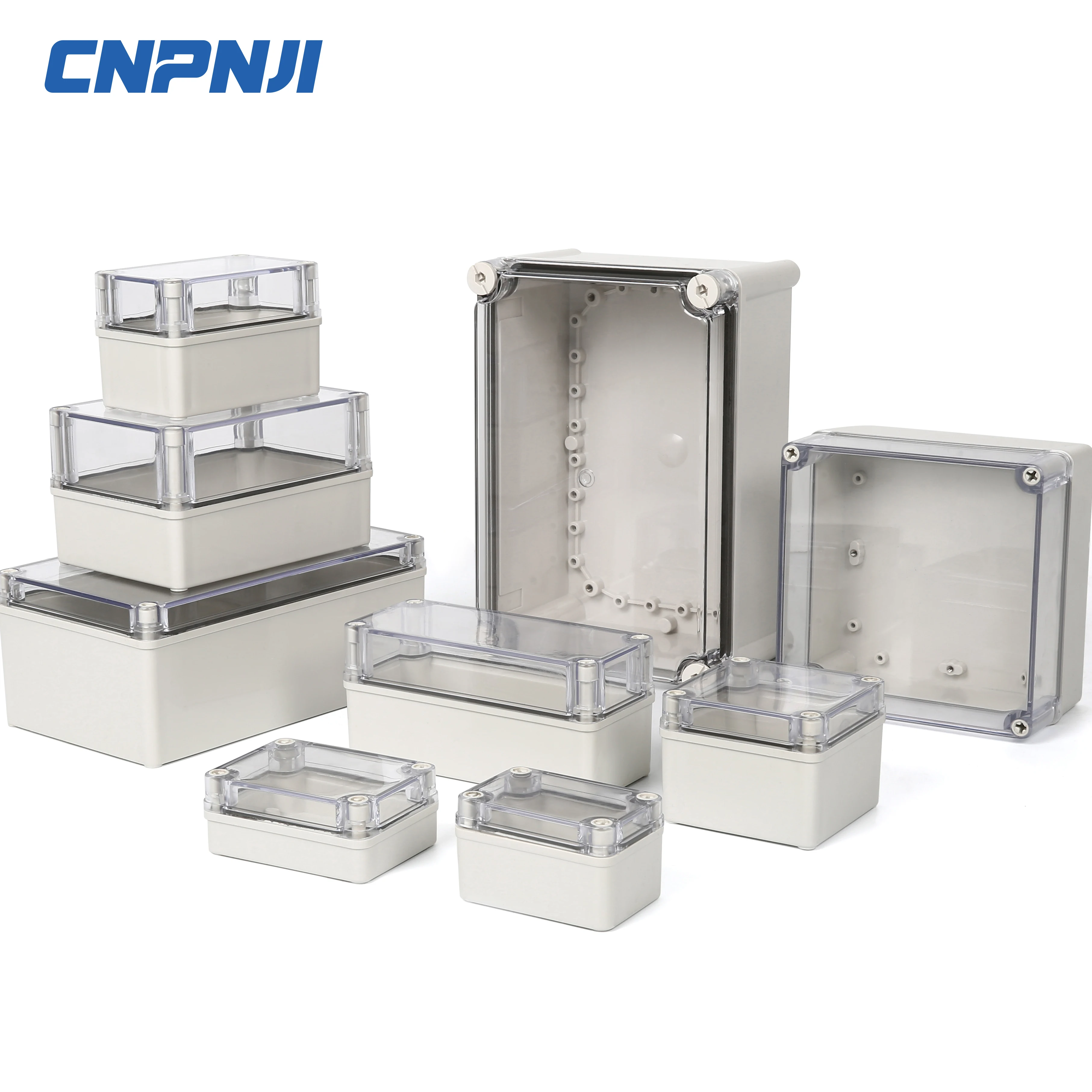

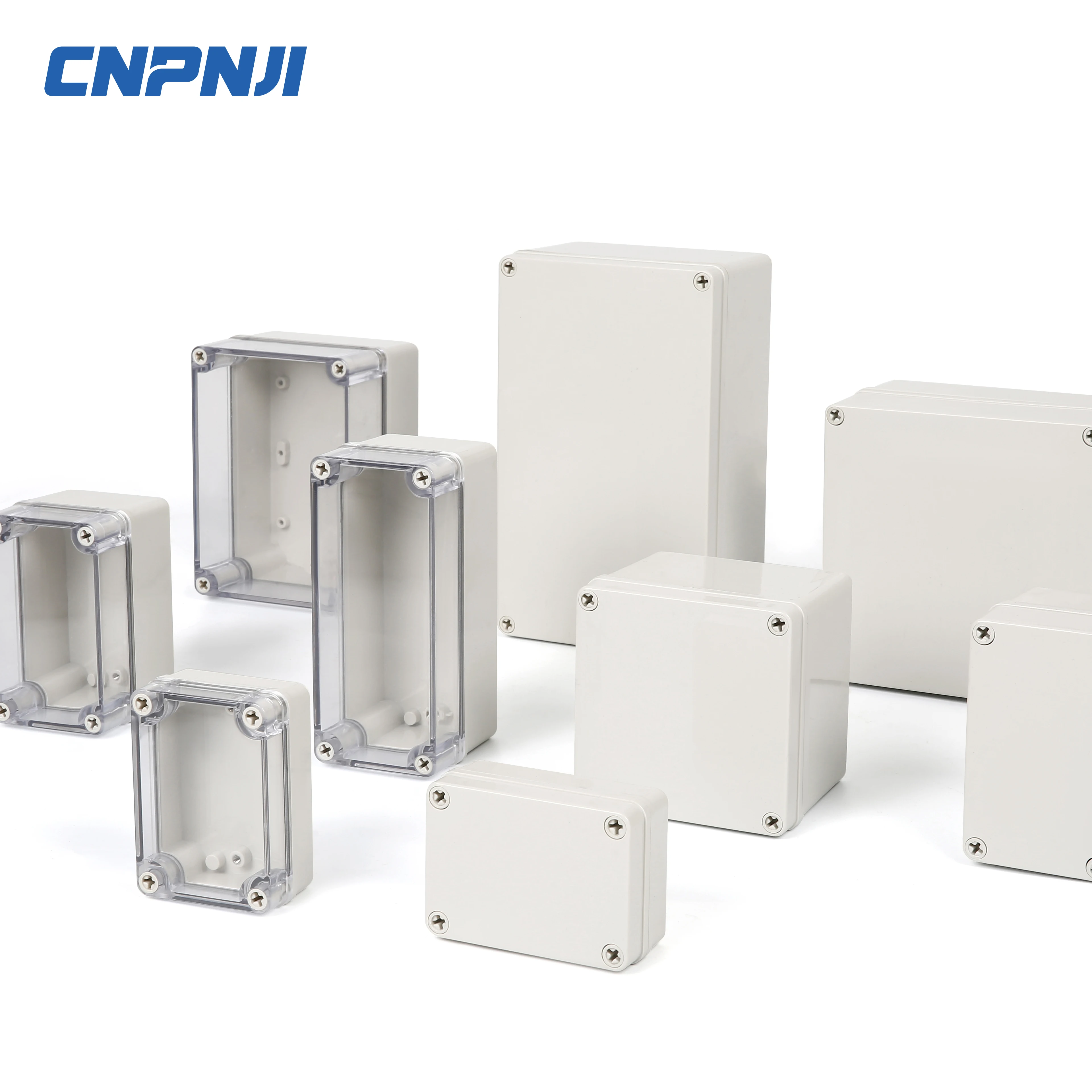

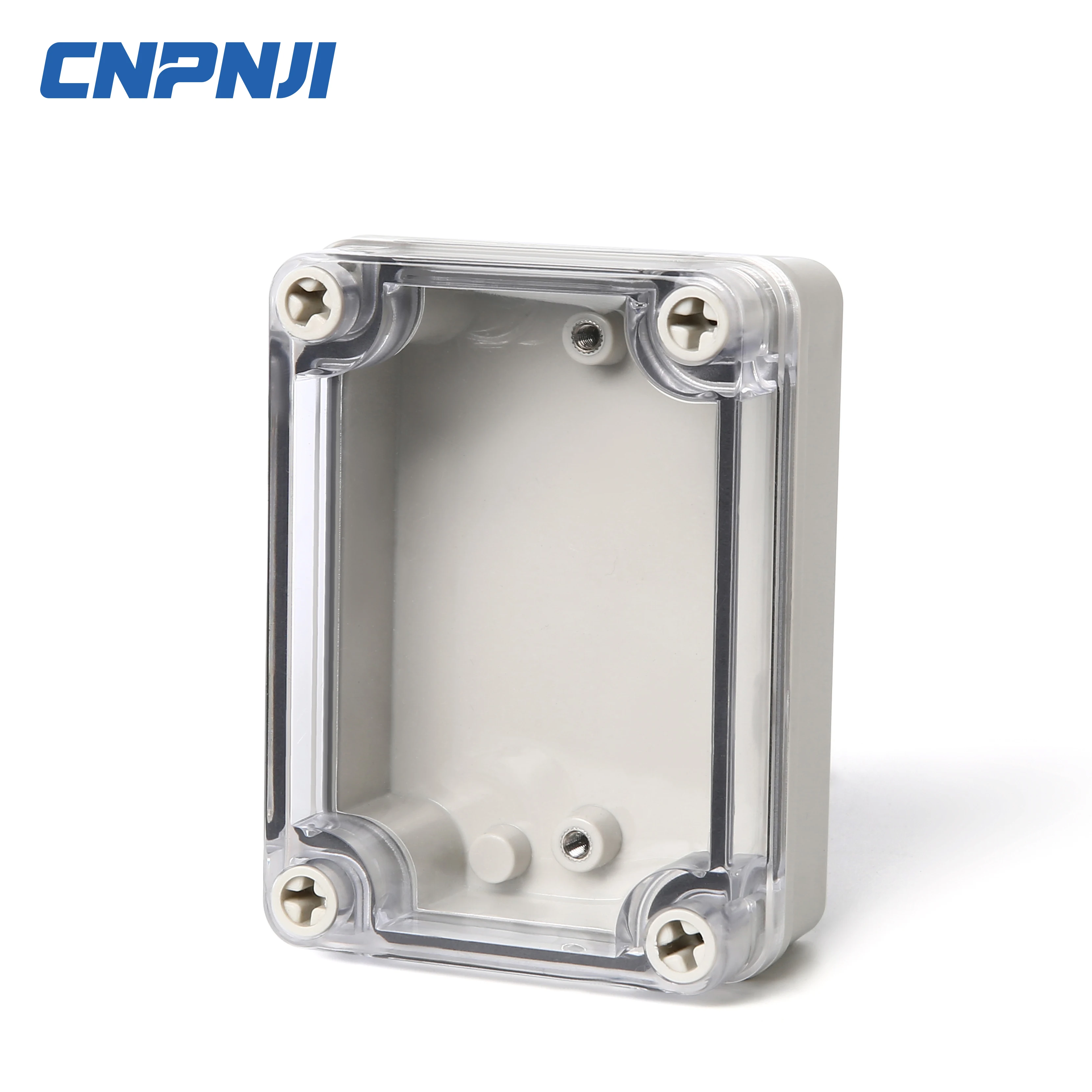

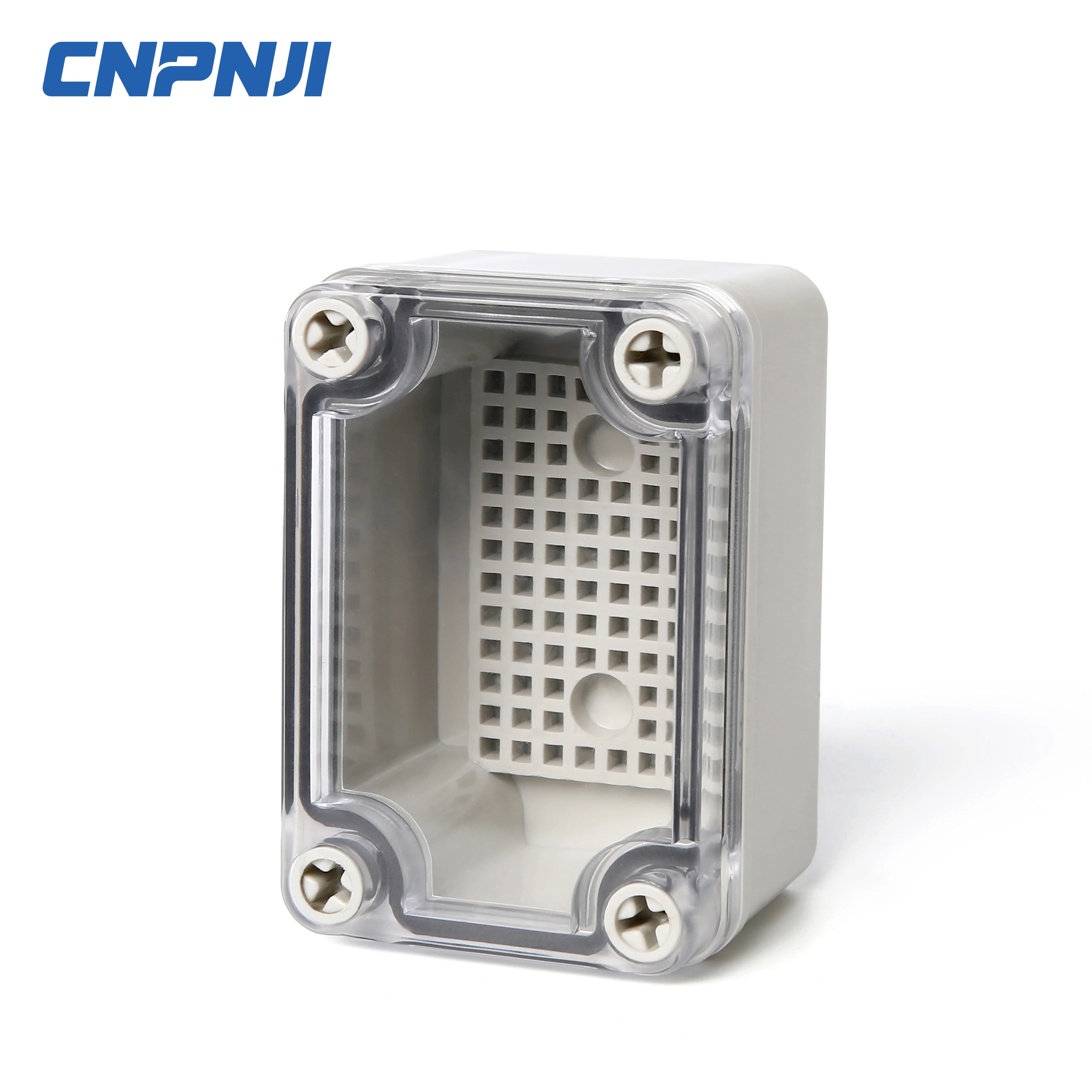

Factory Supply transparent cover ABS junction box
Datasheet:
Application: Apply for indoor and outdoor electric products, communication device, fire products, iron and steel melting,petrochemical industrial, electrical system railway, construction, mine, harbour, hotel , boat, engineering and etc.
Material: ABS material ( New material,not recycle one. Customize PC material accepted.
Material characteristic: Shock resistance, heat resistance, low temperature resistance, chemical resistance, excellent electrical properties, surface gloss, etc.
Protective level of the Plastic impact strength:ABS:IK07 PC:08
Waterproof level:IP67
Flame-retardant level:V0 (Can be customized)
The sealing ring is formed by liquid pouring static foam and combined with the box, forming 360 sealing rubber ring, good elasticity, the level of dust-proof can up to IP67
Compare with other factory: the sealing ring is filled with rubber strips, poor waterproof performance.
| WxHxD (mm) | W1(mm) | W2 (mm) | W3 (mm) | H1(mm) | H2(mm) | H3(mm) | D1(mm) | D2 (mm) | D3(mm) |
| 65x95x55 | 65 | 59 | 50 | 95 | 89 | 79 | 15 | 40 | 35 |
| 80x110x45 | 80 | 72 | 62 | 110 | 102 | 92 | 20 | 25 | 32 |
| 80x110x60 | 80 | 72 | 62 | 110 | 102 | 102 | 35 | 25 | 57 |
| 80x110x70 | 80 | 72 | 62 | 110 | 102 | 92 | 20 | 50 | 57 |
| 80x110x85 | 80 | 72 | 62 | 110 | 102 | 92 | 35 | 50 | 73 |
| 80x130x70 | 80 | 72 | 62 | 130 | 122 | 112 | 20 | 50 | 58 |
| 80x130x85 | 80 | 72 | 62 | 130 | 122 | 112 | 35 | 50 | 73 |
| 80x180x70 | 80 | 72 | 62 | 180 | 172 | 162 | 20 | 50 | 57 |
| 80x180x85 | 80 | 72 | 62 | 180 | 172 | 162 | 35 | 50 | 73 |
| 80x250x70 | 80 | 72 | 62 | 250 | 242 | 232 | 20 | 55 | 62 |
| 80x250x85 | 80 | 72 | 62 | 250 | 242 | 232 | 35 | 50 | 73 |
| 100x100x75 | 94 | 93 | 82 | 100 | 93 | 82 | 20 | 50 | 62 |
| 100x100x100 | 101 | 93 | 82 | 100 | 93 | 82 | 20 | 80 | 87 |
| 125x125x75 | 120 | 116 | 105 | 125 | 118 | 105 | 20 | 55 | 62 |
| 125x125x100 | 125 | 116 | 105 | 125 | 118 | 105 | 20 | 80 | 87 |
| 125x175x75 | 125 | 117 | 109 | 175 | 167 | 156 | 25 | 50 | 60 |
| 125x175x100 | 128 | 117 | 109 | 175 | 167 | 156 | 50 | 50 | 85 |
| 140x170x95 | 128 | 132 | 122 | 170 | 161 | 152 | 20 | 75 | 82 |
| 150x200x75 | 140 | 140 | 132 | 200 | 190 | 182 | 20 | 55 | 61 |
| 150x200x100 | 150 | 140 | 132 | 200 | 190 | 182 | 20 | 80 | 86 |
| 150x200x130 | 150 | 140 | 132 | 200 | 190 | 182 | 50 | 80 | 116 |
| 150x200x160 | 150 | 140 | 132 | 200 | 190 | 182 | 50 | 110 | 146 |
| 150x250x100 | 150 | 140 | 132 | 250 | 240 | 232 | 20 | 80 | 87 |
| 150x250x130 | 150 | 140 | 132 | 250 | 240 | 232 | 50 | 80 | 117 |
| 150x250x160 | 150 | 140 | 132 | 250 | 240 | 232 | 50 | 110 | 147 |
| 175x175x75 | 150 | 164 | 156 | 175 | 167 | 157 | 25 | 50 | 60 |
| 200x200x95 | 182 | 190 | 182 | 200 | 190 | 182 | 20 | 75 | 81 |
| 200x200x125 | 200 | 190 | 182 | 200 | 190 | 182 | 50 | 75 | 111 |
| 200x200x130 | 200 | 190 | 182 | 200 | 190 | 182 | 20 | 110 | 116 |
| 200x200x160 | 200 | 190 | 182 | 200 | 190 | 182 | 50 | 110 | 146 |
Factory Supply transparent cover Outdoor Plastic Enclosures polymer junction box
Company Information
Packaging & Shipping
FAQ
FAQ
1.Dou you have product infromation?
A: Yes , We have E-catalogue . Please contact us on line or send an Email for it.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us.We will send offer to you asap.
3. Q: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products, but not all. So just let us know which product do you prefer?And the quanitites?we accept new design and make a new mould for your request.
It is usually take about 35-45days for make a new mould.
4. Q : Can you make customized products and customized packing?
A: Yes. We made a lot of customized products for our customer before .(mainly wire harness)
And we made many moulds for our customers already .
About customized packing , we can put your Logo or other info on the packing . There is no
problem . Just have to point out that ,it will cause some additional cost.
5. Q: Can you provide samples ? Are the samples need charge?
A: Yes , we can provide samples . Normally, we provide 1-3pcs free samples for test or quality checking .But you have to pay for the shipping cost . If you need many items, or need more qty for each item,we will charge for the samples.
6. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer), Western Union and Paypal. Please be sure that we can receive the
same amount of the Invoice. And you can pay money In RMB. No problem.
7. Q : What about your delivery time?
A: We have a lot of products in stock . We can send the stock products in 3 work days.
If without stock , or stock is not enough, we will check the delivery time with you.
8. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT,EMS.That’s a
Door to Door service .
For big packages, we will send them by Air or By sea. We will use good packing and ensure
the safety.We will be responsible to any product damage caused on delivery.
9. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year.
10. Q: Can I become an Agent / Dealer of CNPNJI products?
A: Welcome ! But please let me know your Country/Area fisrt, We will have a check and then
talk about this. If you want any other kind of cooperation, do not hesitate to contact us.
Over rich OEM experience,we can provide professional solutions for customers.
