HLY J1900 мини промышленный ПК компьютер четырехъядерный Linux Pfsense 2 Gigabit Ethernet RS232 Barebone Micro computador 4G Ram 128G
- Категория: Компьютерное оборудование и программное обеспечение >>>
- Поставщик: Shenzhen,Helor,Cloud,Computer,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.58 $* | 0.81 $* |
| Aug-18-2025 | 0.93 $* | 0.68 $* |
| Jul-18-2025 | 0.29 $* | 0.96 $* |
| Jun-18-2025 | 0.34 $* | 0.63 $* |
| May-18-2025 | 0.72 $* | 0.60 $* |
| Apr-18-2025 | 0.70 $* | 0.98 $* |
| Mar-18-2025 | 0.29 $* | 0.98 $* |
| Feb-18-2025 | 0.29 $* | 0.28 $* |
| Jan-18-2025 | 0.62 $* | 0.70 $* |
Характеристики
Product Description
-Main Feature:
1.In-tel Ce-leron Processor J1800,1M Cache, up to 2.58 GHz,2 Core 2 threads,TDP:10W
In-tel Ce-leron Processor J1900,2M Cache, up to 2.42 GHz,4 Core 4 threads,TDP:10W
In-tel Ce-leron Processor N2815,1M Cache, up to 2.13 GHz,2 Cores 2 threads,TDP:7.5 W
In-tel Ce-leron Processor N2930,2M Cache, up to 2.16 GHz,4 Core 4 threads,TDP:7.5W
In-tel Pen-tium Processor J2900,2M Cache, up to 2.67 GHz,4 Cores 4 threads,TDP:10W
2. In-tel H-D Graphics for In-tel Atom Processor Z3700 Series
3. 1 x DDR3L (Low voltage 1.35V) Ram slot,2G, 4G, 8G for optional

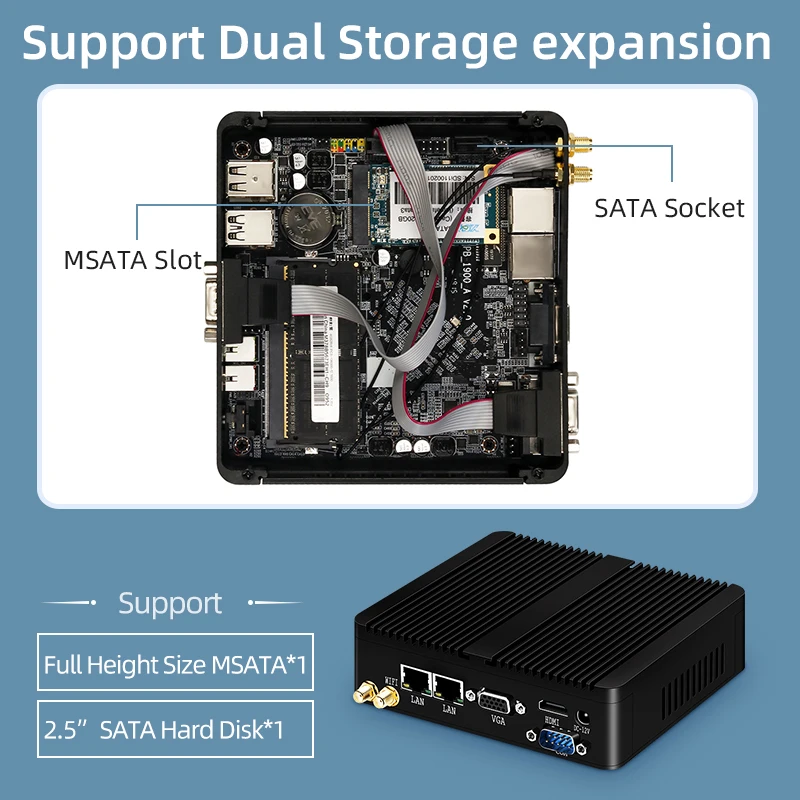

4. Support mSATA and 2.5' inch SATA Hard Disk
5. mPCIe half-size for 300M WIFI

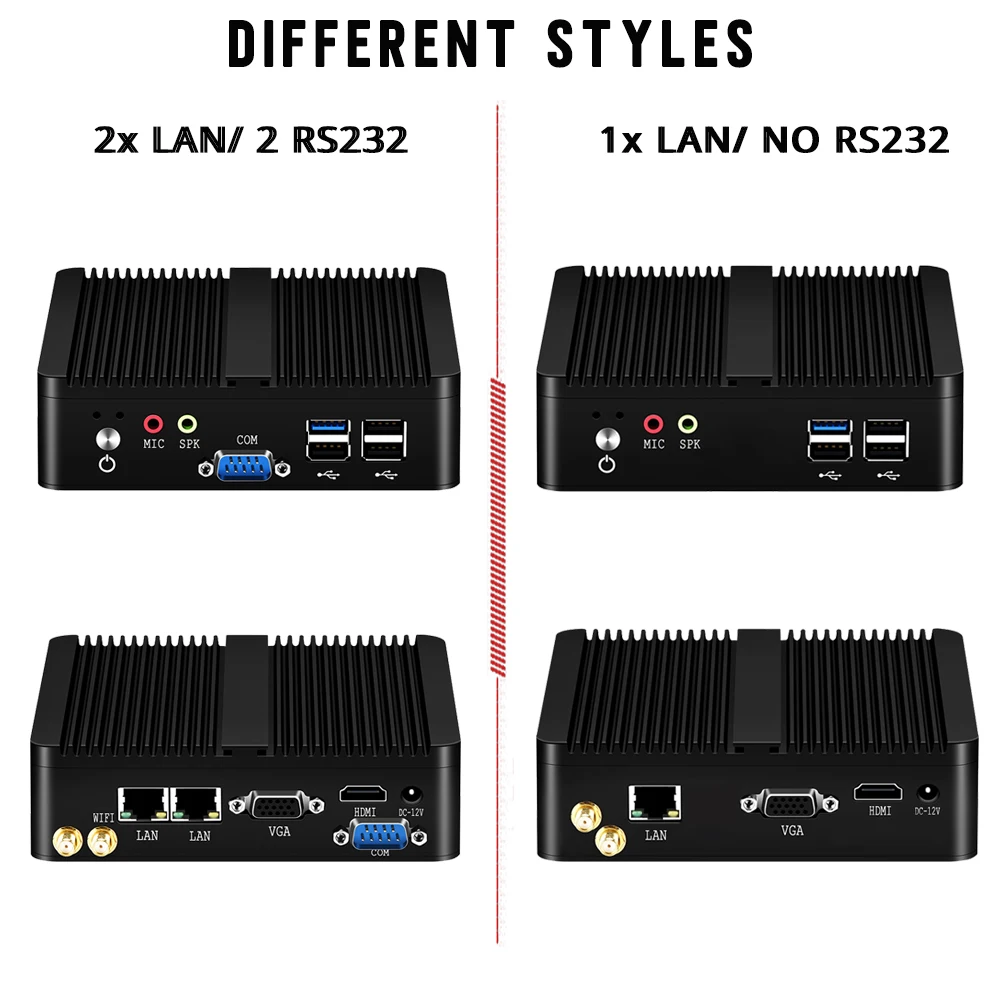

6. 2*Gigabit LAN port , 2*RS232 COM port
7. This link price is NO RAM NO SSD NO WIFI price.Contact us for more prices.
1.In-tel Ce-leron Processor J1800,1M Cache, up to 2.58 GHz,2 Core 2 threads,TDP:10W
In-tel Ce-leron Processor J1900,2M Cache, up to 2.42 GHz,4 Core 4 threads,TDP:10W
In-tel Ce-leron Processor N2815,1M Cache, up to 2.13 GHz,2 Cores 2 threads,TDP:7.5 W
In-tel Ce-leron Processor N2930,2M Cache, up to 2.16 GHz,4 Core 4 threads,TDP:7.5W
In-tel Pen-tium Processor J2900,2M Cache, up to 2.67 GHz,4 Cores 4 threads,TDP:10W
2. In-tel H-D Graphics for In-tel Atom Processor Z3700 Series
3. 1 x DDR3L (Low voltage 1.35V) Ram slot,2G, 4G, 8G for optional
4. Support mSATA and 2.5' inch SATA Hard Disk
5. mPCIe half-size for 300M WIFI
6. 2*Gigabit LAN port , 2*RS232 COM port
7. This link price is NO RAM NO SSD NO WIFI price.Contact us for more prices.
8. The mini pc support as follow Ram and SSD / HDD,can be choose as your prefer:
RAM : 2G 4G 8G
SSD: 16GB 32GB 64GB 128GB 256GB 512GB
HDD: 120G 160G 320G 500G 1TB 2TB
The all-around high-performance mini PC
For the Industrial users, H30G J1900 is a industrial computer which has compact dimensions and staggering performance, that what you get with H30 J1900, whether you're using it at industrial area, H30 J1900 with versatitile modular design with four configuration options for wide range of applications and is the smallest mini PC that can house up two SSD storage drive, with a desktop-grage Intel celeron processor "J" series, has the power range of computing tasks. A Fan-less cooling and smallest case allows for space-saving design, so it can be placed horizontally or vertically to offer you best placement options, and you’ll set it on a desk and forget its even there.
Stunning graphics via Displayport, HDMI or VGA
H30A gives you ultra-realistic HD visuals. It’s ideal for a home theater set-up, allowing you to browse the web, view photos from your SD card, or watch movies in stunning clarity. You can connect H30A to several displays for more onscreen desktop space; you can even extend a single windows across multiple displays. It works with any monitor, HDMI-equipped TV, or projector to give you a multitude of display options.
General | Brand: HLY Type: Mini PC Processor: In-tel Ce-leron Processor J1900,2M Cache, up to 2.42 GHz GPU: In-tel H-D Graphics for In-tel Atom Processor Z3700 Series RAMType: 1 x DDR3L (Low voltage 1.35V) Ram slot, 2G, 4G, 8G Ram for optional Hard Disk type: Support mSATA and 2.5' inch SATA, 30G, 60G, 120G, 250G,500G SSD and 1TB HDD for optional. WIFI:mPCIe( half-size) 300M for optional |
Product detail | Onboard LAN:10/100/1000/ Mbps Realtek 8111F Audio Card:high Definition Realtek ALC662 audio control chip WiFi:With dual antenna, 802.11.b/g/n System:window10/7/ 8/ Linux. Color: Black(Other color support customized) Cooling system: Fanless |
Port | 3xUSB2.0 1xUSB3.0 1xVGA 1xH-D 2xLAN 1xMIC and SPK 1x Switch 2xCOM(RS232) |
Power Requirement | Power Type: External Power Adapter Mode Power Input Vol: 12V Power Input Ampere:5A |
Working Environment | Operating Temperature ‘-20-80℃ Storage Temperature 0℃-80℃ Relative Humidity 10%~90% (non-condensing) |
Dimension | 136*126*39mm |
Package Contents | 1 x Mini PC 1 x User manual 1 x Power adapter 1 x VESA mount 1 x WIFI Antenna(Except Barebone computer) |
Packaging&Shipping
Payment:
we are support "L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.
we are support "L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.
Shipping Methods:
Shipping by DHL, Fedex, Aramex, post and Alibaba, RETS Express and negotiation. ( choose as you prefer)
Shipping by DHL, Fedex, Aramex, post and Alibaba, RETS Express and negotiation. ( choose as you prefer)
DHL | FEDEX | Aramex | POST | RETS EXpress | Alibaba |
1.3-5days 2.Safety 3.higeTaxes 4.Suitable for South America Europ 5.Good service | 1.3-5days 2.Safety 3.higeTaxes 4.Suitable for South America Europ Southeast Asia 5.Good service | 1.6-15days 2.higeTaxes 3.Without Battery 4.Suit for the Middle East | 1.Very slow 2.Low Taxes 3.Suit for every countries 4. Cheaper 5.Not safety | 1.10-15days 2.Low Taxes 3.just for Russia 4.Cheaper 5.Safety 6.Good service | 1.within 20days 2.Safety 3.Good Service |
Power adapter:
We can provide US,EU,AU,UK,CN,Brazil plug power adapter, you can choose it as you need, and leave me message, other model, we can provide customized.
We can provide US,EU,AU,UK,CN,Brazil plug power adapter, you can choose it as you need, and leave me message, other model, we can provide customized.
Company Profile
Shenzhen Helor cloud computer co,. ltd( HLY) specialized in mini computer since 2013, located in Shenzhen, Guangdong, has our own motherboard manufacturer with trading department, developed more than 50 kinds of self-developed product, applied in different fields, for AI, office work, education, entertainment, advertising, transport, military, industrial etc. Product sold in more than 60 countries and regions, annual sales exceed one million units.The technical expertise of our highly recommend knowledgeable and dedicated staff forms the backbone of our company. Form the design stage to installation to our unsurpassed warranty, HLY clients are assured of the highest level of quality and service.
The technical expertise of our highly knowledgeable and dedicated staff forms the backbone of our company. From the design stage to installation to our unsurpassed warranty, HLY clients are assured of the highest level of quality and service.
HLY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automation and control, thereby enabling HLY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients.
Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.
HLY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automation and control, thereby enabling HLY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients.
Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.
Our Services
Our service
1.Warranty: 1 year, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.we 24h online, you can send message any time to us, will answer as soon as we can.
5.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
1.Warranty: 1 year, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.we 24h online, you can send message any time to us, will answer as soon as we can.
5.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
FAQ
1.Such a small computer,how is its running speed?
A:Our mini PC use new generation architecture In-tel CPU,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.
2.Q: What is fanless computer?Not used yet,any features and advantages?
A:Generally there is fan inside if computer to expand the heats caused by CPU and other spare working parts;the fanless computer adopts top quality but lower power consumption spare parts to replace the fan.They cause only a little heat to make sure the computer is in good working condition.
A:Our mini PC use new generation architecture In-tel CPU,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.
2.Q: What is fanless computer?Not used yet,any features and advantages?
A:Generally there is fan inside if computer to expand the heats caused by CPU and other spare working parts;the fanless computer adopts top quality but lower power consumption spare parts to replace the fan.They cause only a little heat to make sure the computer is in good working condition.
Differences between fan and fanless computers:
Noise: fan computer makes much noise in working,even if it’s high quality but fanless computer makes zero noise.
Dust: fan computer accumulates lots of dust for a longer time used,and dust can make the motherboard circuit shorted;fanless computer never has such troubles.
3.Q: Can I add a HDD to extend the computer even if there is a mSATA SSD inside?
A:mSATA SSD is supported in this computer,it is working fast and smaller size.most of people put operating system in SSD.If you need more capacity,we can put the SATA and power cable,screws in the computer,and you can fix the HDD in the back casing,there are 4 holes for HDD fixed.(some model can't support)
4.Q:Does this computer support bigger size TV or projector? What is the effect of bigger display?
A:This computer with HDand VGA ports,supports any size and resolution of TV or projector,it works perfectly with 1080P full H-D.In our display room,one us Samsung brand 55 inch Tv,the other one is EPSONTW8000 projector,the display screen is 150 inch,the video is quite perfect.
5.Q:How is its performance? Can I play games on this computer? Because it so small and no fan.
A: The CPU is from In-tel the latest technology low power consumption CPU,about 15W,but its performance is quite good,it’s widely used in office,commercial use,live room.It’s works perfectly in WIN7,bule-ray,3D H-D videos,it also support well 3D games.
6.Q:Will it be too hot in working? Can it work for 7*24hrs,zero noise attracts me,but I am worried about this.
A:The CPU is In-tel latest lower saved CPU,rated power of CPU is only 15W,the CPU is only about 60℃ in lots of testing.And it won’t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one will be tested 3*24hrs before shipping.Normally the heat doesn’t affect the CPU life at all if the CPU temperature is under 80℃,so don’t worry at all for its cooling.
7.Q:Why do I feel the casing so hot when it ‘s working?
A:The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing;2st,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3th,there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.
8.Q:How long can this mini computer used?
A:HLY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
Dust: fan computer accumulates lots of dust for a longer time used,and dust can make the motherboard circuit shorted;fanless computer never has such troubles.
3.Q: Can I add a HDD to extend the computer even if there is a mSATA SSD inside?
A:mSATA SSD is supported in this computer,it is working fast and smaller size.most of people put operating system in SSD.If you need more capacity,we can put the SATA and power cable,screws in the computer,and you can fix the HDD in the back casing,there are 4 holes for HDD fixed.(some model can't support)
4.Q:Does this computer support bigger size TV or projector? What is the effect of bigger display?
A:This computer with HDand VGA ports,supports any size and resolution of TV or projector,it works perfectly with 1080P full H-D.In our display room,one us Samsung brand 55 inch Tv,the other one is EPSONTW8000 projector,the display screen is 150 inch,the video is quite perfect.
5.Q:How is its performance? Can I play games on this computer? Because it so small and no fan.
A: The CPU is from In-tel the latest technology low power consumption CPU,about 15W,but its performance is quite good,it’s widely used in office,commercial use,live room.It’s works perfectly in WIN7,bule-ray,3D H-D videos,it also support well 3D games.
6.Q:Will it be too hot in working? Can it work for 7*24hrs,zero noise attracts me,but I am worried about this.
A:The CPU is In-tel latest lower saved CPU,rated power of CPU is only 15W,the CPU is only about 60℃ in lots of testing.And it won’t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one will be tested 3*24hrs before shipping.Normally the heat doesn’t affect the CPU life at all if the CPU temperature is under 80℃,so don’t worry at all for its cooling.
7.Q:Why do I feel the casing so hot when it ‘s working?
A:The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing;2st,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3th,there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.
8.Q:How long can this mini computer used?
A:HLY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
