Трехосевой горизонтальный сверлильный станок для глубоких

Product Information:

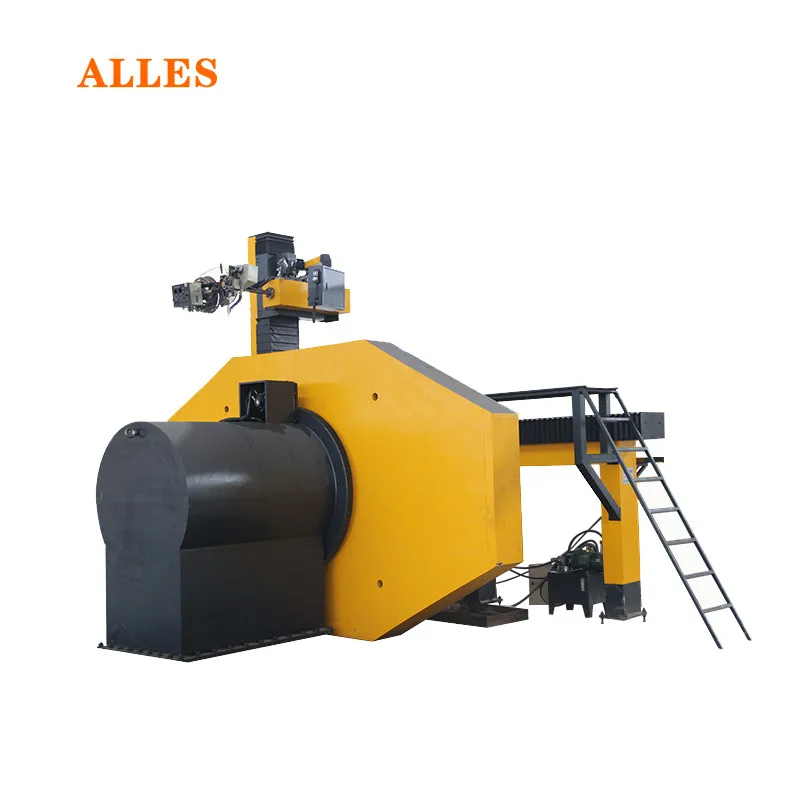

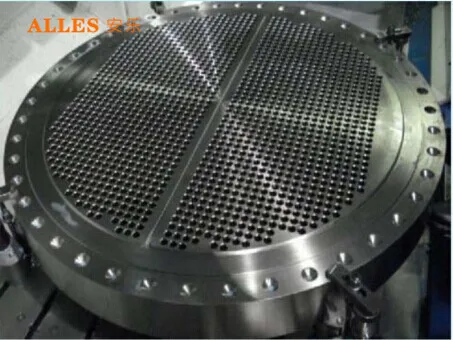

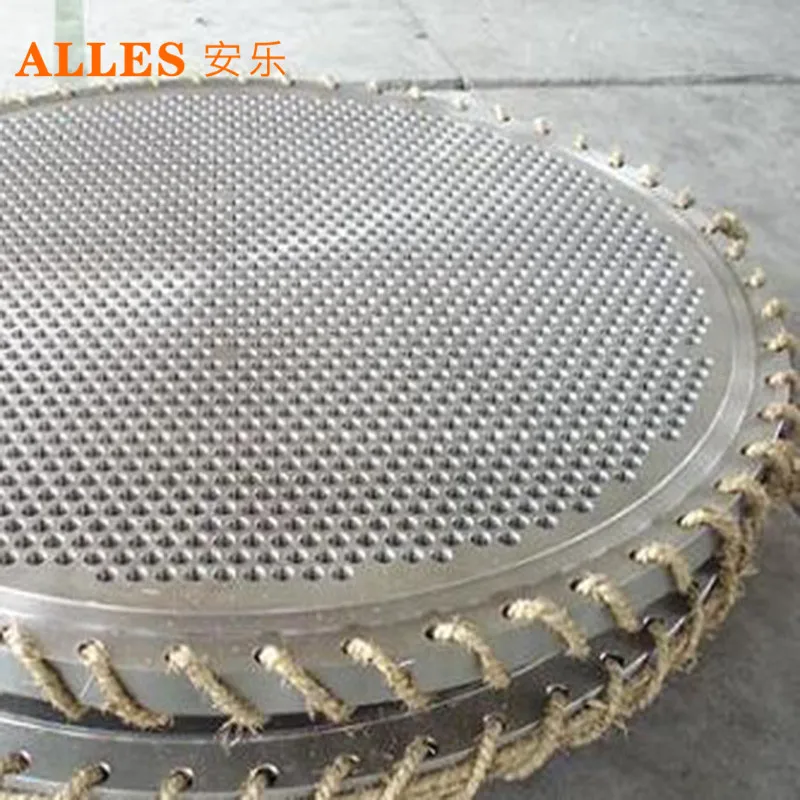

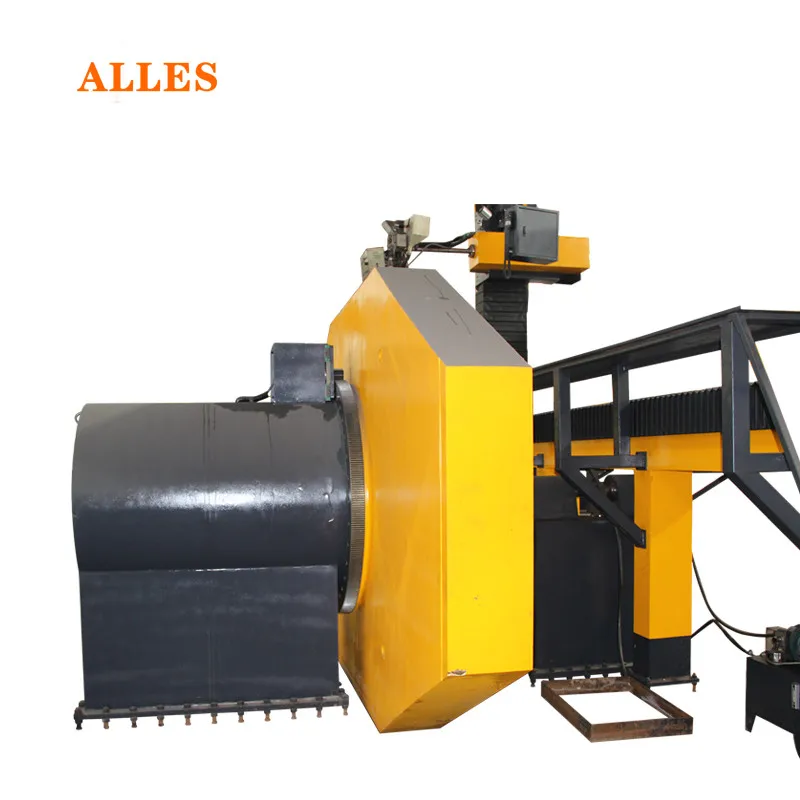

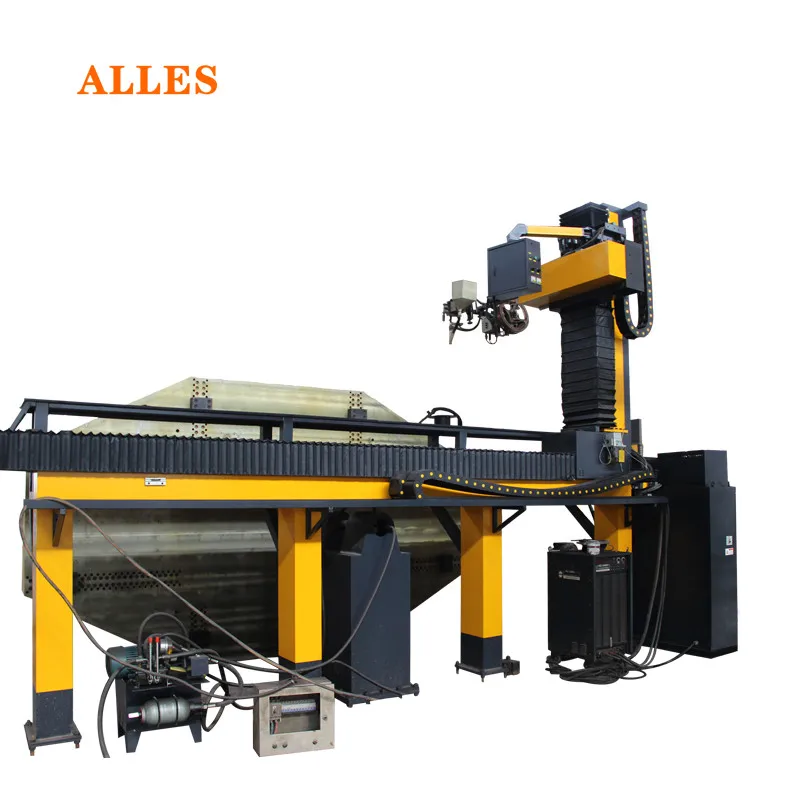

Three-axis Deep Hole Drilling Horizontal Machine is a horizontal machine, mainly used for hole machining of shell-and-tube heat exchangers in petroleum, chemical, pharmaceutical, thermal power plants, nuclear power plants, etc. The maximum drilling diameter of the workpiece is φ6000mm (180° rotation required).

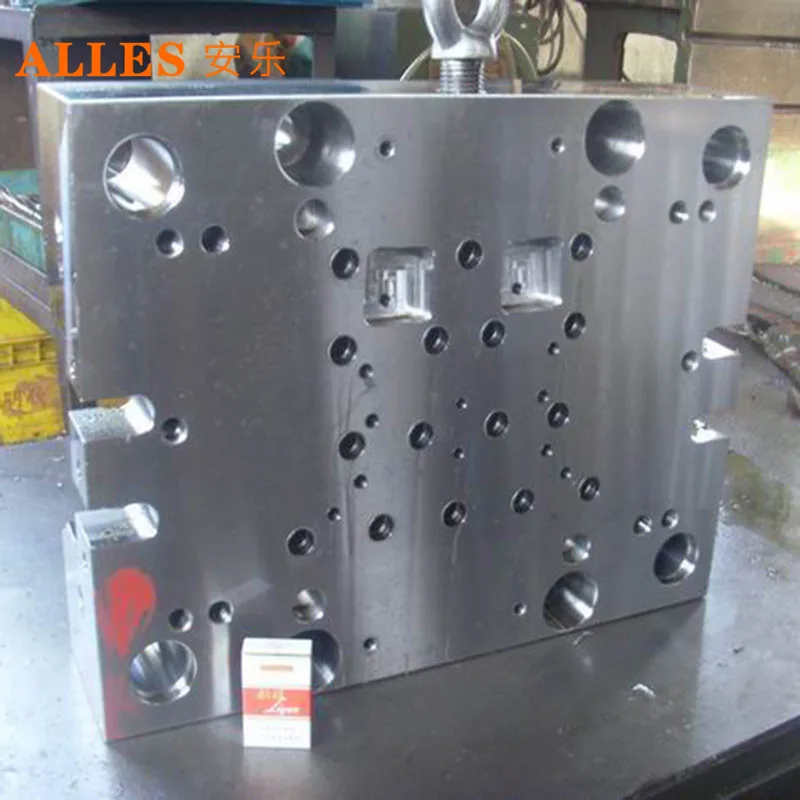

The machine is suitable for drilling holes in thick metal plates. It is easier to remove the chips from the holes than the vertical type. There are gun drill bits and BTA drill bits, and the maximum drilling depth is 1000 mm. The machine has high efficiency and high precision, and the surface roughness of the drilling surface can reach Ra3.2~Ra1.6, and the precision reaches IT7~IT9.
The machine can convert the dxf format drawings to NC part programs using programming software. Optimize the drilling sequence and improve drilling efficiency. Equipped with a variety of safety and automatic protection for automatic safety monitoring.

◆The spindle all producted by ourselves

◆The Reducer researched, designed and producted all by ourselves
