300Mbps Mini Wireless N Router QCA9533 Wifi Repeater
Product Feature
QCA9533 Wi fi 300Mbps Mini Wireless N Router Wifi Repeater
- Supports IEEE802.11b/802.11g/802.11n/802.3/802.3u
- Wireless transmitted power :
2.4G: 802.11b 19dBm±1dBm,
802.11g 15dBm±1dBm,
802.11n 13dBm±1dBm.
Receiving sensitivity :
802.11b: -75dBm 10% PER,
802.11g: -71dBm 10% PER,
802.11n: -68dBm 10% PER
1 Port 10/100 Mbps (Auto MDI/MDIX)
Supports RESET function
- Preload openwrt firmware
- Specially for home using/big house wireless coverage extending
Product Description

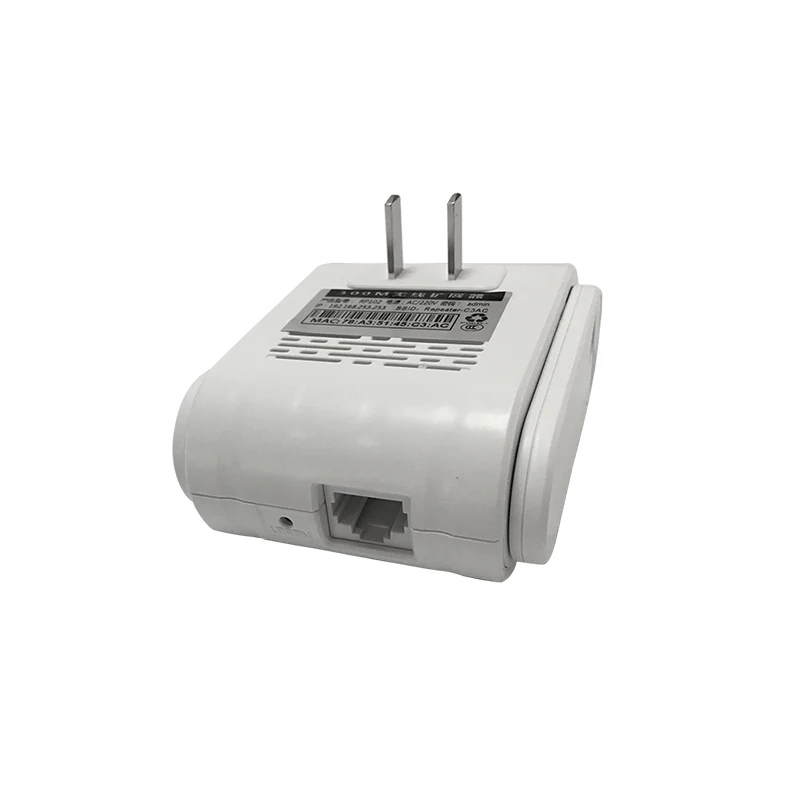

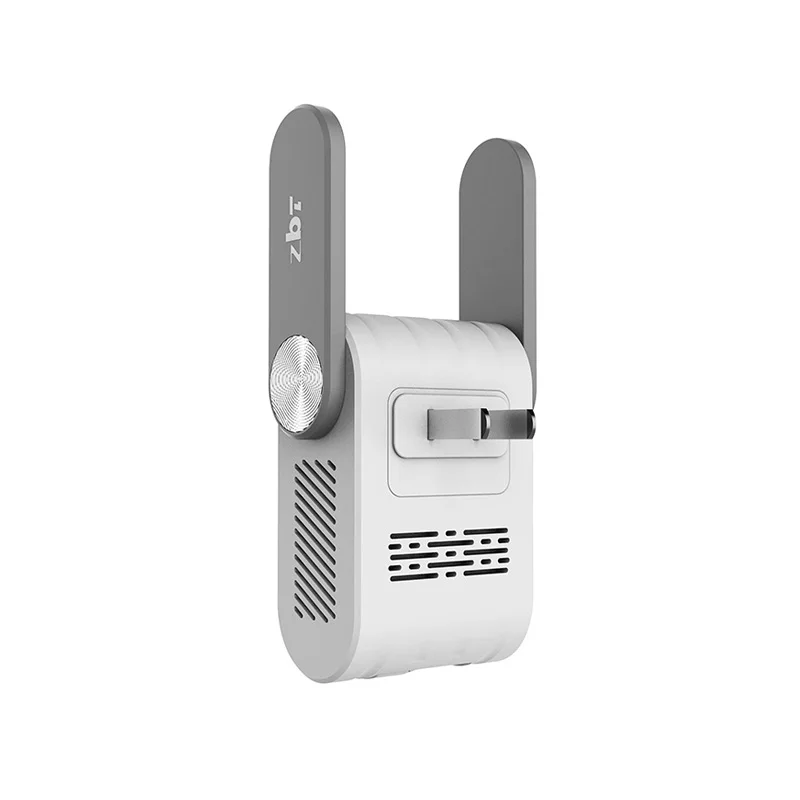

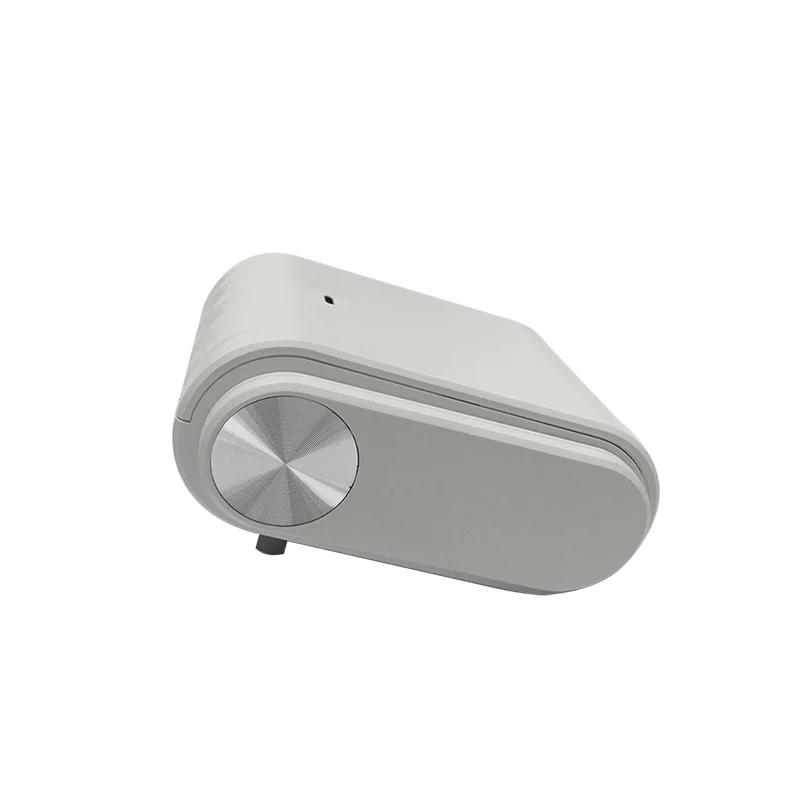

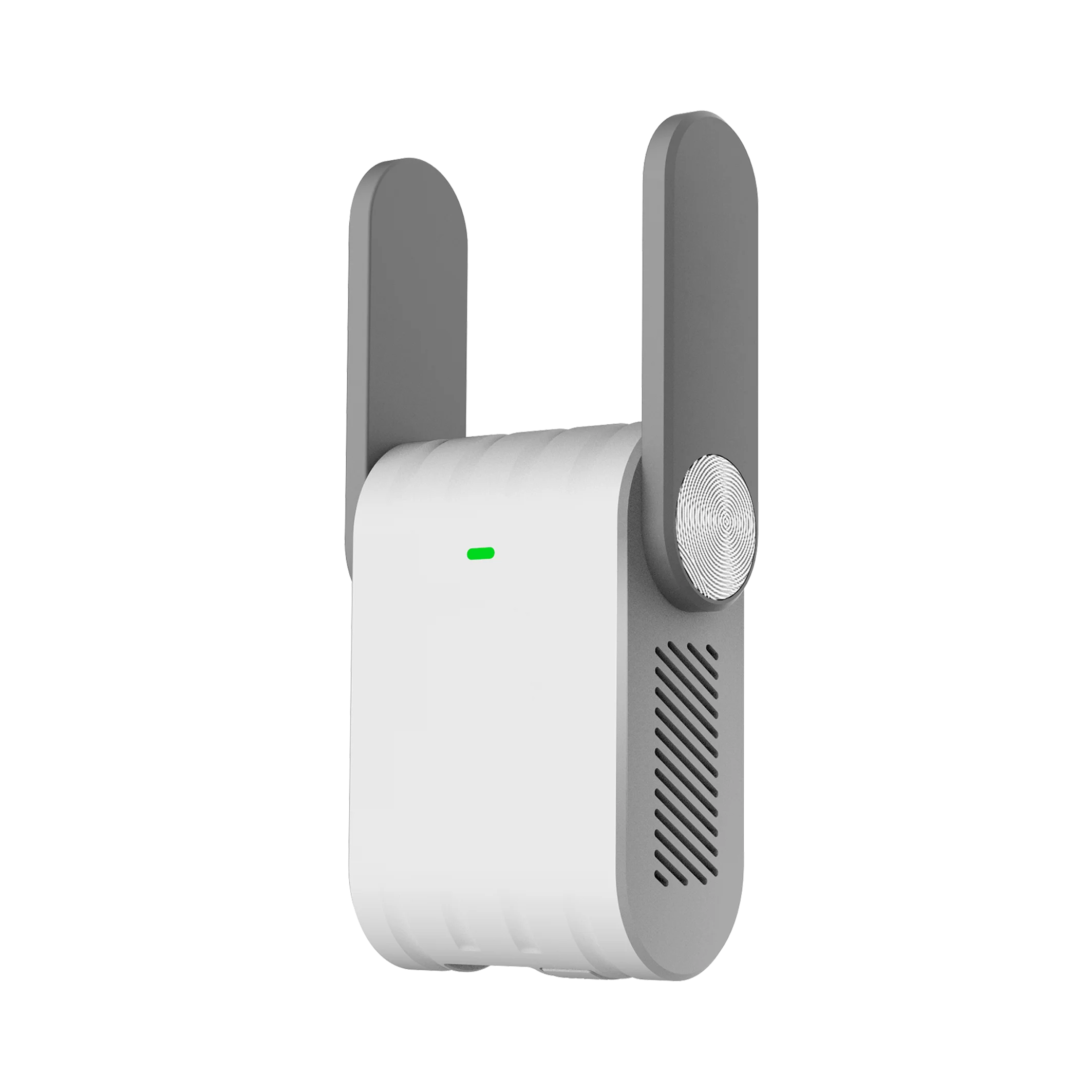

Product Photo
ZBT-RP102 | Hardware | |
CPU | Qualcomm QCA9533 chip; RAM:64M; FLASH:8M; |
Antennas | Internal 2.4GHz,5dBi*2 non-removable antennas) |
Wireless transmitted power | Maximum transmitted power:80mW(19dBm) Maximum receiving sensitivity:-90dBm Work frequency:2.412GHz-2.4835GHz |
Modulation method | DSSS : DBPSK 1Mbps,DQPSK 2Mbps,CCK 5.5/11Mbps OFDM : BPSK 6/9Mbps,QPSK 12/18Mbps,16-QAM 24Mbps,64-QAM 48/54Mbps MIMO-OFDM : MCS 0-15 |
Transmission rate | 11b:1,2,5.5,11Mbps 11g:6,9,12,18,24,36,48,54Mbps 11n:MCS0-MCS15(20MHz&40MHz Analog bandwidth) 20MHz:144.4Mbps 40MHz:300Mbps |
Interface | 1*10/100Mbps LAN RJ45 port; 1*RESET / WPS button; |
LED | POWER,LAN,WIFI |
Power supply | Built-in 220 v alternating current |
Maximum power | <8W |
Enclosure | PC+ABS |
Physical characteristics | Size:85*68*36mm weight:Kg |
Work Environments | Operating Temperature:-10℃ ~ 70℃; Operating Humidity:10%~90% non-condensing |
300Mbps Mini Wireless N Router QCA9533 Wifi Repeater
Certifications
300Mbps Mini Wireless N Router QCA9533 Wifi Repeater
Company Information
300Mbps Mini Wireless N Router QCA9533 Wifi Repeater
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
300Mbps Mini Wireless N Router QCA9533 Wifi Repeater

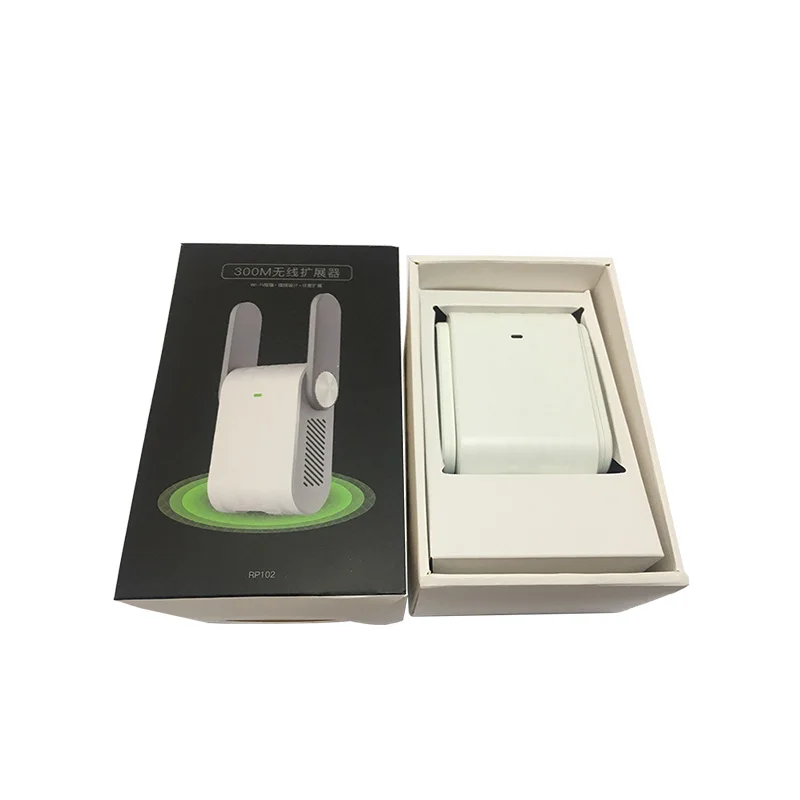

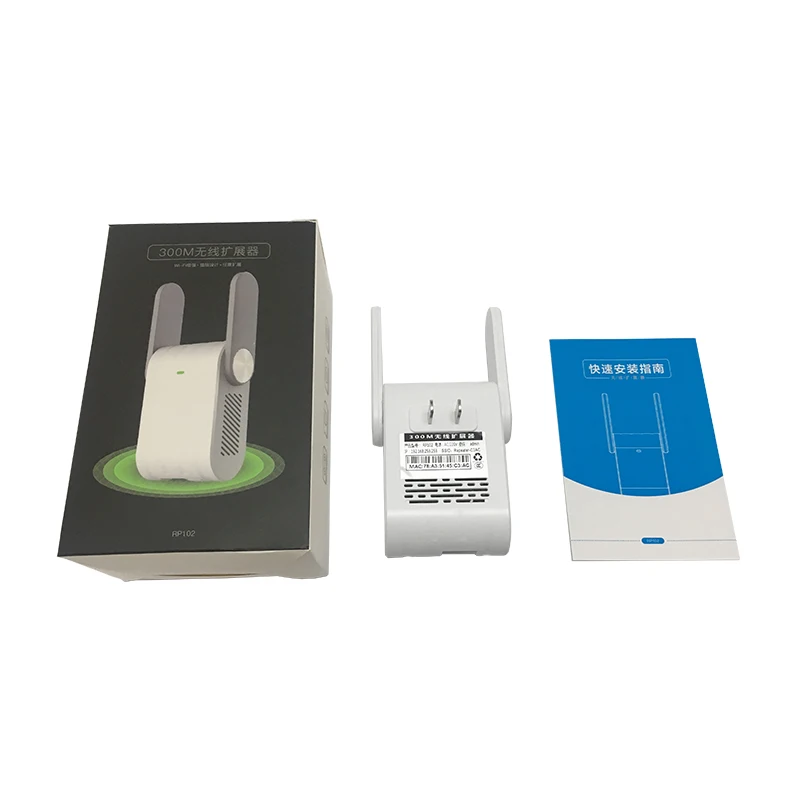

Packaging & Shipping
