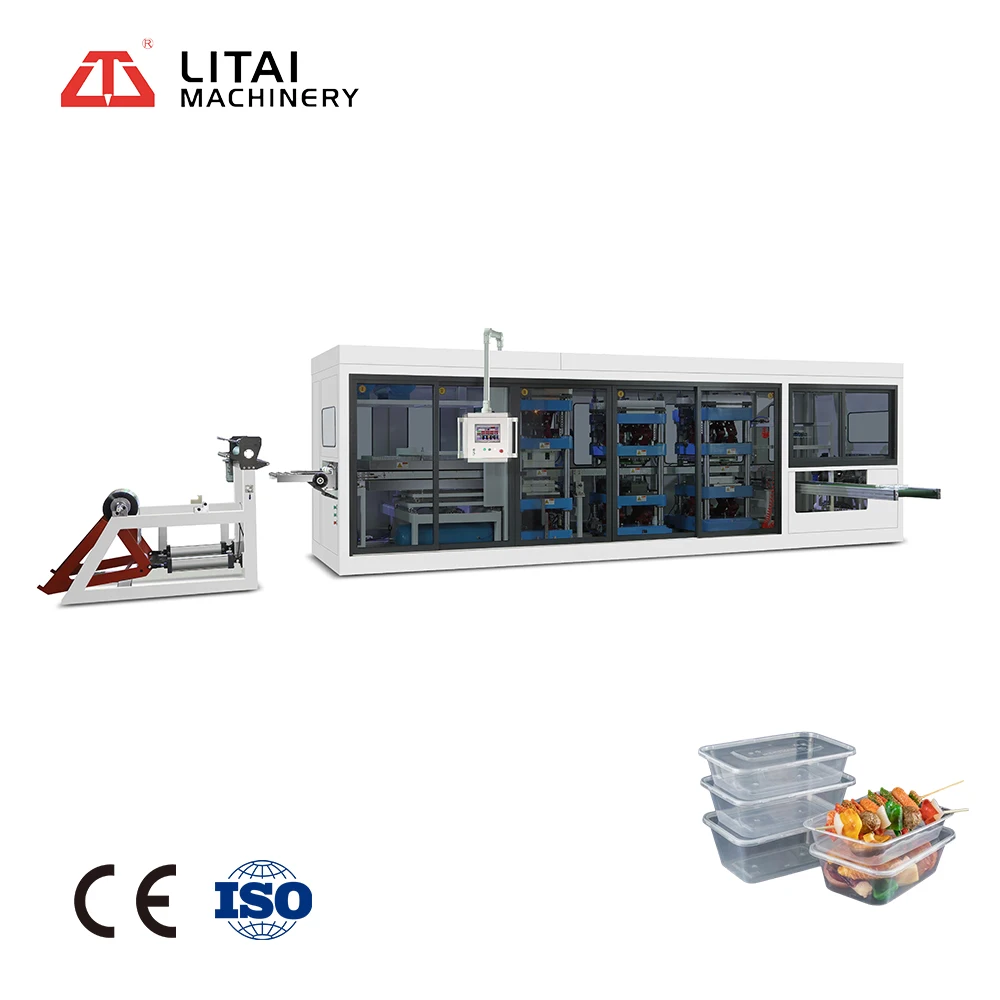

LITAI MACHINERY--full automatic four-station plastic thermoforming machine







TTF series plastic thermoforming machine is forming-punching-cutting-stacking in one line, full automatic.

It is completely driven by servo motor, PLC for program, touch screen for easy operation, high efficiency, low noise, suitable for producing plastic trays, containers, boxes, lids etc.





Machine Parameters



Model	TTF-400AF	TTF-520AF
Max. Forming Area	400mm*300mm	520mm*400mm
Max. Forming Depth	60mm	100mm
Max. Forming Speed	25-30 times/ min	30 times/min
Max. Sheet Width	450mm	570mm
Sheet Thickness	0.3-1.8mm	0.3-1.8mm
Air Pressure	0.6-0.8Mpa	0.6-0.8Mpa
Air Consumption	2m3/min	3m3/min
Water Consumption	0.7m3/h	0.7m3/h
Power Supply	AC 380V, 50Hz Three-phase and Four-wire
Rated Power	75kw	110kw
Procedure	Forming-Punching-Cutting-Stacking
Suitable Sheet	PP/ PS/ HIPS/ PET/ PVC/ Corn starch sheet etc.







MAIN ELECTRICAL COMPONENTS
MAIN PARTS	BRAND
Filter	CKD (Japan)
Forming valve	MAC (USA)
Temperature control module	WEST (UK)
Proximity switch	ROCKWELL (USA)
AC contactor\\Circuit breaker\\Button	SCHNEIDER (France)
Intermediate relay	IDEC (Japan)
Intermediate Relay Base	OMRON (Japan)
PLC\\Touch screen\\Servo motor\\Air switch	Detla (Taiwan)







SUMMARY OF MACHINE



1. Every station is driven by the eccentric crank linkage structure.

2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.

5. Each servo motor has overload protection for machine’s overworking.

6. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

7. There is an alarm function of the sliding doors.

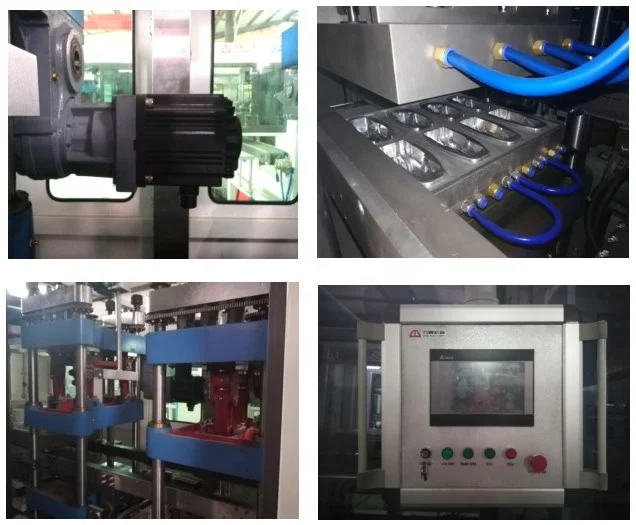

Machine Details

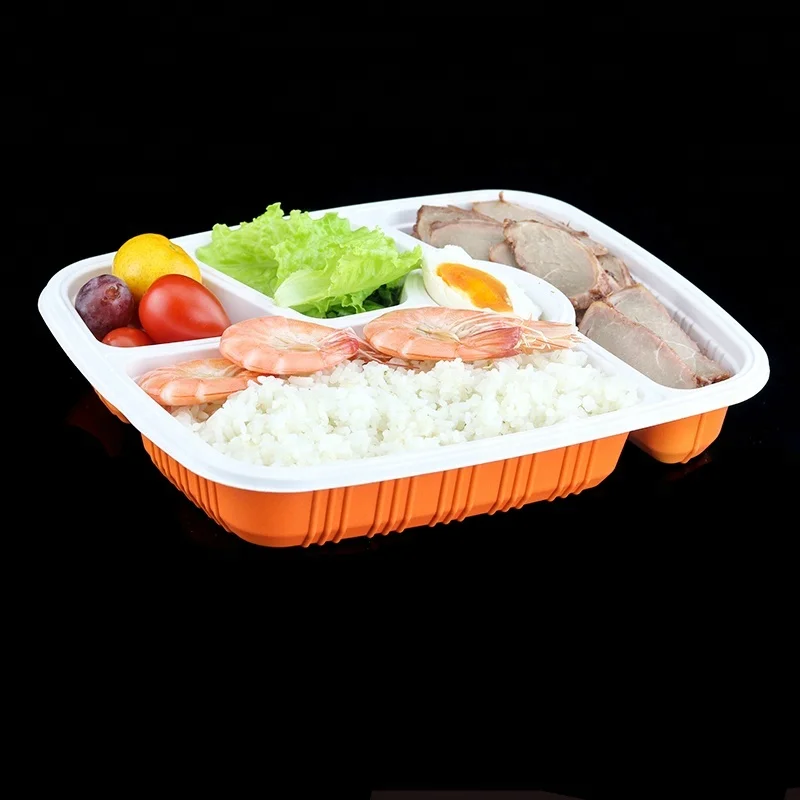

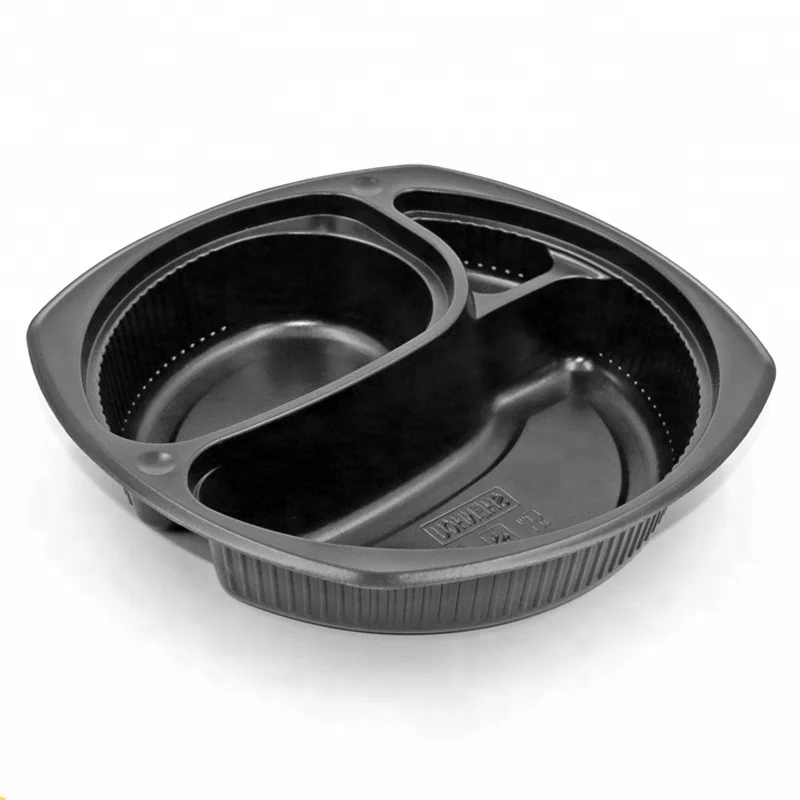

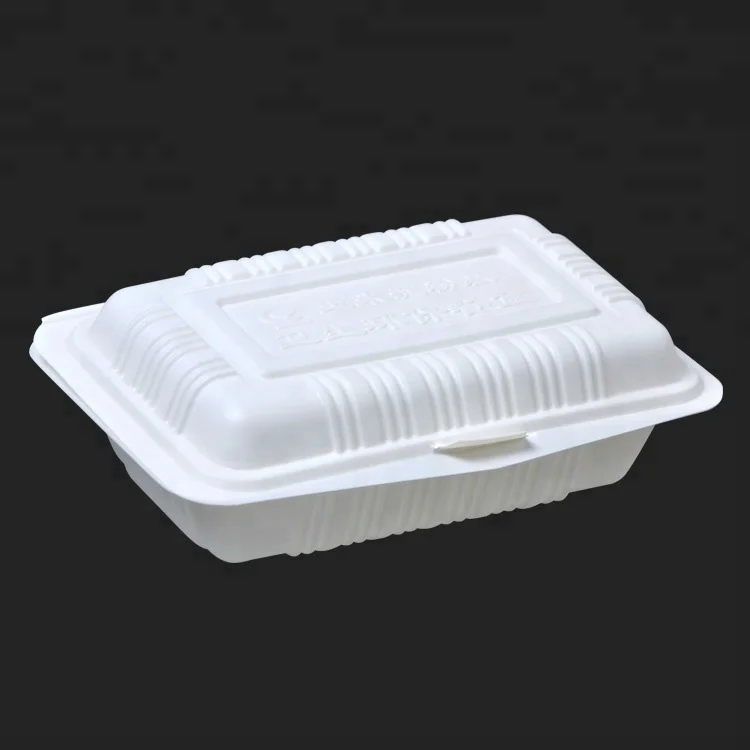

Machine Application



PARTNER



Packing & Delivery

a. delivery time: about   3  months;

b. packing: use the protective film to wrap the finished machine; and then put the wrapped machine into wooden fumigation box.







Team & Service

a. Our professional sales team will reply you soon in 24 hours after having your enquiry.

b. Even if you are new in this field, Litai machinery will provide you a complete project proposal based on your request after checking your samples.

c. The up-to-date informaitionabout production progress will be sent to you after getting your order.

d. Lifelong technical support and best after-sales service will be offered to you. And if need, we can send the skillful engineer to your country for machine installation, commissing and training.

e. We promise one year's warranty. Any problems in quality, the free spare parts will be sent to you asap during the guaranty.









Exhibition& Clients



--Every year you will definitely see Litai Machinery at Chinaplas. Besides, we also often attend American NPE , Germany K-show, Dubai Arabplast etc.

--There are many customers from more than 79 countries and regions cooperating with us, including USA, Canada, Russia, South Korea, Turkey, Saudi Arabia, Chile, Brazil, Kuwait, Yemen, Peru and so on.













Company Profile



Rui'an Litai Machinery Co., Ltd.-founded in 2001, 19 years’ experience, CE & ISO certificated, business net with more than 79 countries.
---------------------------
Specializing in,
1. PP/PS/PET sheet extruder
2. Full automatic plastic thermoforming machine
3. Semi automatic vacuum forming machine
4. Auxiliary equipments, like cup printer, molds etc.
