Полностью автоматическая машина XY1080 для резки бумажных салфеток угловых
- Категория: Оборудование для производства бумаги >>>
- Поставщик: Zhejiang,New,Luolan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 48790.90 $* | 51230.14 $* |
| Aug-16-2025 | 48380.3 $* | 50799.32 $* |
| Jul-16-2025 | 40590.61 $* | 42620.31 $* |
| Jun-16-2025 | 47560.79 $* | 49938.48 $* |
| May-16-2025 | 41410.55 $* | 43481.73 $* |
| Apr-16-2025 | 46740.96 $* | 49077.16 $* |
| Mar-16-2025 | 46330.56 $* | 48647.92 $* |
| Feb-16-2025 | 45920.45 $* | 48216.33 $* |
| Jan-16-2025 | 45510.82 $* | 47786.2 $* |
Характеристики
1.Window Pasting Machine is applied for the pasting windows of all kinds of paper boxes, such as wine box, present box, toilet box, cosmetic box, childrens’s toy box and milk boxes.
2.The machine is with all features, like auto-feeding paper, accurate positioning, auto-gluing, auto-cut the length of the film and the pressure transmission and input, With its powerful features and excellent stability.
3.The machine is convenient to be adjusted, With the high efficency, the machine is the ideal equipment for window filming for all kinds of paper boxes.
Main Parameters
1.Model/Parameter | GK-650T | GK-1080T |
2.Max Paper | 650×630mm | 1080×650mm |
3.Min Paper | 300×200mm | 140×140mm |
4.Max Film | 300×260mm | 410×300mm |
5.Min Film | 80×30mm | 80×60mm |
6.Film Thickness | 0.05-0.25mm | 0.05-0.20mm |
7.Max Speed | 12000-20000 | 6000-12000 |
8.Applied Paper | 200-1000g | 200-500g |
9.Applied Corrugated paper | ≤7mm | ≤7mm |
10.Total Power | 4.4kw | 9kw |
11.Machine Weight | 2000kg | 3000kg |
12.Dimensions | 5000×1960×1750mm | 5000×1960×1750mm |
Electrical Component
1. Intermediate Relay : Schneider(France)
2. Breaker : Schneider(France)
3. Photoelectric Switch : BaiDeLi
4. Bearing(Main Parts) : HaErBin
5. Frequency Converter : Rexroth (France)
6. Servo Motor/Driver : DongYuan (Taiwan)
7. Three Phase Motor : ZhongLong Zhejiang)
8. Rubber Roller Motor : WeiTeWei (Beijing)
9. PLC: YongHong (Zhejiang)
10. Switched-mode power supply : MingWei (Taiwan)
Product Components

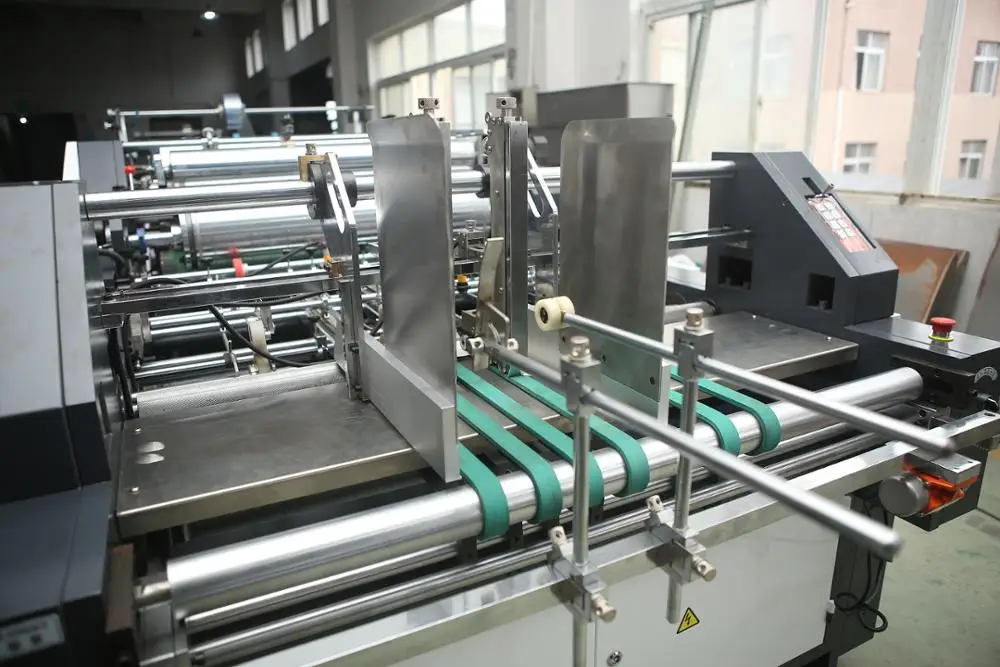

 | Feeding Parts 1.The paper feeder parts is controller by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding. 2.the belts operate long life ,process the paper products to the conveying parts steady and orderly. 3.Perfect for the cardboard and corrugated. |

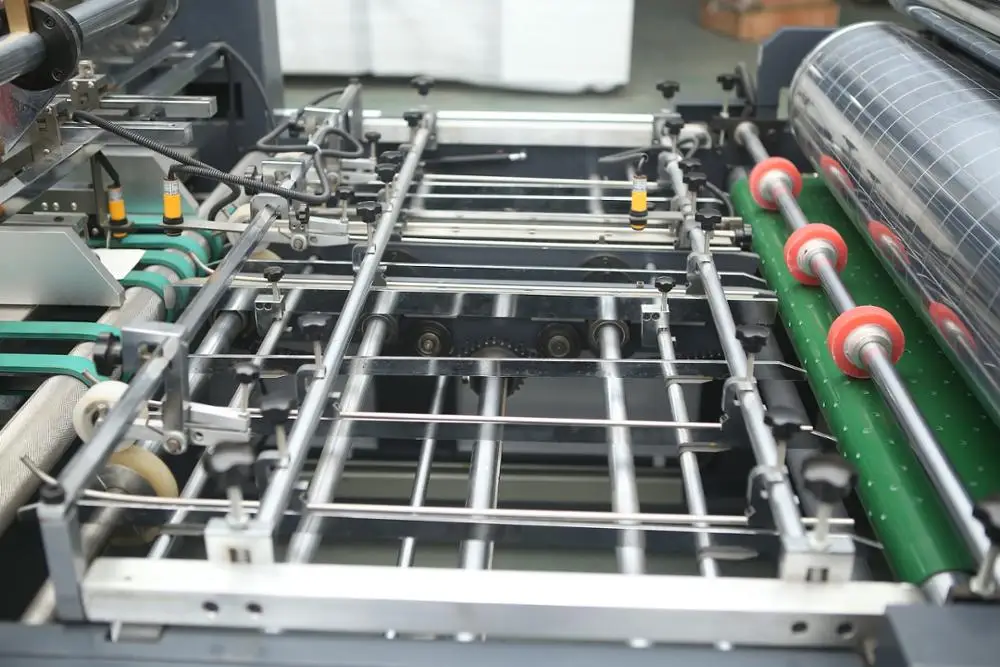

Conveying Parts 1.The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape. 2.It is equipped with the 4 photo sensor, detect the paper reaching condition, counting , paper jammed detection. |  |
 | Gluing Parts 1.The gluing parts adopt the adjustable parts gluing structure , it is convenient for adjustable according to the paper requirement and the gluing position ,save the gluing quantity, it is easy for pulling out the gluing parts ,convenient for washing. 2.The gluing roller stopped the gluing when stopped the machine.And the conveying parts dropped automatically, the gluing is not easy to print on the conveyor belts. 2.Double gluing system. |

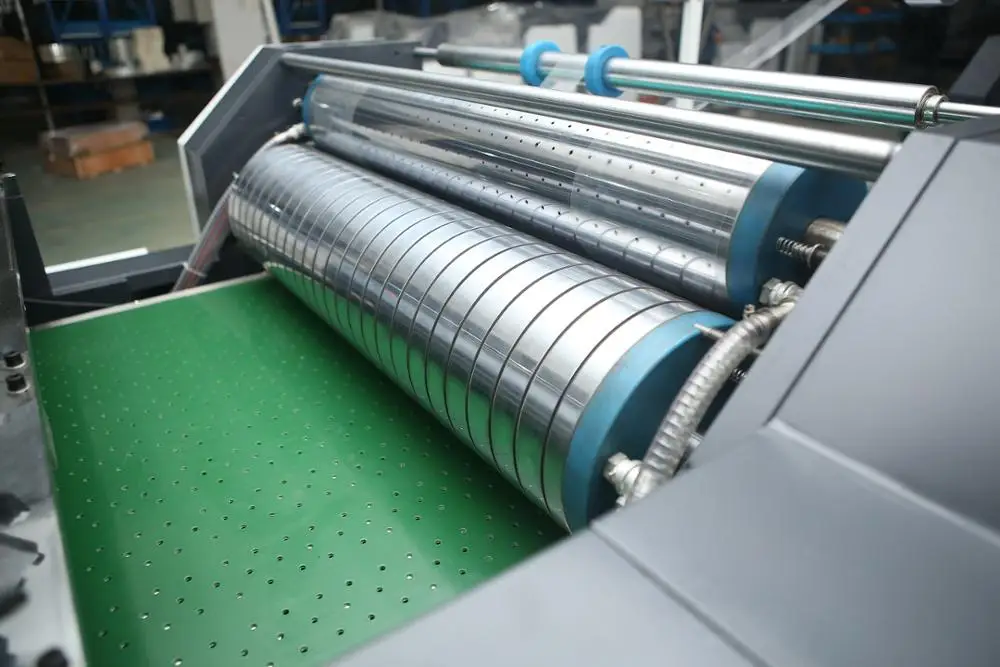

Gluing System 1.The upper roller is the cutting film roller with the two blade ,one the upper blade ,the other is the lower blade, finishing the cutting of the film. 2.The below roller is the suction roller ,the film is patched on the suction roller. 3.Servo film adjustment. |  |
 | Paper Delivery parts 1.The patching products conveying to the paper delivery plate, finish the paper accumulation and collection. 2.Paper delivery parts can be adjust single. |
Related Products
Different Folder Gluer Available as below:
| folder gluer | folding gluing machine | window patching machine |
| folder gluer machine | folding and gluing machine | box making machine |
| automatic folder gluer | used folding gluing machine | paper box making machine |
| automatic folder gluer machine | paper bag folding gluing machine | making machine |
| folder gluer machine spare parts | automatic folding carton box gluing machine | cardboard box making machine |
| flexo folder gluer | carton folding and gluing machine | sweet box making machine |
| 4 6 corner automatic folder gluer machine | paper folding gluing machine | paper box machine |
| carton box folder gluer | automatic mini box folding gluing machine | corrugated box making machine |
| small box folder gluer | corrugated box folding gluing machine | corner pasting machine |
| carton folder gluer | box gluing machine | folding carton box gluing machine |
| lock bottom folder gluer | Gluing machine | folding machine |
FAQ
1. What is the machine warranty?
one year.
2. Does your machine with CE certificate?
Yes, it does
3. What is the production time while placing order?
About 30 days
4. What is the delivery time?
Within 30 days after get the payment.
5. Can your company handle shipping for customers?
Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6. Does the packing strong?
Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7. How about after-sales service process?
When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8. Are you manufacturer?
Yes, we are manufacturer with 10-year experience and profession.
9. Do you have stock product to sell?
Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10. Do you inspect the finished products?
Yes, we have QC department, they will inspection the machine before shipping to ensure there is nothing problem of the machine .
11. What's the payment term?
T/T 30% in advance,the balance paid before delivery.We also accept payment via West Union and L/C.
We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
