Миниатюрная машинка для измельчения кукурузы/маленькая кукурузы/машинка пшеничного
- Категория: Grain Processing Machinery >>>
- Поставщик: Henan,Lima,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.52 $* | 0.51 $* |
| Aug-19-2025 | 0.40 $* | 0.41 $* |
| Jul-19-2025 | 0.50 $* | 0.38 $* |
| Jun-19-2025 | 0.55 $* | 0.72 $* |
| May-19-2025 | 0.81 $* | 0.23 $* |
| Apr-19-2025 | 0.51 $* | 0.77 $* |
| Mar-19-2025 | 0.80 $* | 0.94 $* |
| Feb-19-2025 | 0.69 $* | 0.24 $* |
| Jan-19-2025 | 0.28 $* | 0.76 $* |
Характеристики
Product Description
This machine has the characteristics of simple structure, convenient installation, operation and maintenance, and wide range of use. It is suitable for crushing corn, wheat, beans, coarse cereals, straws, vines, dry and fresh potatoes, leaf shells and other food and feed. It can also crush low hardness minerals such as gypsum, lead powder, slippery powder, rare earth, chemical industry, clay, coal and other low hardness minerals, as well as a variety of traditional Chinese medicine.

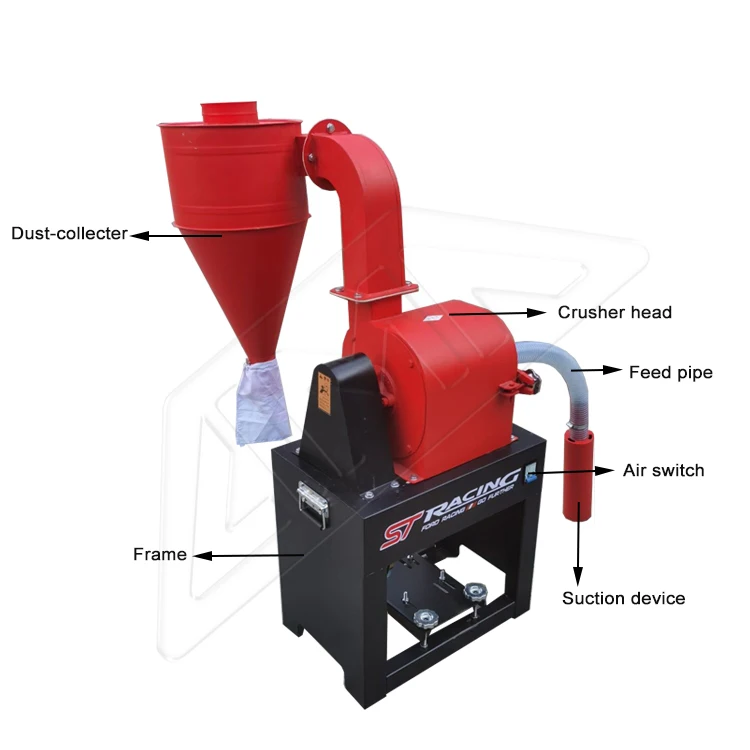

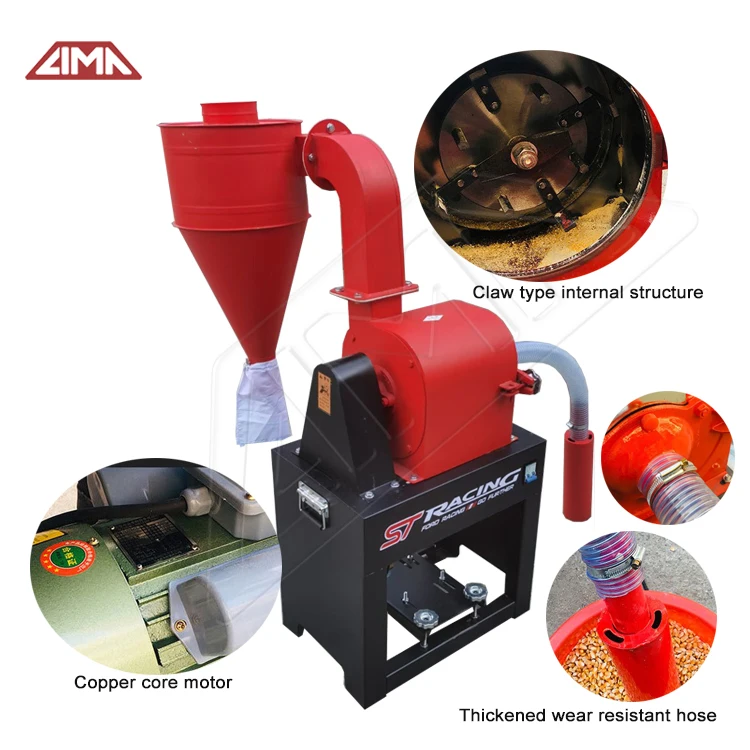

The crusher is composed of the main grinding machine, cyclone separator, dust box and induced draft fan. The machine adopts movable gear plate and fixed gear ring, and the screen ring material is wide in the impact shear and friction. At the same time, when the movable gear plate rotates at a high speed, a strong air flow is generated, and the heat of the crushing chamber and the material flow out quickly from the screen. The control of particle size can be determined by changing the screen, and the material can be recovered by one or two stages without dust. The whole machine is made of high quality cast iron. The gear disc crusher has the advantages of small volume, low energy consumption, stable transmission, low noise, high sealing degree, and convenient disassembly, maintenance and replacement of parts.
The crusher is composed of the main grinding machine, cyclone separator, dust box and induced draft fan. The machine adopts movable gear plate and fixed gear ring, and the screen ring material is wide in the impact shear and friction. At the same time, when the movable gear plate rotates at a high speed, a strong air flow is generated, and the heat of the crushing chamber and the material flow out quickly from the screen. The control of particle size can be determined by changing the screen, and the material can be recovered by one or two stages without dust. The whole machine is made of high quality cast iron. The gear disc crusher has the advantages of small volume, low energy consumption, stable transmission, low noise, high sealing degree, and convenient disassembly, maintenance and replacement of parts.
Type | Capacity(kg) | Mesh size(mm) | Power(kw) | Size(cm) | Weight(kg) |
23 | 0.8-3 | 4.5kw | 250-500 | 100*46*145 | 70 |
29 | 0.8-3 | 5kw | 250-600 | 110*85*185 | 85 |
35 | 0.8-3 | 15kw | 500-800 | 130*100*200 | 150 |
Recommend Products
Company Profile
Henan LIMA Machinery Manufactory Co. LTD.
We are a professional company in design and research, manufactory, sales, and service on Agriculture Machinery, Feed Machinery, in
the manufacturing process, we adopt integrated quality control and have passed ISO9001 international authentication. We adopt
world-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the
Agriculture Machinery and Feed Machinery.LIMA-MACHINE are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas. Europe technology, perfect performance. LIMA-MACHINE is your reliable mechanical supplier.
the manufacturing process, we adopt integrated quality control and have passed ISO9001 international authentication. We adopt
world-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the
Agriculture Machinery and Feed Machinery.LIMA-MACHINE are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas. Europe technology, perfect performance. LIMA-MACHINE is your reliable mechanical supplier.
