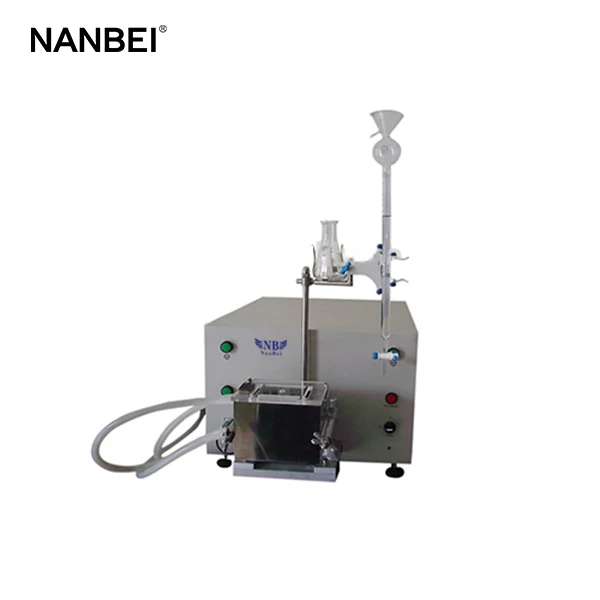

Wheat flour quality test farinogragh testing e-farinograph
Product Description
Work theory
Quantitative wheat flour add water and knead, drawn by the computer system was stirred resistance varies with time graph that is silty curve, stirring performance from the amount of water and recording silty curve formation time flour water absorption of wheat and evaluation of mixing the dough when stable time, degree of softening and other properties to evaluate the strength of flours.
Advanced technology features
1. Free-switchhing kneading bowl. 300g and 50g dough bowl casual exchange program identifies mortar type and automatically call the appropriate program, without operator selection.
2.Over-load protection. Alarm when stirring torque is too large and shutdown, protect equipment and personnel safety.
3. One key automatic water adding system, button controls burette add water, instead of hand pressing the rubber ball, saving time and efficient.
4. Display up to 12 silty map, facilitate comparison its nuances.
5. Save analysis results Access database format, access convenient.
6. Multiple security measures. Two-button start, stop openings.
7. Smart sensing instrument action program to automatically start Drawing.
Kneading bowl
300g and 50g dough bowl two models for users to choose, freely interchangeable, consistent results, value through unique technology ------ farinograph dough bowl random change, the program correctly identify the model and call the appropriate mortar program, simple and efficient.
A..300g Kneading bowl.
1.Used for standard farinograph experient,meet standard GB/T14614 and ISO5530-1.
2. Tensile test for the dough making dough.
3. Removable stirring blades for easy cleaning
B.50g Kneading bowl.
1.Used for standard farinograph experient,meet standard GB/T14614 and ISO5530-1.
2. Removable stirring blades for easy cleaning
Farinograph curve and parameter
Typical applications :
1. Evaluation of absorption capacity flour
2. By detecting the dough rheological properties, evaluation flours strength (forming time, stability time, degree of softening, silty mass index)
3. To determine the appropriate use and quality of wheat flour.
4. Flour milling process of wheat flour quality monitoring and control
5. Food Factory flour quality control, to determine a reasonable production process.
6.Also suitable for rye flour or other special industries such as chocolate, chewing gum, etc.
Typical farinograph curve
Farinograph result
| Water absorption(ml/100g) | Forming time(min) | Stability time(min) | Soften degree(FU) | Farinograph quality index | |
| High-gluten flour | 63.5 | 7.0 | 12.5 | 54 | 125 |
| Low-gluten flour | 59 | 3.0 | 3.6 | 145 | 46 |
Technical parameter
| Model | JFZD300 |
| Motor power | 0.2Kw |
| Power supply | AC220V,50Hz;AC380V,50Hz |
| Sample quantity | 300g ;50g |
| PC connection interface | USB |
| Torque testing | E-torque sensor |
| Accuracy | ≤0.5% of total range |
| Main doughing cutter speed | 63±2r/m |
| Sub doughing cutter speed | 94.5±3r/m |
| Coordinate scale | X:0-20min,Y:0—1000FU |
| X Coordinate speed | 10mm/min |
| Torque unit | 300g :9.8 mN·m/FU 50g:1.96 mN·m/FU |
| Dimension/Weight | L95 W53 H62cm, weight : 75kg (300g bowl) / 70Kg(50g bowl) |
Packaging & Shipping
Package : Wooden case
Shipping : 5~7days after payment
Our Services
Pre-sale service
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
3. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package. If product broken during transportation,we will replace you new.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, our techincal engineer also can supply phone,vedio guidance. If need,we will supply oversea service on site.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty and whole life maintenance.
