Машина для обработки жвачки Арабская машина

Описание и отзывы

Трекер стоимости

Характеристики

1) mill part

2) cyclone (discharge system)

3) dust collect system

4) blower



Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.

The production process is dust-free and continuous. BSDF gum arabic processing machine is suitable for grinding arabic gum, spices, like ginger, garlic, chilli...etc.





TECHNICAL DATA OF GUM ARABIC PROCESSING MACHINE
Model	BSDF-750	BSDF-650	BSDF-550	BSDF-450
rotor speed (rpm)	2100-2700	2400-3100	2900-3600	3300-4200
hammer knife qty (piece)	136	112	80	80
grind motor (kw)	75	55	45	37
discharge motor (kw)	1.5	1.1	1.1	0.75
blower (kw)	22	18.5	18.5	15
grind fineness (mesh)	20-120	20-120	20-120	20-120
capacity (kg/hr)	800-1300	600-900	400-800	300-500

 Main Features for gum arabic processing machine

1) No need screen or sieve in mill chamber, change powder particle size by changing speed;



2) Because it has no screen in mill chamber, when milling, there is no heat rising in mill chamber;

No need to worry powder get stuck in the screens or product quality get affected by the heat from  the mill.

That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.

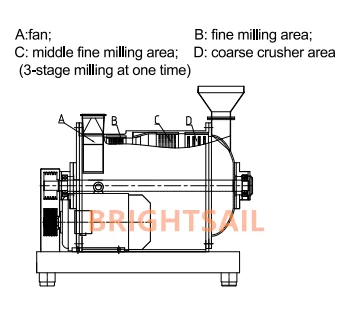

3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.



4) It can save more power, its capacity is much bigger than other same motor traditional mill.

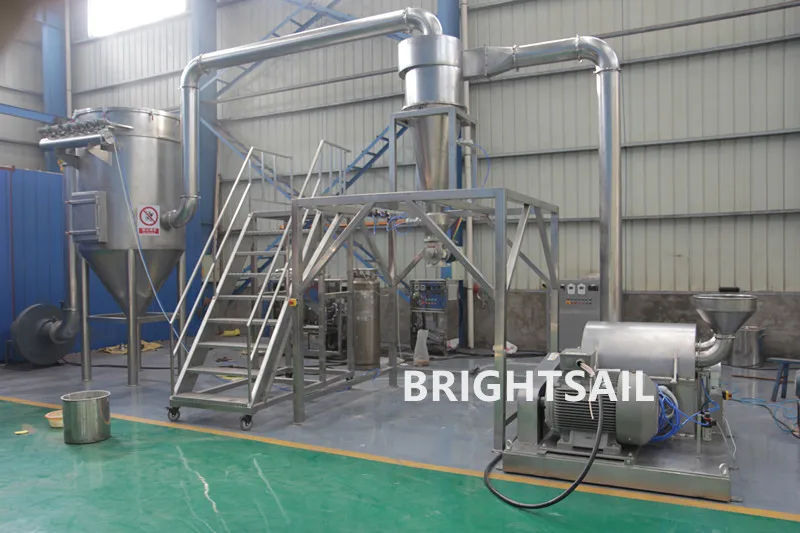

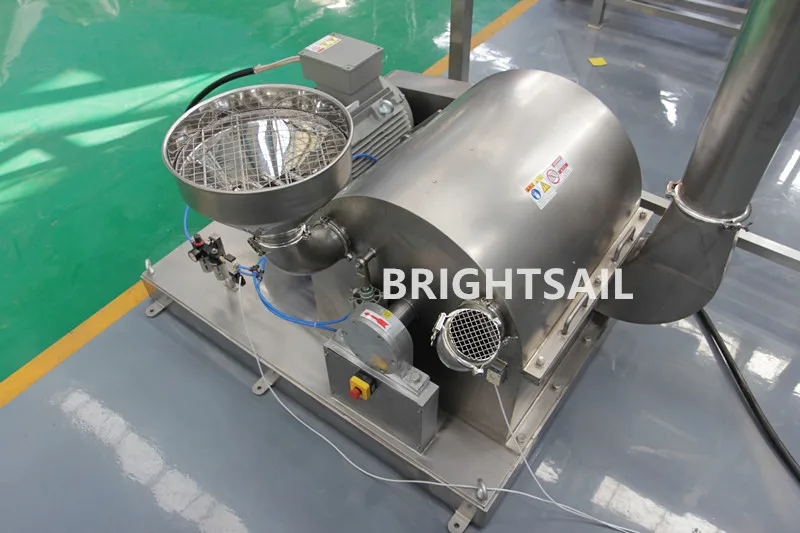

Detailed Images for gum arabic processing machine



Applications for gum arabic processing machine

*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.

*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
