Автоматическая Машина Для Маркировки коробок из гофрированного


Поделиться:


Цена:7 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 8330.32 $* 8747.75 $*
Aug-16-2025 8260.28 $* 8673.58 $*
Jul-16-2025 6930.85 $* 7277.64 $*
Jun-16-2025 8120.17 $* 8526.45 $*
May-16-2025 7070.30 $* 7424.52 $*
Apr-16-2025 7980.27 $* 8379.68 $*
Mar-16-2025 7910.59 $* 8306.43 $*
Feb-16-2025 7840.82 $* 8232.73 $*
Jan-16-2025 7770.91 $* 8159.54 $*

Характеристики



SKILT Partner




Product Description


1. The Scope of Application

The model DPM-A Top labeling machine suit for different kind products that need labeling on top surface or on the corner, such as box, carton, bags and so on.





2. Device Characteristic

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.



Technical Parameter


Model
DPM-A
Capacity (pcs/min)
20-200
Driving Mode
Servo motor
Labeling accuracy
±1mm
Labeling Speed(m/min)
≤35
Label Specification
adhesive sticker, transparent or opaque
Suit bottle size
Can customized
Suit label size
Height 20-160mm Length 25-300mm
The inner diameter or label roll
76mm(min)
The outer diameter of label roll
350mm(max)
Power
550w
Voltage
can customized, 110V/220V/380V
Machine size
1800x80x1500mm
voltage
110v/220v/380v


No
Name
Model
Unit
Brand
1
PLC control system
288-1ST20-OAAO
1Set
SIEMENS
2
Touch-screen
648-OCC11-3AXO
1Set
SIEMENS
3
Photoelectric sensor (Check object)
FS-N18N
1Set
Japan KEYENCE
4
Photoelectric sensor (Check opaque label)
GS61/6.2
1Set
German Leuze
Photoelectric sensor
(Check transparent and opaque label)
GSU 14B/66.3-S12
1 set
German Leuze
6
Main transport motor
90YS90DV22
1Set
German JSCC
7
Speed Controller
25-90W
1Set
German JSCC

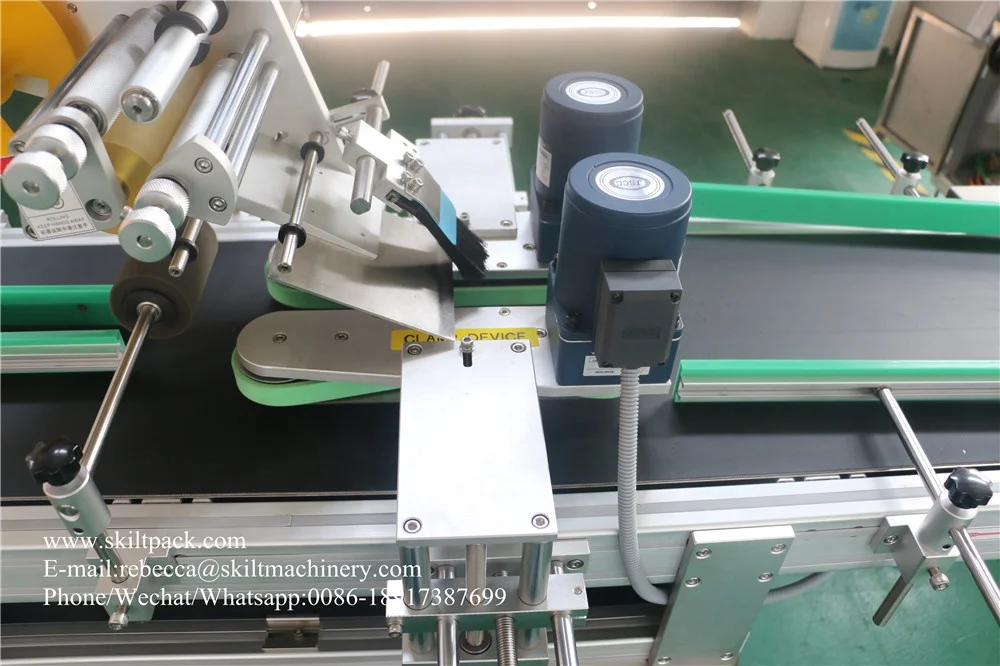

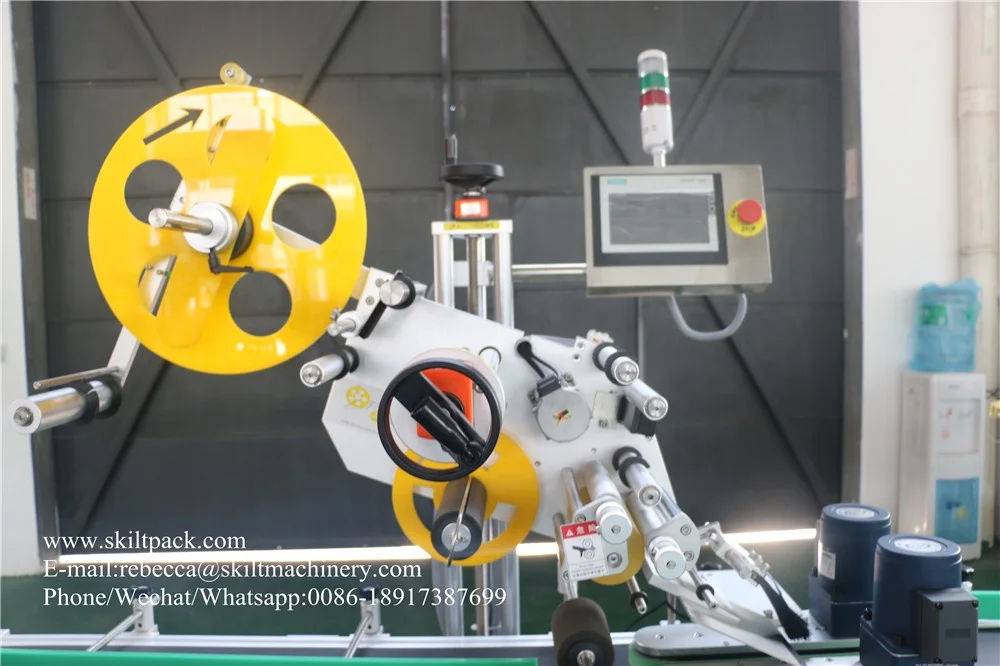

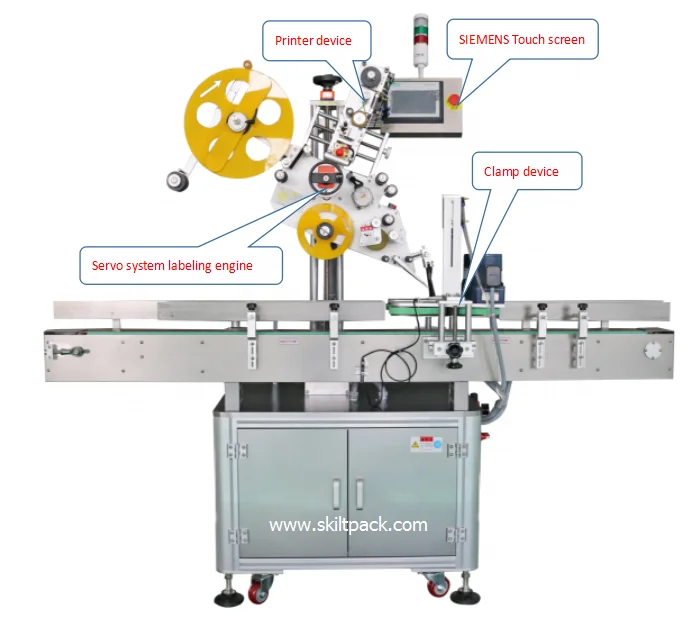

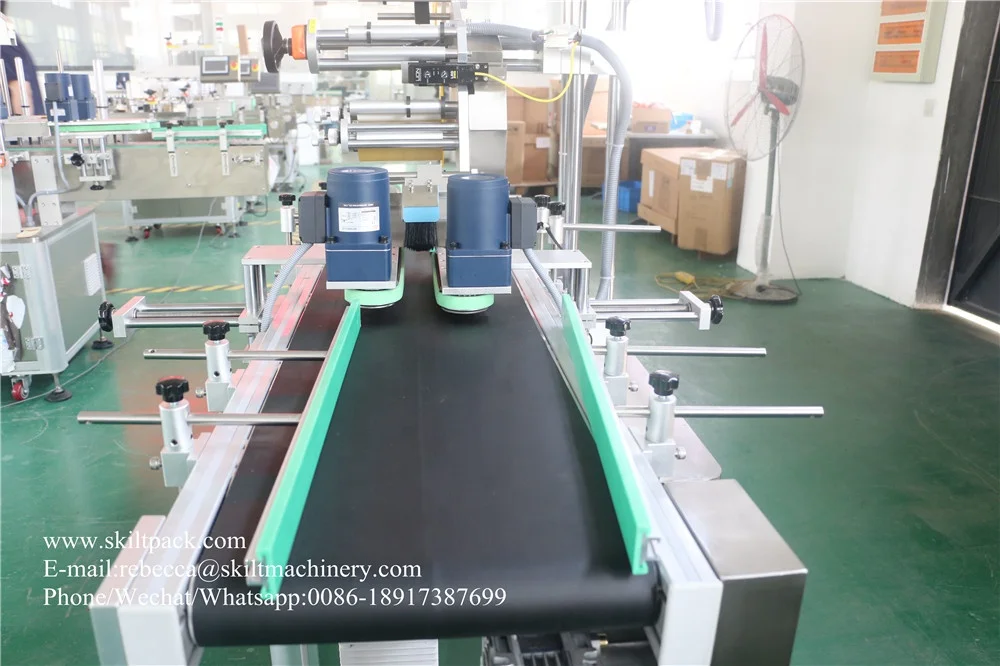

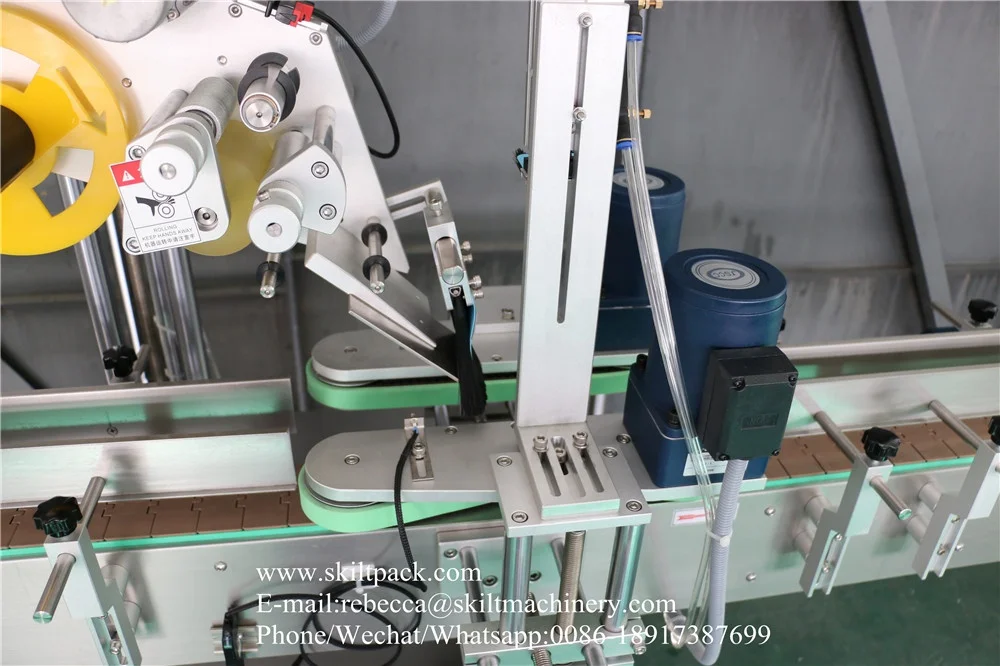

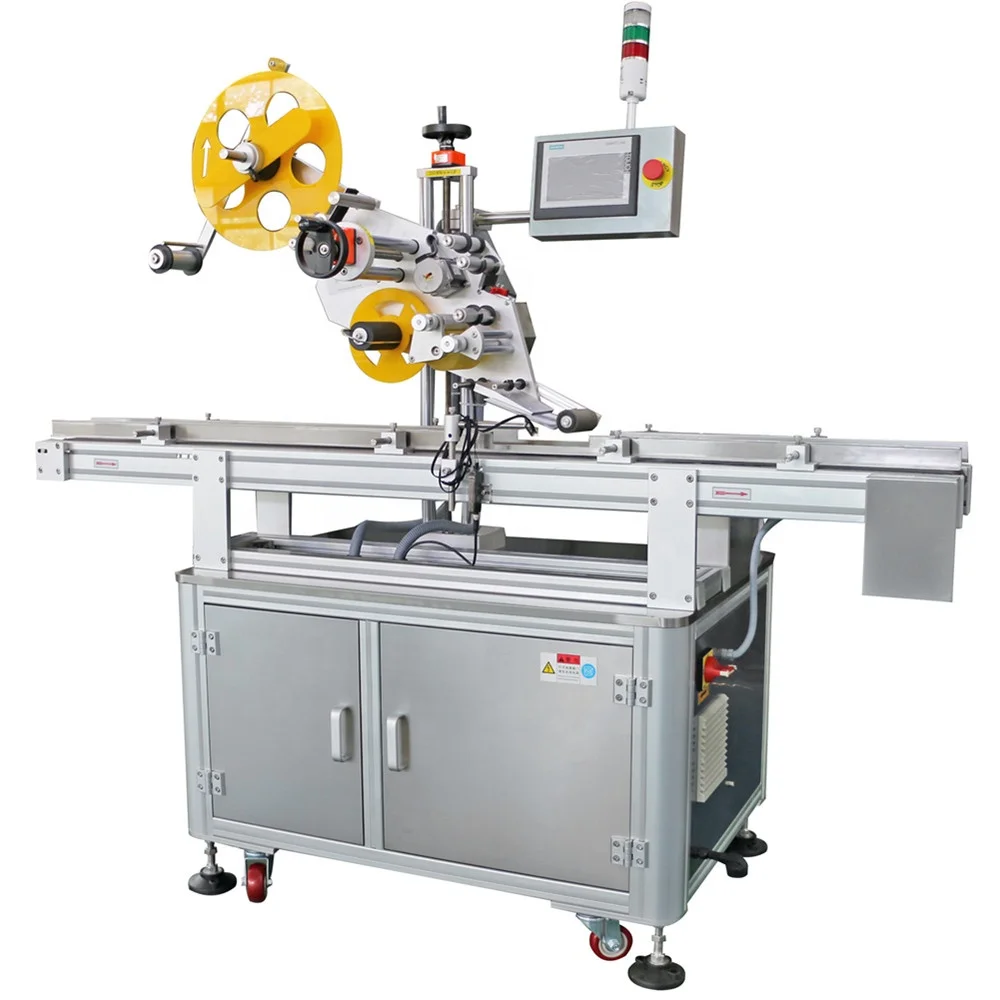

Detailed Images














Machine Processing




SKILT Team




FAQ


1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .





Contacts


winnie zhang


Phone/ skype/whatsapp:0086-18715152784


Wechat: young5028


www.skiltpack.com


www.skiltmachine.com
