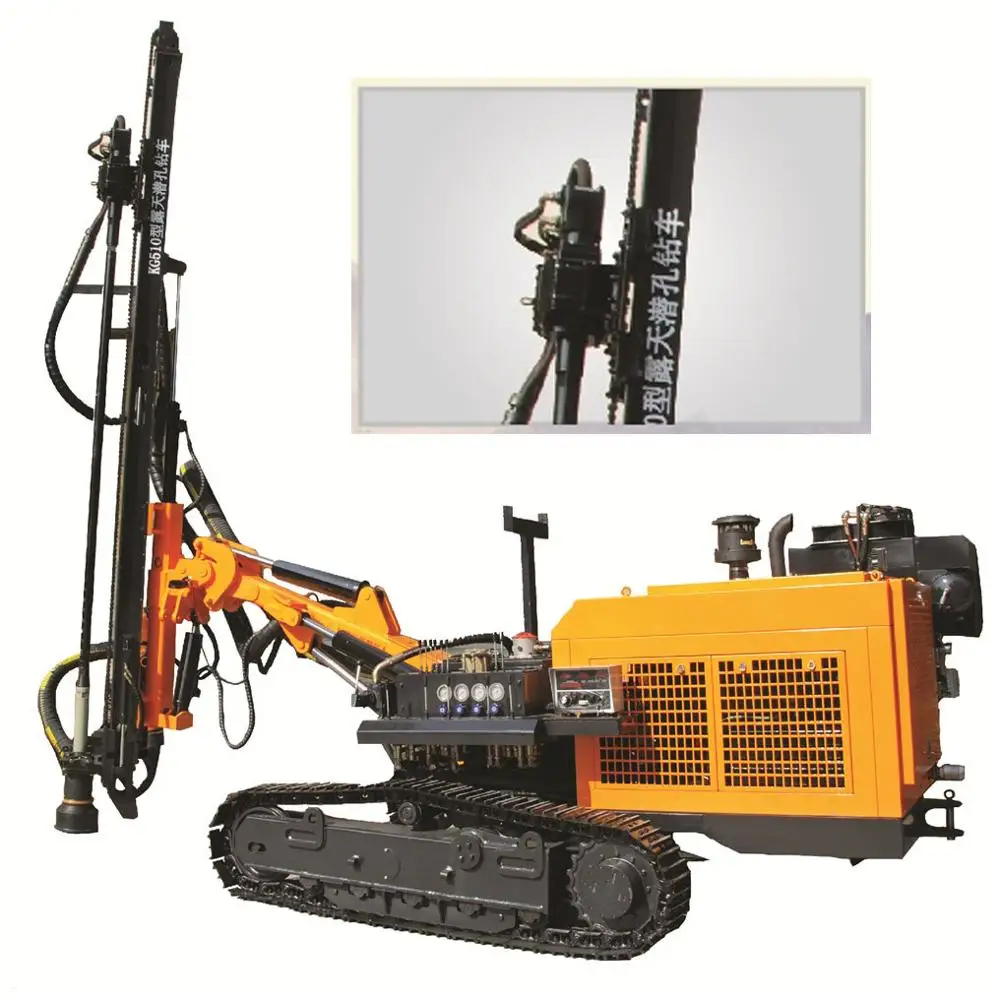

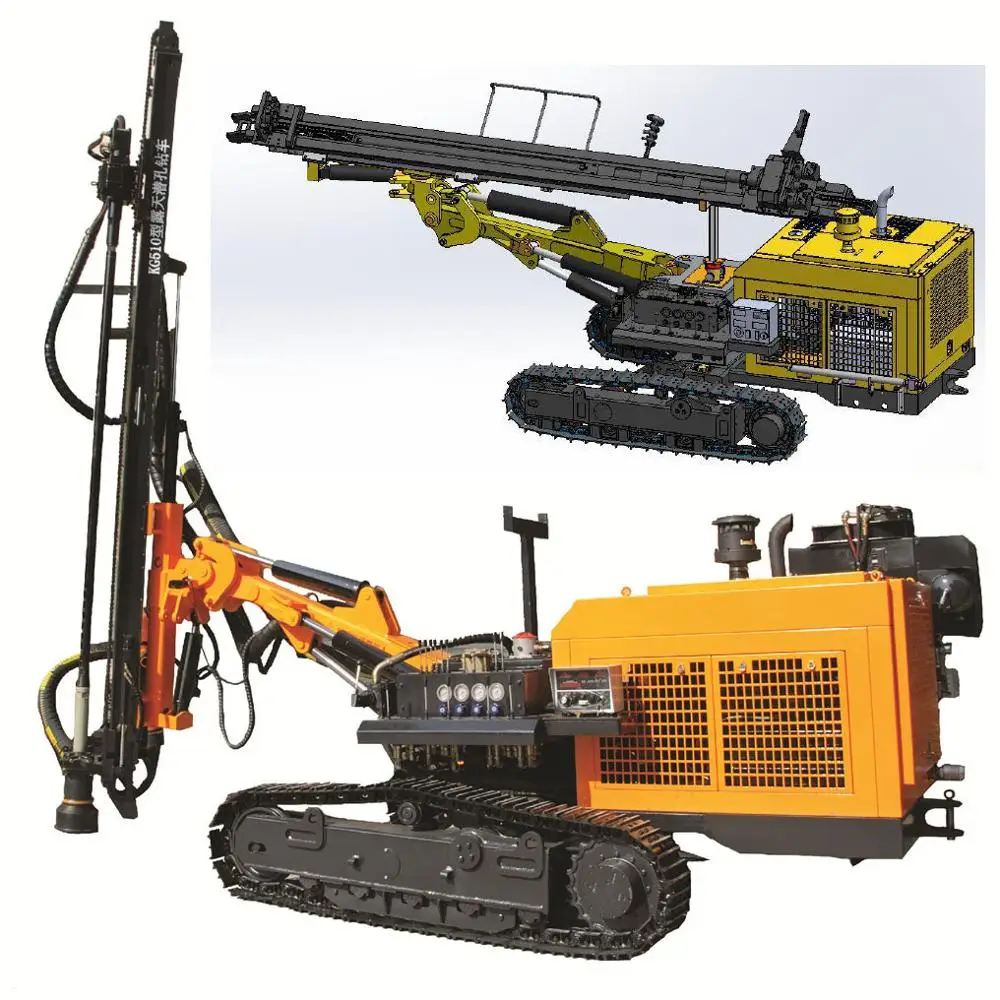

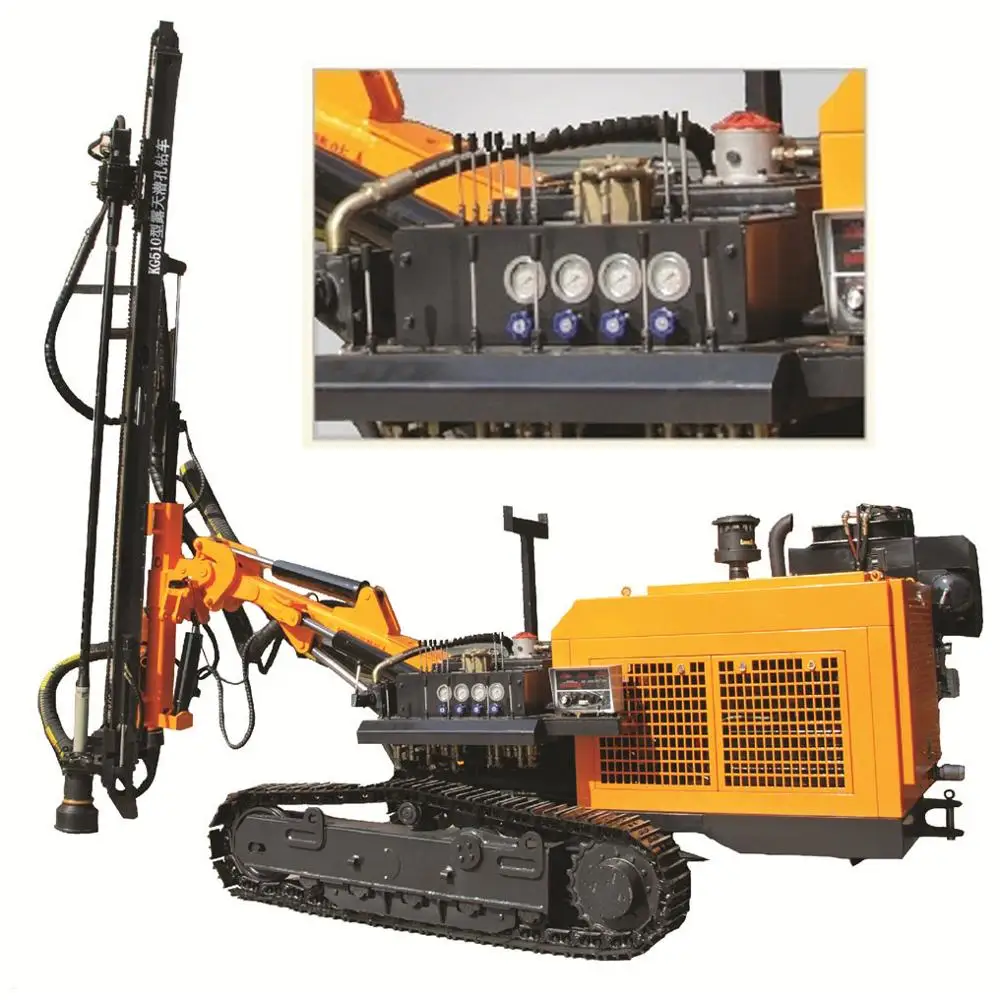

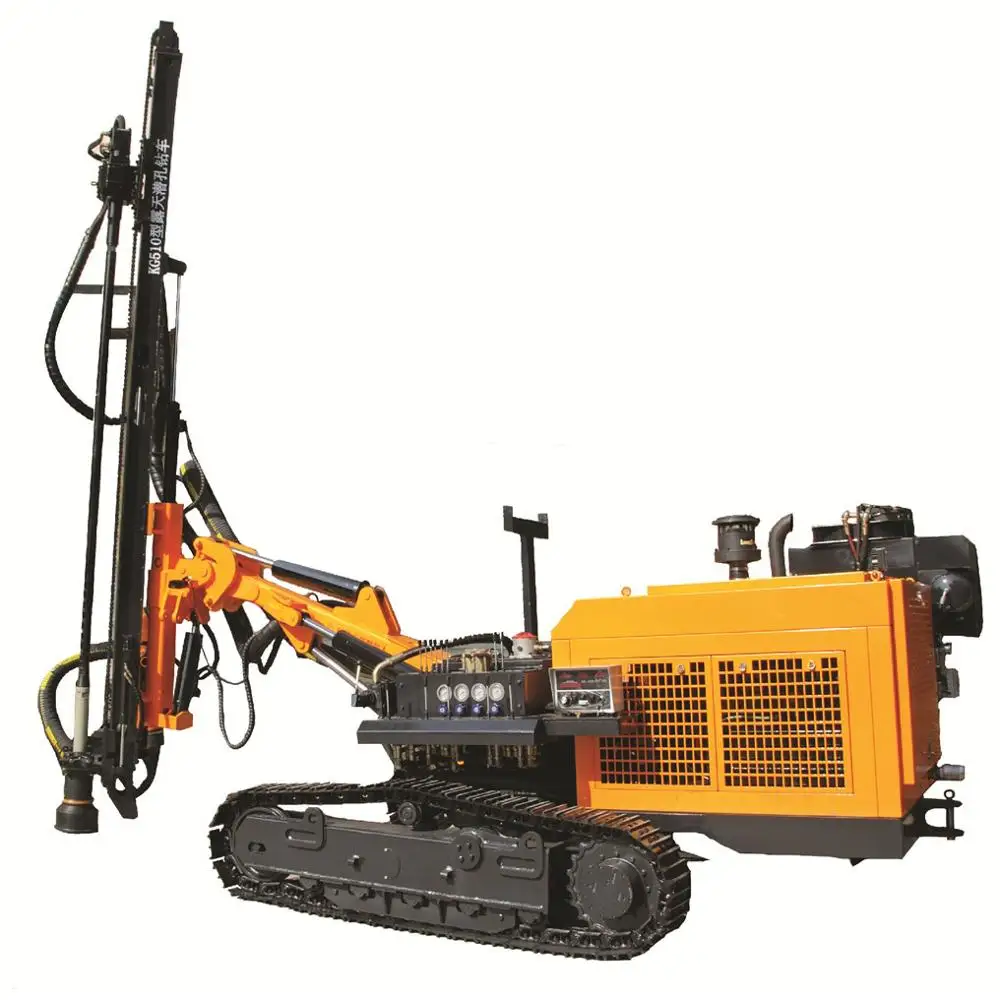

KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price

KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price





KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price

Main Benefits
• High productivity thanks to the robust and powerful feeding system
• Availability and serviceability due to high degree of parts commonality
• Durability based on proven mining design

KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



Quick Facts
Selection of Options
Main Application: Limestone quarries Construction Aggregate quarries Surface mining
Drilling Method: Down-the-hole
DTH Hammer: TH55
Drill Steel: 3m
Hole Diameter: 105-152 mm
Maximum Hole Depth: 25 m
Engine Power: Rating at 2200 rpm 58 kW



KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



Application of KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price

The KG510 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment.

The folding frame track, four-wheel drive and the tramming motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on limiting position. The double rotation motor increases the rotary toque and revolving speed, and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability.

The dust collector is enlarged to produced to produce a better effect on dust collection. The thickened profile folder is used for housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.







KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price

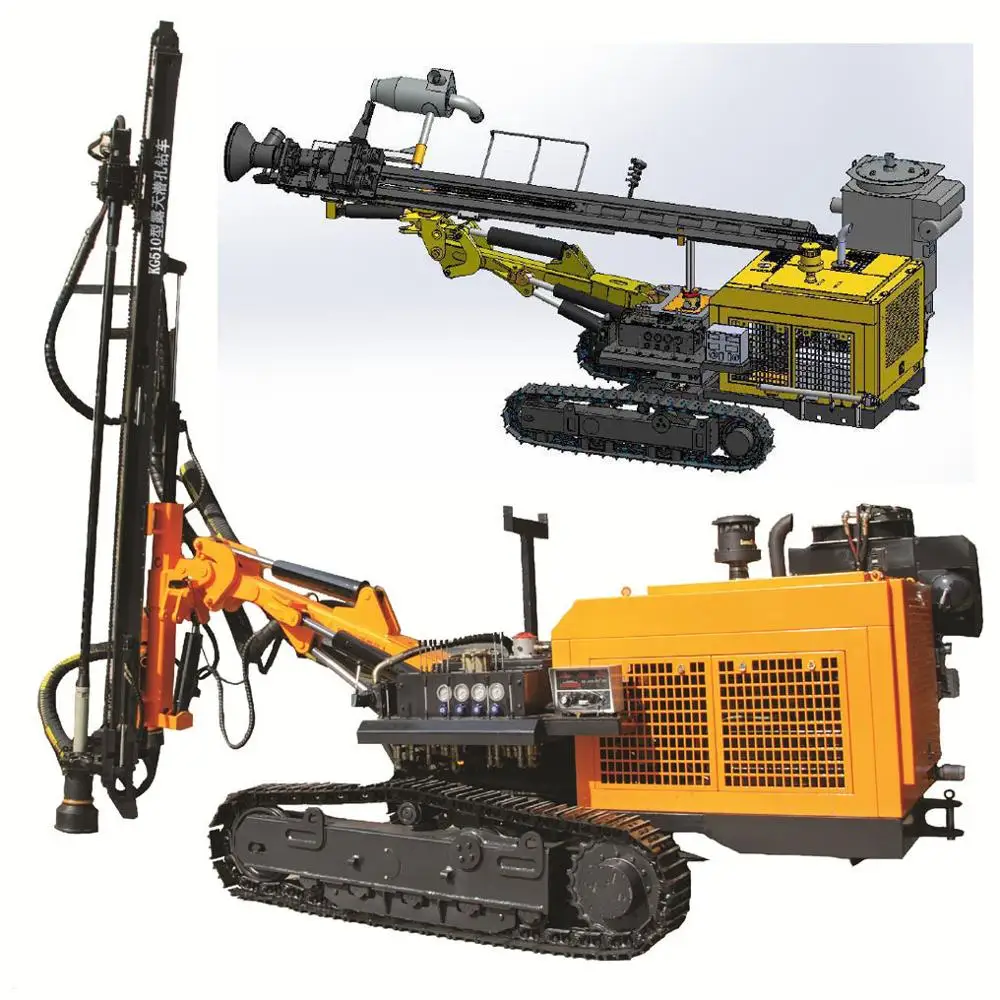

The KG510H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environmental-friendly and reliable.

KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



Technicap parameters of KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



Model	KG510	KG510H
Weight	6500kg	7000kg
Size of drill machine	6800X2200X2850mm	6800X2450X2850mm
Rock rigidity	f=6-20
Diameter of hole	Φ105-152mm
Depth of economical drilling	25m
Rotation speed	0-100r/min
Rotation torque	3000N·m
Lift power	40000N
Feed way	oil cylinder-chain
Feed distance	3000mm
Walk speed	0-3.5Km/h
Grade ability	30°
Ground clearance	440mm
Pitch angle of beam	Blow 135°,up50°, total 185°
Swing angle of beam	Left50°,right50°,total 100°
Pitch angle of drill arm	Blow 55°,up25°, total 75°
Swing angle of drill arm	Left45°,right45°,total 90°
Leveling angle of track	±10°
Compensation length of beam	900mm
Power	YC4DKC4G2-80 (58KW/2200r/min)
Drill pipe	76X3000mm
Air consumption	13-22m³/min
Max height of horizontal hole	2850mm
Min height of horizontal hole	900mm



KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



Recommended air compressor

Recommended air compressor

LGCY-13/13  LGCY-15/13  LGCY-13/17



KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price





Main configuration information of KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price

Spare parts	Information and technical parameters	remark
Drill pipe	76*2m / 76*3m	1+6=7 pcs
Drill hammer	45A	1 pc
Drill bit	115mm	1 pc
Power parts	GIII 4DKC4G 2-80, 58KW / 2200r/min	Transfer case output
Travel part	Motor 2000 Engineering crawler plate Folding crawler frame With Leveling	Width of crawler254, Section distance 135 Travel pressure 16MPa Two-speed travel motor, fast walking 3.5 km/h (Optional)
Power output	Gear pump, 2-CBTD-F432-ALHL, transfer box output, CBW-F310-CLHL, Power take-off position output	3 pcs, for propulsion and rotation
Gyrator	Motor BM4-500 Rotation torque 3000N.m Rotation speed 90Rpm	Double motor + reducer, working pressure 14MPa.
Propulsion mechanism	Cylinder + plate chain Lifting force 40KN	Propulsion oil cylinder 90*80*55, working pressure 16MPa.
Dust collector	RDC-90 Dust collector motor discharge 5mm/r	KGH430H



KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



KG510 / KG510H Down The Hole Horizontal directional borehole drilling rig machine price



Our Services for Quality ensure!

We have special service team which will offer you professional guidance for surface stone drilling machine with air compressor:

1). Low maintenance cost, high efficiency. Minimize downtime of the equipment.
2). Planned maintenance budget. Maintenance plans are designed according to the customers' different requirements. Providing dedicated and experienced maintenance technicians.
3). Our sales team will response for your question within 24 hours (holidays excluded)
4). Technical support will be available in any time. Providing dedicated and experienced maintenance technicians.
5). Quality Control:
We have our own experienced QC
There will be strict inspection and testing for every order before shipping out.

6). After-sale Service:

Quality Guarantee: 12 months from delivery date (quick-wear part except)

For warranty repair/ replacement, user should send defective items back then supplier re-supplies the same to user within assurance period for free (user in charge of freight fee)



About KAISHAN company

Established in 1956, Specialized in this line more than 50 years.
National Free-inspection Product.
Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United Kingdom, United States, Japan, Germany etc.
Exported to Asia/South America/Mongolia/ Japan/ South-Africa etc. Have global customers.
Good service, competitive price, high quality, fast shipping and perfect after sale service.

Welcome to visit our factory and would like to start the cooperation with you in the near future.

Contact with me by whatsapp or skype to get price at once!!

My whatsapp number: +86-18838959574

Skype: lisa kaishan



FAQ
The information you may like to know before order:
1). Payment terms:
T/T 30% in advance, 70%T/T before delivery or against the copy of Bill of Lading.
2). Delivery time:
Within 10 working days after receiving your advanced payment
3). Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4). Packaging

Standard export wooden cases / Stretch film

5). HS CODE:
Air compressor: 8414809090
Drill rig: 8430310000

6). Certificate
